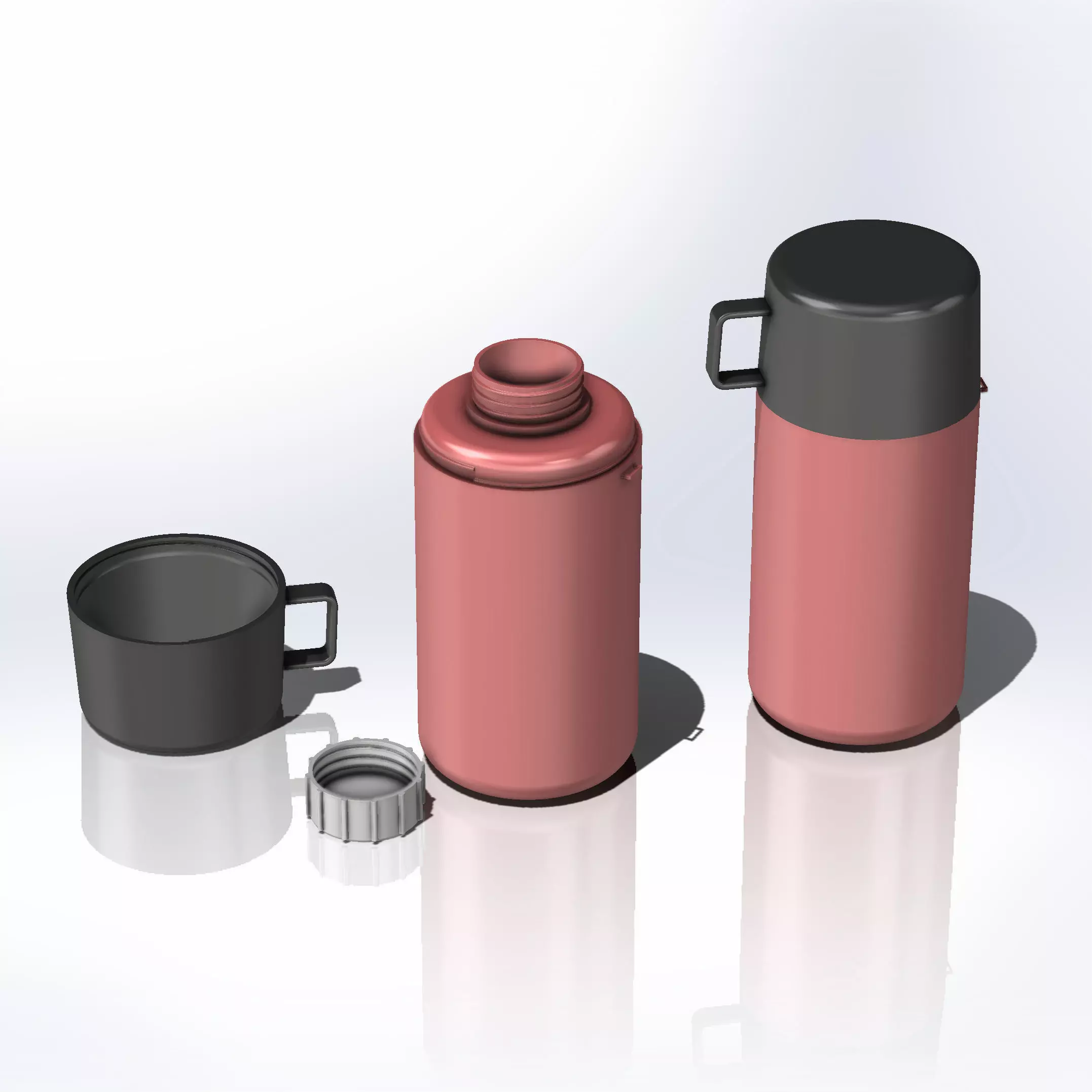

3D printable Water Bottle with separate print files for the Bottle, Cap and the Cup.
Dimensions (Bottle): 77.84 x 149.64 x 74.83 mm
Dimensions (Cap): 40.26 x 17.05 x 40.26 mm
Dimensions (Cup): 92.41 x 46.67 x 74.76 mm
Modeled and rendered in SolidWorks 2024.
Purpose: This water bottle is designed for personal use in various activities like traveling, hiking, or daily commuting, providing a convenient hydration solution. It can hold 500 ml of liquid.
Assembly Instructions: Print these three parts separately: bottle, cap and the cup. Threads are there for securing the cap and the cup on the bottle. Use a high-quality PLA or PETG for durability and safety. Layer Height: 0.2 mm or finer Infill: 15–25% For liquid use, apply a food-safe sealant or epoxy coating after printing.
In addition to the native SolidWorks Assembly File (.sldasm) and Part Files (.sldprt), following file formats of the model are included as well:
A 3D pdf file of the model is added as well. All of the above rendered images are included in a zip file.
If you want me to scale the model according to your dimensions or if you want any other changes, just send me a message. I can also make for you 3D models according to your requirements.
