Talon 1400-V2 - mounting ailerons on axles - 2024 3D print model

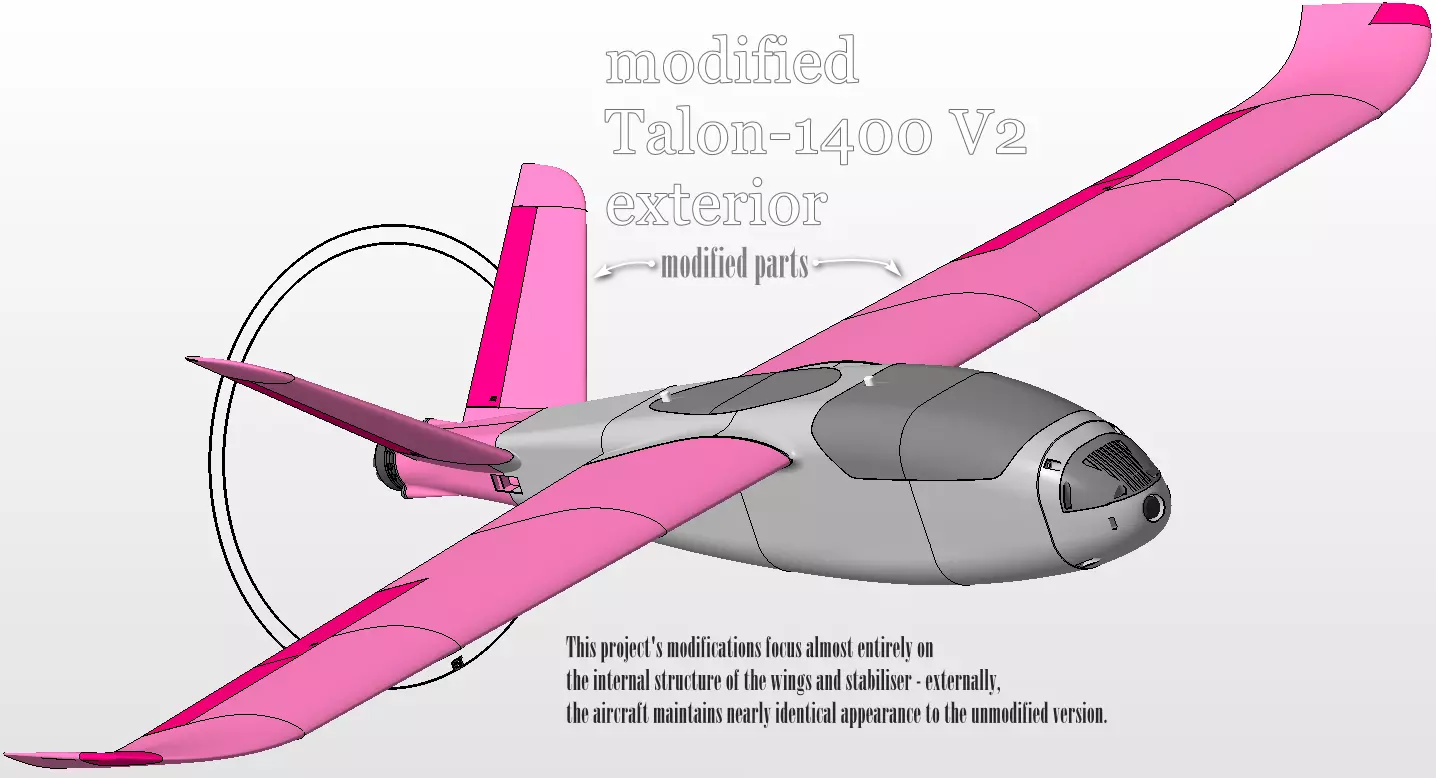

*Talon-1400 V2: mounting ailerons on axles (2024)*Modification of the wing and tail to replace the Titan-style control surfaces mounts.

The main spars is slightly shortened. (530 -> 500 mm)You can use modifiers for the wings to create a stiffer structure.

Bonus: LED tips mod adapted and included.

Carbon, changes:

[-] 2 x 10x530 main spar[+] 2 x 10x500 main spar[+] 2 x 4x300 aileron spar

[-] 4 x 4x175 vtail spar[+] 4 x 4x185 vtail spar

Mod for: flightory Talon-1400 V2

The fuselage component 'Fus5' required modification to accommodate the elevator pivot bore. All original printing variants of Fus5 (for different motor sizes and support configurations) remain available in this modified version's supplied files.

All wing and stabiliser components are supplied for the aircraft's left side only (left wing, left stabiliser fin, etc.). You'll need to create mirrored copies in your slicer to generate the corresponding right-side components. Important: Any wing reinforcement modifiers must also be mirrored accordingly.

The wingtip LED light modification is optional. The wire channel dimensions accommodate both the wiring and its end connector.

This project has been successfully printed by multiple users, with consistently positive feedback on its performance.

Please note: This project is a modification and provides only few newly created parts for the 'Talon-1400 aircraft. However, to complete the full assembly, you must purchase the Talon-1400 V2 separately from its author.

-

Explanation for those having trouble connecting modifiers. Modifiers are optional but recommended for achieving a stiffer wing structure, while adding almost no weight to the model. The modifiers are designed for Orca/Bambu slicers. To connect a modifier, switch to (Global->Objects) mode (see picture), then right-click the model, select Add modifier... Load... and choose the corresponding file. Then properly orient the model on the bed. Next, to create a mirrored part (right wing, for example), clone the model (right-click the model - Clone) and then mirror the part (right-click the model, Mirror... Along Y axis). The modifiers will be cloned and mirrored together with the part.Potential issue: The modifier may load beside the model on the virtual print bed rather than within model. This is a known compatibility quirk with certain Bambu slicer versions. Recommended solutions: try an alternative Bambu slicer version or use the latest Orca slicer build (recommended).
