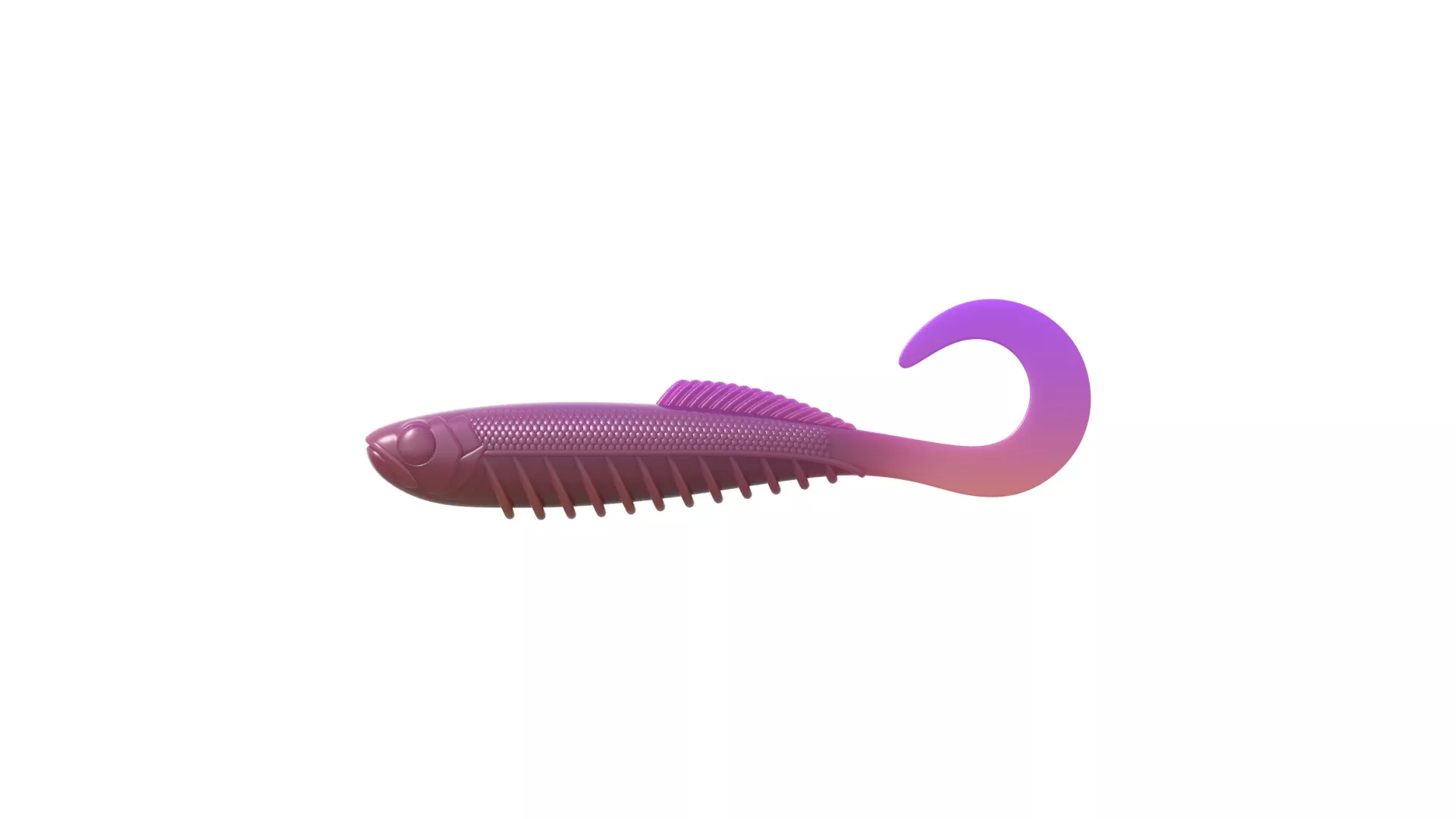

High-quality 3D model of a realistic Ribbed Minnow Curly Tail (140mm / 5.5") soft plastic fishing lure.
Designed as a master bait model specifically for lure builders, Plastisol injection mold designing, and CNC aluminum mold production.
REMINDER:This digital download includes ONLY the bait 3D model (Master Model). MOLD IS NOT INCLUDED.
Key Features:
-
Length: 140 mm (5.5 inches) — perfect size for Pike, Zander, Large Bass, and Big Perch.
-
Optimized for Injection Mold Design: Clean geometry suited for Boolean subtraction to create custom Plastisol injection molds.
-
Realistic Anatomical Details: Features detailed gill covers, scale texture along the upper body, pronounced dorsal fin, and molded eye details directly on the head structure.
-
Ribbed Belly Design: The lower deep ribs create extra vibrations/turbulence in the water to attract predatory fish.
-
Engineered in Fusion 360: Smooth curves and clean CAD surfaces optimized for precision 3D printing and CNC milling.
Included File Formats:
-
.STL (High-resolution mesh for 3D printing)
-
.STEP / .STP (CAD solid body for easy editing, scaling, or CNC mold machining)
-
.F3D (Native Autodesk Fusion 360 parametric file)
