Cosplay Phaser Rifle from Star Trek The Original series

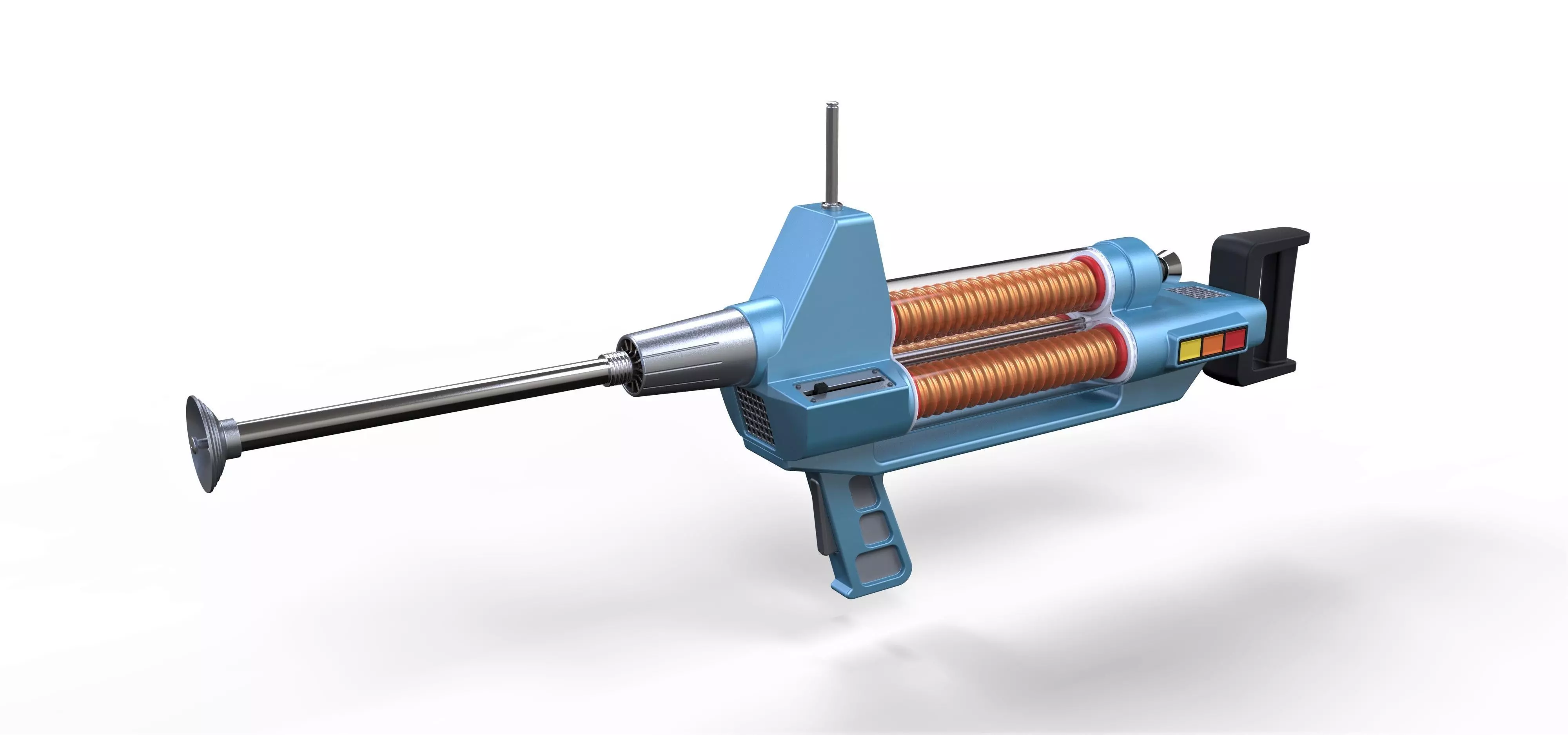

Cosplay Phaser Rifle from Star Trek The Original series 3D print model

Model dimensions:

  • length – 904 mm
  • height – 360 mm
  • width – 121.5 mm

The model consists of parts: barrel insert, barrel part 1, barrel part 2, barrel part 3, barrel part 4, body front part, body middle part, body rear part, chambers, emiter, front grid, front handle, indicators, left insert, plates, rear grid, rear handle, rear side insert, regulator, right insert, scope part 1, scope part 2, screen, shell, side buttons, sight, trigger, washers.

During assembly, use guiding rods or tubes d=4 and d=8 mm.

While gluing the plexiglass part, please, do not use super glue or any standard usual bonding agent. The produced gas will reduce the clearance of plexiglass. Please, use Rubber cement.

Useful links: https://www.youtube.com/watch?v=UDnjbLgSM-M&list=WL&index=12&t=0s https://www.youtube.com/watch?v=QGw7LUU_MS0&list=WL&index=13&t=321s https://www.hollywoodreporter.com/heat-vision/rare-star-trek-phaser-sold-434291 https://www.youtube.com/watch?v=oWGNDoXG9R8

R
rpusaken
I really want to print this, but I'm curious how you accomplish the plexiglass piece? Any transparent filaments will be way too cloudy, and my laser cutter can't cut at that dimension
3DTechDesign
3DTechDesign
As alternative, you can use plexiglass tubes with sizes 47.6x50.8x1.6.
J
justinkim
I printed the tubes with clear resin on a Photon Mono X. They needed a lot of clean up after washing the parts after printing, but I eventually got an acceptable part.
Item rating
2 0
Cosplay Phaser Rifle from Star Trek The Original series
$100.00

Royalty Free License
Cosplay Phaser Rifle from Star Trek The Original series
$100.00

Royalty Free License
Response 95% in 0.7h
3D Modeling
3D Print Modeling
Rendering
Hire me

3D Model formats

Format limitations
  • IGES (.ige, .igs, .iges)1.93 MB
  • OBJ (.obj, .mtl) (2 files)39.4 MB
  • 3D ACIS (.sat)5.32 MB
  • STEP (.stp)2.39 MB
  • Stereolithography (.stl) (3 files)79.1 MB

3D Model details

  • Publish date2019-12-05
  • Model ID#2186948
