Activated carbon filter for 120mm pc fan 3D print model

Description

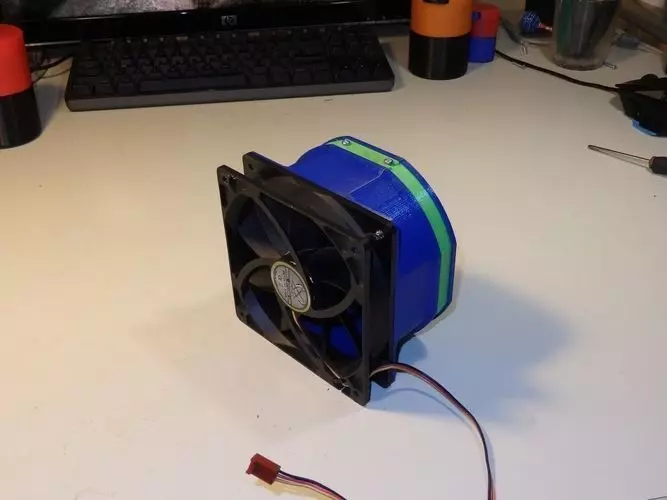

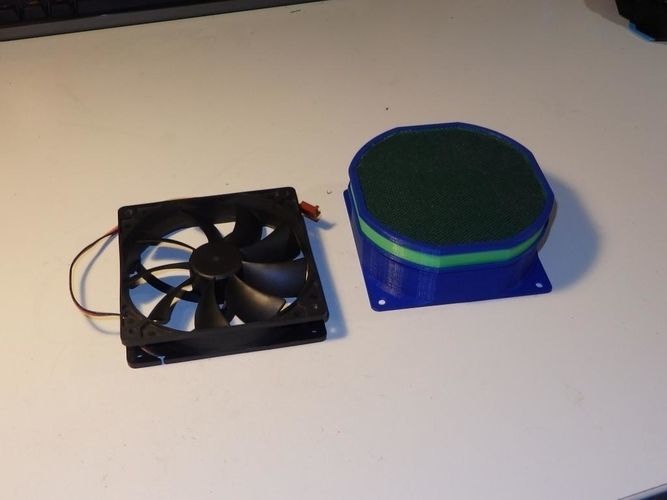

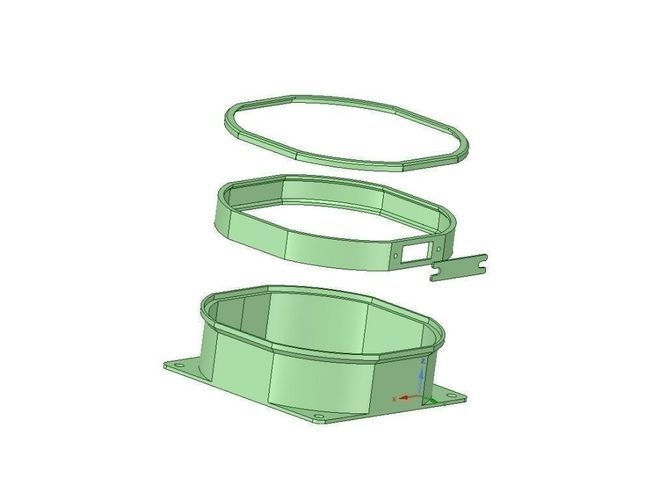

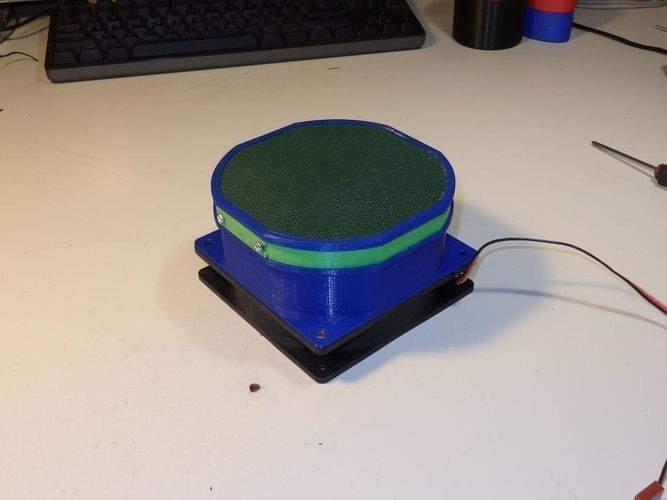

This is a simple active carbon air filter that use normal 120mm pc fan. The filter thickness is 16mm. You can see it and the assembling into the video.

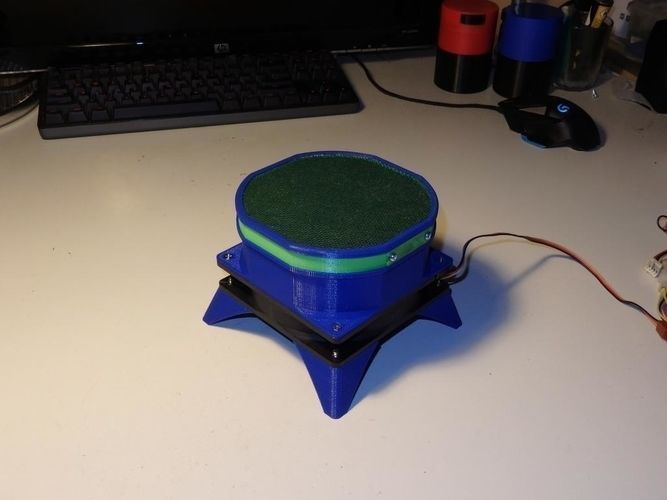

I added the legs to the PC fan if you want to use it as a table air purifier :)

The design is optimized for 0.4 nozzle.

Suggest:

  • layer 0.2mm
  • top/bottom 1mm
  • wall 0.8mm
  • infill 20-25%
