Small Makerbot Reel Assembly 3D print model

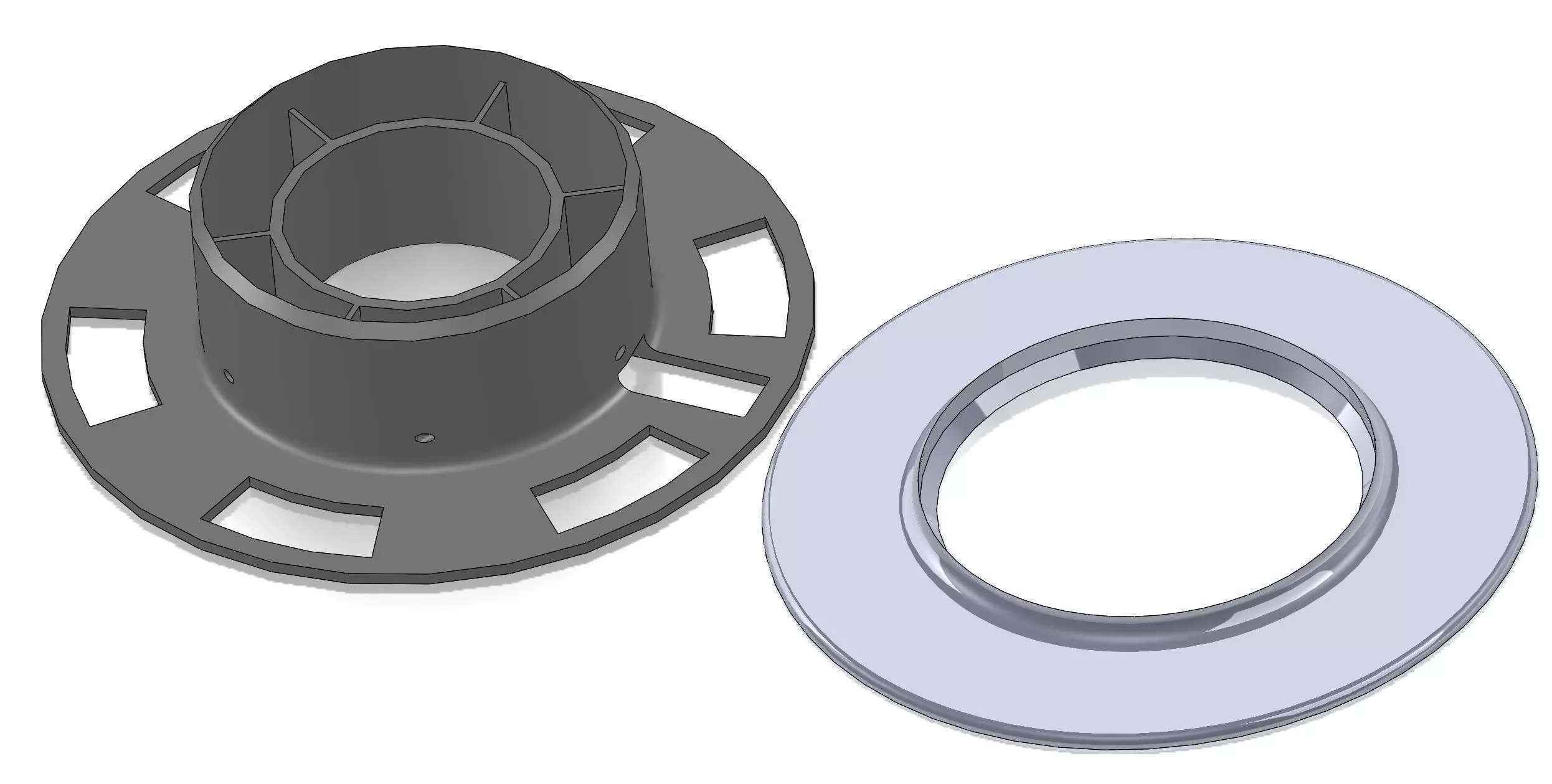

File: Reel Assy.STL Name: Small Makerbot Reel Assembly Material: 134.82 grams ( 0.297 lbs) Size: 308 mm (12.1") x 152 mm (6") x 38 mm (1.5") Resolution: 0.20mm Layers: 196 layers Rafts: Yes Supports: No Print Time: 11 hr 33 min Function: There are a lot of "reel simulators" with hubs and fingers but I wanted a "real reel". If you break the reel into a hub with one side flange and then simply the other flange and glue the two parts together you will have a "real reel". Of course there are alignment features on the simple flange to align to the hub. The hub is sized for the Makerbot Mini and Fifith Generation printers. The hub has a view window to see how much filament is used, an embossed arrow to show the filament pull off direction, and holes to attach the end of the filament. I had to print the hub and flange separately due to the size of my build platform. The center diameter is 2.09" (53.1mm) so if you print this half scale it will fit a 1" hub perfectly some of the DIY 3D printers.

    This product has no reviews yet
    Small Makerbot Reel Assembly
    $3.00
    All prices are exclusive of VAT
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 75% in 16.3h
    3D Modeling
    Hire me
    3D model formats
    • Stereolithography (.stl)538 KB
    3D model details
    • Publish date2015-10-12
    • Model ID#184436
