Bring a miniature industrial automation mechanism to your desk!

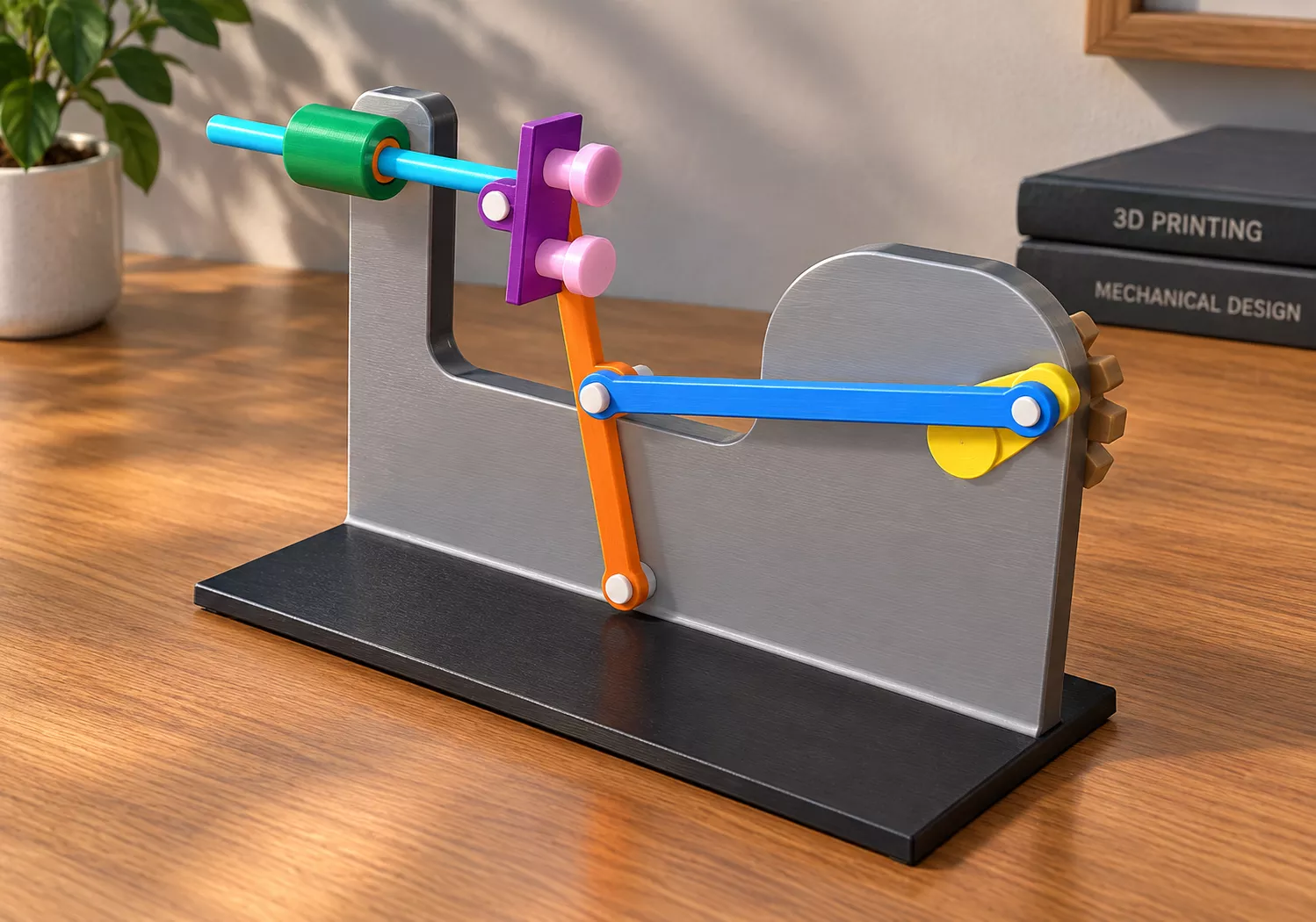

This mechanical Pick & Place mechanism demonstrates how rotary motion can be converted into controlled linear and oscillating motion using a system of cams, links, shafts, and pivots.

Designed as both an educational mechanical model and a decorative kinetic display, it is perfect for makers, engineers, students, 3D-printing enthusiasts, and anyone who loves mechanical mechanisms.

FeaturesMechanical Pick & Place motionMultiple interconnected linkagesCam-driven movementRotating shaft and gearsFully mechanical designDesigned for 3D printingGreat educational demonstration modelAttractive colorful mechanical appearanceCan be assembled and operated by handExcellent desk/workshop decoration

The mechanism demonstrates principles commonly found in industrial automation and manufacturing machinery, making it more than just a static decoration.

Included FilesSTL files3MF filesIndividual components for assemblyReady-to-print mechanical partsAssembly guide with pictures

Designed primarily as a mechanical demonstration and decorative model rather than a production-grade industrial pick-and-place machine.3D printing settings

Recommended material: PLA / PLA+

Material PLA / PLA+Nozzle 0.4 mmLayer Height 0.16 mmWalls 3Top Layers 4–5Bottom Layers 4–5Infill 15–25%Print Speed 40–50 mm/sNozzle Temp According to filamentBed Temp According to filamentSupports Only where requiredBrim Recommended for tall/narrow partsCooling 100% after first layers

Mechanical Parts

For the cams, gears, pivots and linkage components:Layer height: 0.12–0.16 mmWalls: 3–4Infill: 20–30%Slow down small mechanical partsUse a well-calibrated printerCheck horizontal expansion/XY compensationClean the pivot holes after printing if necessary
