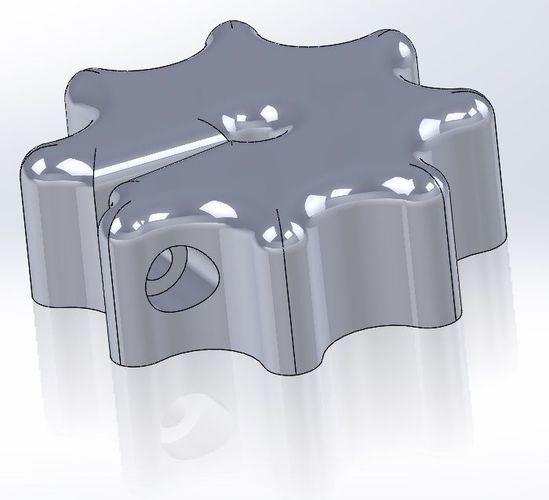

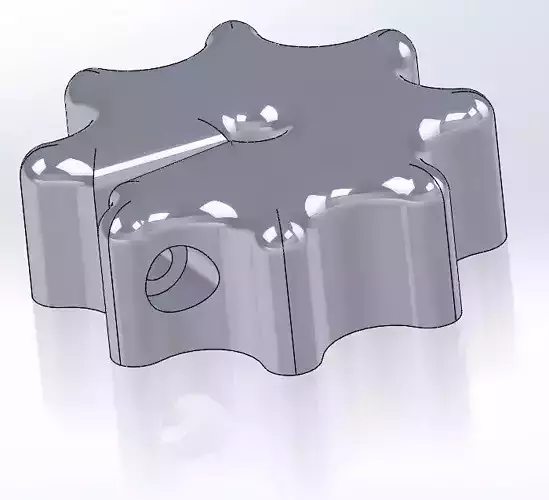

Knob for Round Shafts 3D print model

File: Knob.stl
Name: Knob
PLA Material: 10.64 grams ( 0.023 lbs) Infill = 11%
Size: 42.57 mm (1.78") x 42.57 mm (1.78") x 16 mm (0.63")
Resolution: 0.20mm
Layers: 86 layers Rafts: Yes Supports: No
Print Time: 1 hr 13 min
Function: This knob is can be attached to almost any round shaft. There is a hole and hex shape that allows for a small bolt and nut to squeeze onto the shaft. Use a scale to work with common shaft sizes (if printed 1:1 then is will fit a 5mm shaft):
Scale mm inch
0.638 3.1875 0.125
0.800 4 0.157480315
0.956 4.78125 0.1875
1.000 5 0.196850394
