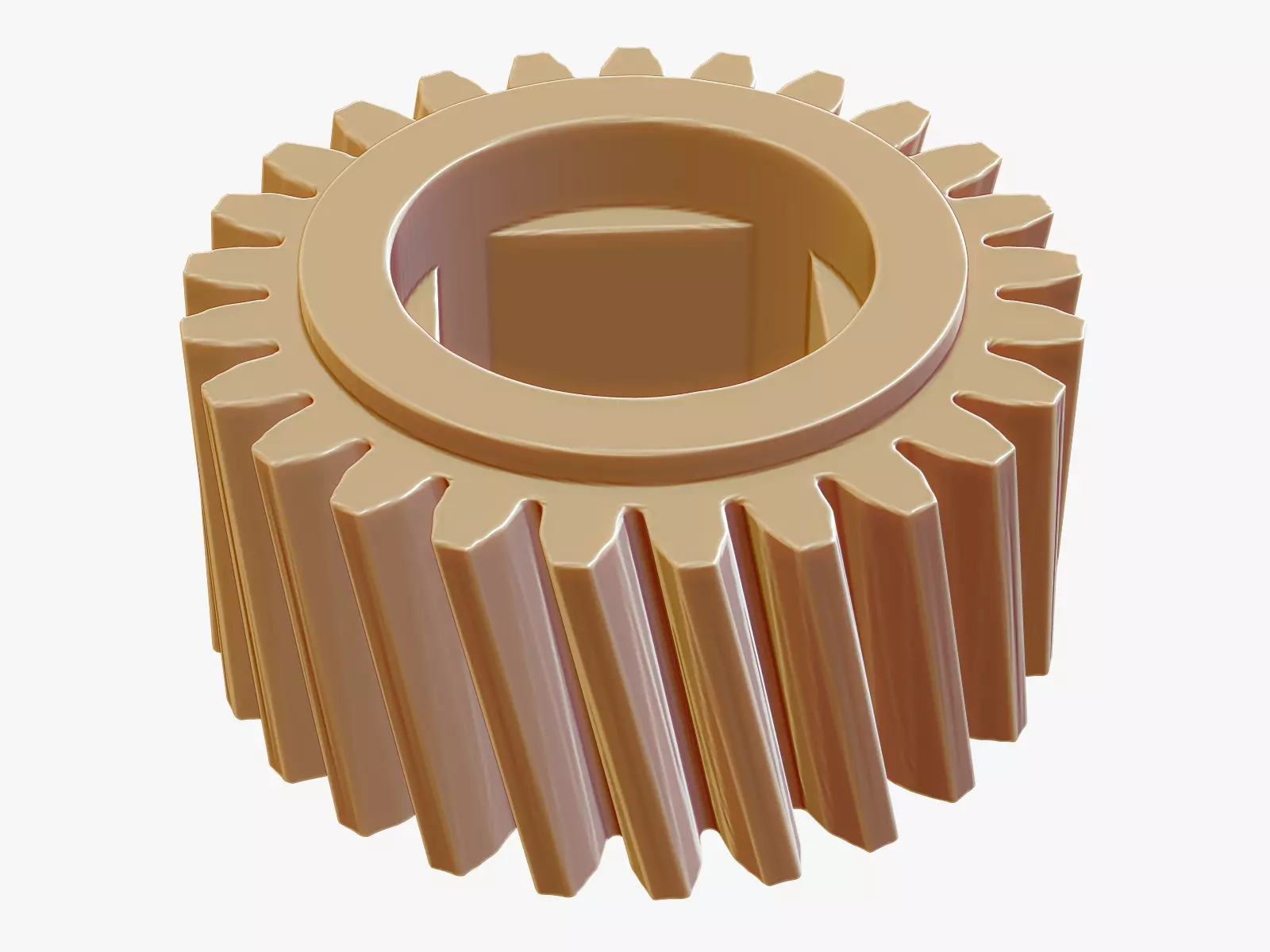

Helical Gear 3D print model

Small helical gear.

Measurements
Overal dimensions: 15,0 x 15,0 x 7,6 mm (0,59 x 0,59 x 0,3 in).
Diameter of inner hole: 8 mm (0,31 in).
Size of rectangular hole: 6,5 x 6,5 mm (0,26 x 0,26 in).
Number of teeths: 25
The gear was created from real object photographs. I have no enginearing background, therefore i cannot guarantee that the model will meet international standard requirements. Use it at your own risk.
Right hand and left hand versions are included.

Modelled as single watertight shell. Inspected for errors. Ready to print.
File formats: STL, OBJ, WRL, AMF

Please contact me if you have questions or need assistance with the models.

  • LemonadeCGLemonadeCG
    Author
    2018-03-17 18:34
    Model update (2018 03 17): fixed geometry, added left hand version.
