Extrusion Cap

Extrusion Cap 3D print model

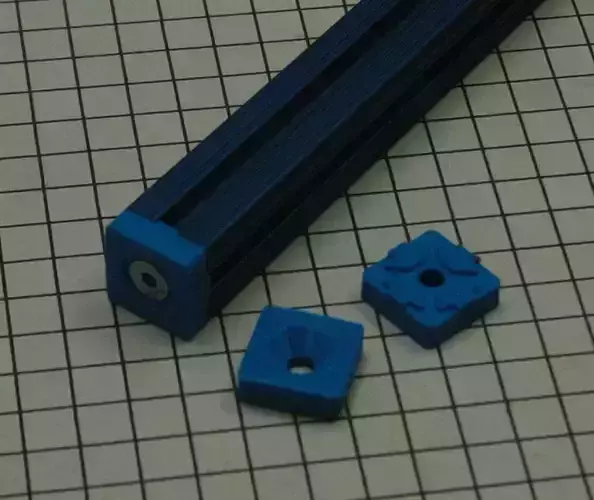

File: Cap.stl Name: Cap PLA Material: 2.63 grams ( 0.006 lbs) Infill = 10% Size: 25.4 mm (1) x 25.4 mm (1) x 5.08 mm (0.2) Resolution: 0.20mm Layers: 31 layers Rafts: Yes Supports: No Print Time: 0 hr 14 min Function: This cap goes on the end of aluminum extrusions for improved cosmetic appearance. If you print it 100% then it will work a 1x1extrusion (80/20 1010 series). The pictures show the first generation of this part. If you print it 150% then it will work on the 1.5x1.5" extrusion (80/20 1515 series). If you print at 79% then it will work on the metric 20mm x 20mm extrusion.

Item rating
0 0
Extrusion Cap
$3.00

Royalty Free License
Extrusion Cap
$3.00

Royalty Free License
Response 71% in 16.3h
3D Modeling
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl)75.7 KB

3D Model details

  • Publish date2019-06-24
  • Model ID#2019777
