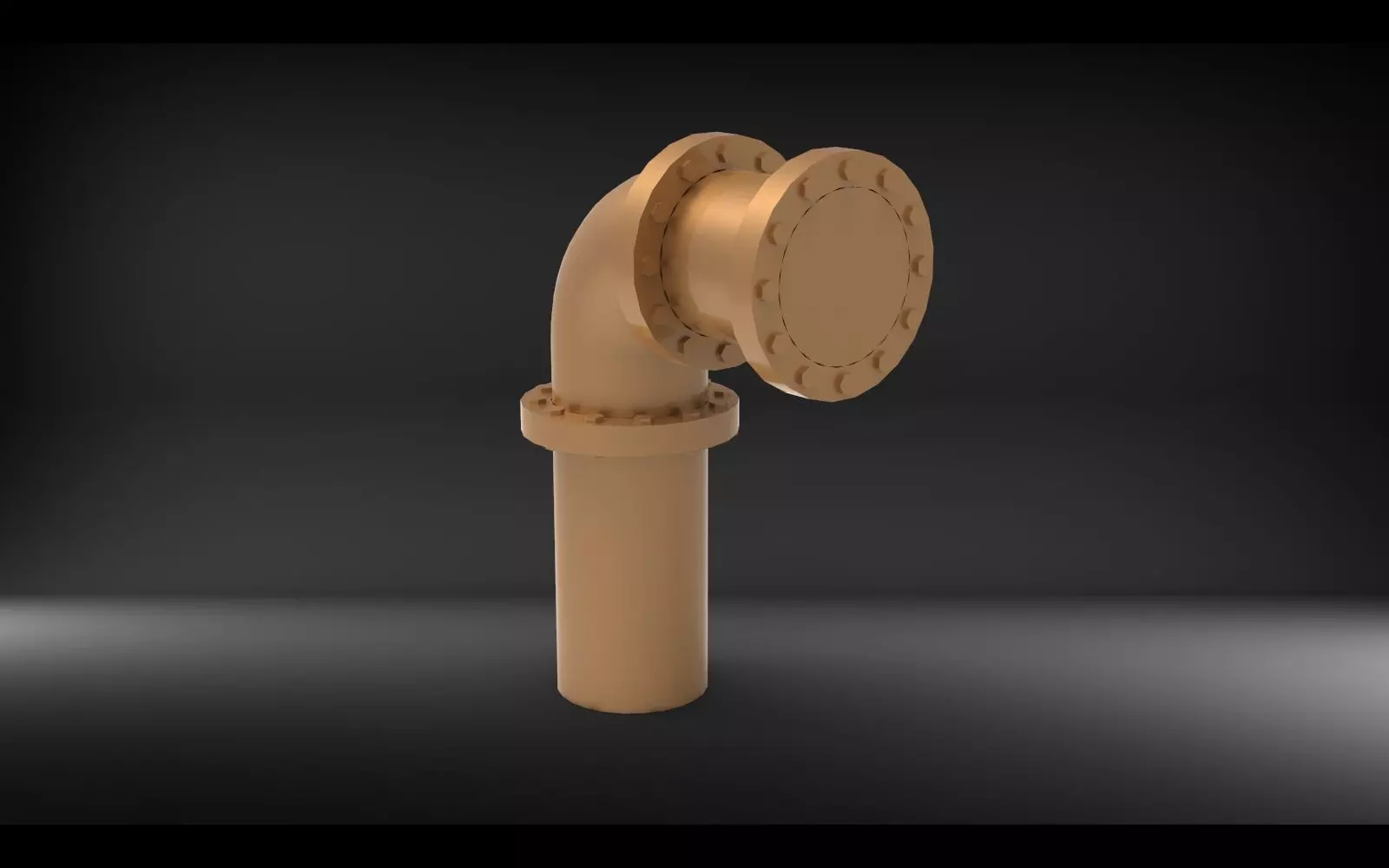

elbow pipe with fllange 3D print model

The 3D design of an elbow pipe with flange features a curved pipe section—typically at 45 or 90 degrees—combined with a flanged end to facilitate directional flow changes within a piping system while allowing easy connection to other components. The flanged end is designed to standard dimensions for secure bolting, ensuring a leak-proof and durable joint. This component is essential in complex piping layouts where space constraints or directional routing are required, and it's widely used in industries like oil and gas, water treatment, and HVAC systems.
