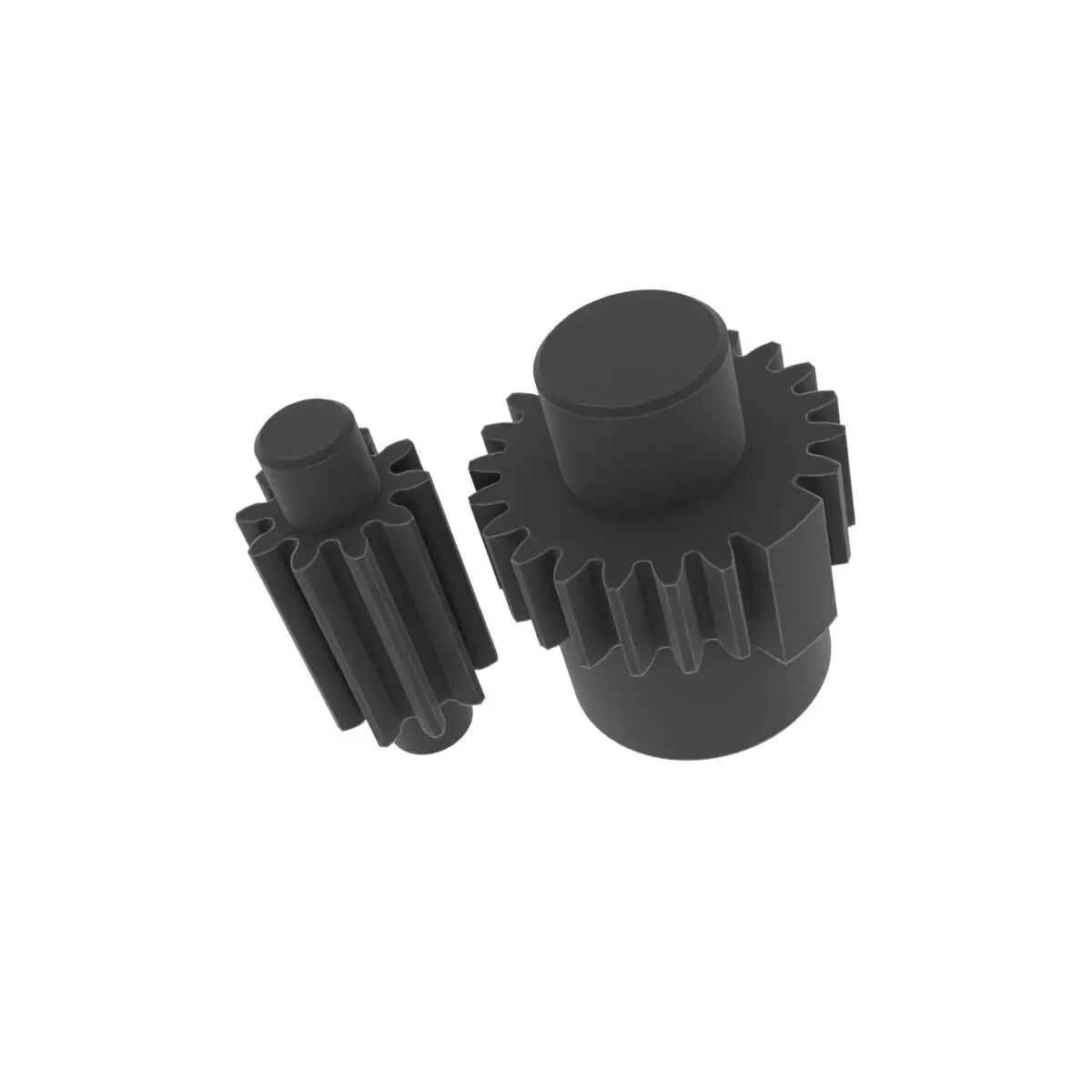

Coffee Machine Gear Set

Specification

• Replacement gear set for a coffee machine PEI gearbox
• Large gear:
  • Quantity: 1 pc
  • Teeth: 22
  • Module: 1
  • Outer diameter: 24 mm
  • Height: 28.6 mm
  • Mounting hole: 5.5 mm
• Small gears:
  • Quantity: 3 pcs
  • Teeth: 10
  • Module: 1
  • Outer diameter: 12.5 mm
  • Length: 30.5 mm
  • Shaft diameter: 3 mm

Compatible with:

• Thomson
• Carrera
• Redmond
• Beko
• Kambrook
• Grundig
• Maunfeld

Installation Location

• Inside the coffee machine gearbox assembly

Function

• Transfers motor rotation through the gearbox gear train to drive the coffee machine mechanism

Included formats:

• *.obj
• *.stl
• *.3mf

All dimensions are accurate. This model printed and tested successfully.
