CL211 Mk2 Clamcleat

CL211 Mk2 Clamcleat 3D print model

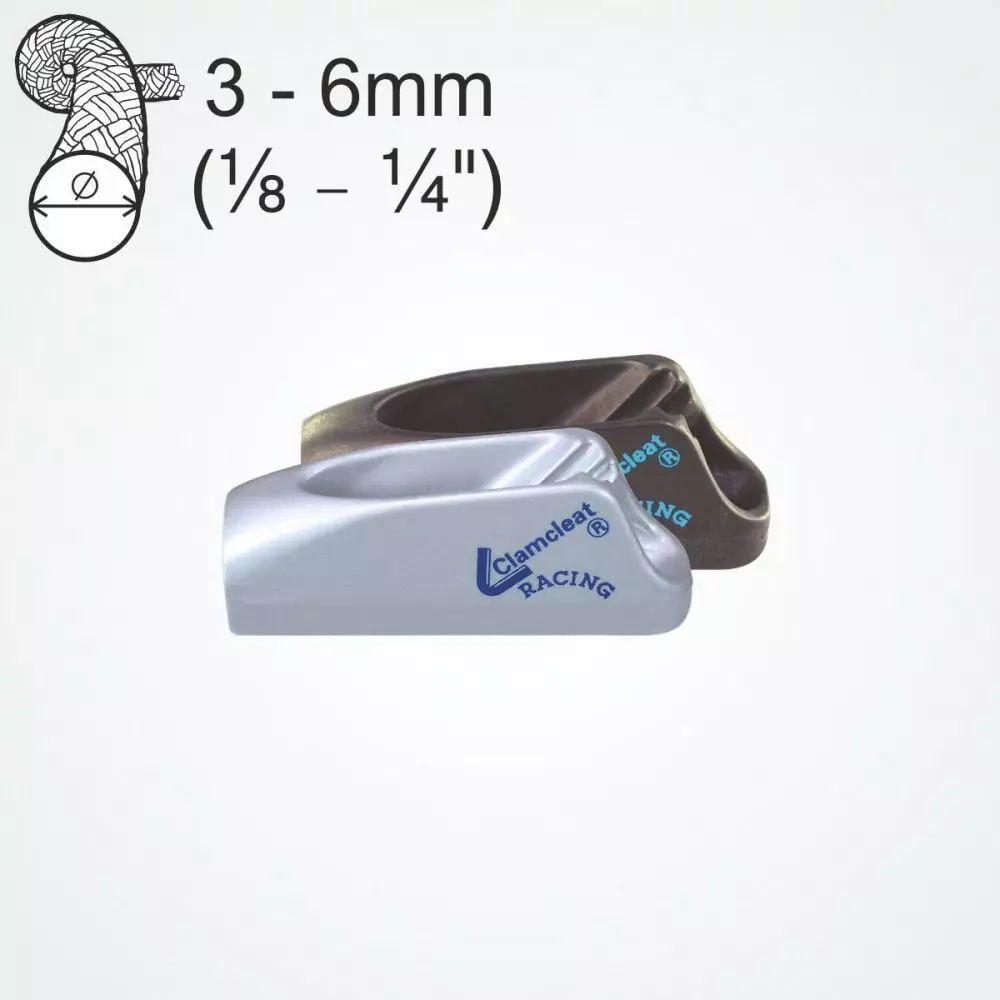

This is a rope clam cleat used on the North Navigator Kitesurfing Kite bar and in many sailing applications.

The mounting hole dimensions and base are datasheet-perfect. On other surfaces, you can expect a .25mm accuracy. I deemed this sufficient for my model, given this is a die-forged part, and each unit is slightly different in measurement.

Below is the product link (not my product):

Item rating
1 0
rudo-1 2024-05-15 08:52:37 UTC
very nicely done, super fair price. Bonus: the download includes a proper STP file. Cheers!
CL211 Mk2 Clamcleat
Royalty Free License
CL211 Mk2 Clamcleat
Royalty Free License
Response 0% in 48.0h

3D Model formats

Format limitations
  • SolidWorks 2021 (.sldprt, .sldasm, .slddrw)962 KB
  • Stereolithography (.stl)30.3 MB

3D Model details

  • Publish date2022-10-01
  • Model ID#4006888
  • Ready for 3D Printing
