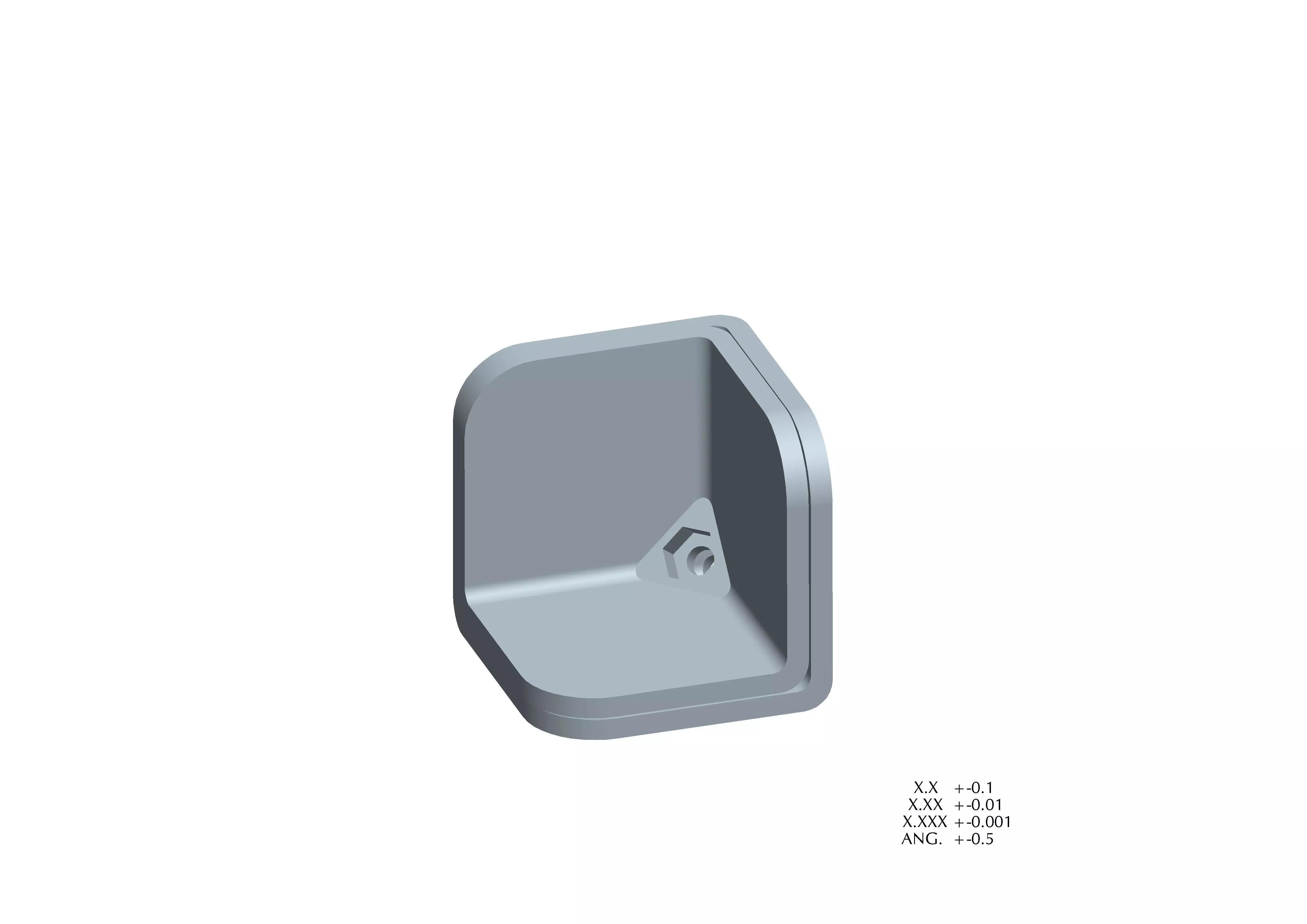

Box Diagonal Clamp 3D print model

Description

Product Information: Simple Options for Squaring Up Box at diagonal. Strengthen the box corner. Using Machine screw M4 Screw (metric) or equivalent Machine screw 5/32 and Nut , Min. Screw length 25mm. Press fit Nut into hexagon recess formed on inner plate.

3D Data Format: .stp , .stl

Data Application: 3D Printing, Plastic Injection Molding, Die Casting.

Write comment
Item rating
0 0
Box Diagonal Clamp
$3.00

Royalty Free License
Box Diagonal Clamp
$3.00

Royalty Free License
Kkelvinl7117
kelvinl7117
(0 reviews)
Response - % in - h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl) (2 files)297 KB
  • STEP (.stp)213 KB

3D Model details

  • Publish date2021-01-19
  • Model ID#2818550
  • Ready for 3D Printing
