AIRBUS A320 Throttle Quadrant

AIRBUS A320 Throttle Quadrant 3D print model

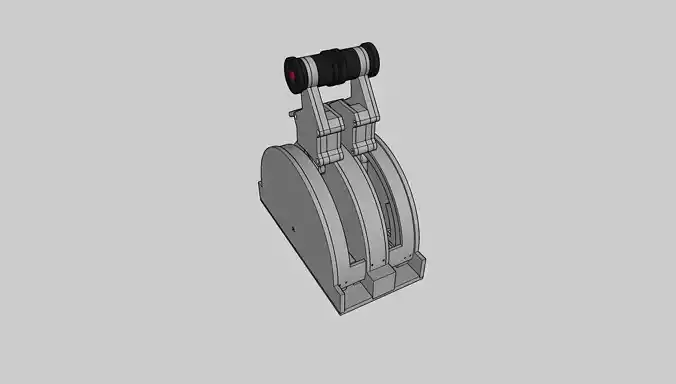

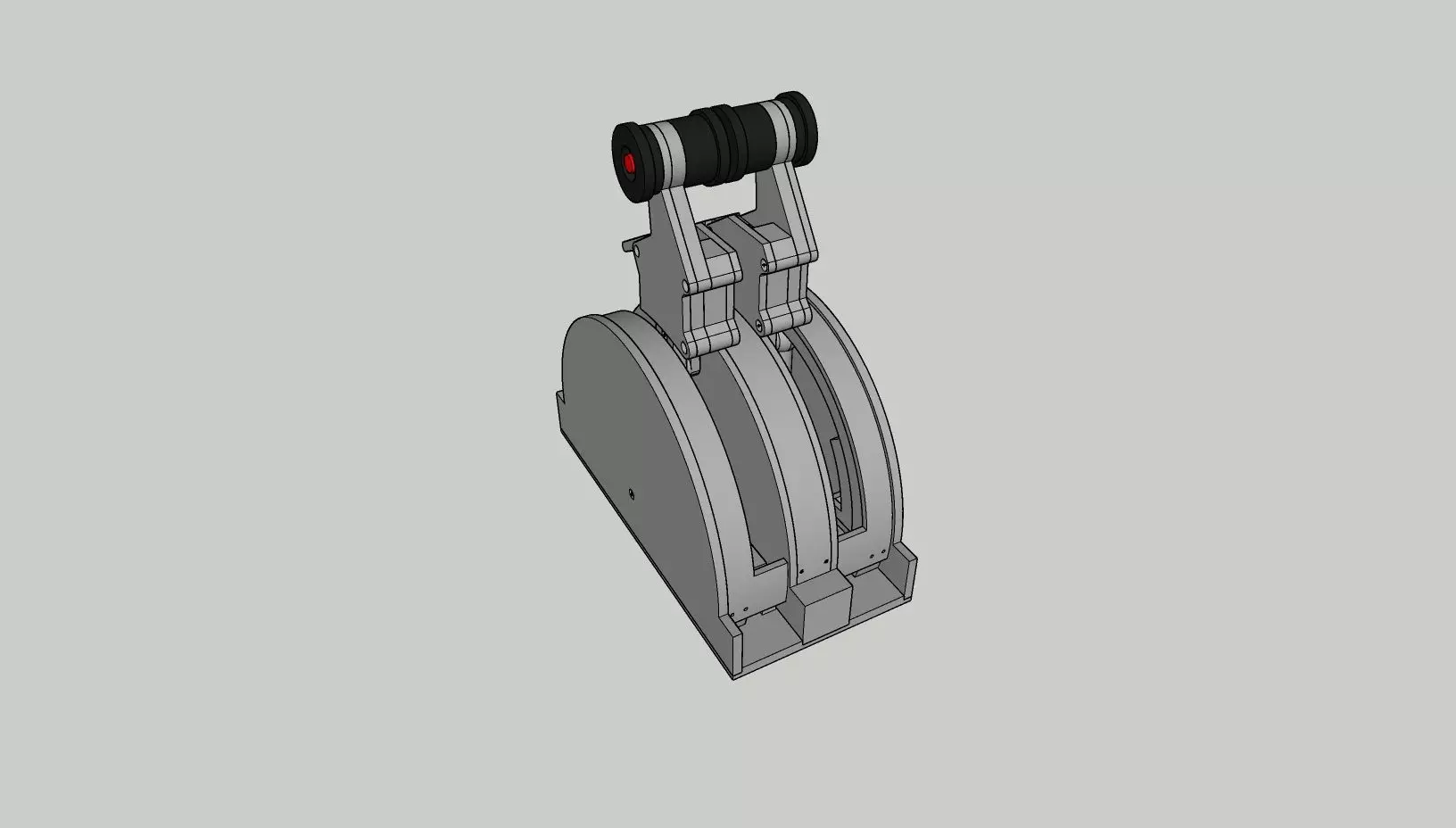

Working 1:1 replica of Airbus A320 throttle quadrant. File ready to print Additional item required : Momentary button x2 Potentiometer 2K-10K x2 Allen bolt M5x30mm x6 Allen bolt M6X25mm x4 Allen bolt M5x45mm x2 Spring 30mm length, 10mm diameter x2 1/4inch 60mm length stud x2

Remark: Power tool (mini die grinder) is required for installation In order for detent effect to function, notch has to be made by manually trimming the surface (10mm diameter, 5mm depth each detent) This design use potentiometer and different Airbus aircraft manufacturer has different minimum throttle range (from max rev thrust to TOGA) Remember to callibrate max and minimum range (max rev thrust and TOGA) before trim the notch Reverse thrust detent (inside the folder) has to be installed after idle detend notch has been made. Reverse detent can be installed by simply using 3 second glue/hot glue. Slot for LED (backlight purposes) available. Trim wheel is not included (ongoing development)
