Flight Video - LOUD!! need to volume down!https://youtu.be/vjbJpFOz78w

specification

wingspan : 1,380mm

length : 805mm

weight(ready to fly, include battery) : 640g

wing loading : 27g/dm2

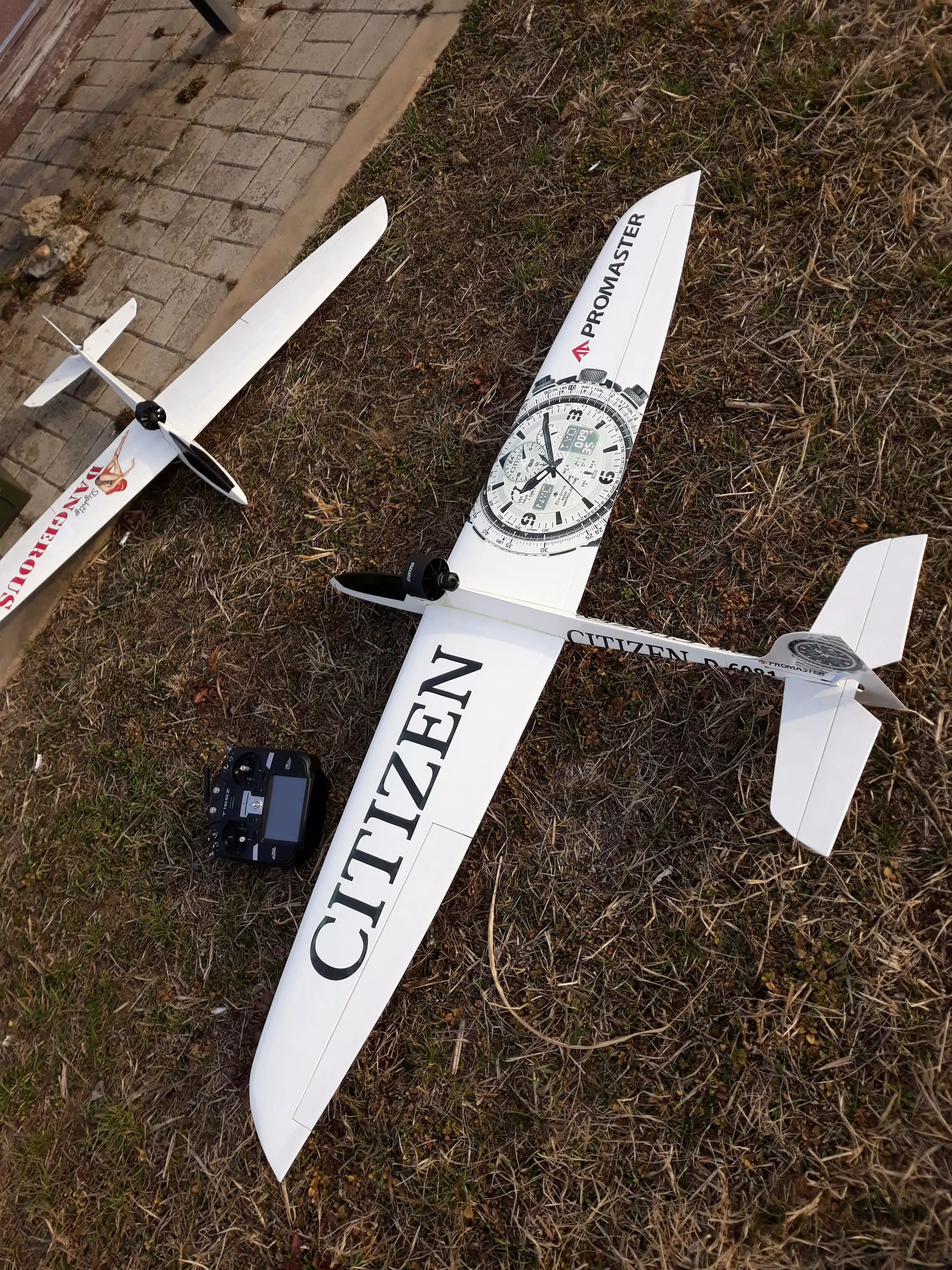

This is an edf(electric ducted fan) glider capable of aerobatics.It is designed with a very light and strong structure and an efficient wing shape.

With a very low stall speed, it can perform a variety of stunts, from very slow and comfortable flights.

It can be build with fixed and detachable wings according to your choice, and a pure glider form without EDF is also available.

flying video will be uploaded.

You need

1. your own RC system(Min 4ch)
2. 50mm EDF Motor
3. 40A ESC
4. 900~1400mhA 3S LIPO battery
5. 6mm carbon pipe(1m x 2pcs)
6. 1.2mm carbon rod(1m x 3pcs)
7. CA adhesive
8. CA hinge paper
9. tools(drill, screwdriver, cutter, sandpaper....)
10. small parts for RC building(M2 bolt&nuts, clevis, linkage rod....)

Please contact me if you are interested in this model and have any questionsrah66@hanmail.net

3D PRINTING SETTINGSMore than 90% of parts are printed as LW-PLA. Parameters and G-CODEs forprint are included with the manual in the zip file.

filament : LW-PLA / PLAnozzle dia. : 0.4mmtemp. : 230~235℃continous printing availablebed size : 200x200x200
