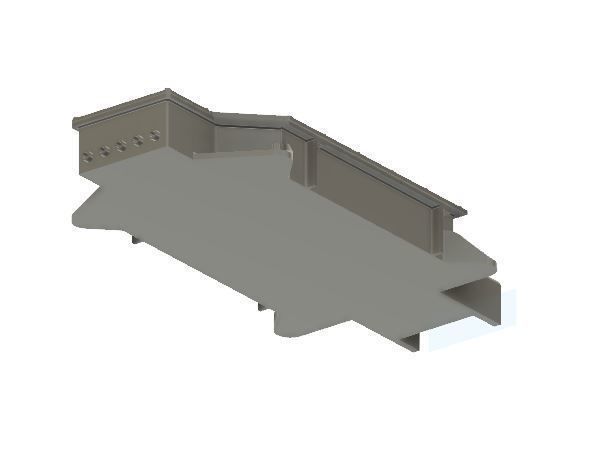

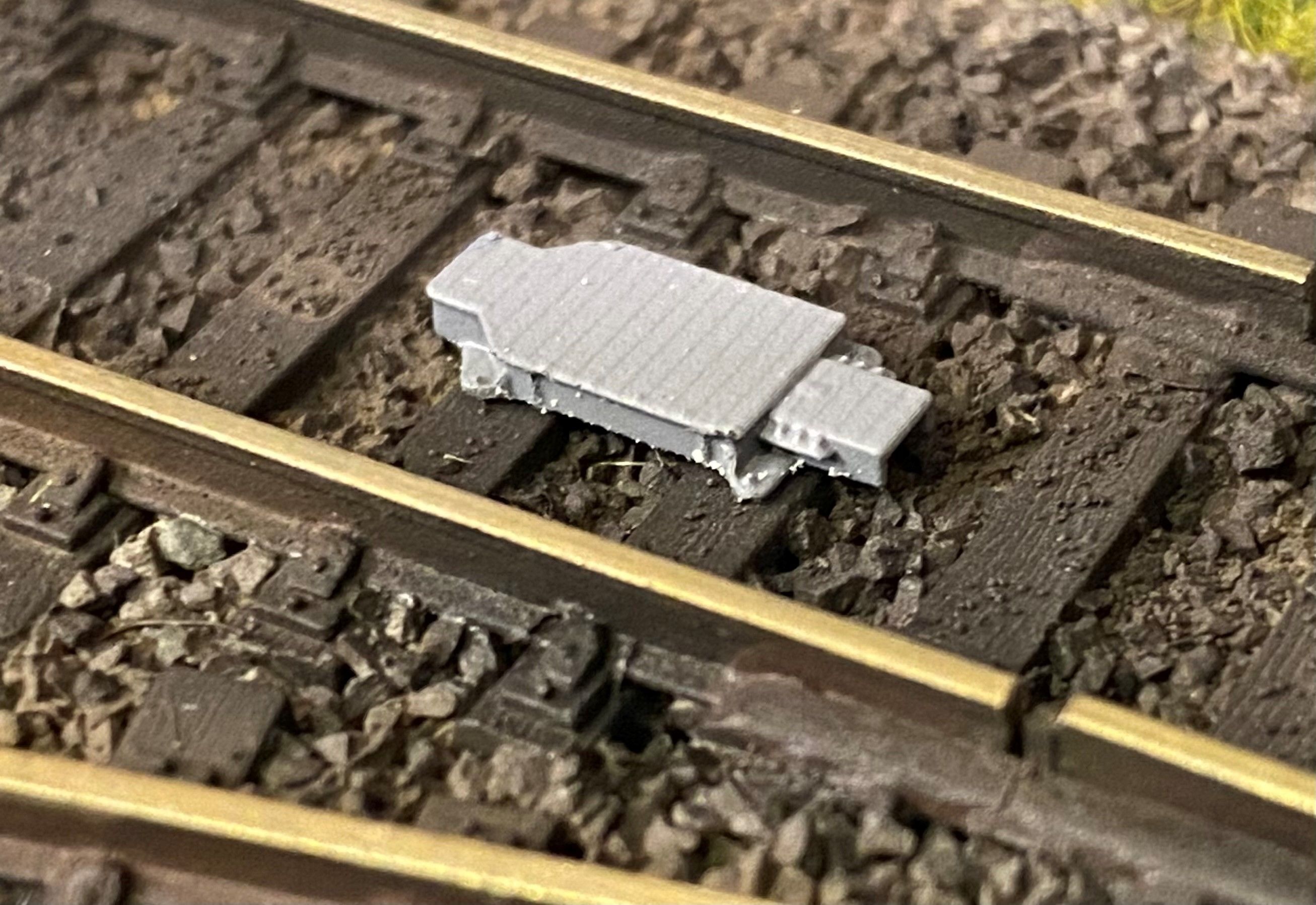

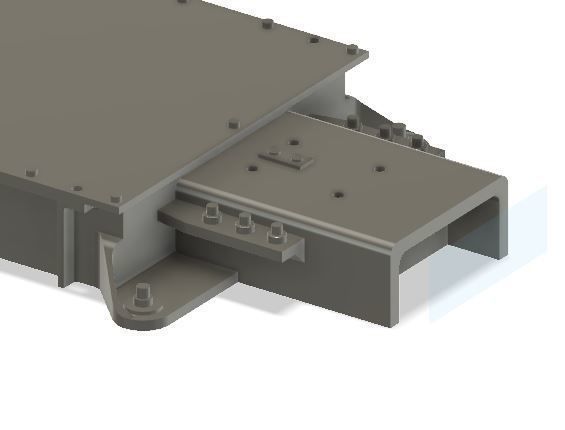

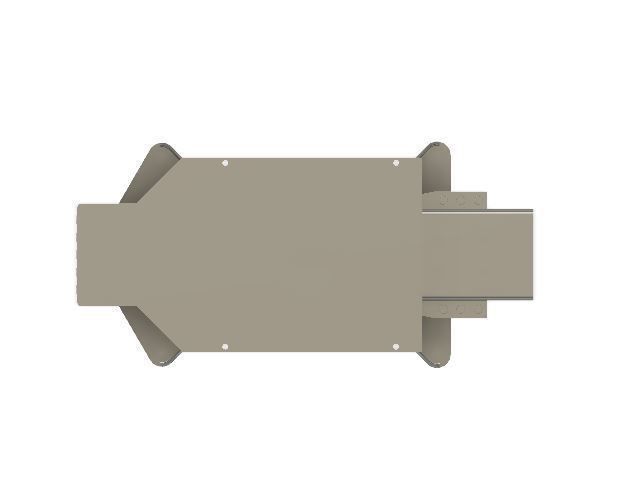

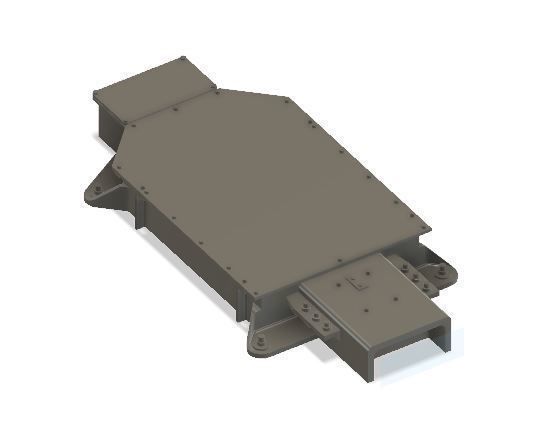

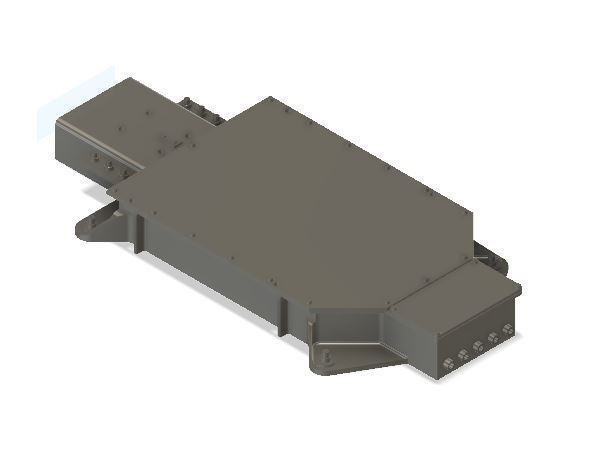

Track Electronics Impedance Bonds

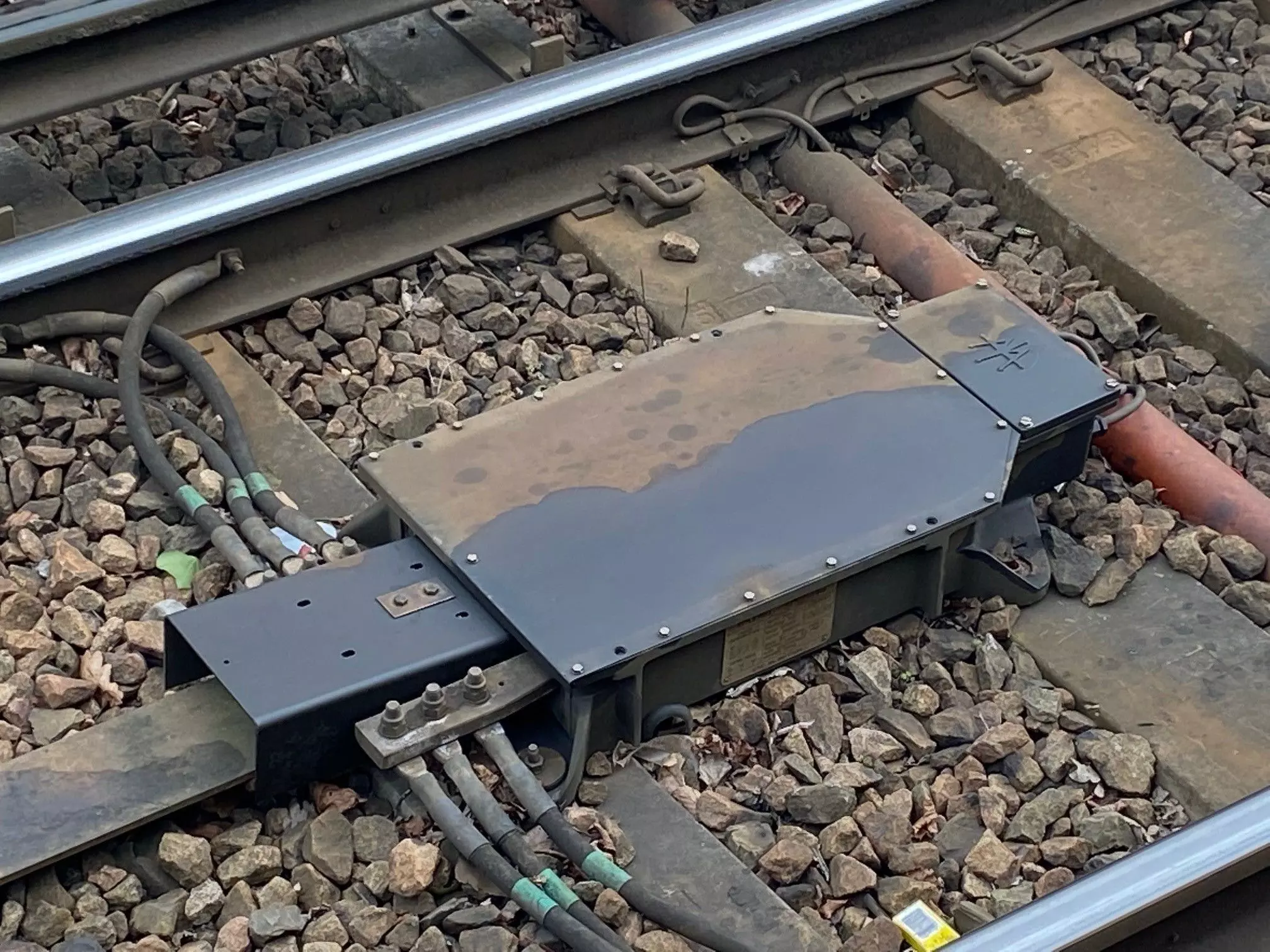

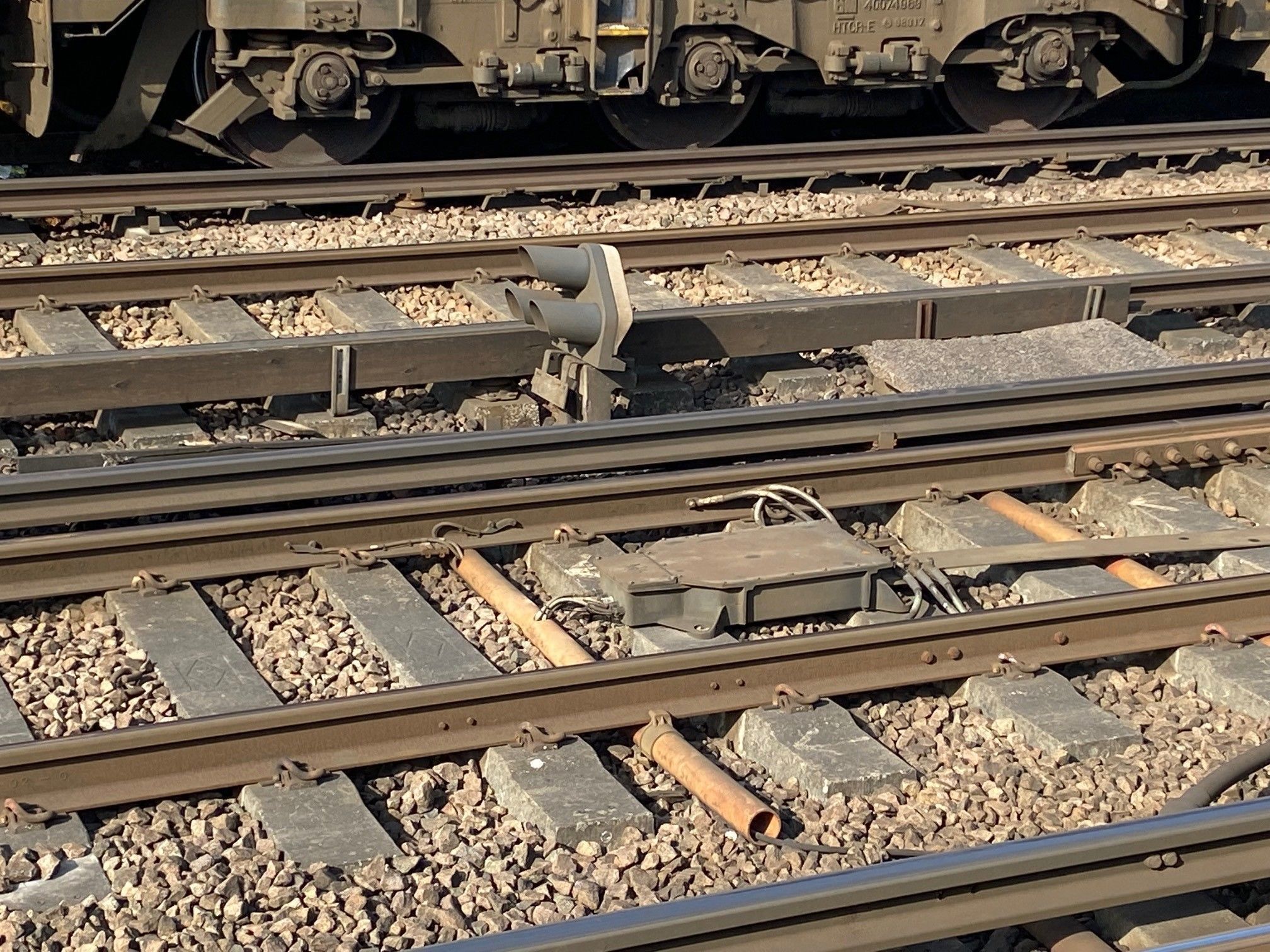

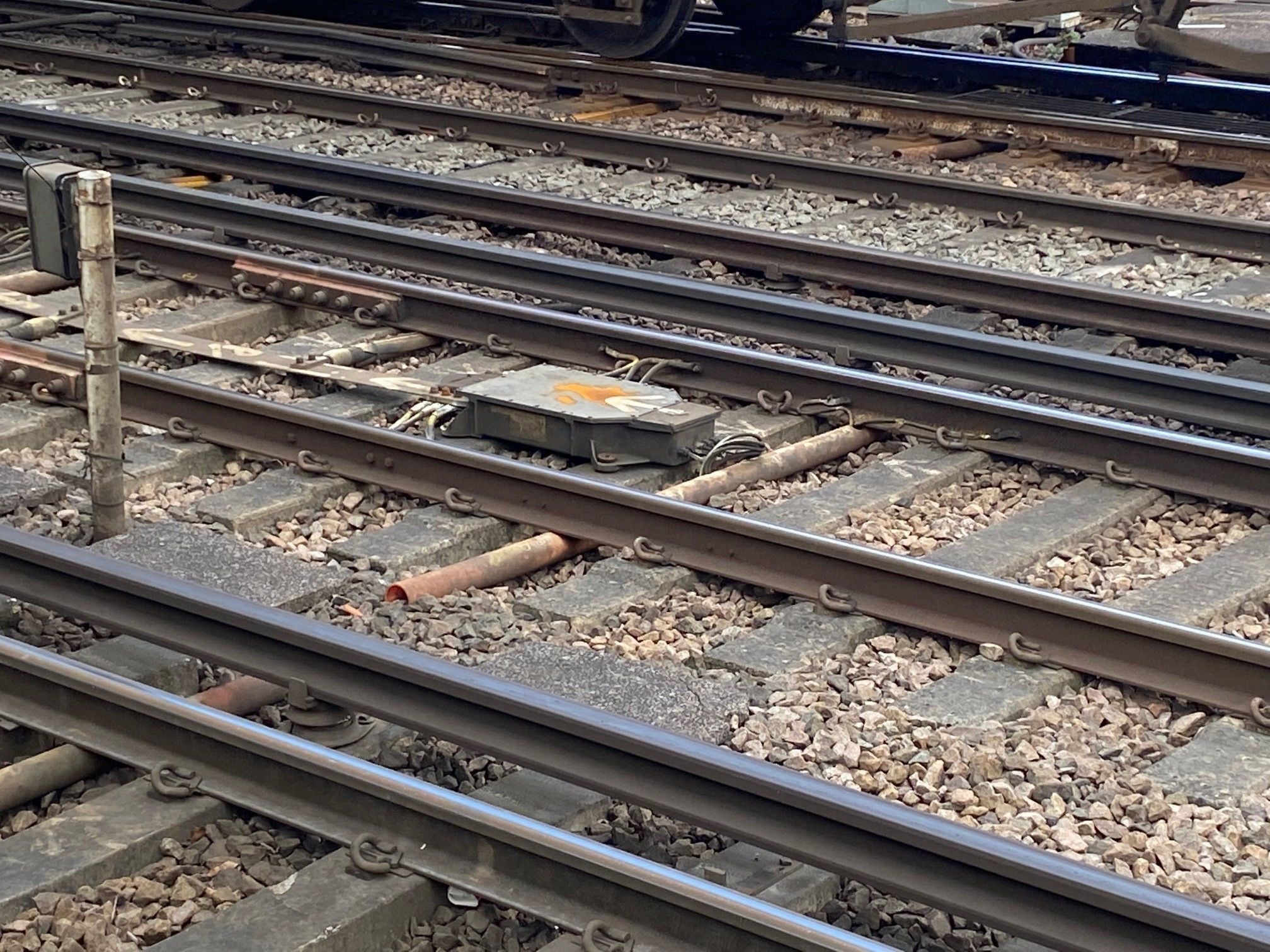

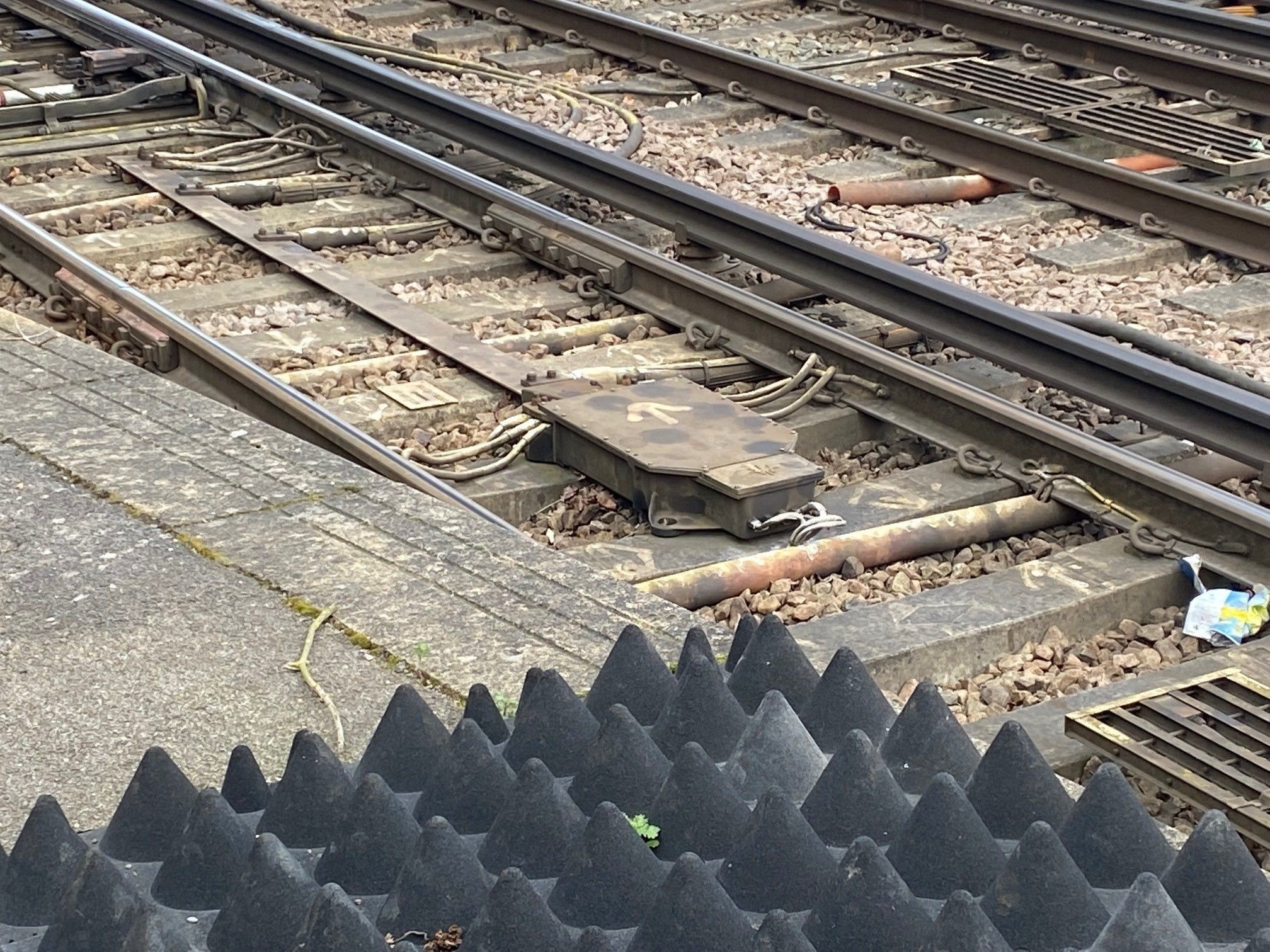

Spotted the between the rails at Eastleigh station, didn't know what they were so got some advice on Facebook. Thought they might be useful for a few modellers that might want to print them.

This item has been designed at OO gauge, 1/76.2 scale.For HO Gauge print at 87%, 1/87 Scale,For O Gauge UK print at 175%, 1/43.5 scale,For O Gauge International print at 158%, 1/48 scale,for N Gauge UK print at 51.5%, 1/148 Scale, (Caution: I have not test printed this in N gauge scale).

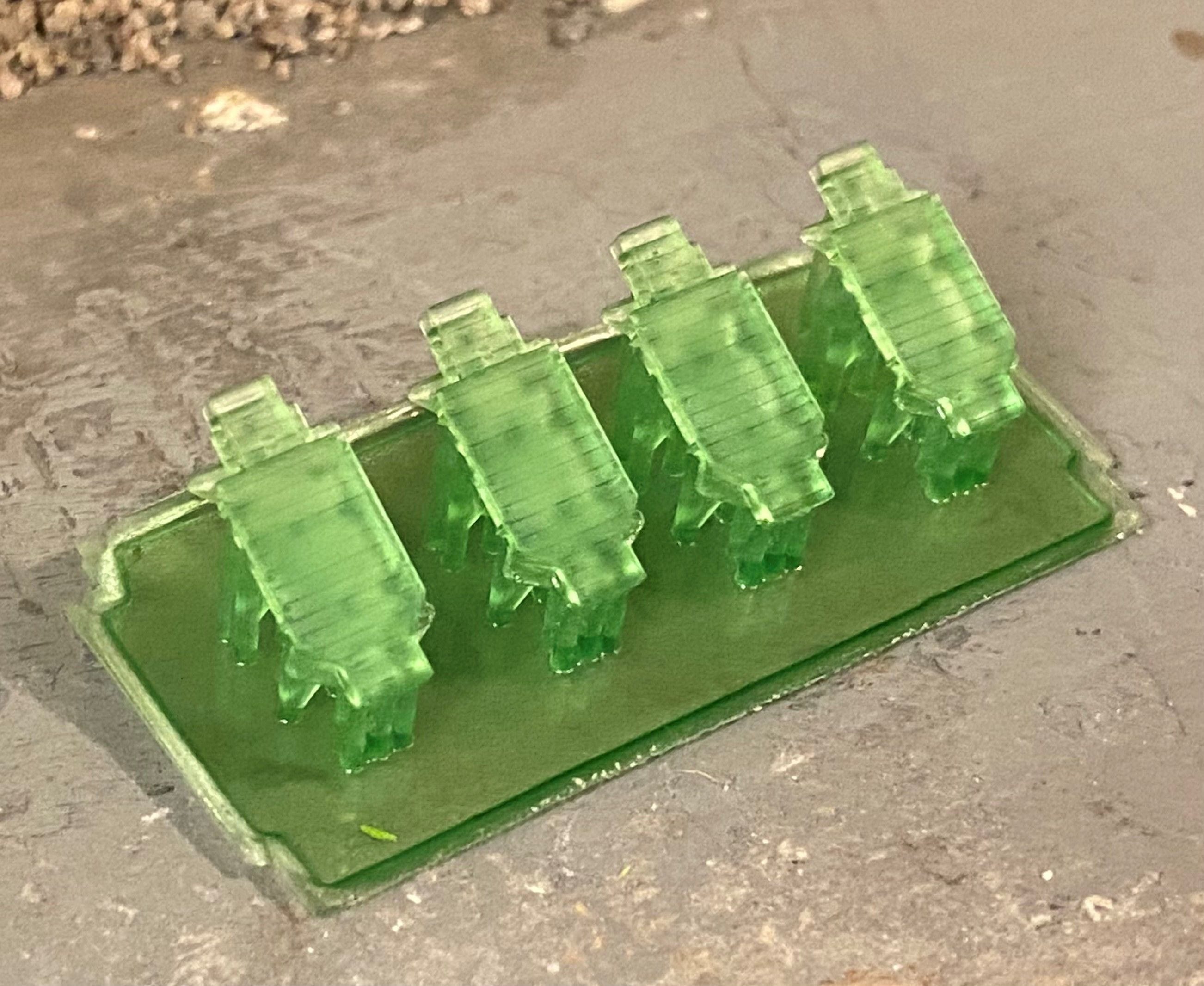

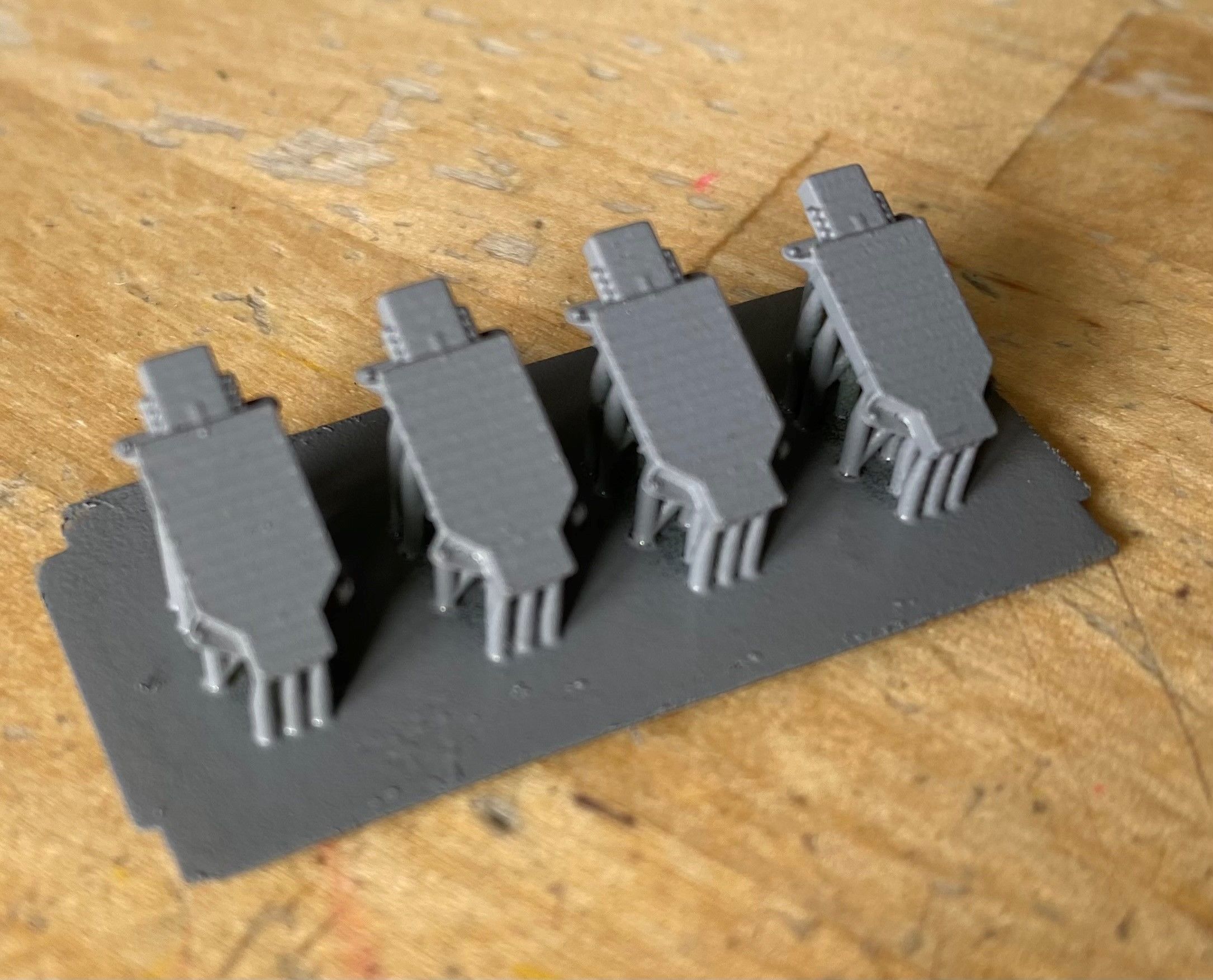

I recommend printing these items on a 3D resin printer to get the best resolution print, for larger scales you might be able to print them on a filament printer (Not tested). These items are quite small for OO gauge and would be extremely small if printed in N gauge.As normal with my designs, there is a balance between accuracy and printability, hopefully not affecting the design of the model too much.

I use AnyCubic Water Washable Resin for most of my items but use AnyCubic ABS Like Resin for anything that needs to be stronger and tougher.
