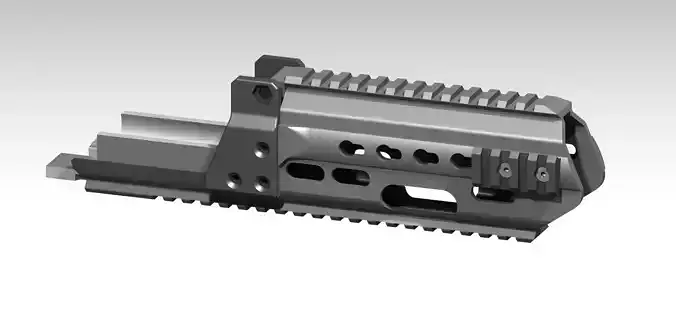

Latest version of G36KA4 RIS Handguard for 3D print. REUPLOADED MODEL
Only fits to SPECNA or UMAREX/ST brand - (Matrix/GoldenEagle ST from Evike, or JG/TM brands dont fit and its only up to you, if you will try to fit it)
STL is not supported by CGtrader policy, customer have to translate step to stl via some SW (many on the net) or you can ask me after purchase in personal message
Battery type
- you can insert only battery with this dimensions: 116x16x19mm (this is maximum)
- for example Turnigy nano-tech 1200mah 11.4v (designed for this acu-pack) - but you need to shorted cables to minimal lenght (Dean-T is prefered conector)
Useful tips for 3D print
- material PETG
- print in vertical pose, frontside facing against bed
- side holders are in separate file, print separated also
Useful tips for montage
- you need 6x screw DIN 7991 M4x10 (and manually and gently by hand screw them into rail for assambly with sides)
- also 1x DIN439 M6 lowered nut
- also 1x DIN7984 M6x40 screw with lowered head
Useful tips for surface finish
- after print, just sand surface with different sanding papers (for ex.200/400/800) in water
- use your favourite primer for plastic
- use your favourite spray color
Model contains two lenghts of 3D printed side RIS rail - you just need to get keymode nuts and screws
Handguard is 291mm long
Feel free to ask me any questions
