Hello,

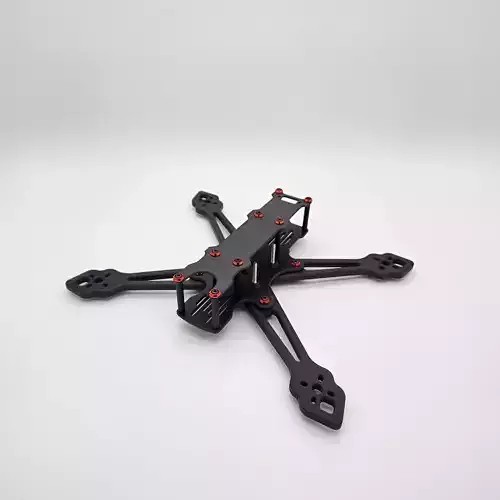

I am offering the data for a 5.5 inch FPV Freestyle frame.

Since the new action cams are becoming increasingly heavier, I decided to design a 5.5 inch frame.

Briefly about me: I am a professional drone pilot and designer. I have designed a lot of drones/frames.I have now decided to offer this frame/data for sale.

The frame can be completely manufactured using 3D printing.I used PLA-CF for 3D printing. The frame is extremely stable with PLA-CF. The total weight including standoffs and screws is 135g.

The following parts are required for assembly:

• 8x standoff (30mm)• 4x screw M3x16• 4x screw M3x35• 16x screw M3x10

I have attached 2 files each of the middle plate and bottom plate as files, either with Ruthex M3s threaded inserts, or through holes for mounting with M3 nuts.

Stacks with 30.5x30.5mm screws can be used.In the rear area there are attachment points with 20x20mm M2 and 30.5x30.5mm M3.
