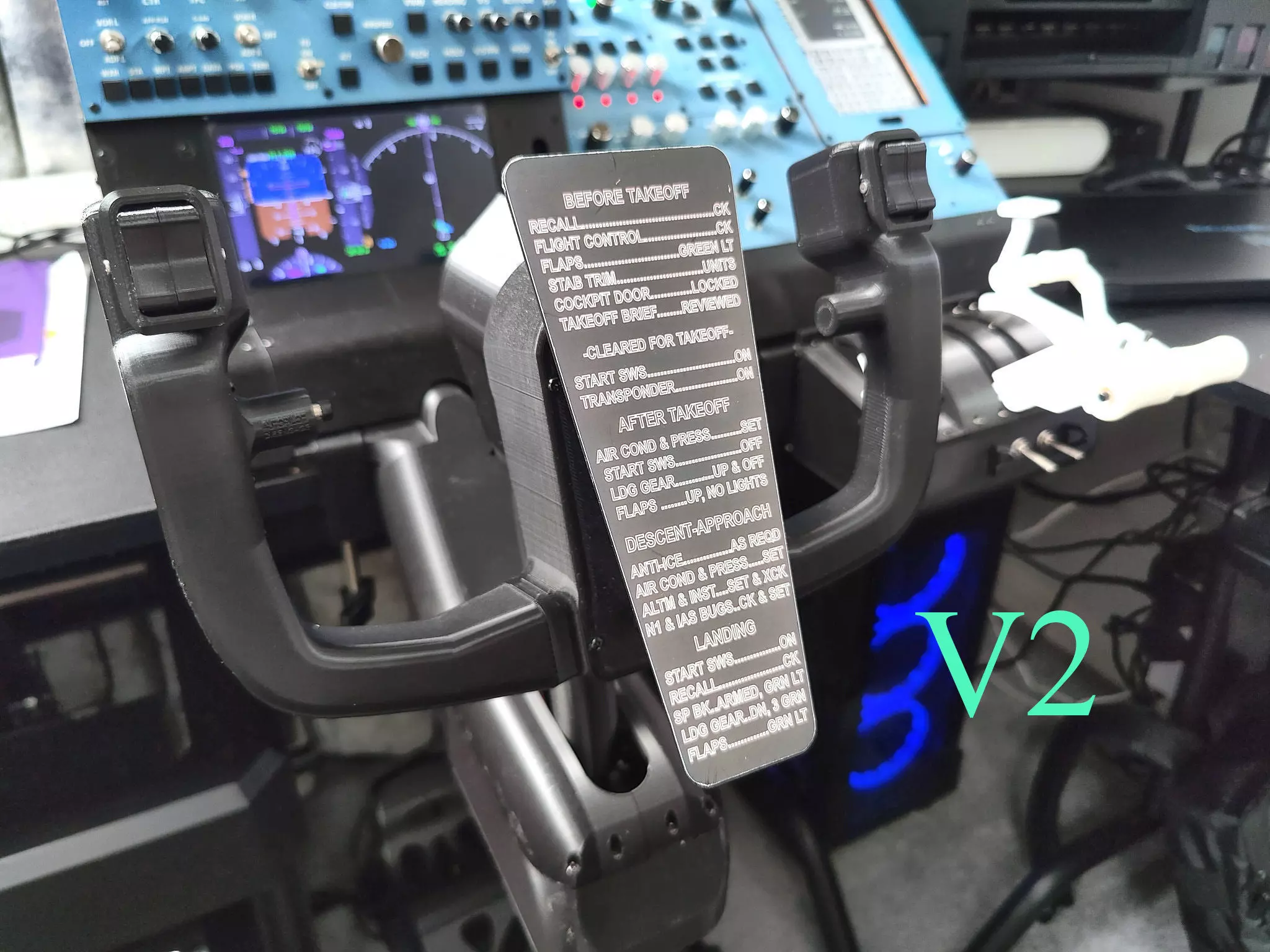

DIY 3D Printable Flight SIM Yoke Kit (Inspired By Boeing 737 Yoke).

Please note that this model is not a 1:1 scale of the original Boeing yoke. The axes are based on potentiometers.

10x buttons.

Can be connected by USB joystick board. (from an old joystick), or by HID Arduino Micro, MMJoy/MMjoy2 for example.

More instructions can be found on my website - https://silencediy.com

Yoke kit suitable for table mounting using Universal C Shape Table Mount Clamp.

Delivery: Zip file, .STL .OBJ files CHECK LIST.png

All questions are welcome.

Email: s.m.aurelius@gmail.com

More instructions:

Web: https://www.silencediy.com/guides/3d-printable-flight-yoke-guide/

Youtube: https://youtu.be/rVAd0udBKHI

MMJoy Guide: https://youtu.be/kZLlNwUkHv0

In the archive you will find the file Yoke001Potentiometer.obj. For a good understanding of how to assemble the printed parts, it will be better to open Yoke001Potentiometer.obj in FreeCAD or another CAD and disassemble all the parts.

You can also check the axes based on the Hall sensor version.

https://www.cgtrader.com/3d-print-models/games-toys/game-accessories/flight-sim-3d-printable-yoke-kit

3D printing settings

IMPORTANT: Some bodies require Custom Supports:

Prusaslicer: Custom Supports

Cura 5.0 or newer (Custom Supports)

Also Enable Bridge Settings

Layer Height: 0.2mm (But You can choose Your settings).

Infill: 40%-80%
