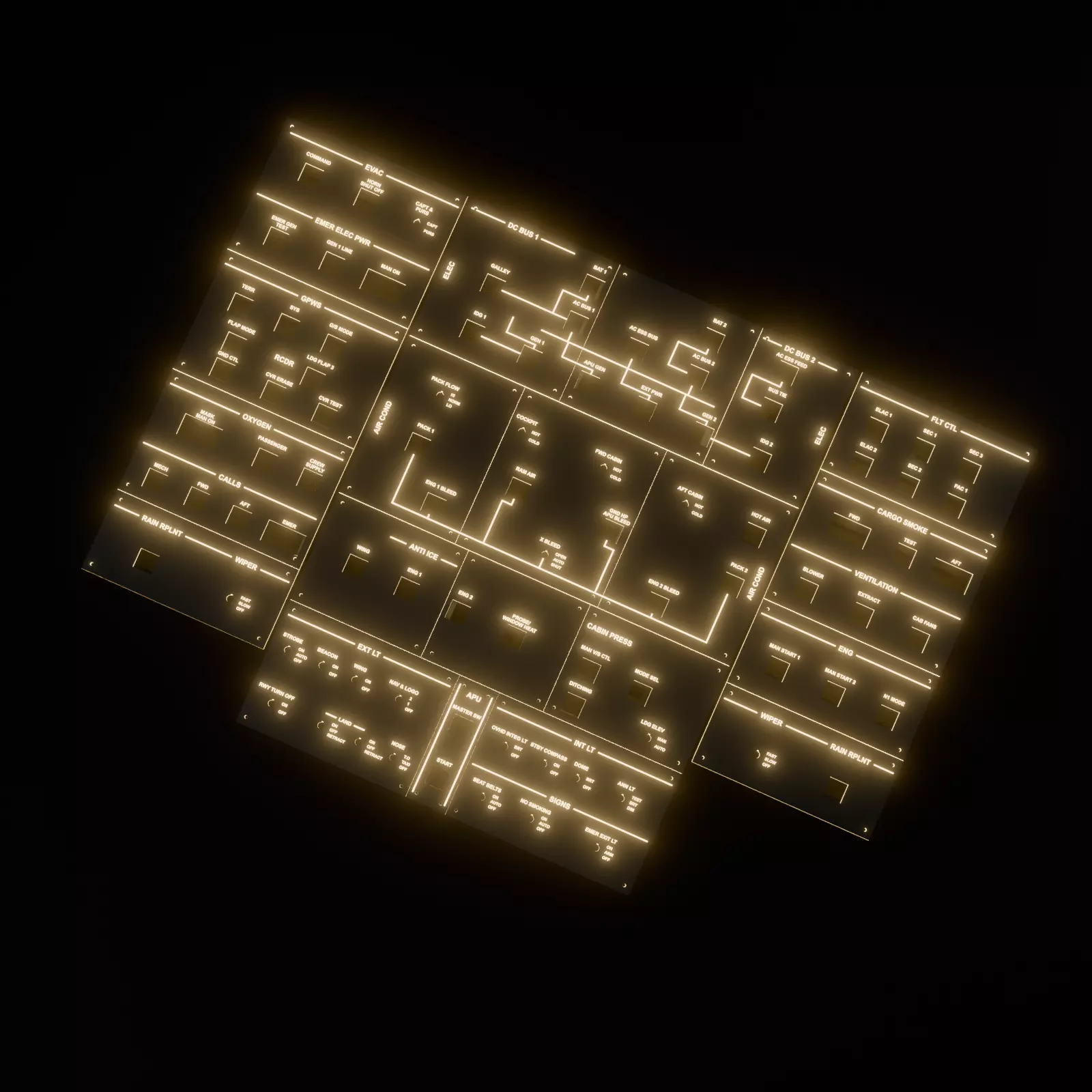

The complete A320 overhead, all 12 sections, as backlit light plates for home cockpit and flight sim builders. The leg- ends glow rather than being printed on the surfacePANELAssembled ..........13 x 566 mm, 45.5 mm deep Sections ........ 12 Printed parts .......60 (faceplate + diffuser + en- closure per module, Controls .......91 (15 toggle positions,67 pushbuttons. 9 rotary selectors) _argest part. .......fits a 220 x 220 mm bed Ender 3, Bambu A1, Prusa MK4) Filament. ........roughly 3.0 kg for the whole panelSECTIONS INCLUDEDELEC 14 controls 420 x 150 mm 3 modulels AIR_COND 12 controls 420 x 170 mm 3 module(s ANTI_ICE_PRESS 8 controls 420 x 115 mm 3 module(s) _IGHTS 17 controls 420 x 130 mm 3 module(s EVAC_EMER_PWR 6 controls 195 x 145 mm 1 module(s) GPWS_RCDR 8 controls 195 x 130 mm 1 module(s DXYGEN_CALLS 7 controls 195 x 130 mm 1 module(s) WIPER_L 2 controls 195 x 85 mm 1 module(s FLT_CTL 6 controls 190 x 105 mm 1 module(s) CARGO_VENT 6 controls 190 x 140 mm 1 module(s) ENG_START 3 controls 190 x 90 mm 1 module(s) WIPER_R 2 controls 190 x 85 mm 1 module(sCentre stack is 420 mm wide and splits into 3-4 printable modules per section; the left and right side panels are 190- 195 mm and print as single modules,HOW THE BACKLIGHTING WORKS_egends are recessed 0.6 mm into a 2.0 mm faceplate instead of cut clean through, which keeps the enclosed cen tres of O, A, R and B attached - cut through, they fall out of the print.Print the base in white, then swap filament to your panel colour for the top 0.6 mm. The legends glow when lit from behind. Each enclosure has an nternal LED shelf 12 mm below the diffuser sc light spreads evenly instead of hot-spotting.Schematic mimic lines - the AC bus bar or ELEC, the bleed duct on AIR COND - are cut to the same depth and light up with the legends.PRINT SETTINGS9.4 mm nozzie, 0.2 mm layers, no supports or any part Filament change at Z = 1.4 mm on the faceplates Faceplate and diffuser flat; enclosures open side upMOUNTINGEach module bolts through its four rear corne bosses into a flat backplate A 1:1 drilling template (SVG) is included per sec tion - print at 100%, tape to plywood or MDF, drill Enclosures also carry T- tracks in the rear floor so you can clamp to a frame anywhere along their length.INCLUDEDSTL-ready to slice DBJ - individual parts plus assembled files witk named groups STEP-editable solid geometry Renders, 1:1 backplate templates, and a descrip- tion per sectionHARDWARE REQUIRED(NOT INCLUDED,15 x 6 mm threaded mini toggle switches (6.5 mm holes, keyed) 57 x square pushbuttons (19.5 mm aperture' 9 x rotary selectors (7.0 mm bushing) 13 screws for the faceplates, M4 for backplate mounting 12 V LED strip for backlightingNOTESProduct images are CG renders of the model hot photographs of a printed unit Switches, LEDs and electronics are not included panels only Not affiliated with, endorsed by, or licensed bw Airbus. A hobbyist replica intended for flight simulation use.
