Solid State Relay with FHS 3D print model

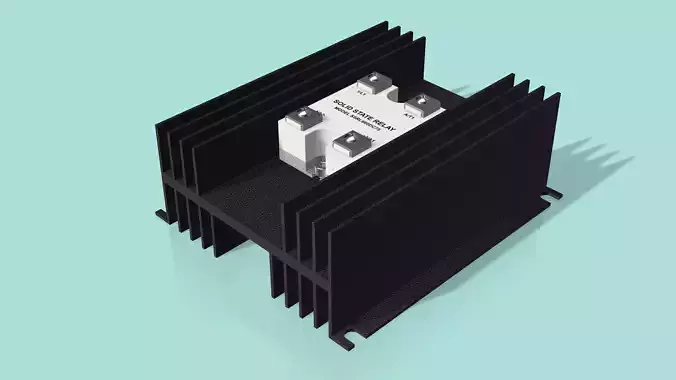

Reversed engineered CAD model of Solid State with Finned Heat Sink (FHS).Overall Dimension of the Assembly: 120.65 (L) * 53.405 (W) * 139.7 (H) mm. The SSRL Series solid-state relays are used to control large resistance heaters in conjunction with temperature controllers. Solid state relays are SPST, normally open switching devices with no moving parts, capable of millions of cycles of operation. A finned Heat sink is placed beneath the metal contact surface of the Solid State Relay to help transfer the heat produced by the SSR. 6 Different types of CAD files are uploaded in the folder along with a few rendered images of the assembly.
