PCB Drilling Machine 3D print model
thumbnail
thumbnail
DESCRIPTION

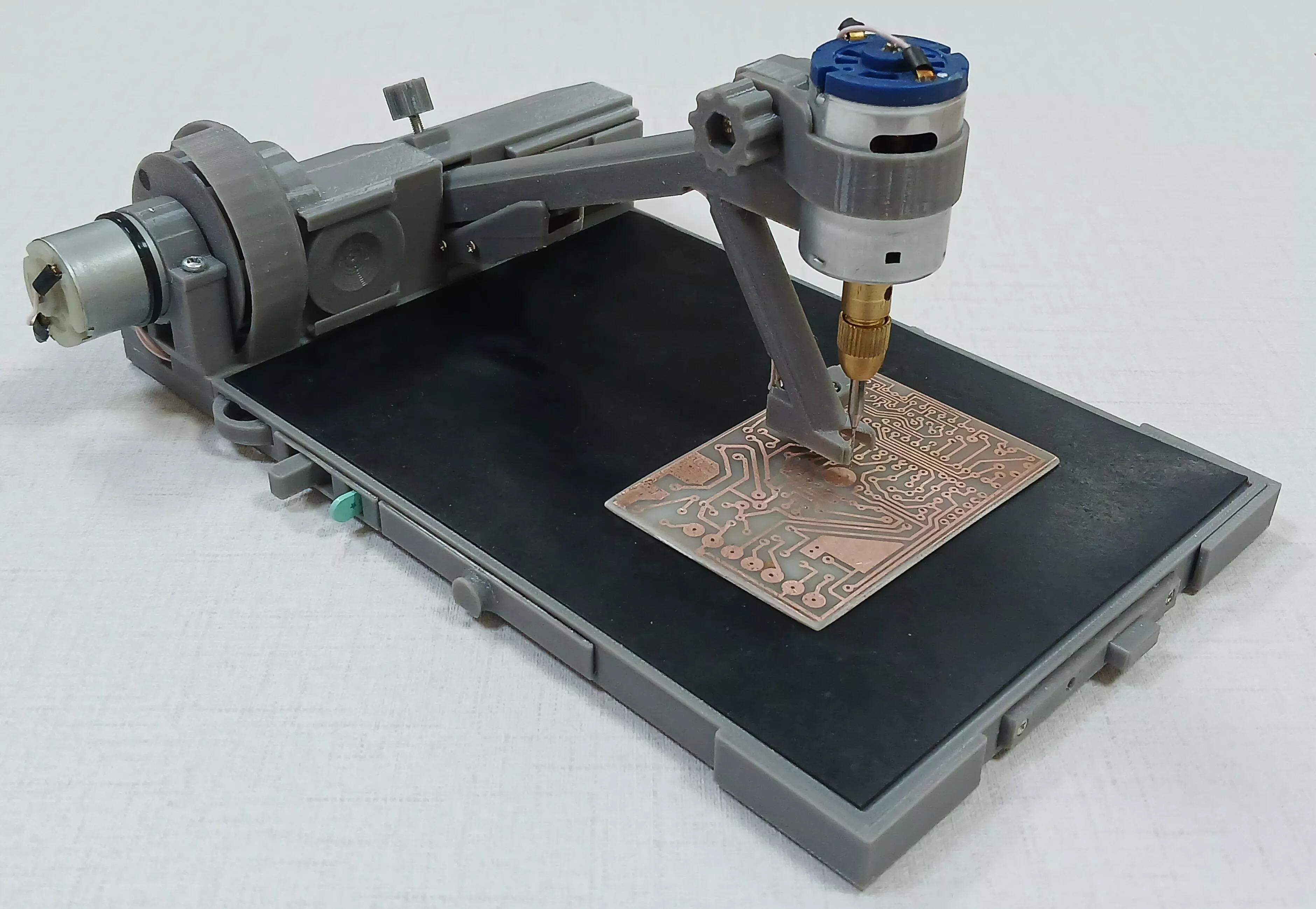

The machine is designed for drilling printed circuit boards. The machine has an original, innovative design, there are no similar design solutions on the Internet. The machine is fully printed on a 3D printer, there are no purchased structural elements.The machine has a built-in chip removal module, illumination of the drilling area.The machine has drawers for storing collet, drills.The purchased elements are two electric motors, an electric motor speed controller, two buttons, two LEDs, and several screws and nuts.

A brief overview video of the machine operation - https://drive.google.com/file/d/1DXVJUrmf6XpzefxLEWgNBINiwief4_i0/view?usp=sharing

The full video review of the machine can be viewed at the link - https://youtu.be/qADV7PMBV2E

Related Tagsmachinedrillingoriginalelectronicspcb
