Atmega 40 pin IC

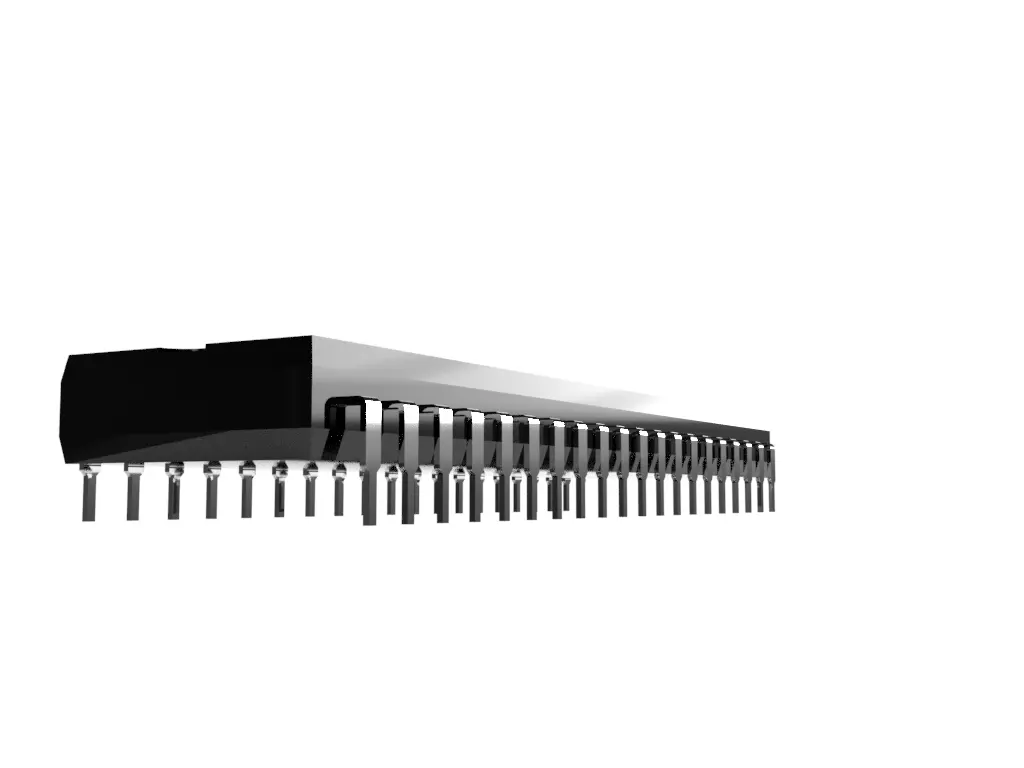

Atmega 40 pin IC 3D print model

Description

This is the model of 40 pin IC size of Atmega 16 design in fussion 360. Model is provided in .stp, .stl, .obj, .step, .amf format. This model can be use make 3D model , 3D circuit , 3D printing , rendering and many more. You can use this model for semicoductor and circuit demonstration.

ATmega16 is an 8-bit high performance microcontroller from the Atmel’s Mega AVR family. Atmega16 is a 40 pin microcontroller based on enhanced RISC (Reduced Instruction Set Computing) architecture with 131 powerful instructions. It has a 16 KB programmable flash memory, static RAM of 1 KB and EEPROM of 512 Bytes. The endurance cycle of flash memory and EEPROM is 10,000 and 100,000, respectively. Most of the instructions execute in one machine cycle. It can work on a maximum frequency of 16MHz. ATmega16 pin diagram should clarify things a bit.

Item rating
0 0
Atmega 40 pin IC
$3.00

Royalty Free License
Atmega 40 pin IC
$3.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • Sketchup (.skp)257 KB
  • STEP (.stp)752 KB
  • Stereolithography (.stl)188 KB
  • amf (.amf)454 KB
  • OBJ (.obj, .mtl)485 KB

3D Model details

  • Publish date2021-05-11
  • Model ID#3034276
  • Ready for 3D Printing
