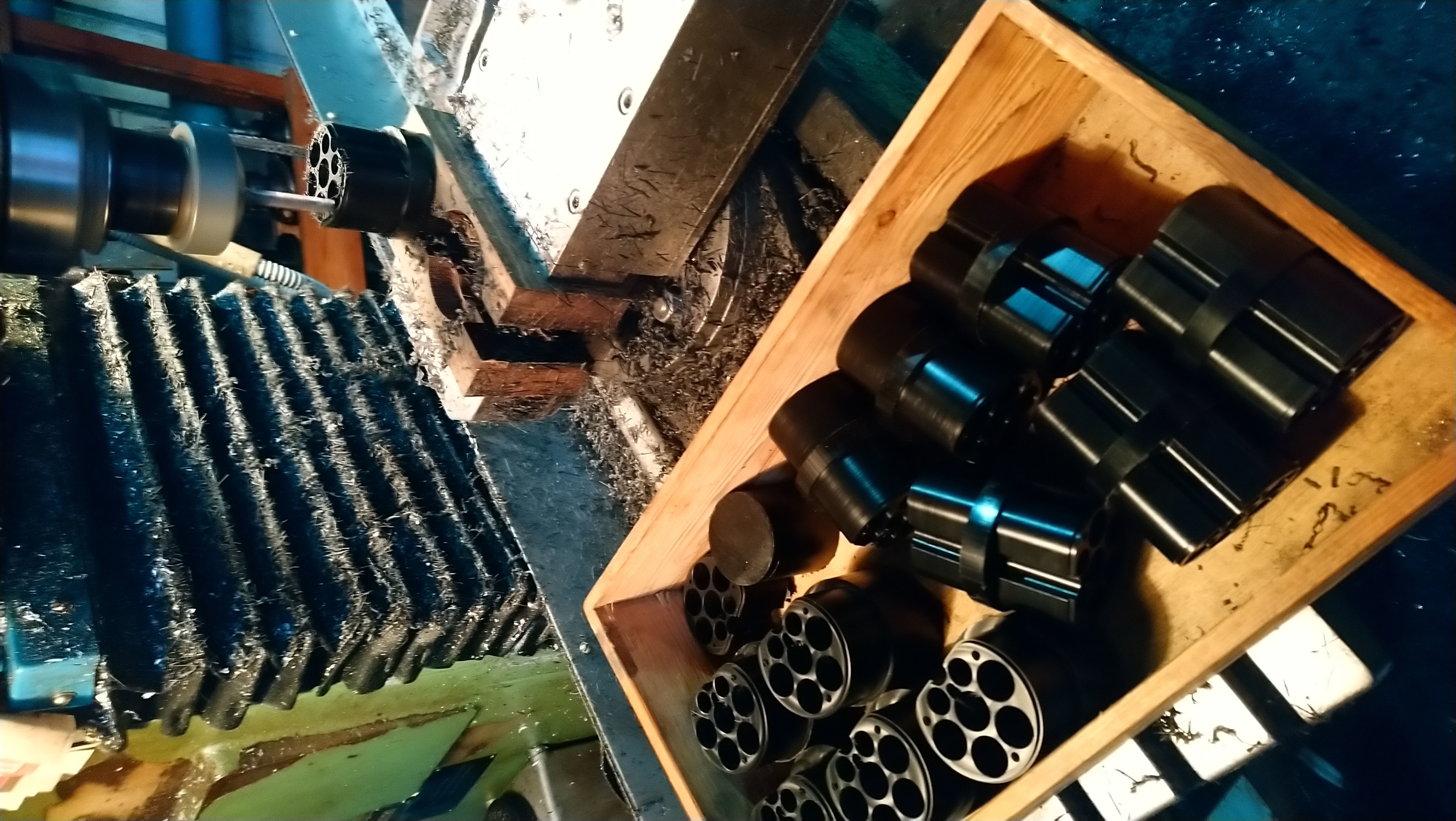

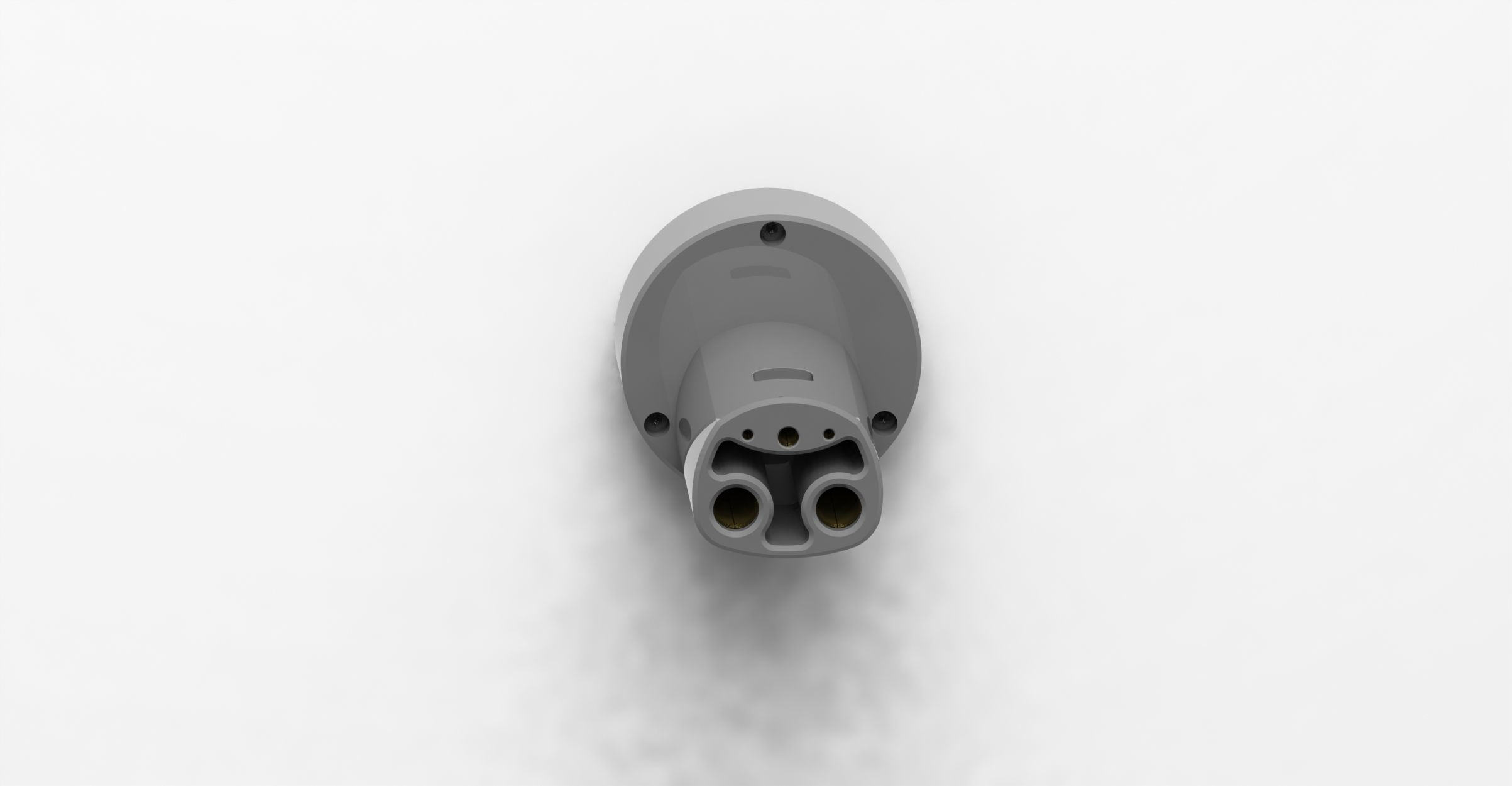

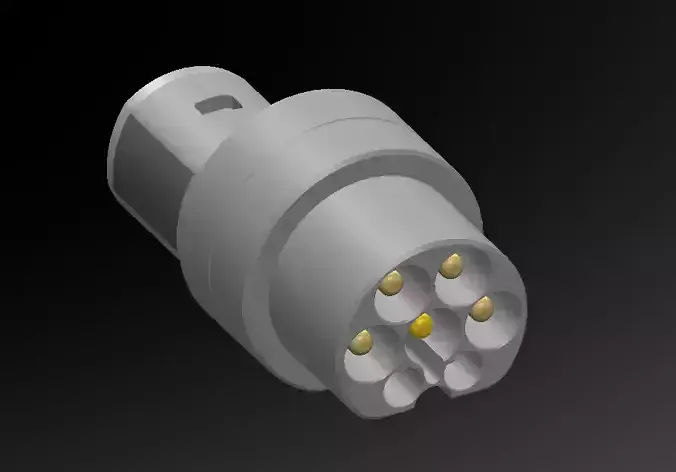

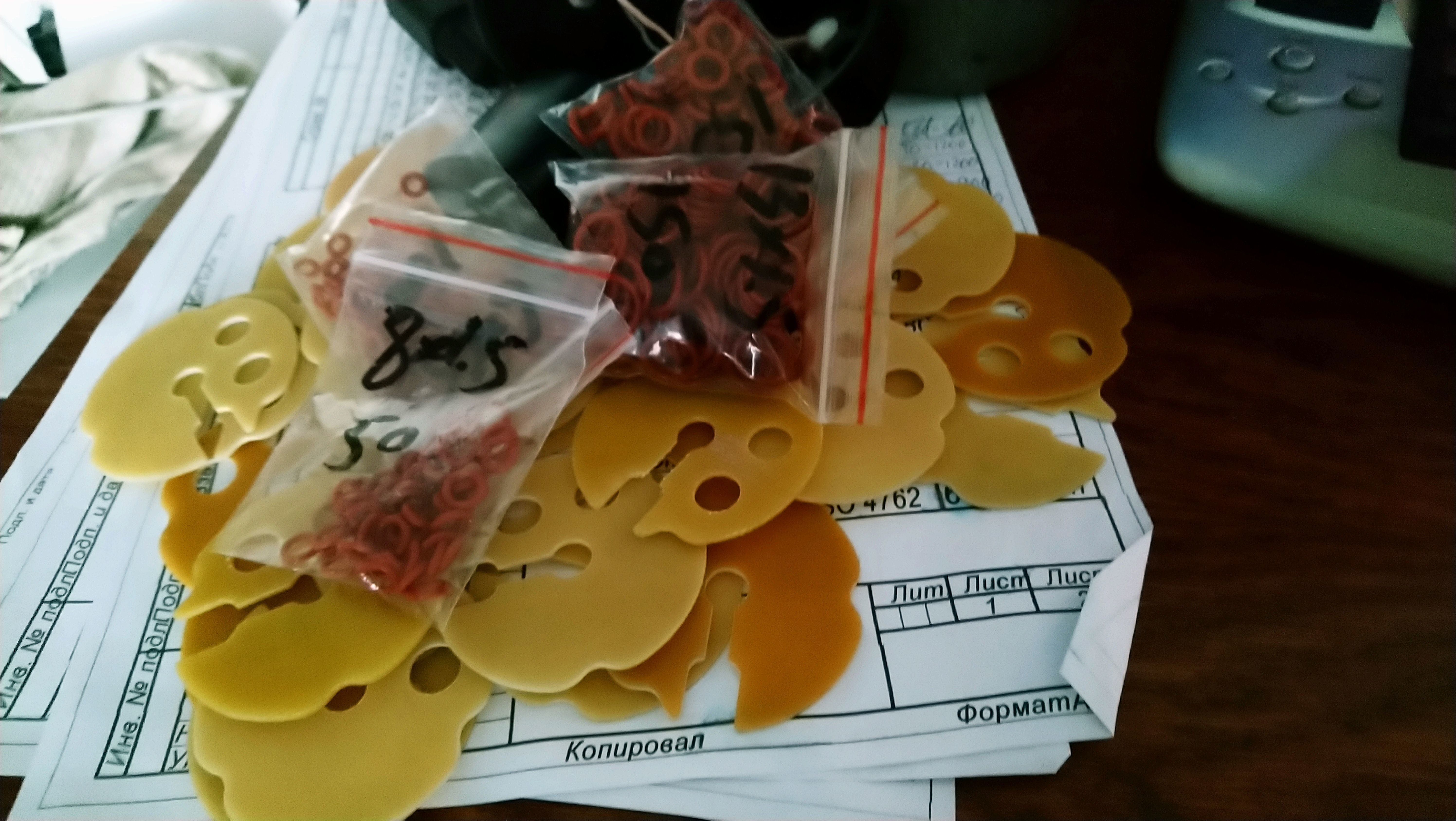

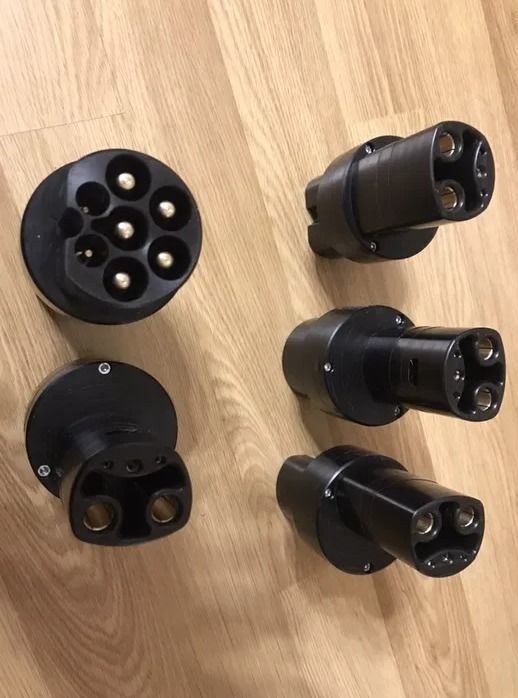

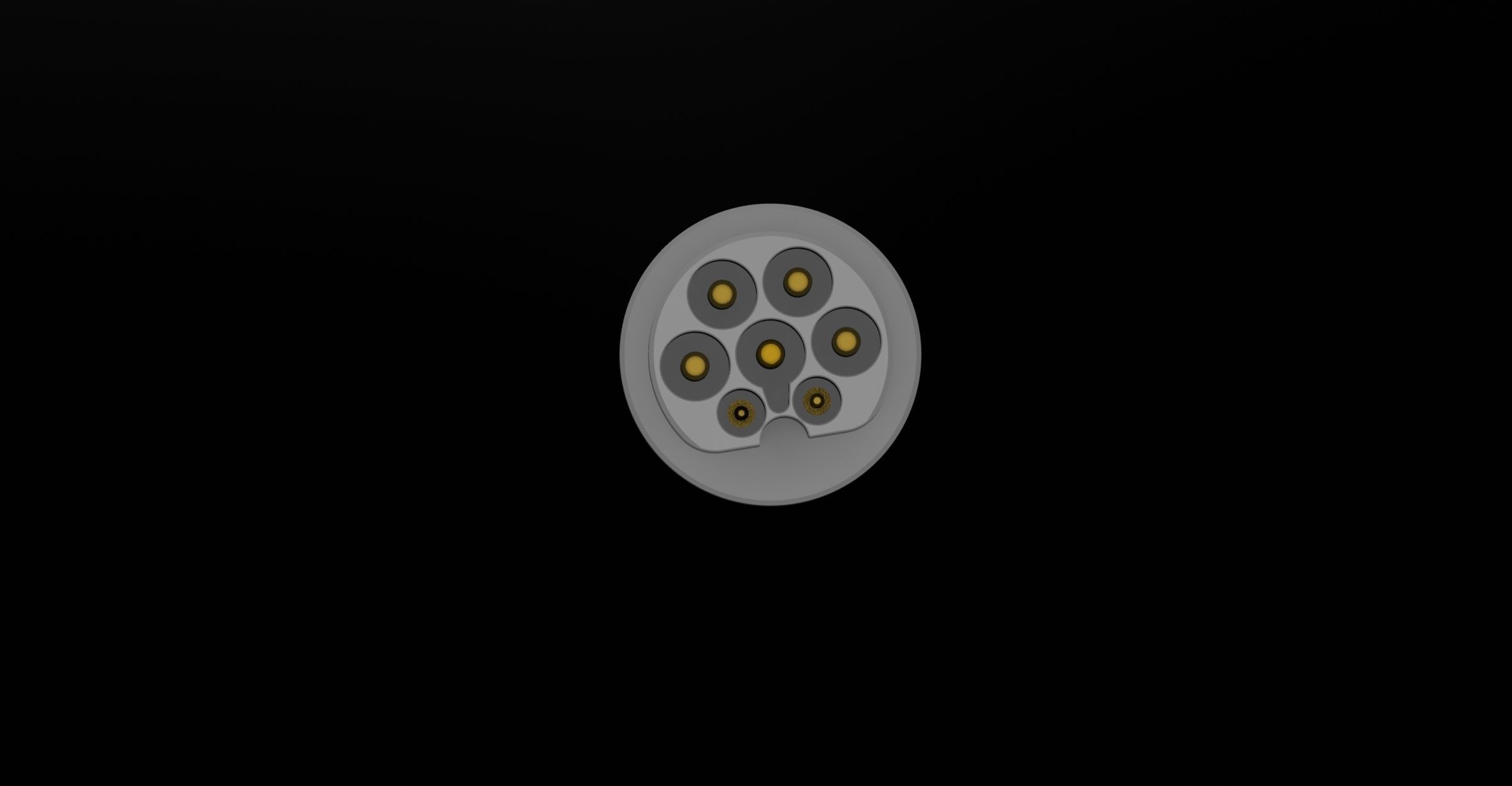

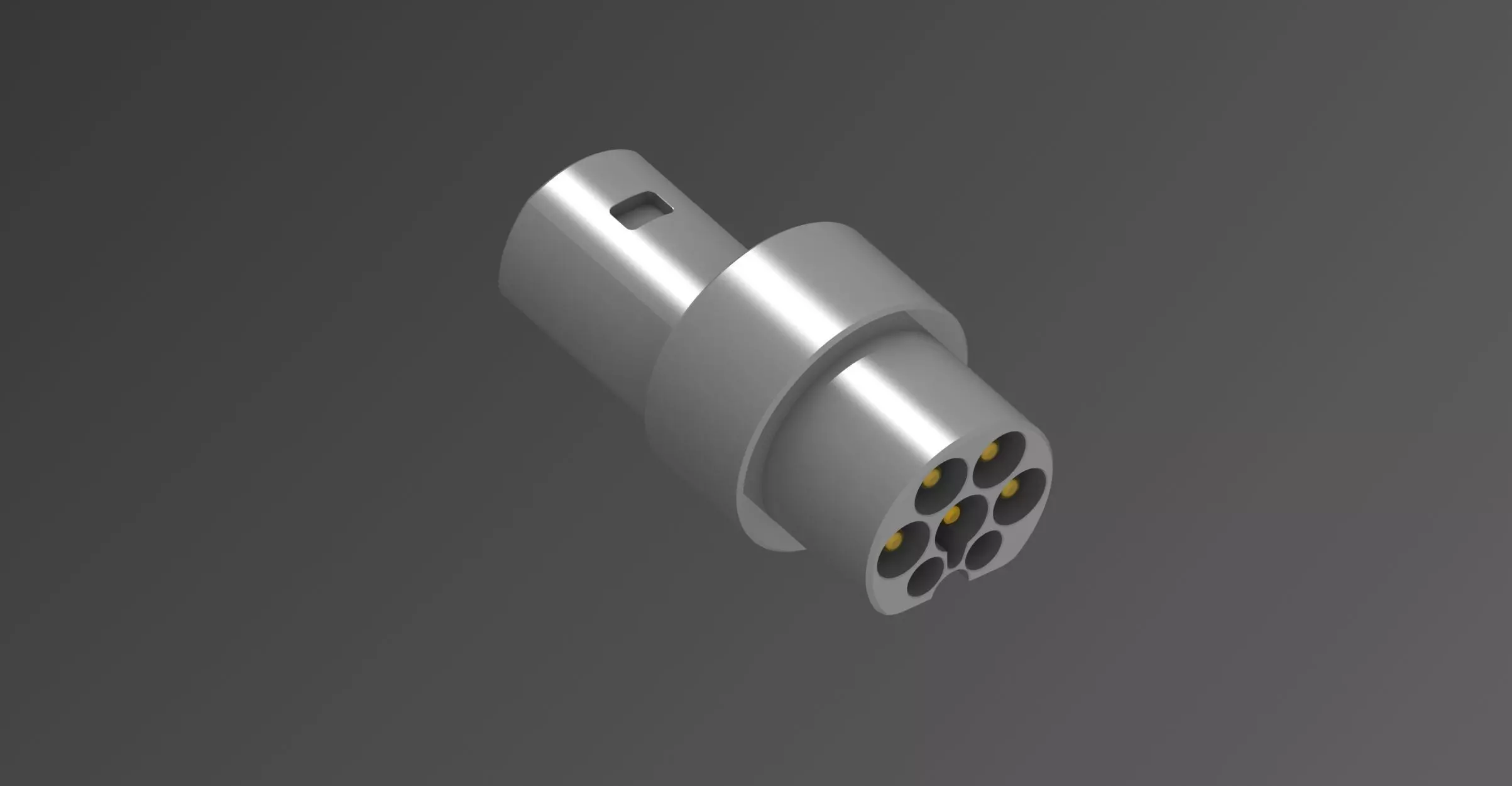

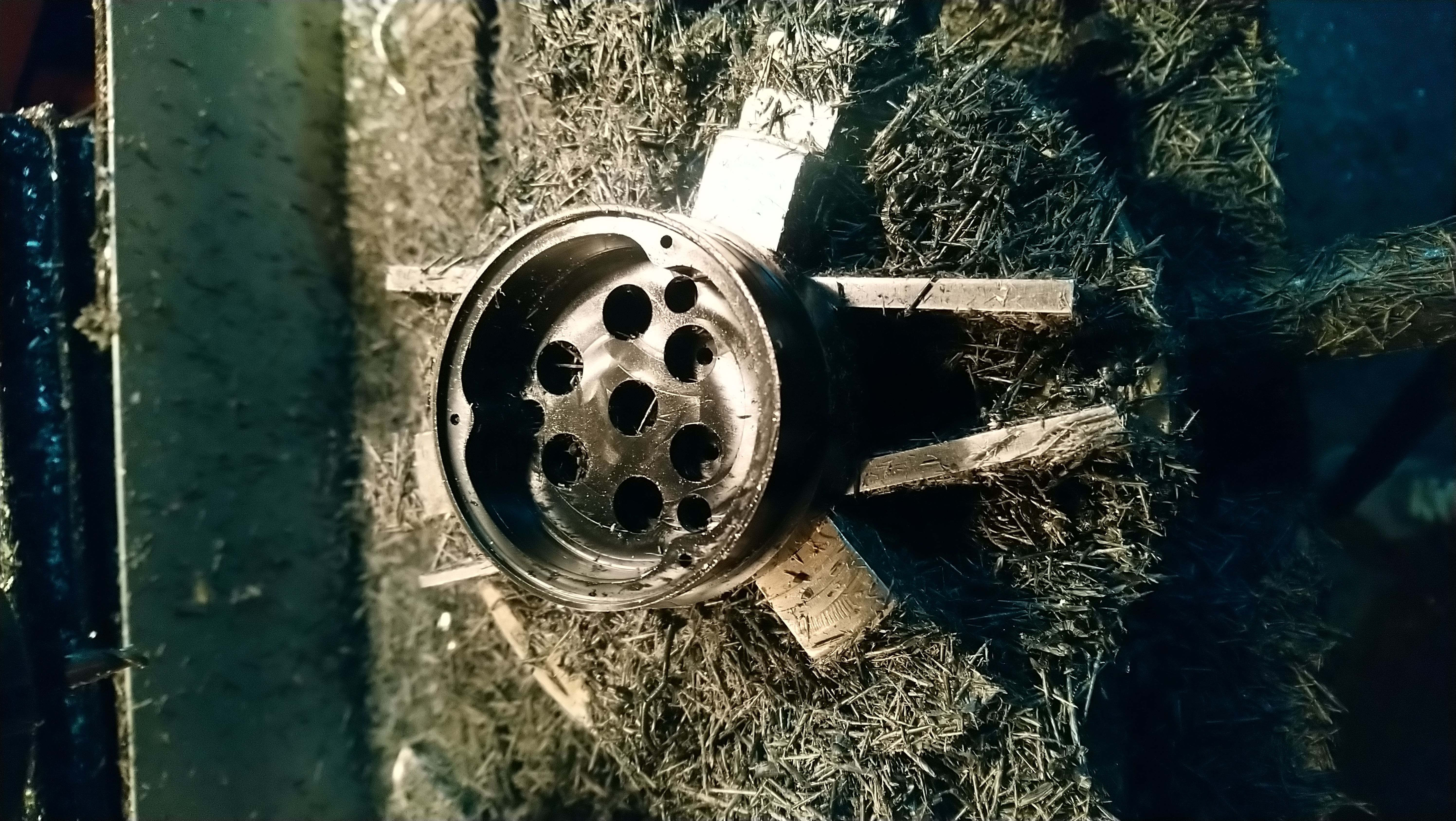

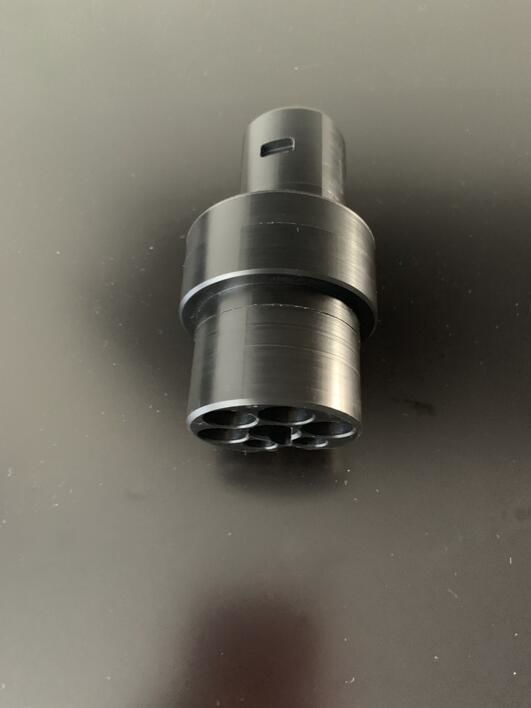

Adapter was created for charging US spec. tesla cars on EU superchargers and CHAdeMO chargers (with CHAdeMO adapter), or Type2 1 phase AC chargers. It is not toy 3d model, it's full ready to manufacturing project. The adapter is produced in a certain quantity and tested in practice, you can find confirmation on YouTube.For production you will need cnc milling, turning, soldering, pressing.

You can use it for manufacturing, projecting your custom thigs or just render. Dimension full comparsion to IEC standart.

!!! Attention !!! The project was created before the publication of the open standard NACS (Tesla), so some of the dimensions do not correspond to it and were assigned at my discretion. However, the design is fully functional. Initially, some elements were simplified in order to facilitate manufacturing by CNC milling. !!!

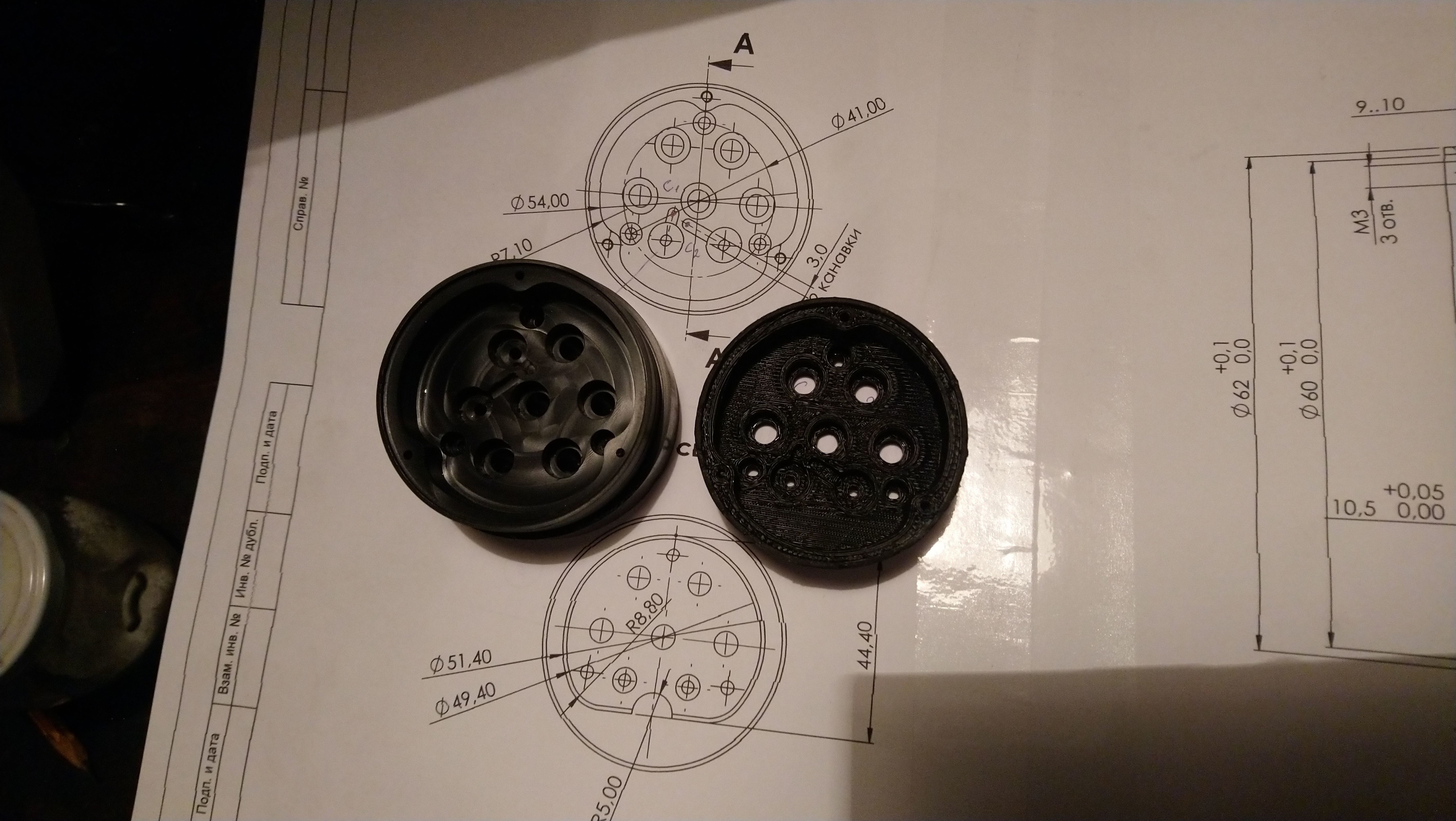

Project contains files PDF 3d\IGES(igs)\STEP(stp)\STL\3MF\AMF, also in addition to 3D models, you get a full set of working drawings with tolerances and specifications for each part, and my advice on emerging issues.Check my other EV connectors 3d models.Any questions. Open for work.
