JS3 Revelation Sailplane

JS3 Revelation Sailplane Low-poly 3D print model

Description

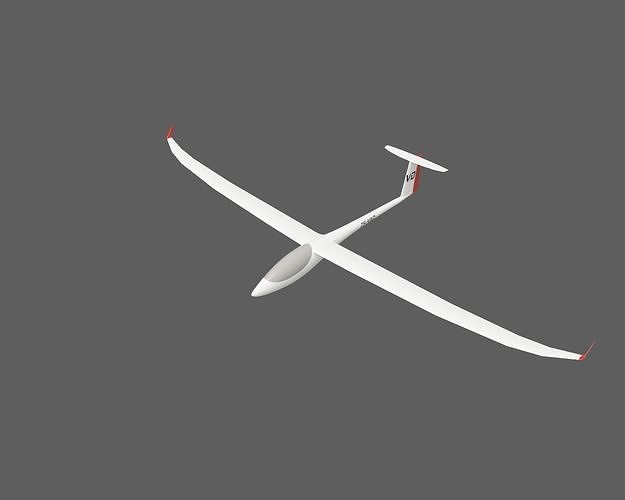

As my first model on CG Trader, this 3.2m span model of the popular JS3 competition sailplane is offered for scale aero modelers and general enthusiasts alike. Digital and actual models are hard to come by so I decided to make my own of both. It's been modeled and rendered entirely in Fusion 360. I've modelled it as accurately as possible with what references are available.

Aerodynamic features include an HQ 3,0-12 airfoil used in other sailplane models of this size optimised for thermal work as well as span wise washout with wing incidence angles of +3 degrees at the root to -1.5 degrees at the wing tip. You can of course modify these features to suit your needs if you intend to build one.

I intend to build up a collection of modern gliders and feedback from those that this model appeals to will be appreciated.

Item rating
1 1
JS3 Revelation Sailplane
$25.00

Custom License
JS3 Revelation Sailplane
$25.00

Custom License
Response 80% in 48.0h
3D Modeling
Hire me

3D Model formats

Format limitations
Native
  • Autodesk Fusion 360 (.f3d)9.1 MB
Exchange
  • Autodesk FBX (.fbx)2.06 MB
  • IGES (.ige, .igs, .iges)12.9 MB
  • OBJ (.obj, .mtl)6.18 MB
  • Stereolithography (.stl)21.3 MB
  • STEP (.stp)13.6 MB

3D Model details

  • Publish date2021-09-11
  • Model ID#1981865
  • Ready for 3D Printing
