Car central pillar

Car central pillar 3D print model

Description

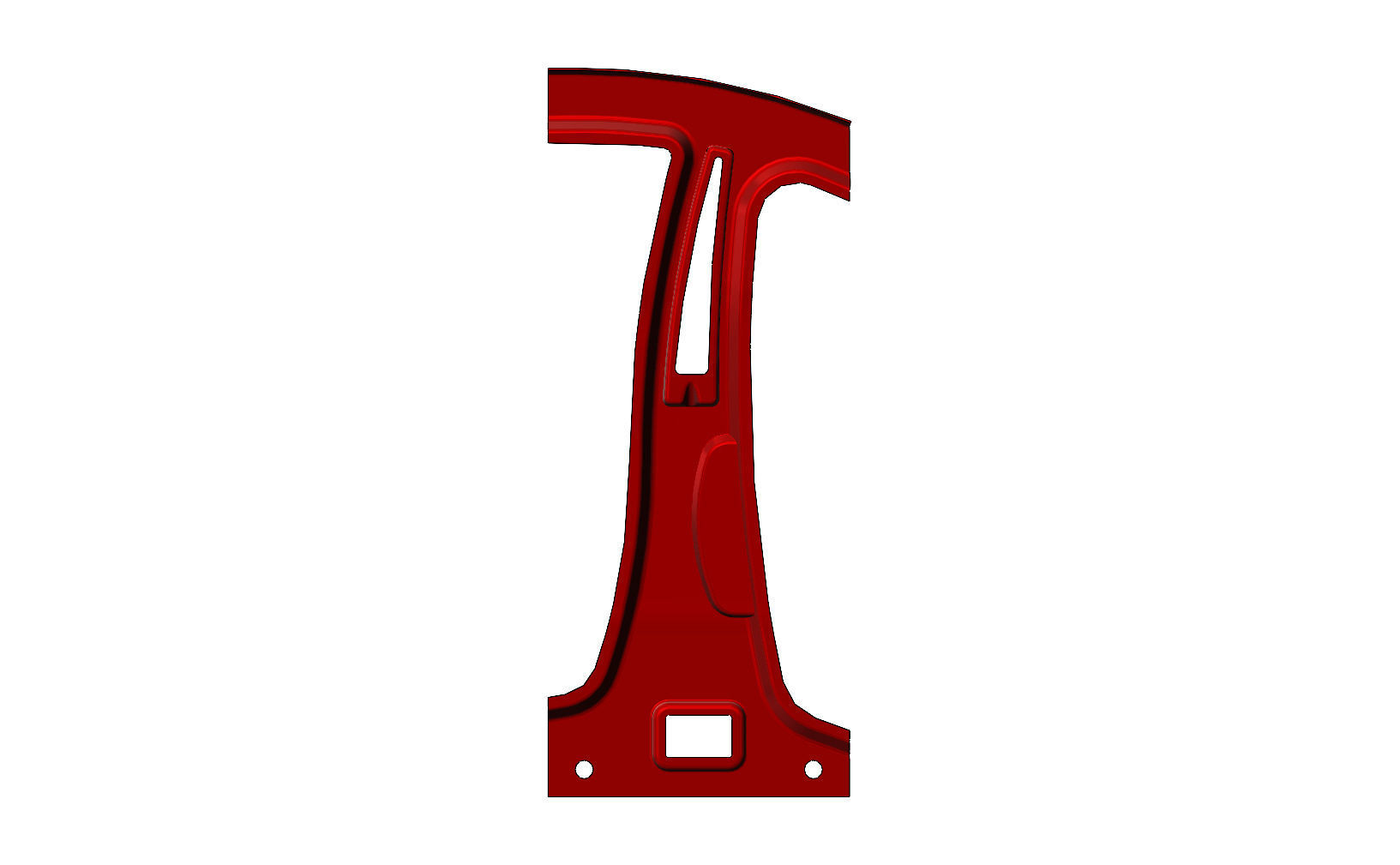

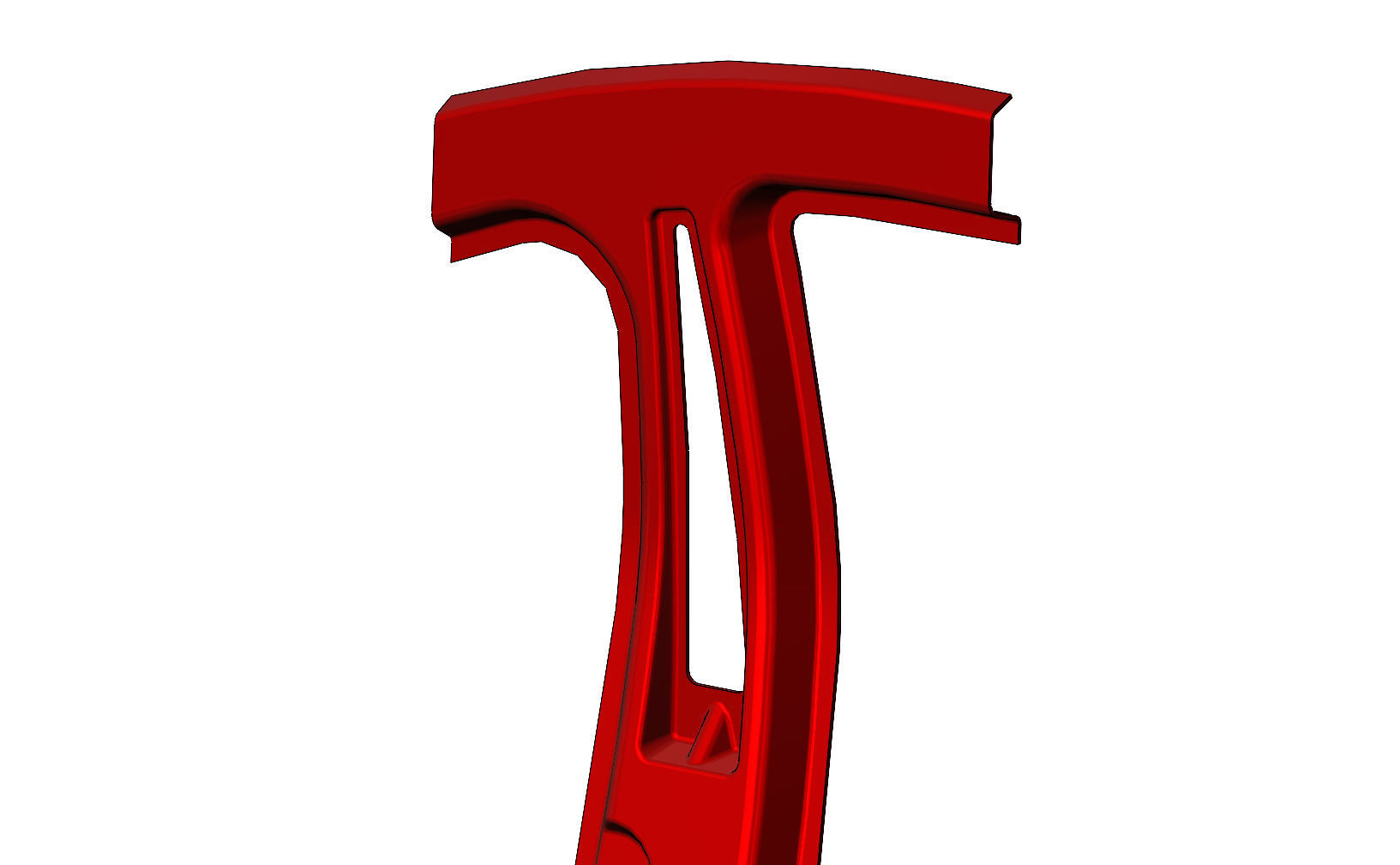

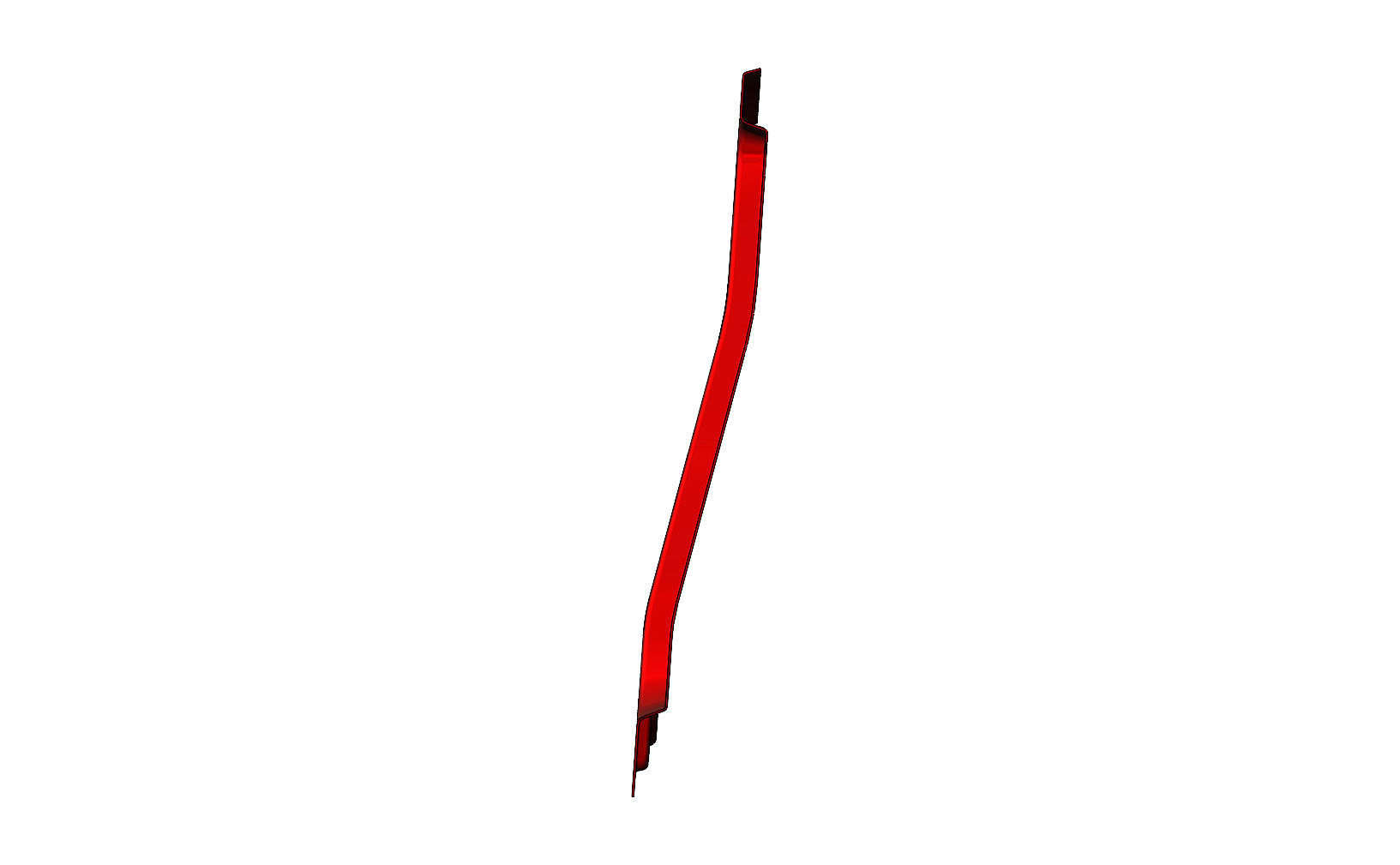

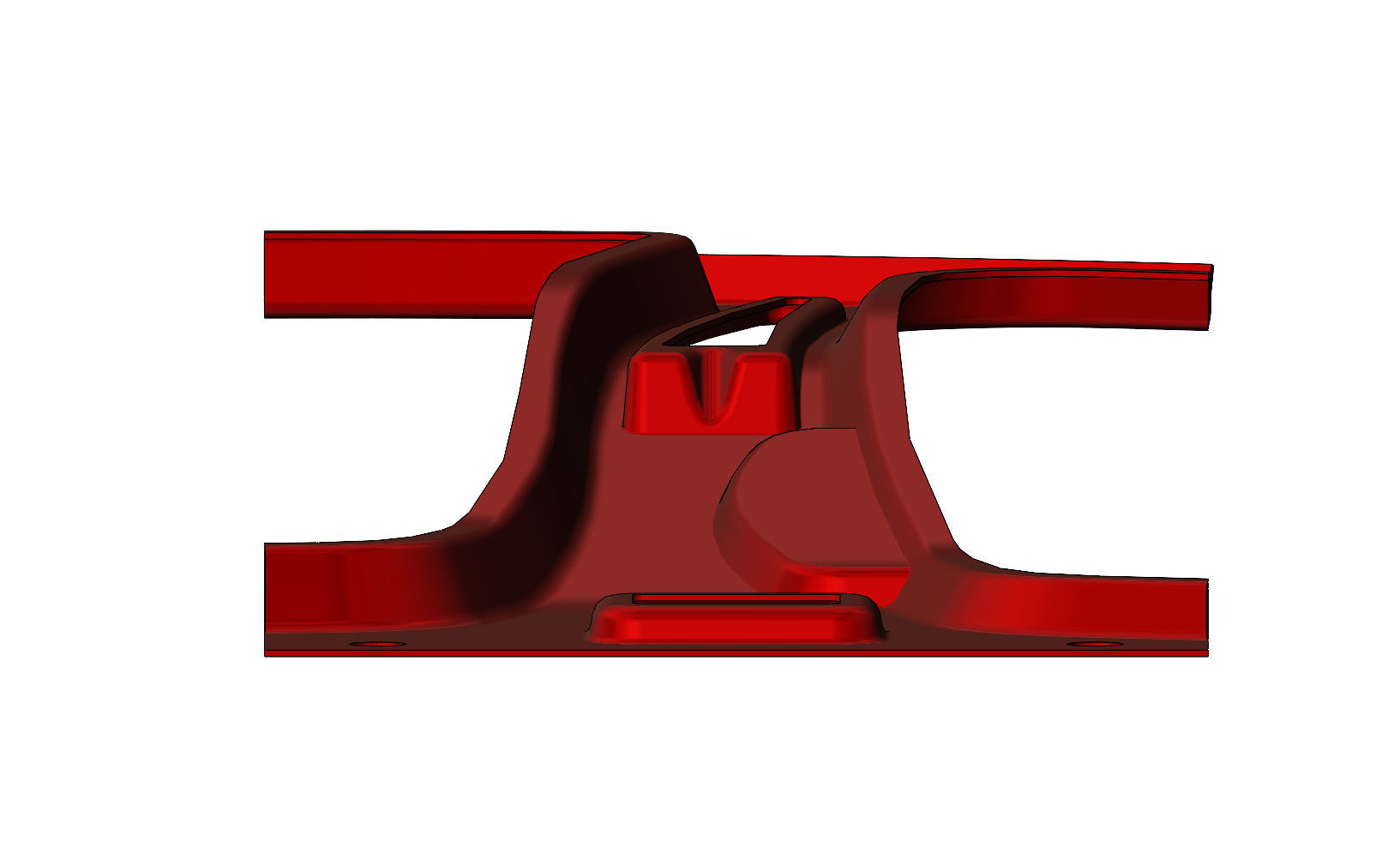

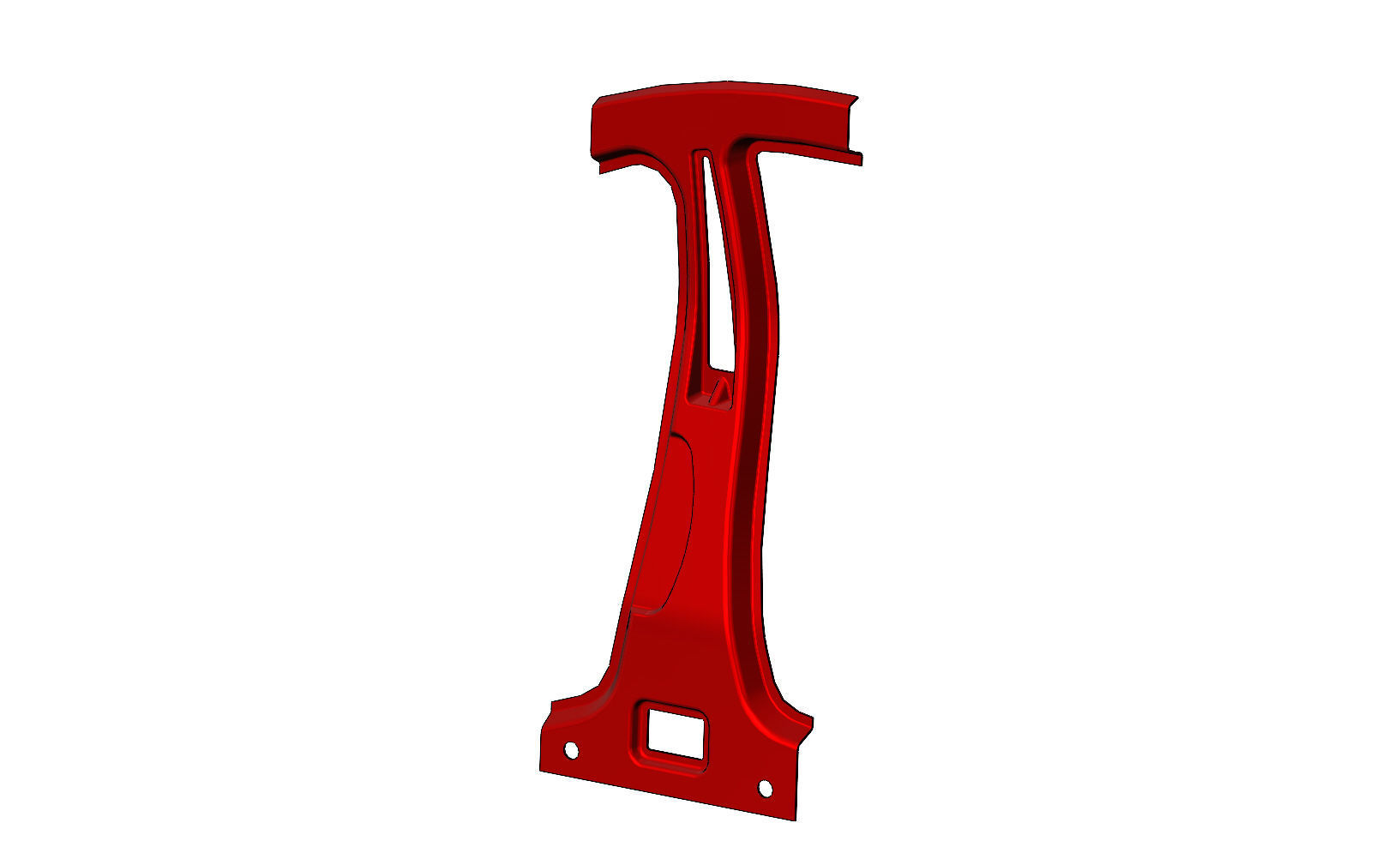

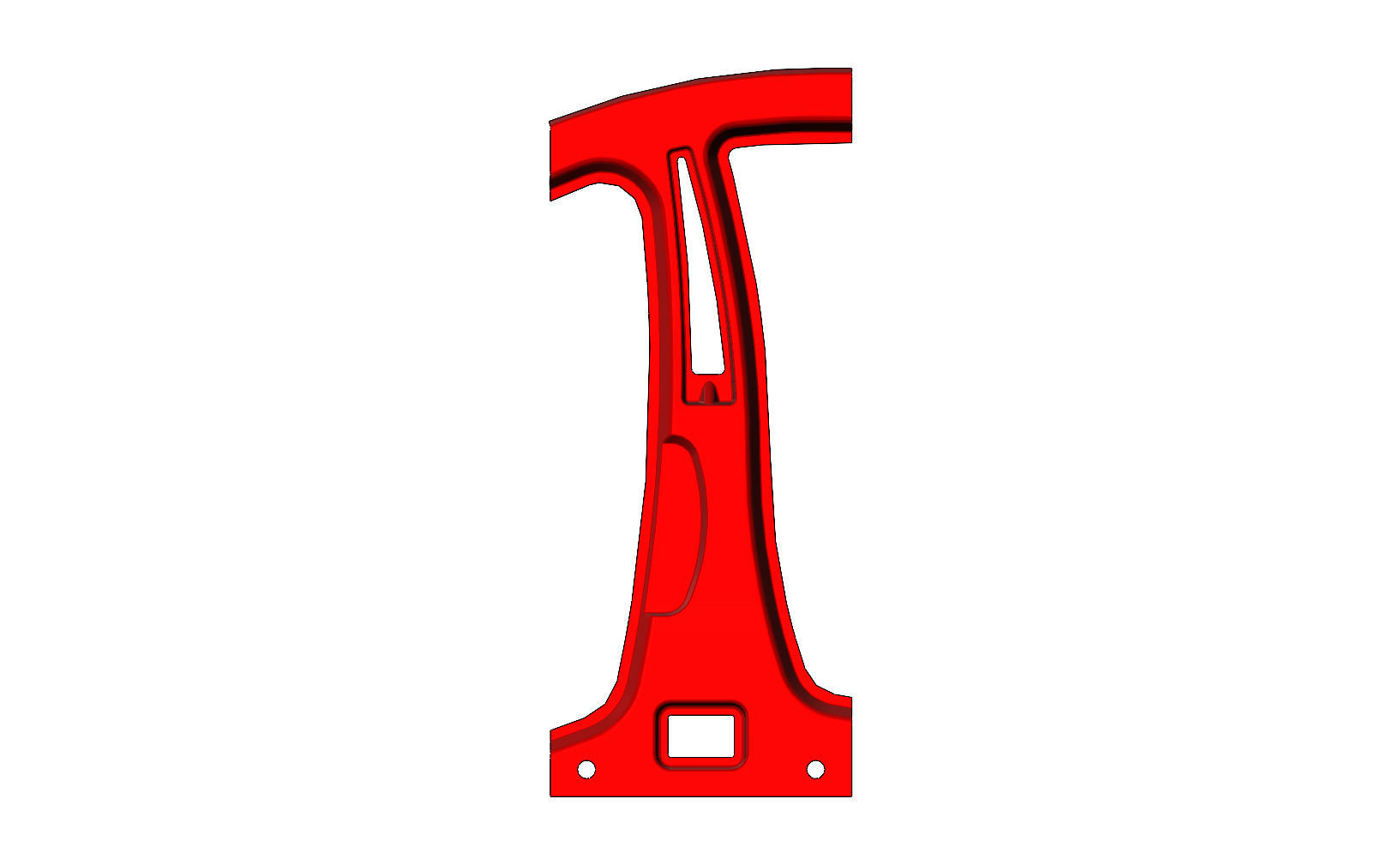

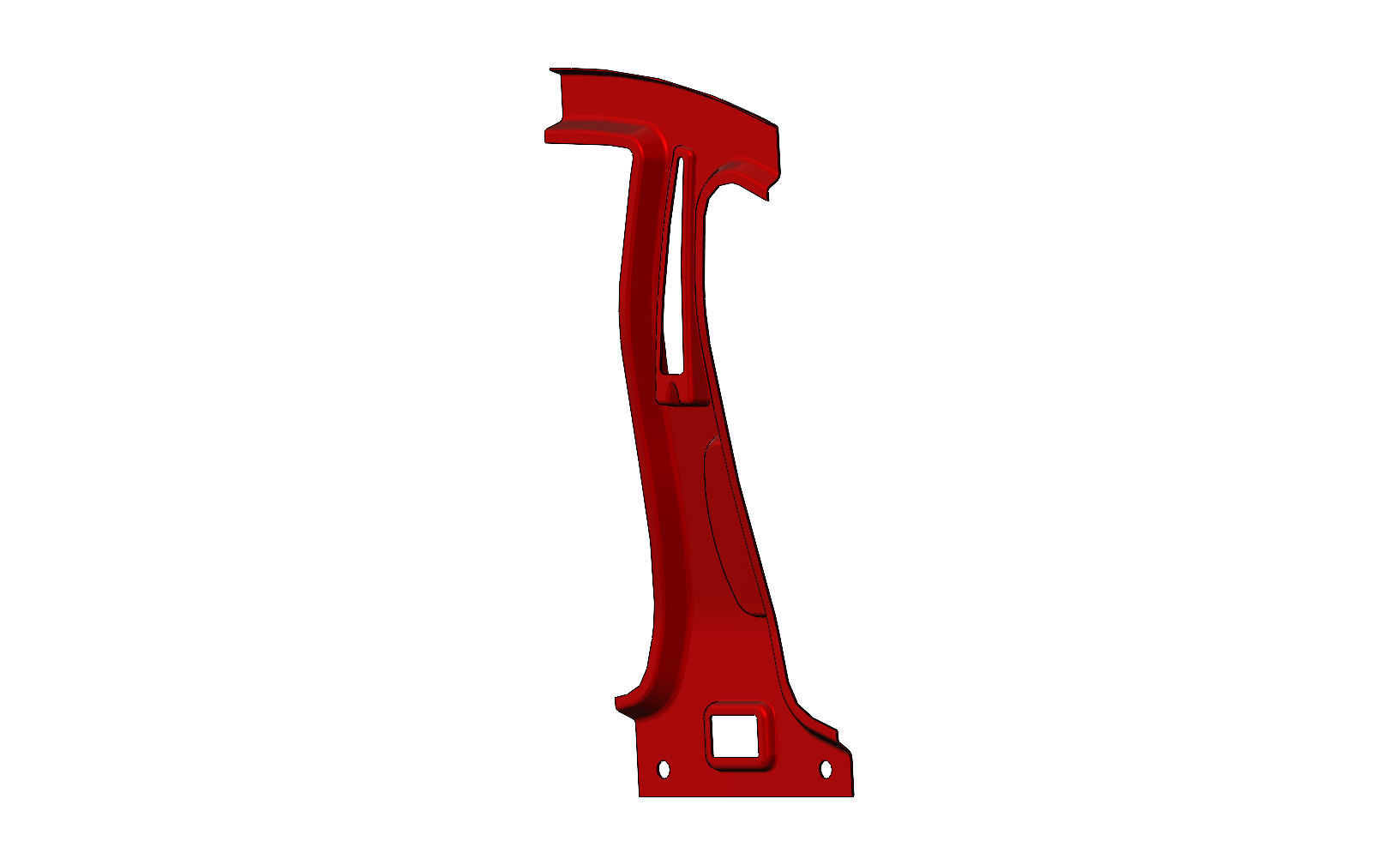

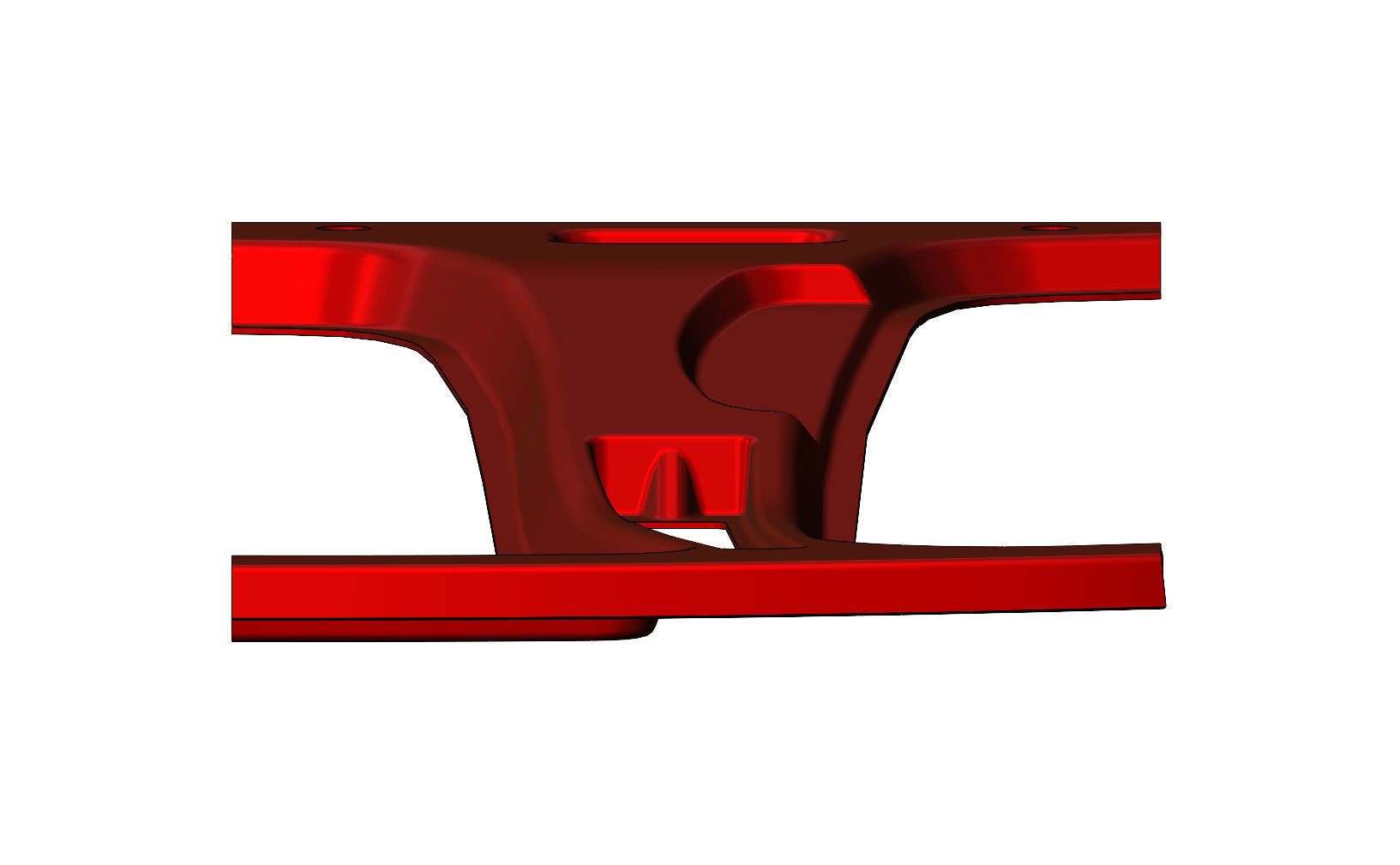

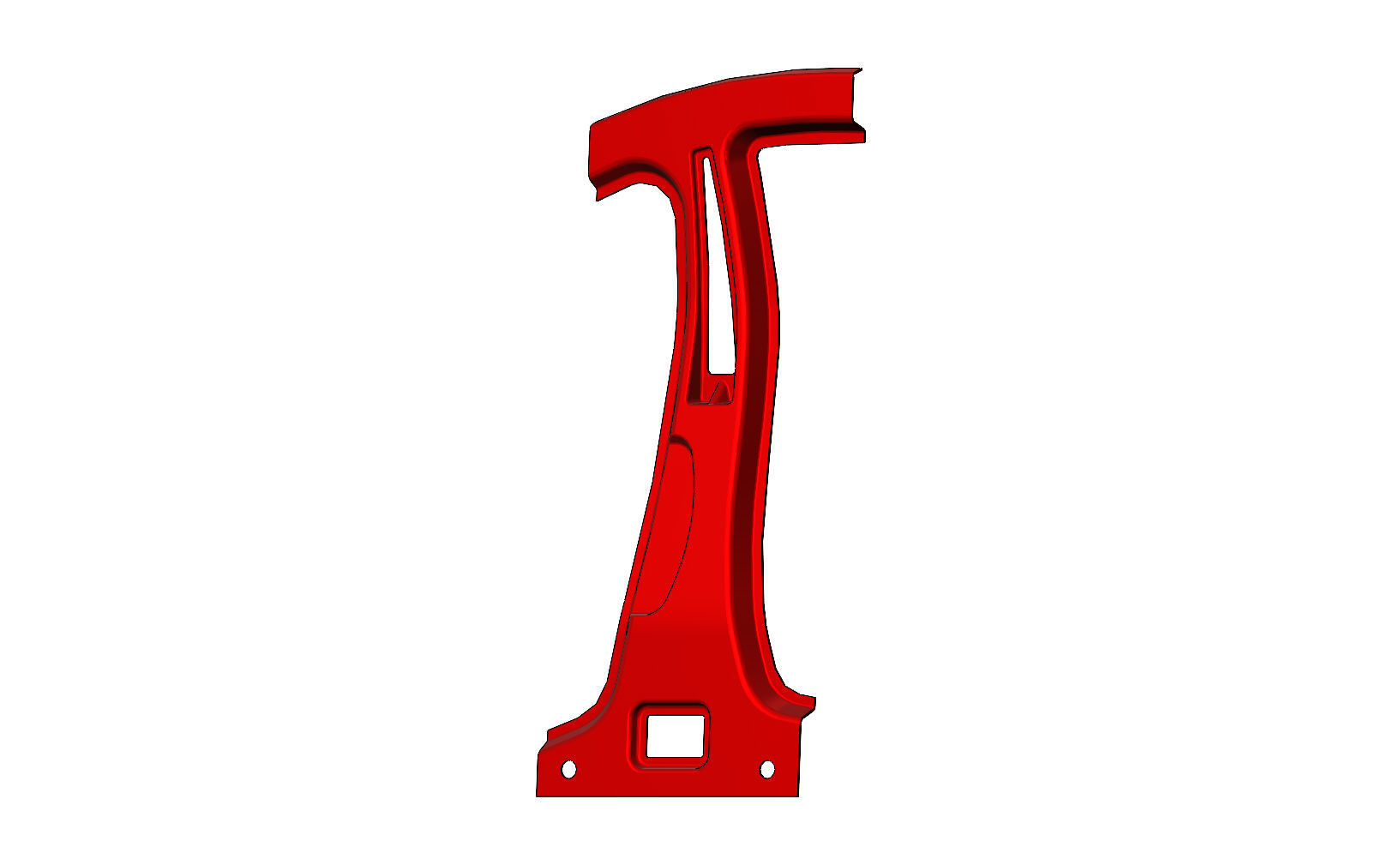

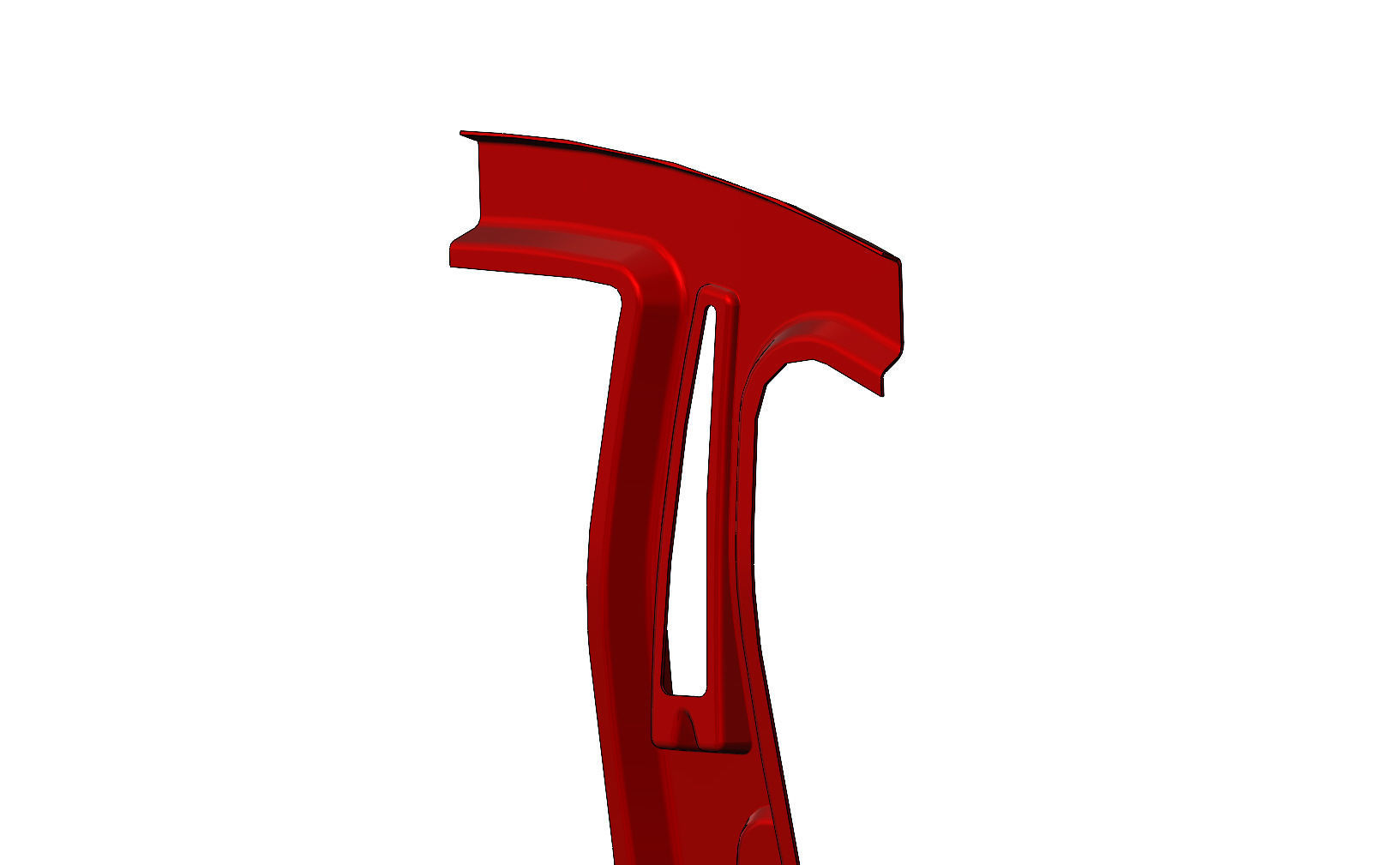

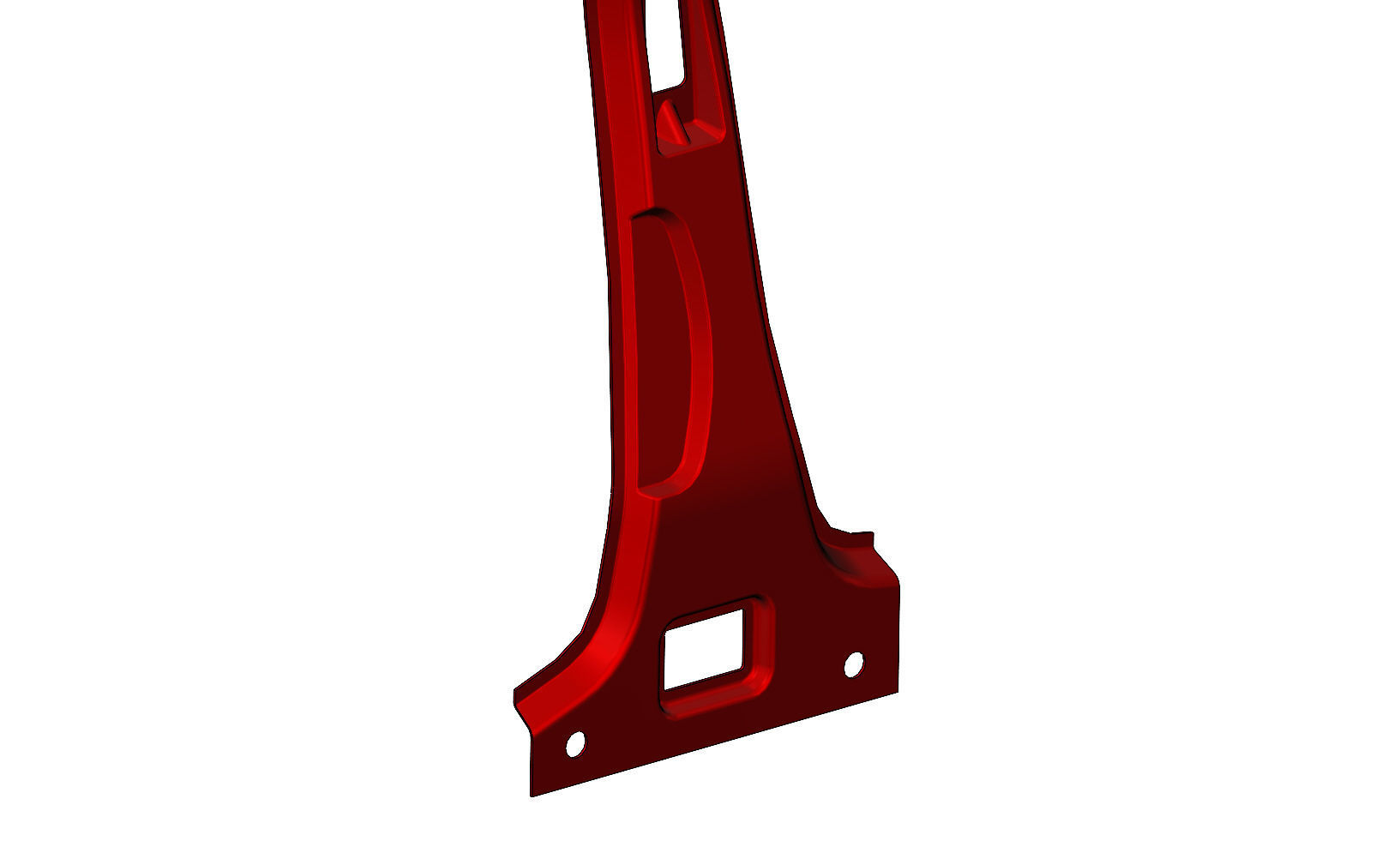

Generic car bodywork sheet metal central pillar model.

Pillars are vertical supports on a vehicle. They are located around all the glass on an automobile. The pillar is typically a closed steel structure welded at the bottom to the car's rocker panel and floorpan as well as on the top to the roof rail or panel. Pillars provide structural support for the vehicle's roof panel and designed for latching the front door and mounting the hinges for the rear doors.

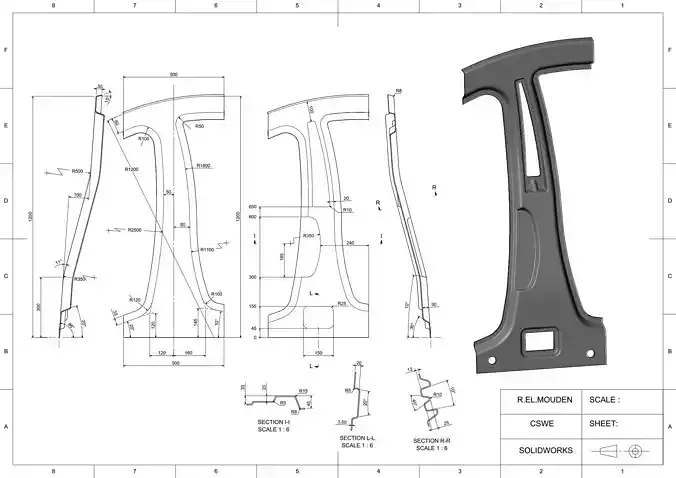

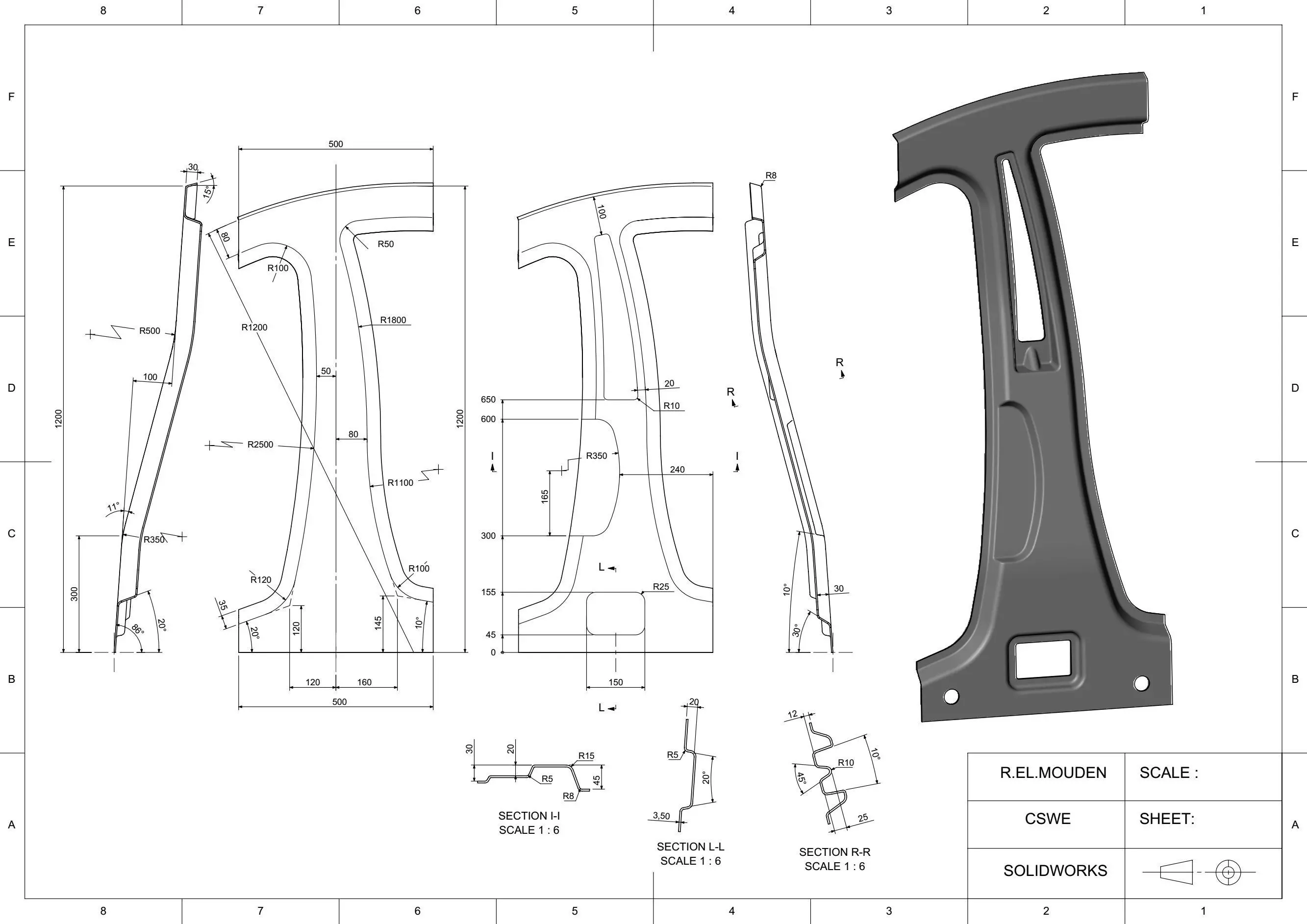

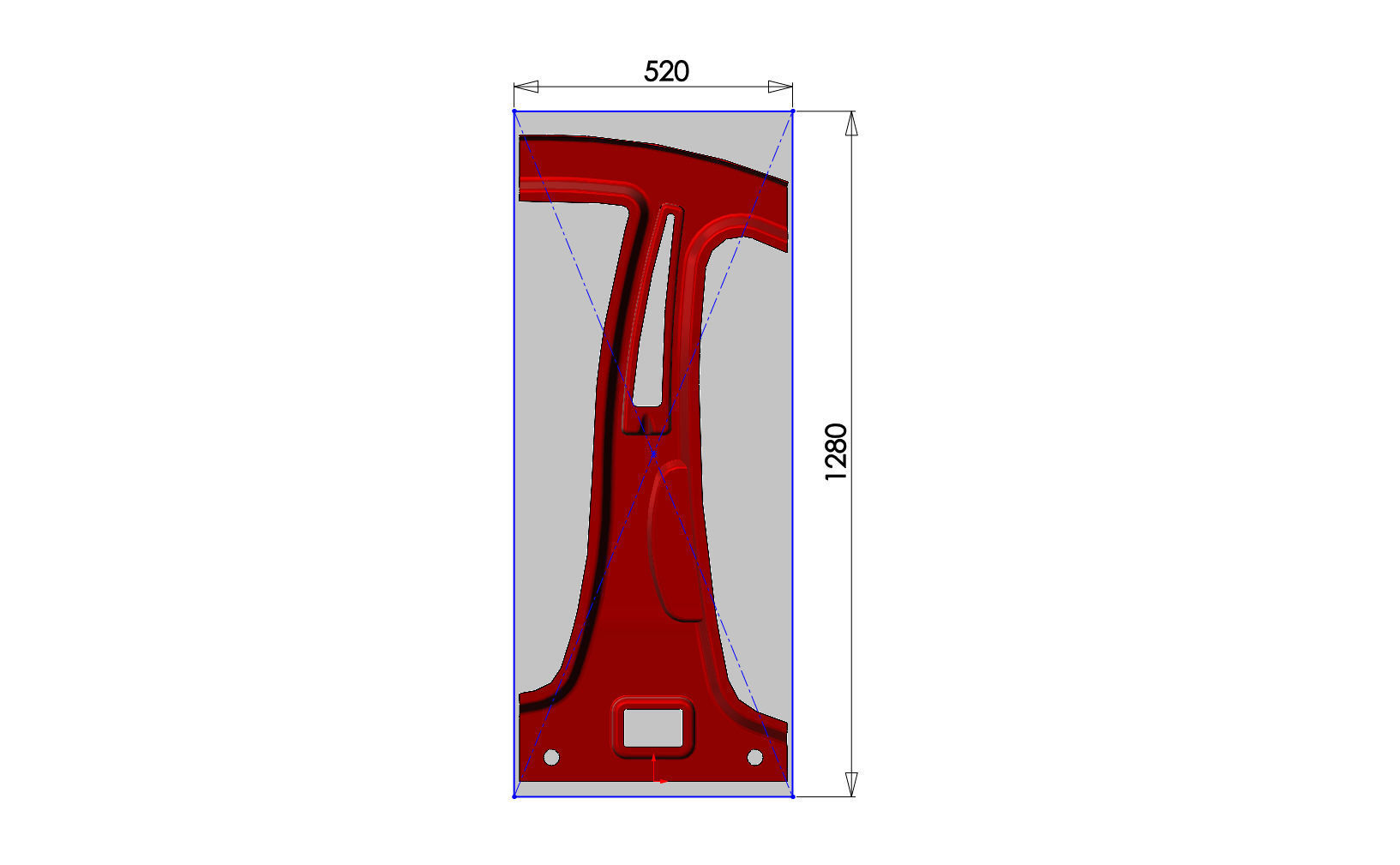

The model is provided in the formats : STL, STEP, IGES, OBJ and solidworks part plus a PDF drawing with all the dimensions. To be used for educational purposes and 3d printing applications.

Please contact us for any inquiries and modifications. Check my previous models for similar designs.

Item rating
1 0
Car central pillar
$8.00

Royalty Free No Ai License
Car central pillar
$8.00

Royalty Free No Ai License
Response 98% in 0.1h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
Native
  • SolidWorks 2020 (.sldprt, .sldasm, .slddrw)2.1 MB
Exchange
  • OBJ (.obj, .mtl)4.59 MB
  • IGES (.ige, .igs, .iges)6.33 MB
  • PDF (.pdf)158 KB
  • 3D Manufacturing File (.3mf)472 KB
  • STEP (.stp)4.57 MB

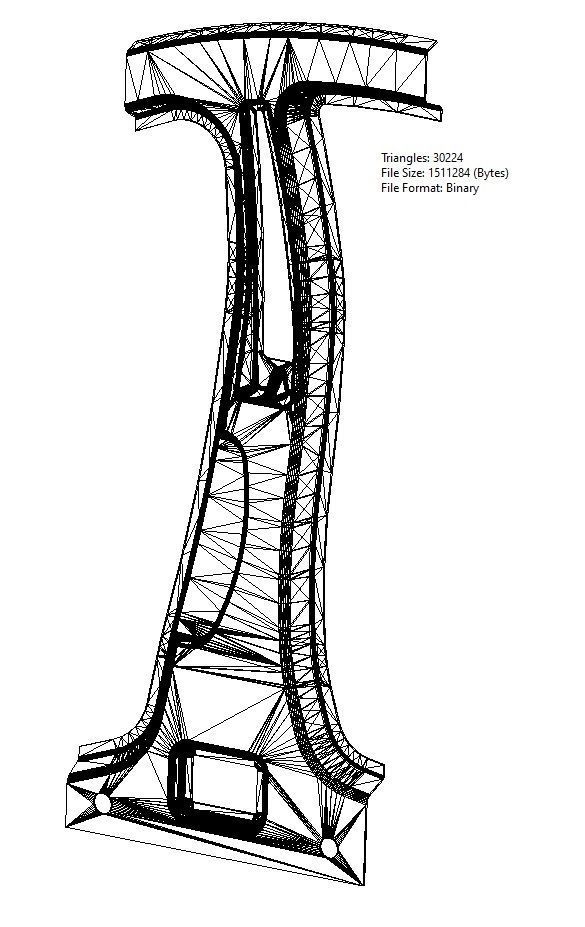

  • Stereolithography (.stl)1.44 MB

3D Model details

  • Publish date2020-05-14
  • Model ID#2421125
  • Ready for 3D Printing
