Mini Compound Bow and Arrow 3D print model

Description

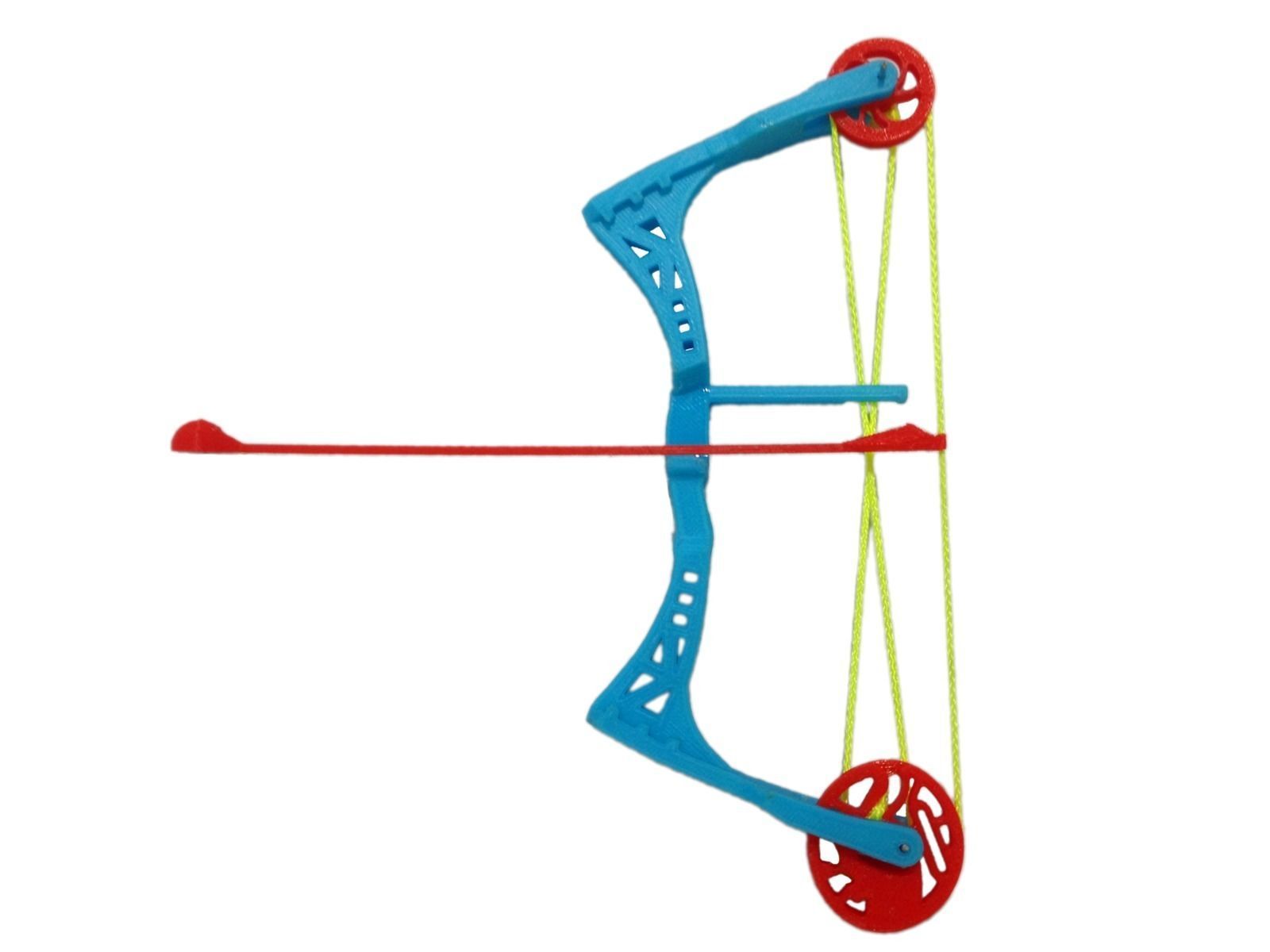

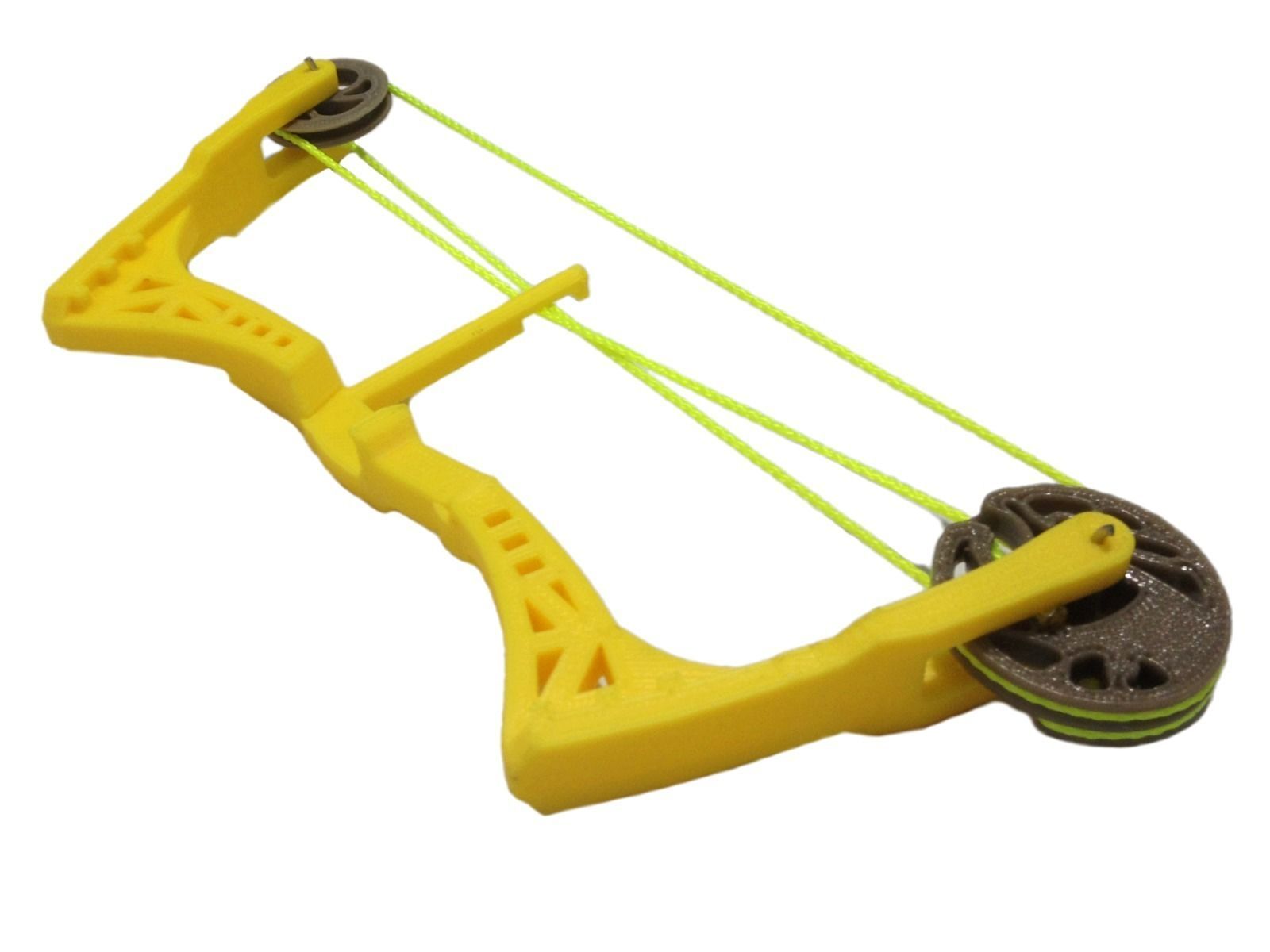

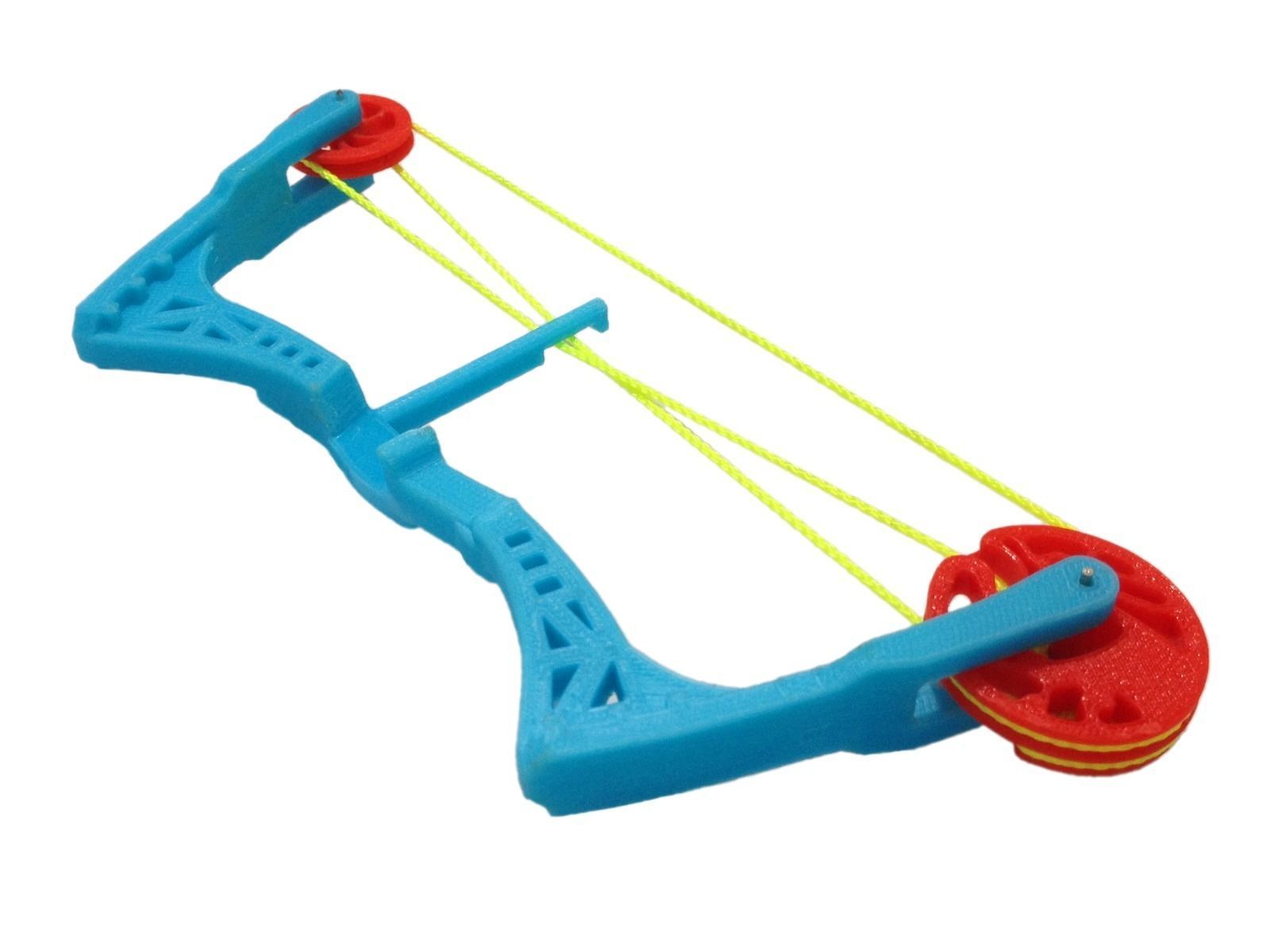

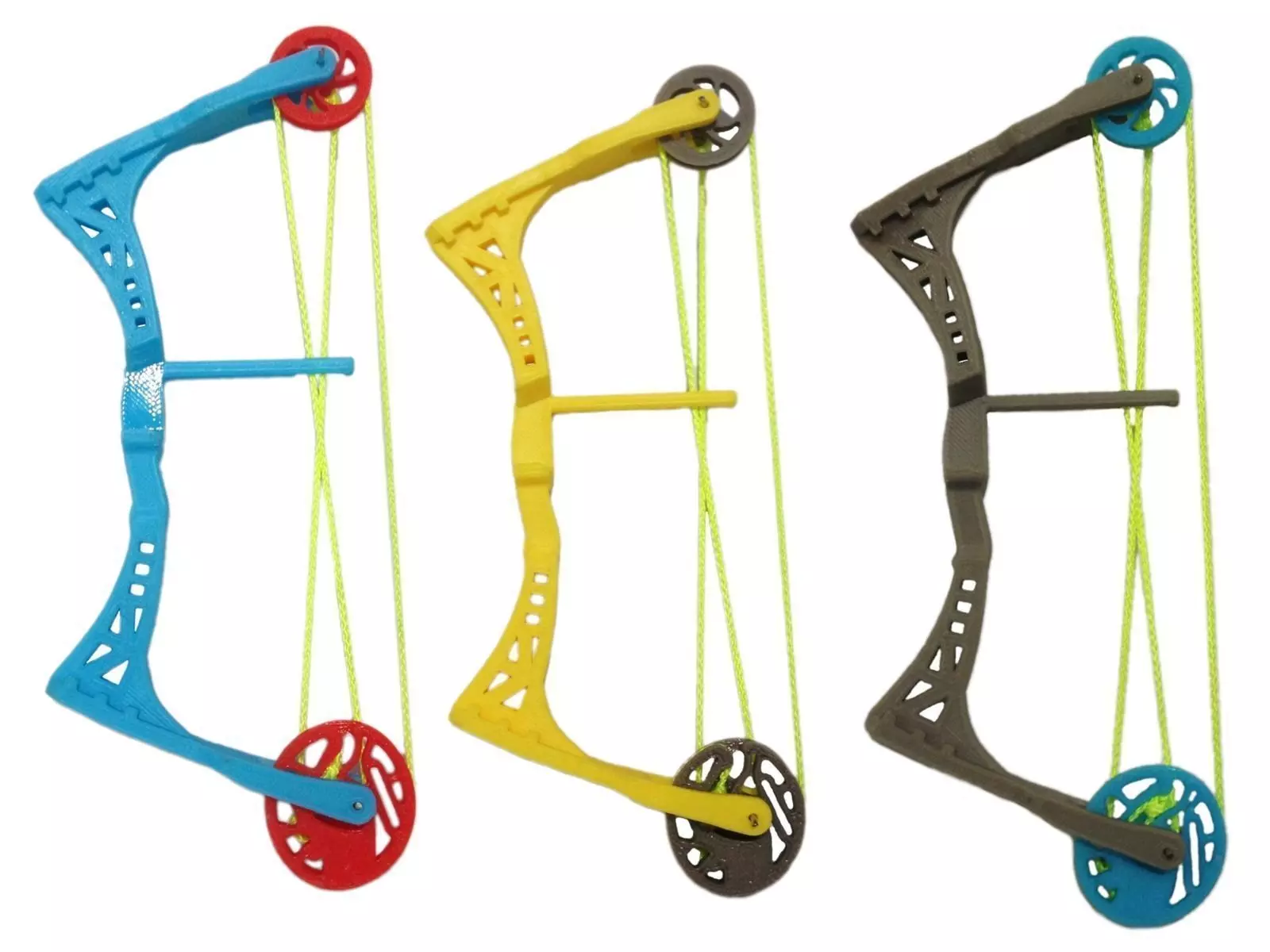

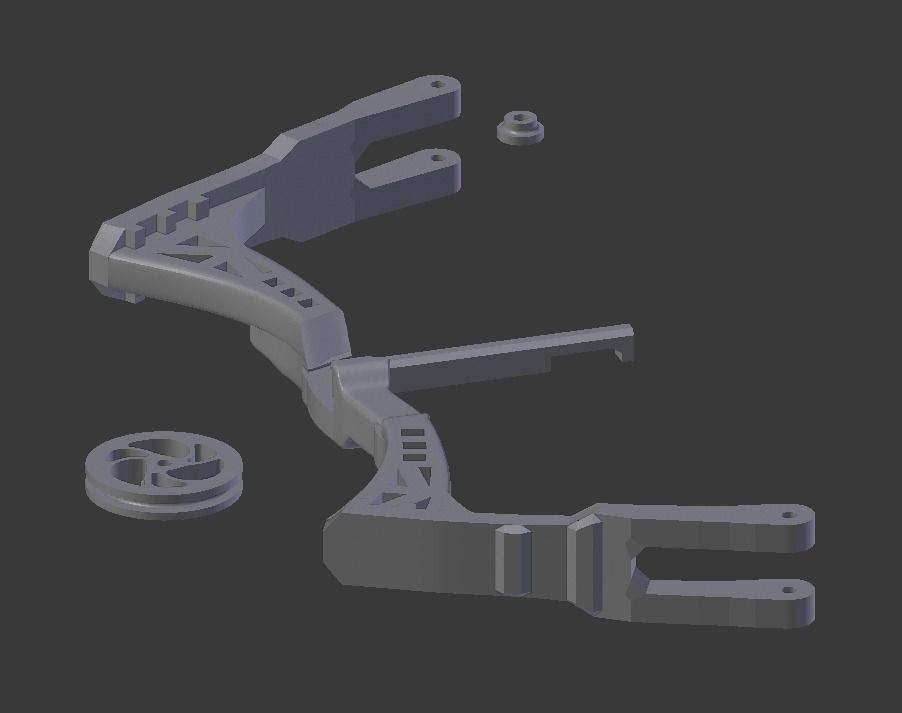

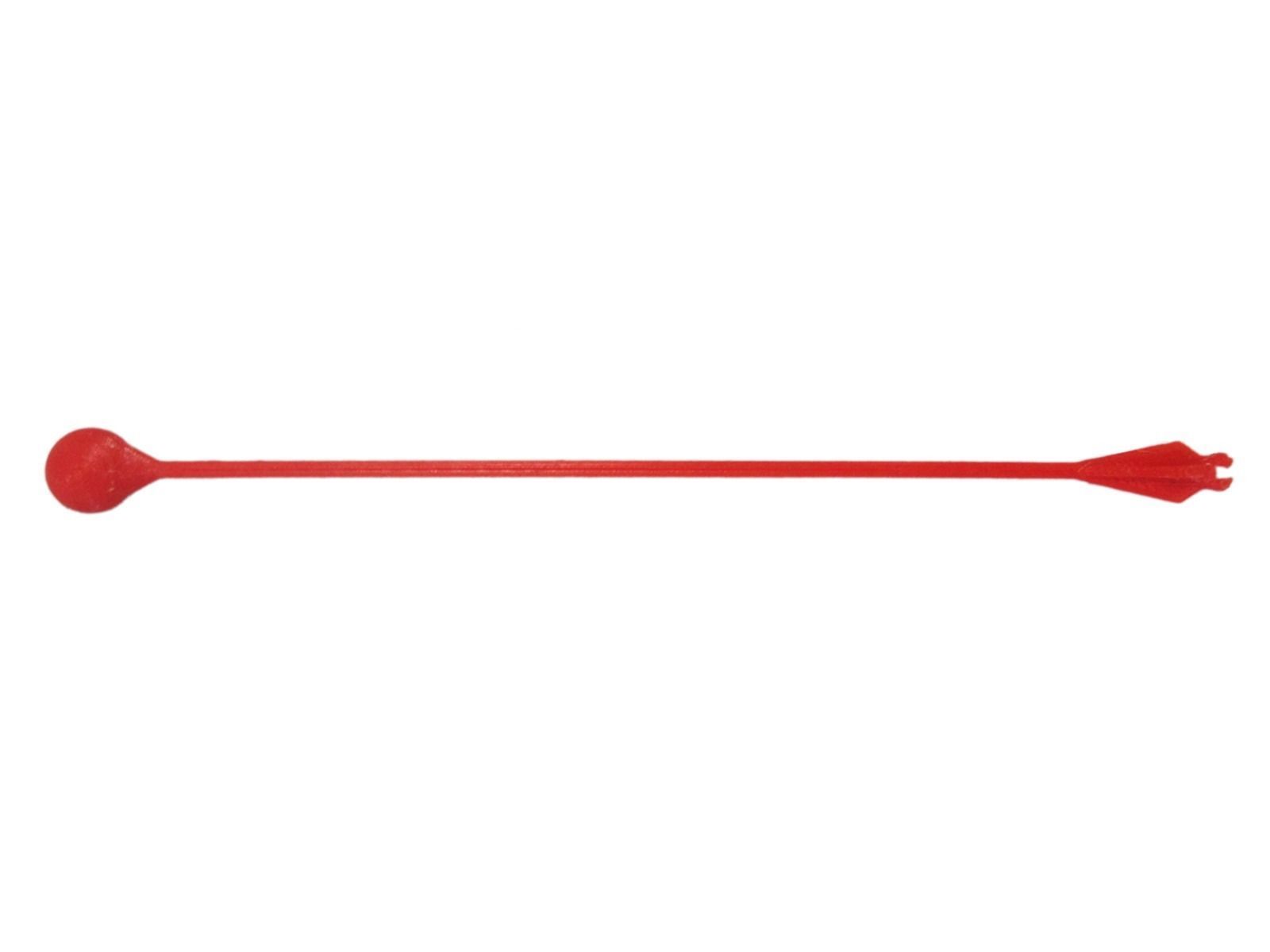

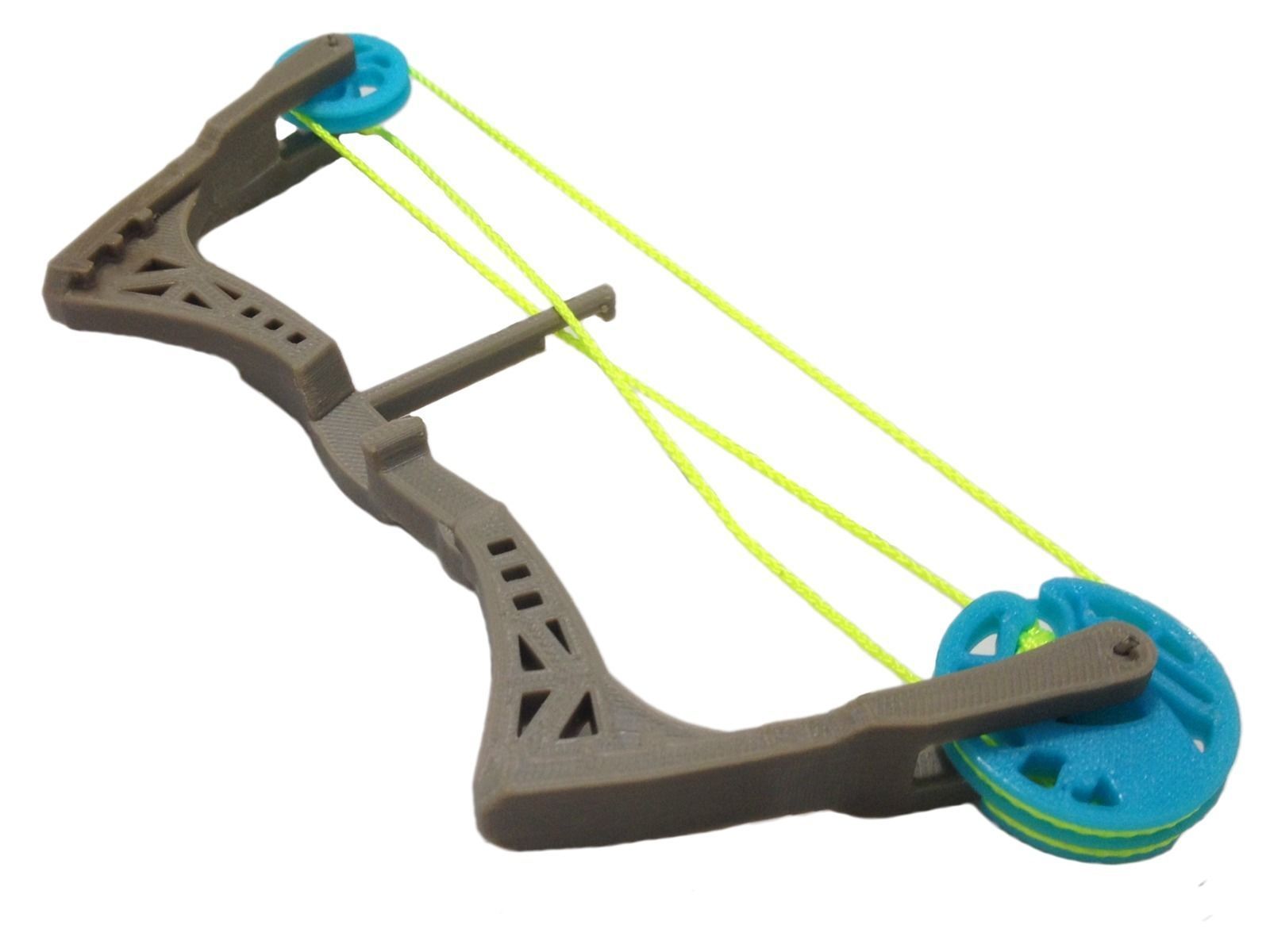

This mini compound bow is for educational purposes to help people learn the pulley mechanisms and get an overall feel. Definitely one of my favourite prints. The bow stands about 16cm tall and can shoot a good distance. I used builders string which is 'Braided Nylon' and some paper clips to hold the pulleys or you could use m1.6 bolt. This comes with an arrow but might be better making your own out of kebab sticks.

I have provided assembly instructions with pictures.

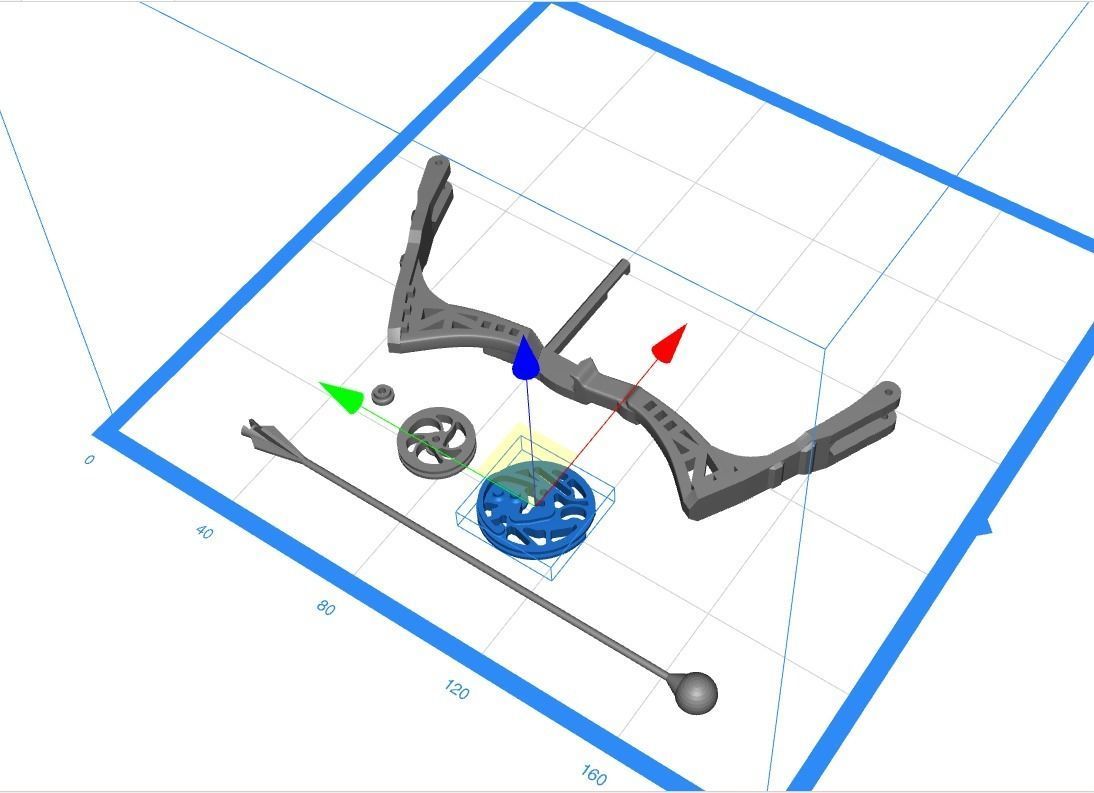

Print Settings: At least 20% Infill Layer Height: 0.1 to 0.15 Raft or No Raft Support only for Bow

Write comment
Item rating
1 0
T
tchby103183
tchby103183 2021-10-12 17:47:36 UTC
Recommended
I mean hey at least the thing fits on a ender 3 unlike the other bow I just bought over the weekend I mean I've found better files for free but I gave you guys a shot it could have been worse it could have been the $7 model I bought that was a waste of time money and resources not only that but it just pissed me off that I couldn't print it properly on my ender 3 but this one fits and you can scale the hell out of it so you can make it big or tiny so thank you
Mini Compound Bow and Arrow
$4.20

Editorial No Ai License
Mini Compound Bow and Arrow
$4.20

Editorial No Ai License
Ccustom3dprinting
custom3dprinting
(9 reviews)
Response 0% in 48.0h
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • PDF (.pdf)26.6 MB
  • Stereolithography (.stl) (5 files)5.32 MB

3D Model details

  • Publish date2018-06-07
  • Model ID#913844
  • Ready for 3D Printing
