Mach Lander 3d printable car transformer toy

Mach Lander 3d printable car transformer toy 3D print model

Description

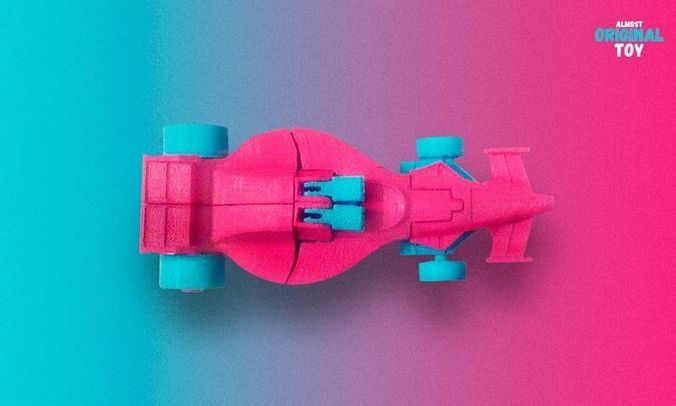

Mach Lander from The Brave Fighter of Legend Da-Garn replica

[en]

archive contains 2 folders:

  • a folder with the full set of print-ready parts which were redesigned to make the assembly easier
  • a folder with the full set of print-ready parts which are fully compatible with the original toy

assembly.pdf https://drive.google.com/open?id=1nYAOFWsF0xjRABj437lHOQGjeY5yat7w

to assemble the toy you will need some additional things which you can see on the attached image (for more details please download assembly.pdf):

  • 2 pins which contain small nails which are suitable to hold front wheels
  • 2 metal spikes 2.2x29mm and 2.2x51mm (hard 2.2mm metal wire will be ok)
  • an M3 screw (3x18mm) and a nut for it
  • 7 pieces of 5.5mm screws
  • 2 screws with a wide head, 5mm long

recommended printing settings:

  • every part already has the correct position for printing (the main part will have a lot of support but it is necessary to print the face of the toy correctly and avoid any skewing, if the main part will be somehow skewed. then other parts will look misplaced after the assembly)
  • it was tested in ABS and PLA
  • layer height: 0.1
  • infill density: 5%
  • support: only touching buildplate
  • support pattern: Concentric
  • support density: 20%
  • buildplate adhesion type: raft

[ru]

архив содержит 2 папки:

  • папка с полным набором деталей, некоторые из которых изменены (отличаются от оригинальной игрушки) для более удобной сборки вручную
  • папка с полным набором деталей, полностью совместимымых с оригинальной игрушкой

инструкция по сборке (assembly.pdf) https://drive.google.com/open?id=1nYAOFWsF0xjRABj437lHOQGjeY5yat7w

для сборки версии с изменёнными деталями понадобятся

  • 2 кнопки, внутри которых содержатся маленькие гвоздики, идеально подходящие под передние колёса
  • 2 металлических стержня 2.2x29мм и 2.2x51мм (подойдёт алюминиевая проволока 2.2мм)
  • винтик М3 (3x18мм) и гайка к нему
  • 7 шурупов 5.5мм
  • 2 шурупа или винтика с широкой шляпкой, длина 5мм

рекомендованные настройки печати:

  • все детали уже в подготовленной для печати позе (у детали main.stl, к сожалению, будет много поддержки, но это необходимо для того, чтобы лицо игрушки напечаталось нормально, и чтобы избежать искривления основоной части, тк в противном случае остальные детали будут иметь большие зазоры)
  • модель протестирована на ABS и PLA пластике
  • layer height: 0.1
  • infill density: 5%
  • support: only touching buildplate
  • support pattern: Concentric
  • support density: 20%
  • buildplate adhesion type: raft
