Concrete mixer truck toy fully 3D printable 3D print model

Fully printable - no support - no glue - single color 3D printer

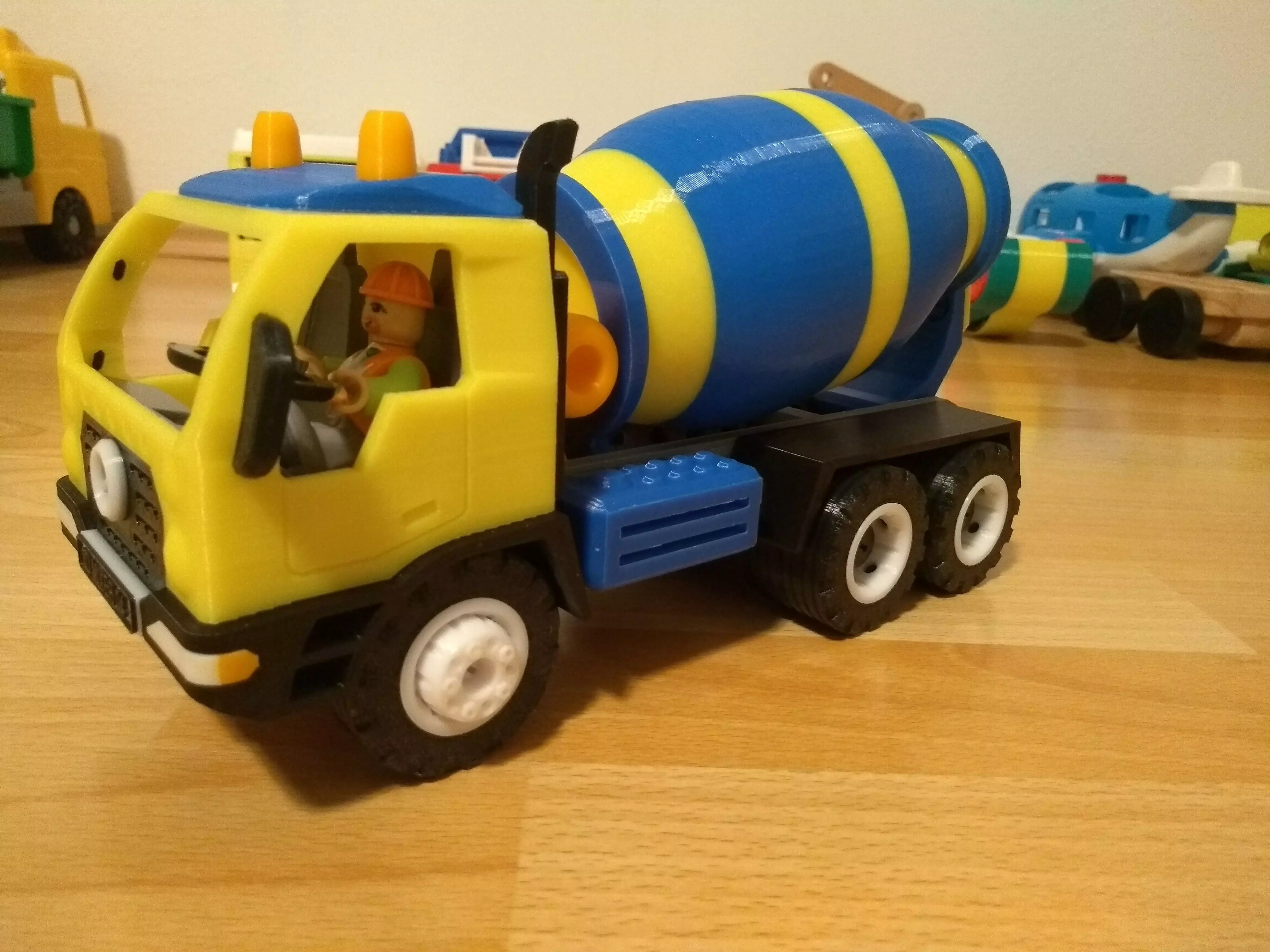

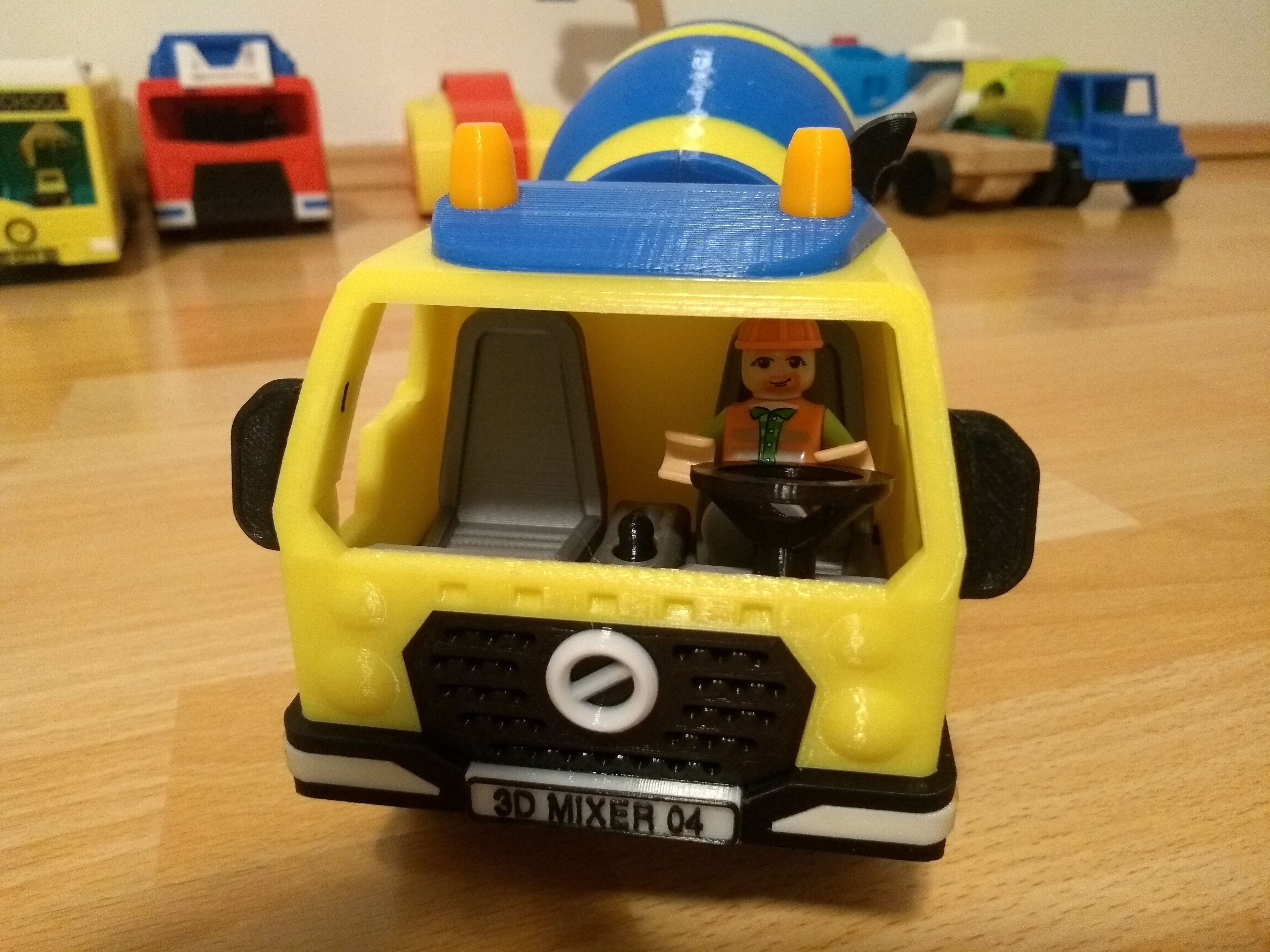

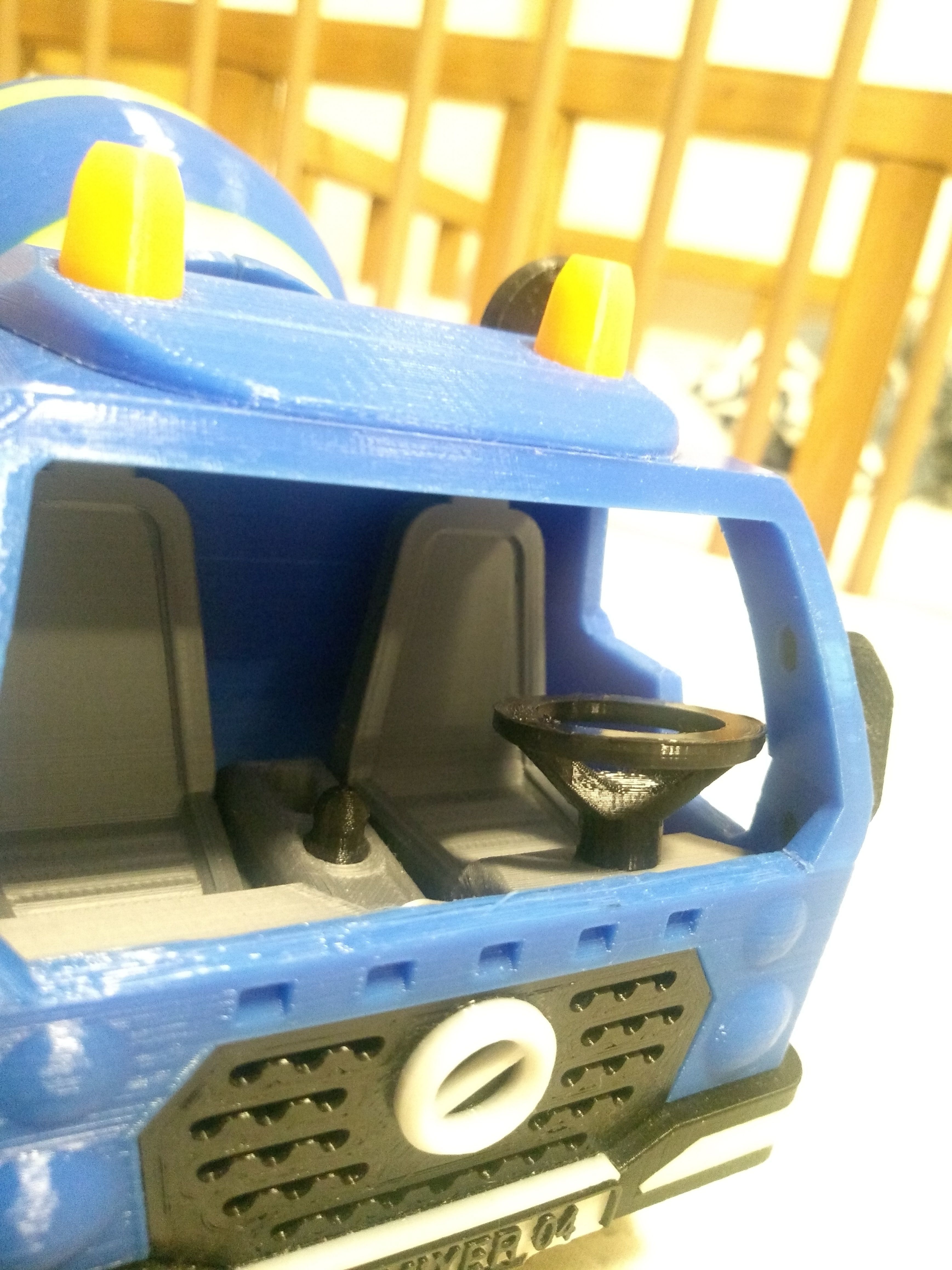

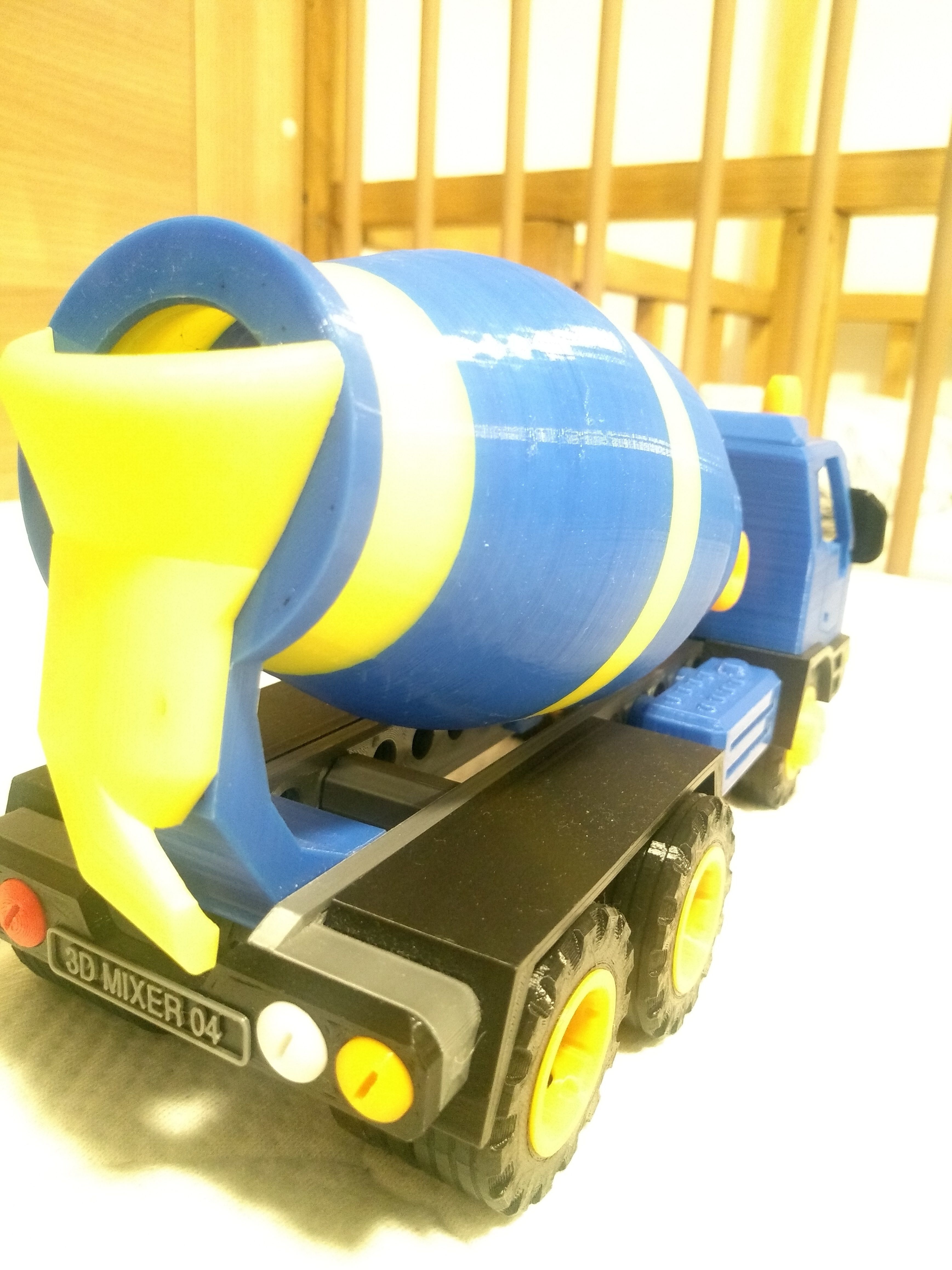

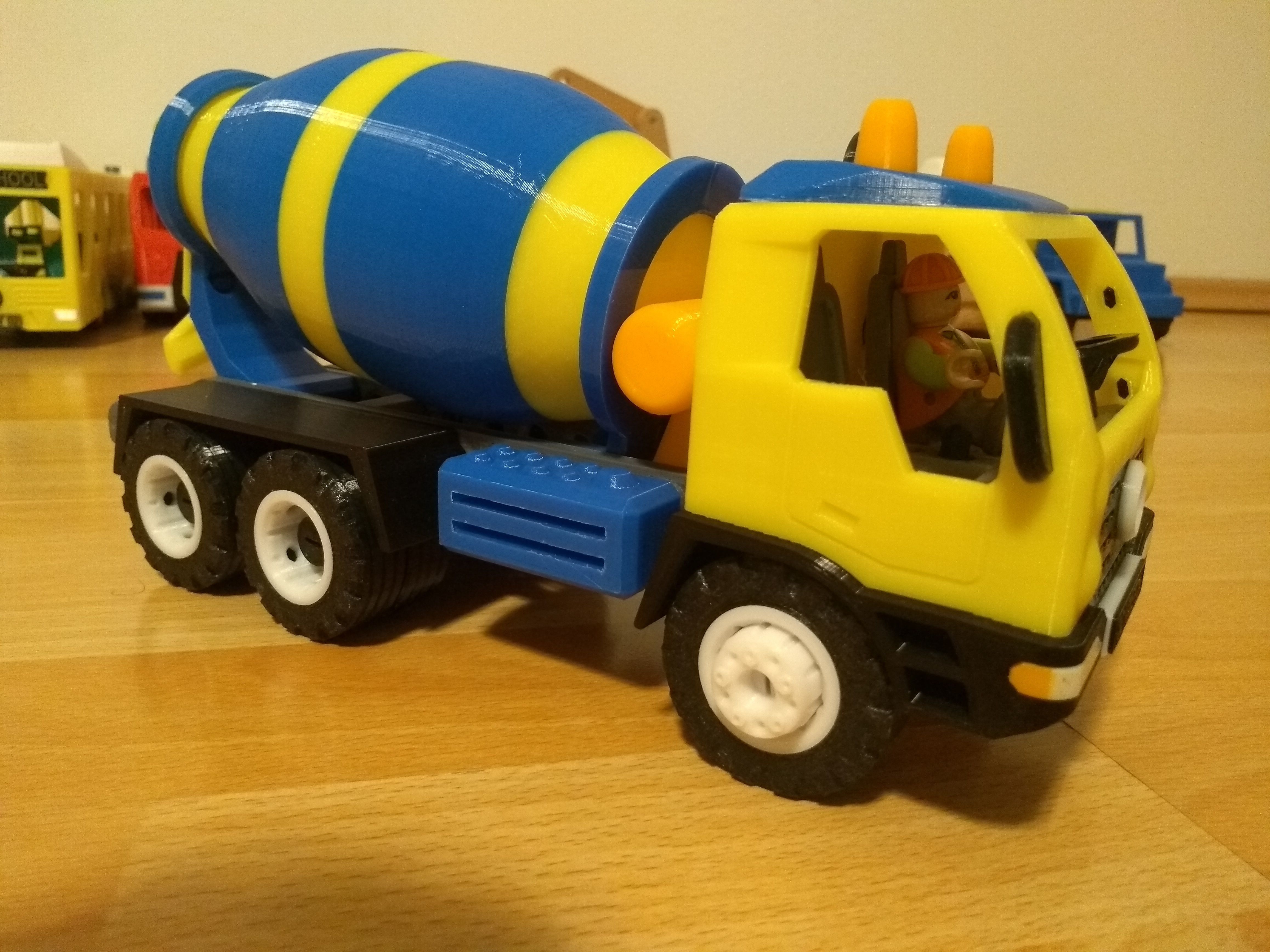

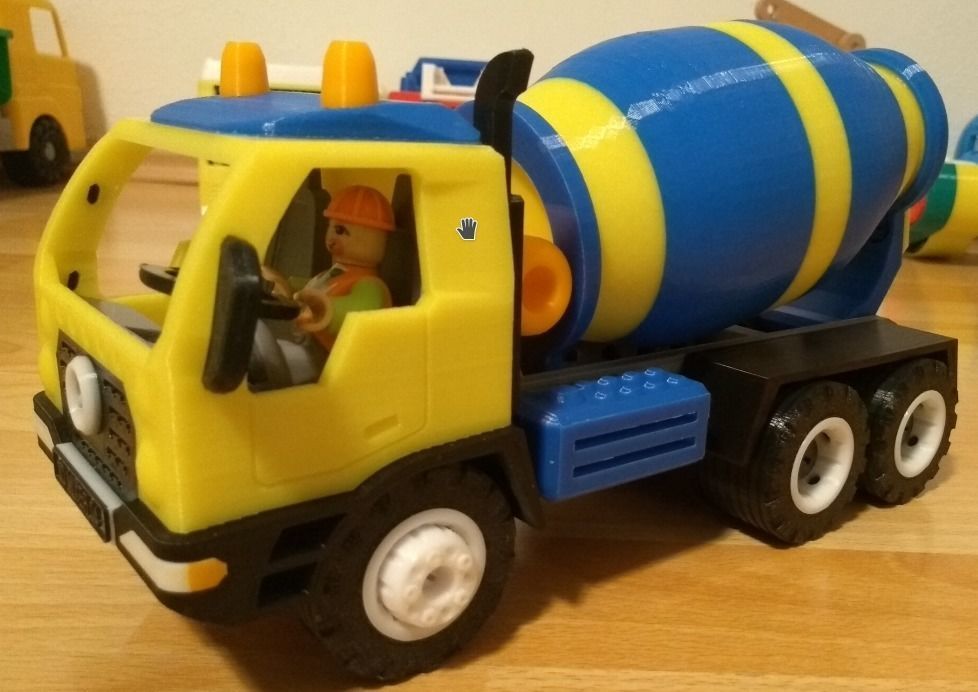

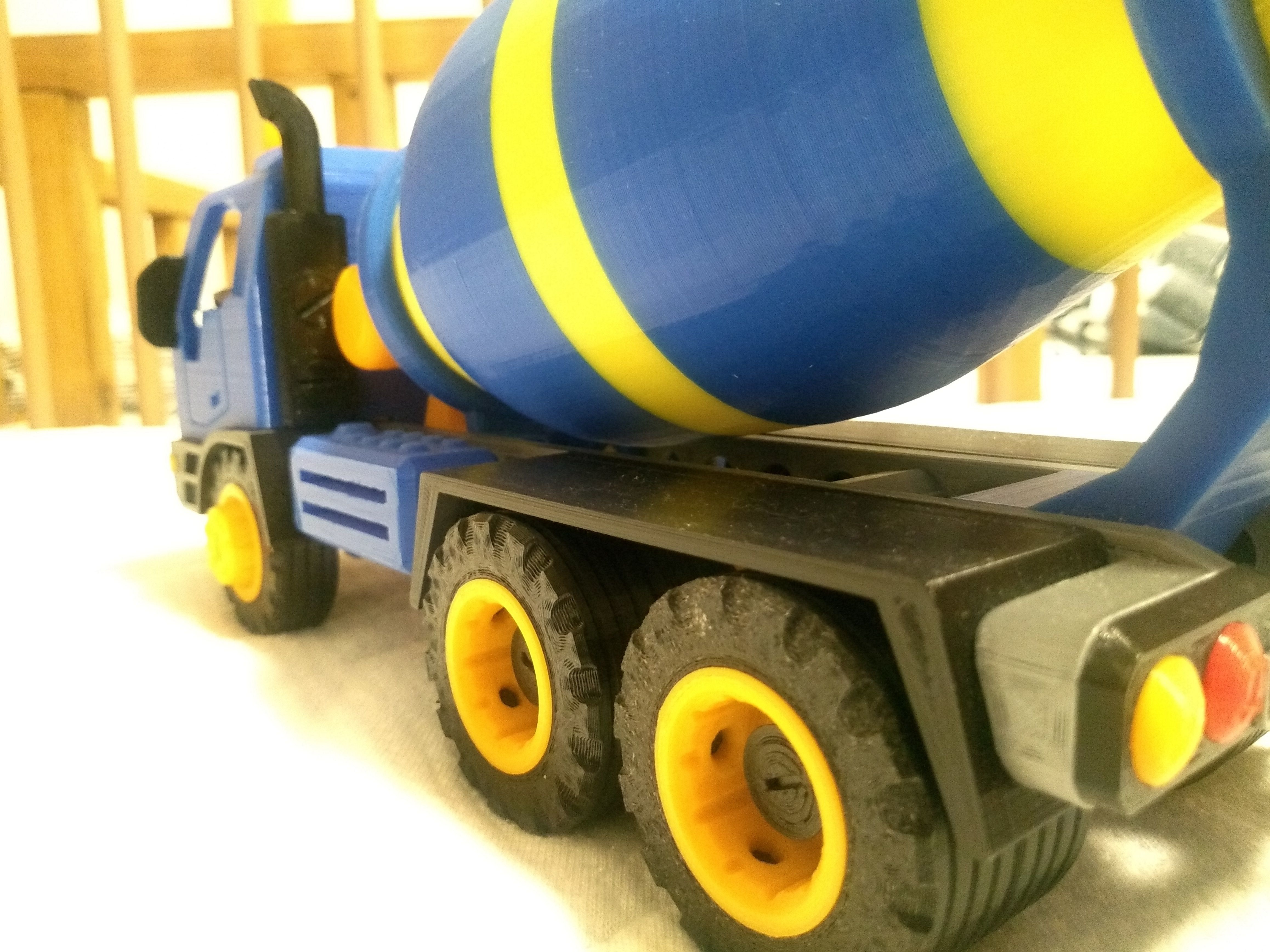

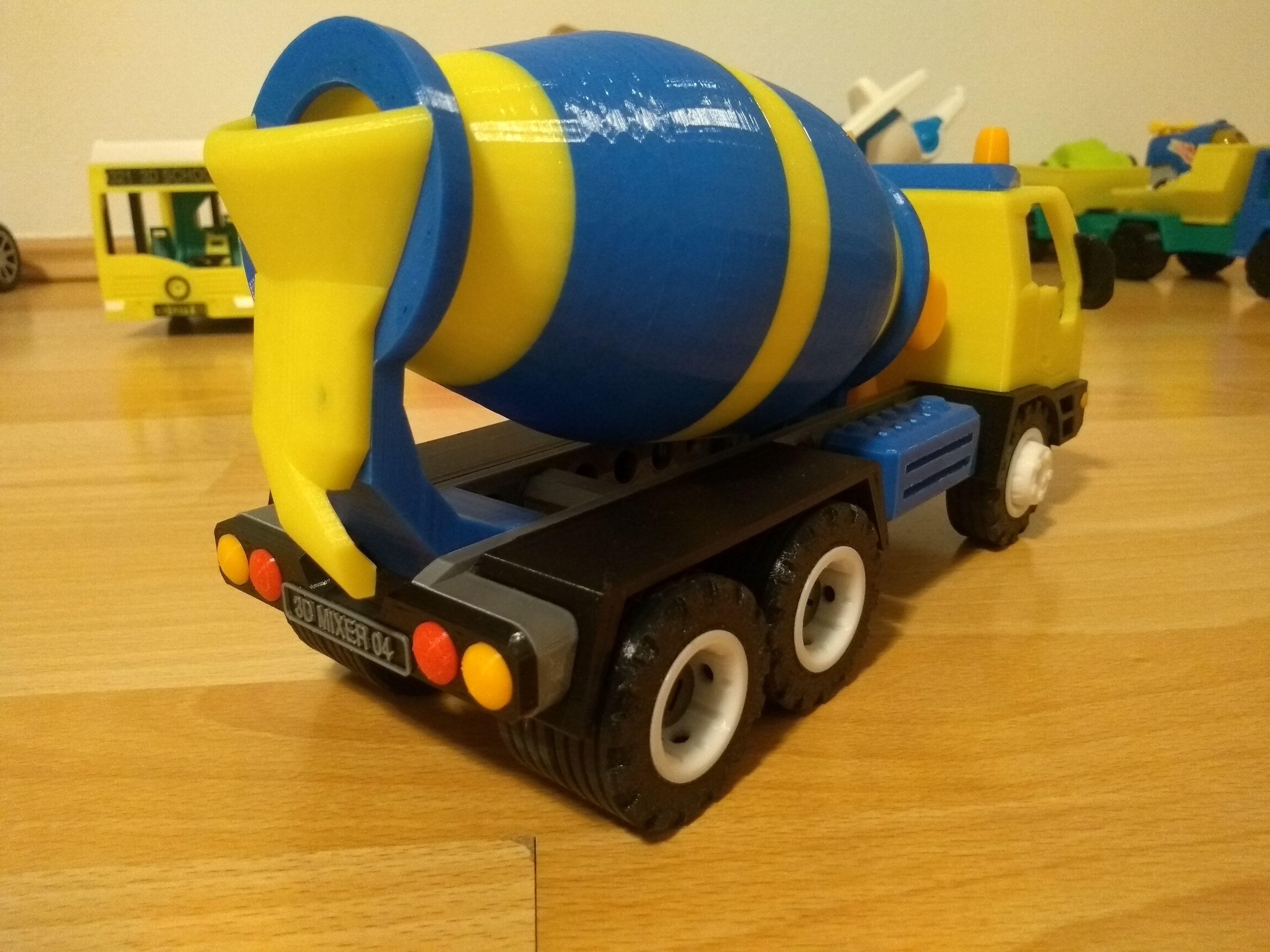

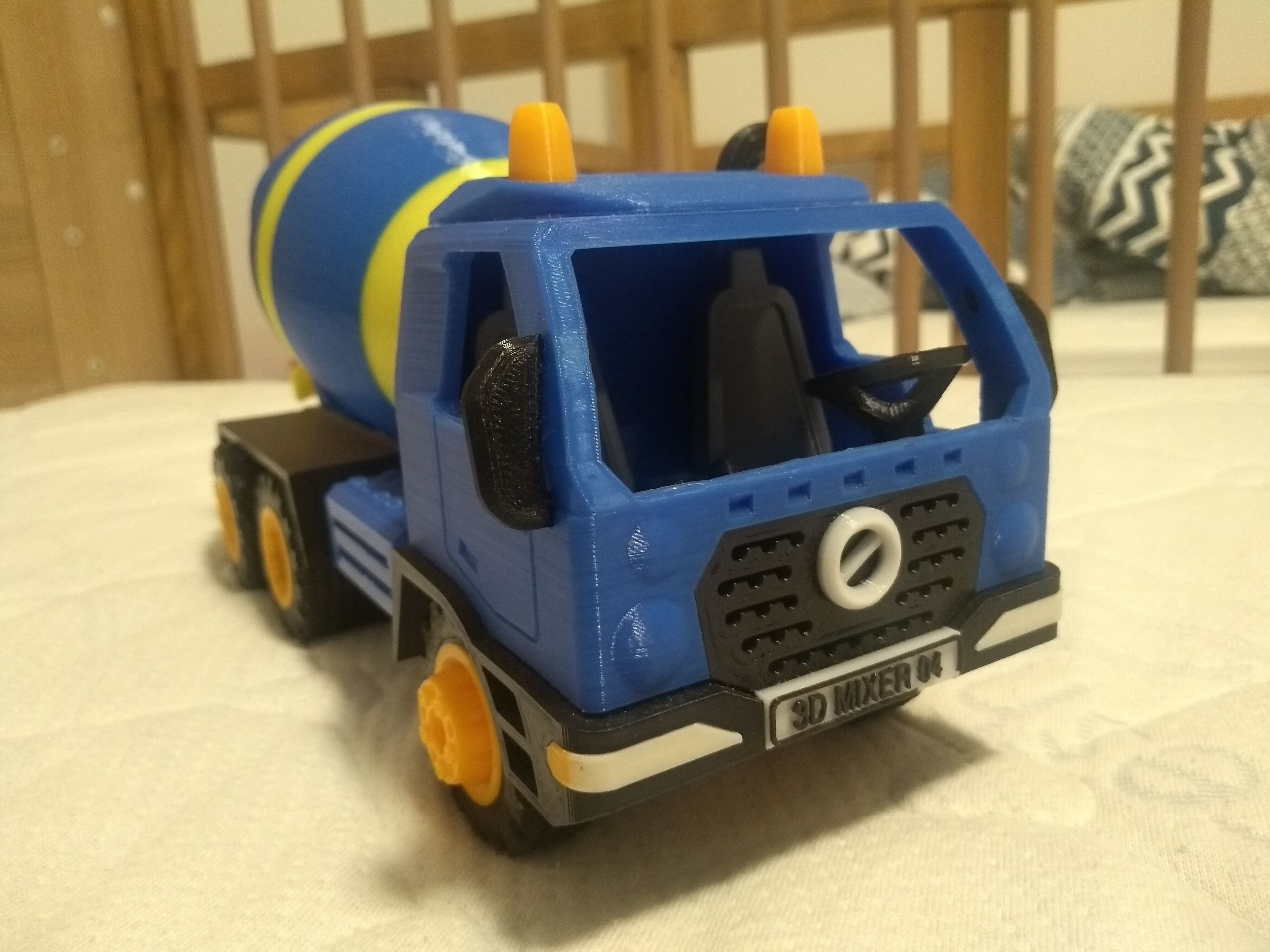

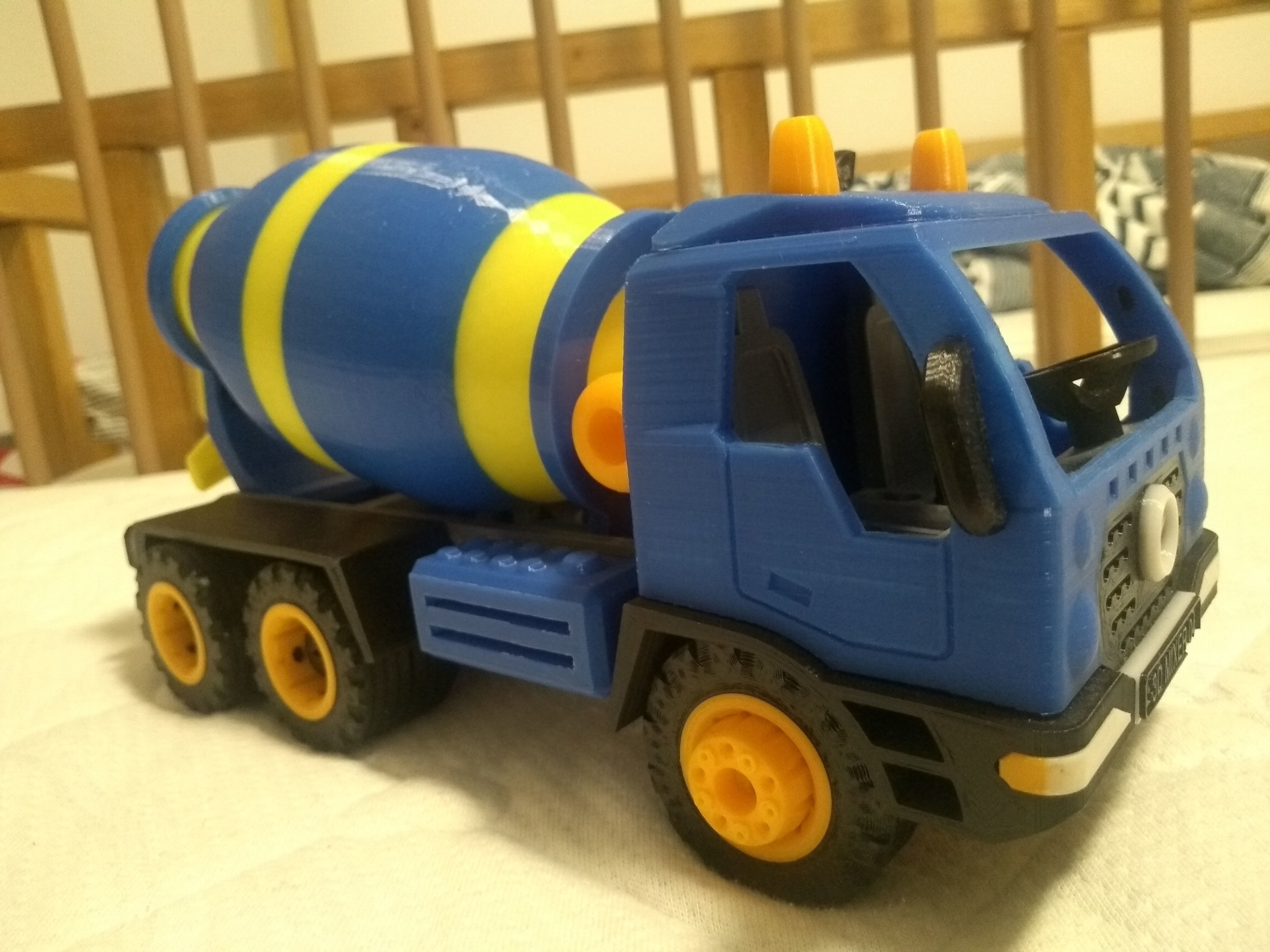

This is a concrete mixer truck toy.

The tolerance for pieces that need to fit tightly is 0.1mm, for pieces that need to allow movement (like screws and axles) 0.3mm or more.

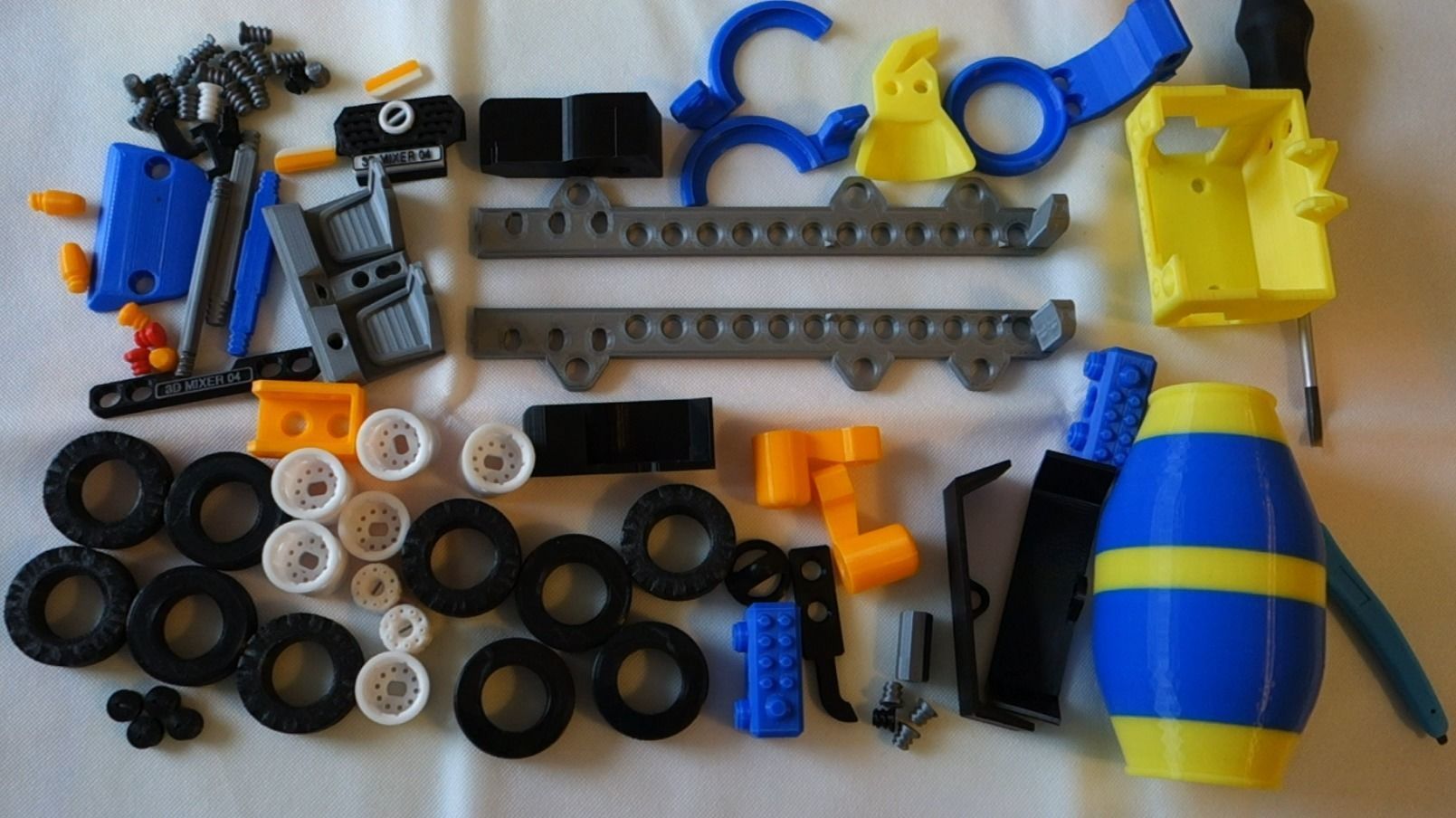

Printing list: Nb. STL file name rezolution support colour (my make)

• 2x axle_back.stl 0.16mm no gray
• 1x axle_front.stl 0.16mm no blue
• 1x back_funnel.stl 0.12mm no yellow
• 2x back_light.stl 0.16mm no orange
• 2x back_light.stl 0.16mm no red
• 1x backhead.stl 0.12mm no black-white

• 1x base_dist.stl 0.16mm no gray
• 1x base_left.stl 0.16mm no gray
• 1x base_right.stl 0.16mm no gray
• 1x cabin_with_support.stl 0.16mm no yellow
• 0x cabin_your_own_support.stl 0.16mm yes yellow
• 1x cabin_cap.stl 0.16mm no blue
• 4x cap_double_rim.stl 0.12mm no black
• 2x cap_single_rim.stl 0.12mm no white
• 1x exhaust.stl 0.16mm no black
• 1x front_grill.stl 0.12mm no black-white-black
• 1x front_lights.stl 0.12mm no orange-white
• 1x interieur.stl 0.16mm no gray
• 1x interieur_base.stl 0.16mm no orange
• 1x mirrors 0.12mm no black(TPU)
• 1x mixer_wall_wider.stl 0.28mm no yellow-blue
• 4x rim_double.stl 0.16mm no white

• 2x rim_single.stl 0.16mm no white

• 2x roof_light.stl 0.16mm no orange
• 1x screw_gear_knob.stl 0.16mm no black
• 6x screw_l9mm.stl 0.16mm no several
• 12x screw_l13mm.stl 0.16mm no several

• 0x sleeping_screw_l9mm.stl 0.16mm no several

• 0x sleeping_screw_l13mm.stl 0.16mm no several

• 1x steering_wheel.stl 0.16mm no black
• 1x support_mixer_back.stl 0.16mm no blue
• 1x support_mixer_front_left.stl 0.16mm no blue
• 1x support_mixer_front_right.stl 0.16mm no blue
• 6x tire_outter_cut.stl 0.16mm no black
• 4x tire_simple.stl 0.16mm no black
• 1x tool_box_left.stl 0.16mm no blue
• 1x tool_box_right.stl 0.16mm no blue
• 1x water_tank_left.stl 0.16mm no orange
• 1x water_tank_right.stl 0.16mm no orange
• 1x wheel_house_back_left.stl 0.16mm no black
• 1x wheel_house_back_right.stl 0.16mm no black
• 1x wheel_house_front_left.stl 0.16mm no black
• 1x wheel_house_front_right.stl 0.16mm no black

Observations:

• all objects already have the intended print direction in the STL files!
• if you don't like the built in supports for the cabin, then you can find only the cabin in cabin_your_own_support.stl
• most of the parts were printed with PLA. only the tires and the mirrors were printed from TPU (flexible material)
• there is narrow and a wide mixer parts, chose the one you like
• screws... there are also sleeping screws STLs included these are printed on the side which makes them a lot stronger the drawback is that these don't close the holes completely... So use only as many sleeping screws if the toy is going to be played with, and only normal/round ones otherwise
