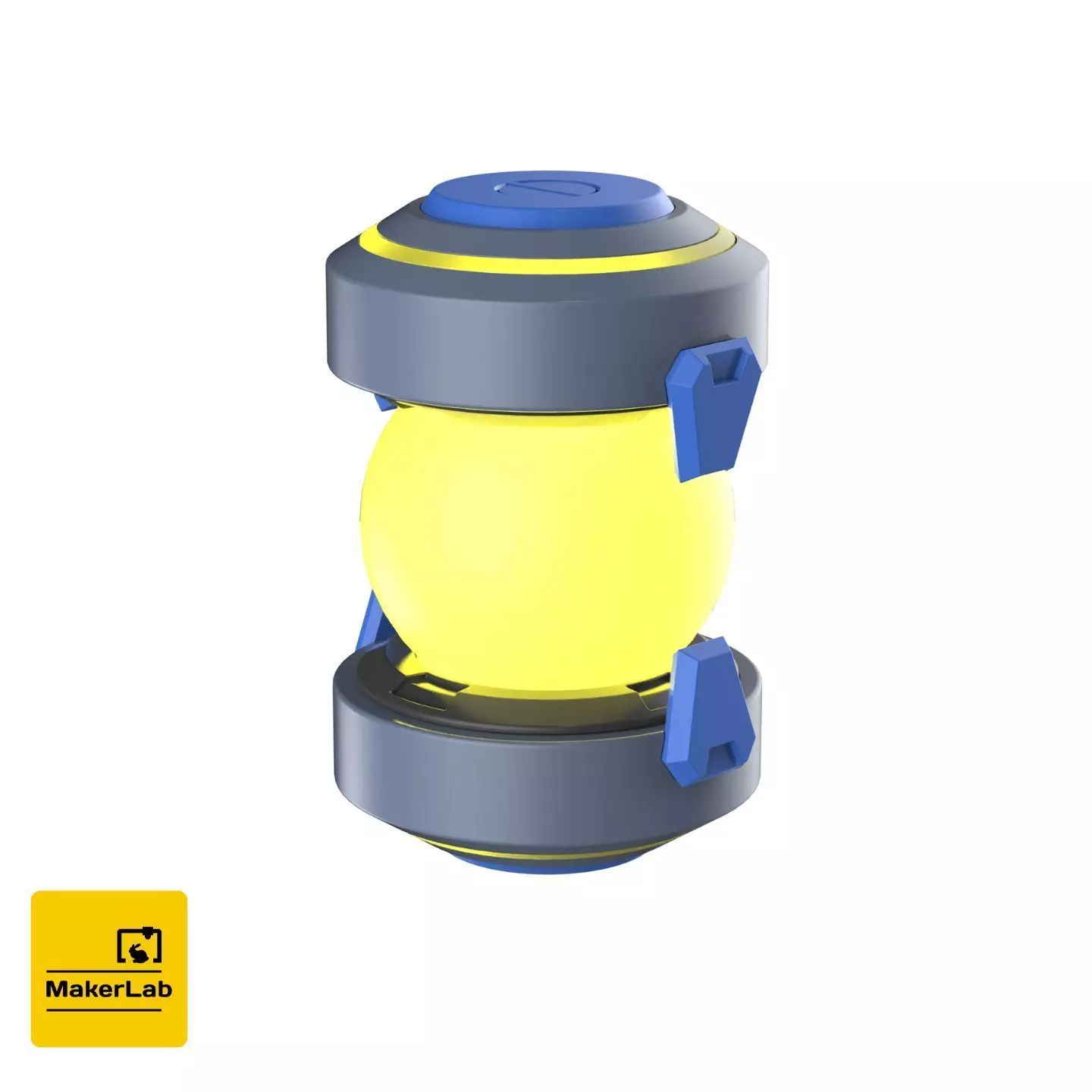

Ana Biotic Grenade - Overwatch - Printable STL- Personal Use 3D print model

Hi! We glad introduce you 3d model - STL files - to print your own Ana Biotic Grenade from Overwatch.

Model include:

• 13 stl files to 3d printing (biggest part 134x109x37mmmm).
• Digital Instruction for assembling.
• List of components you will needs for assembling.

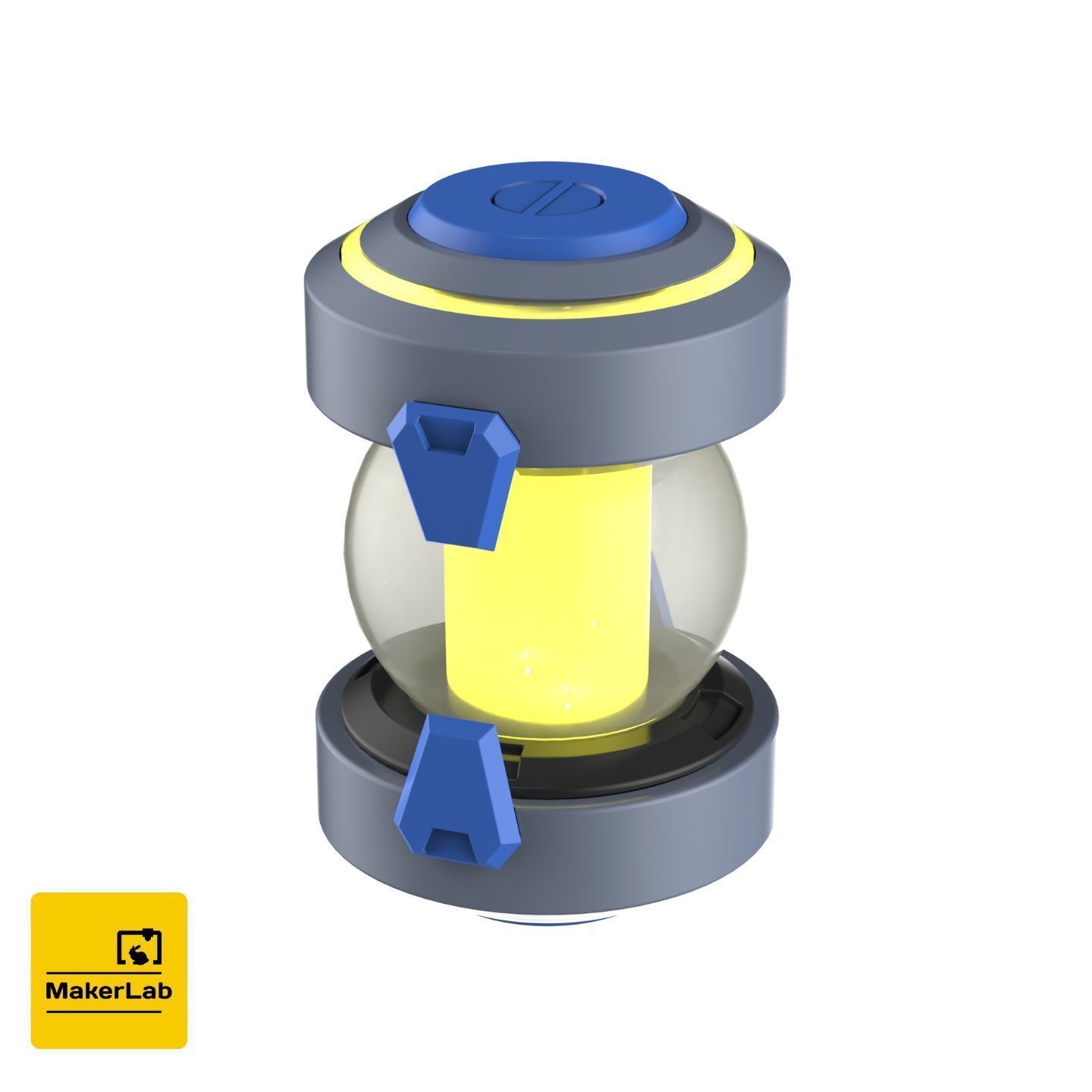

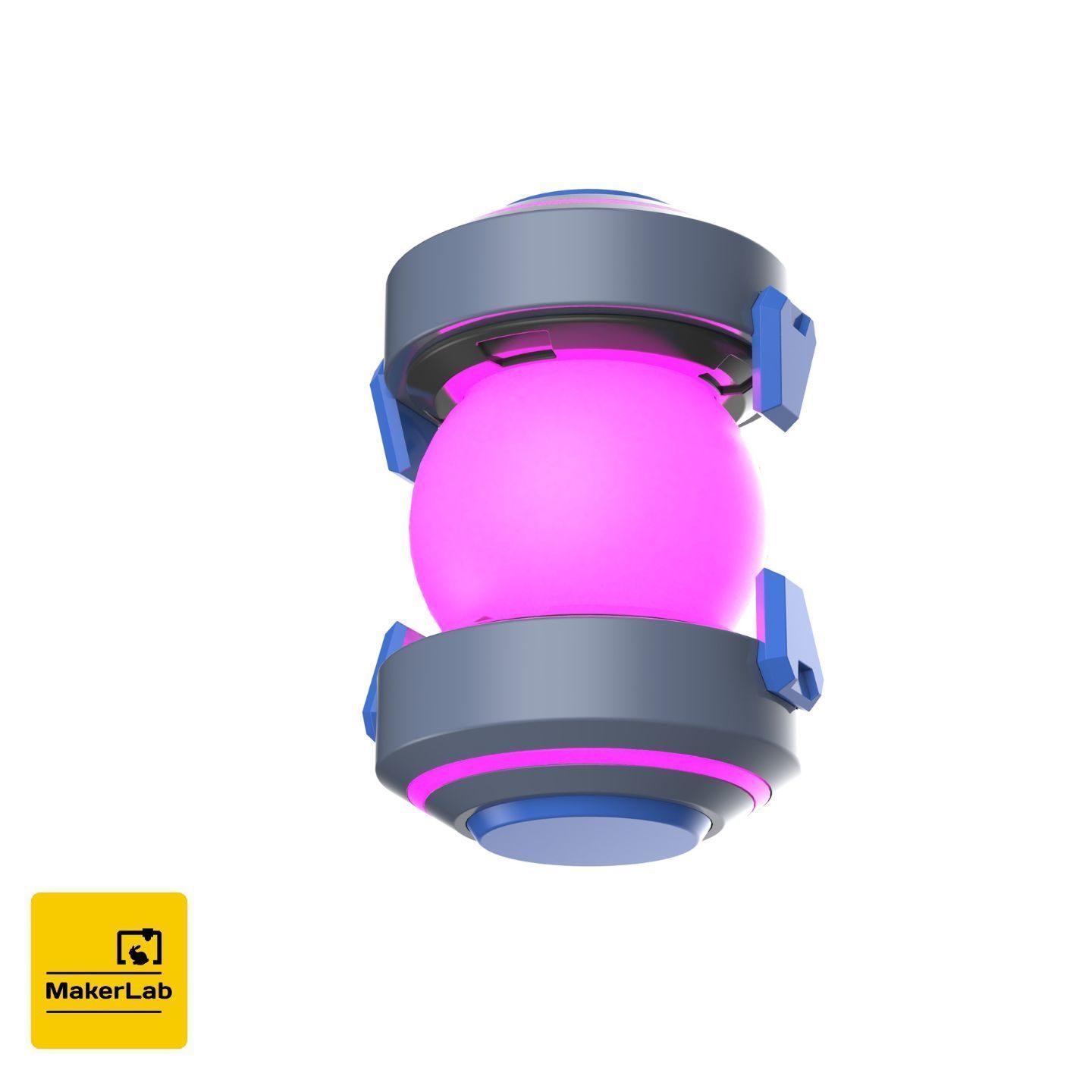

The model has a two-color backlight, with two buttons at the top: one to turn on the backlight, the other to change the color.

Dimensions: 115x74x83mm (74.5x2.9x3.2")

Model features:

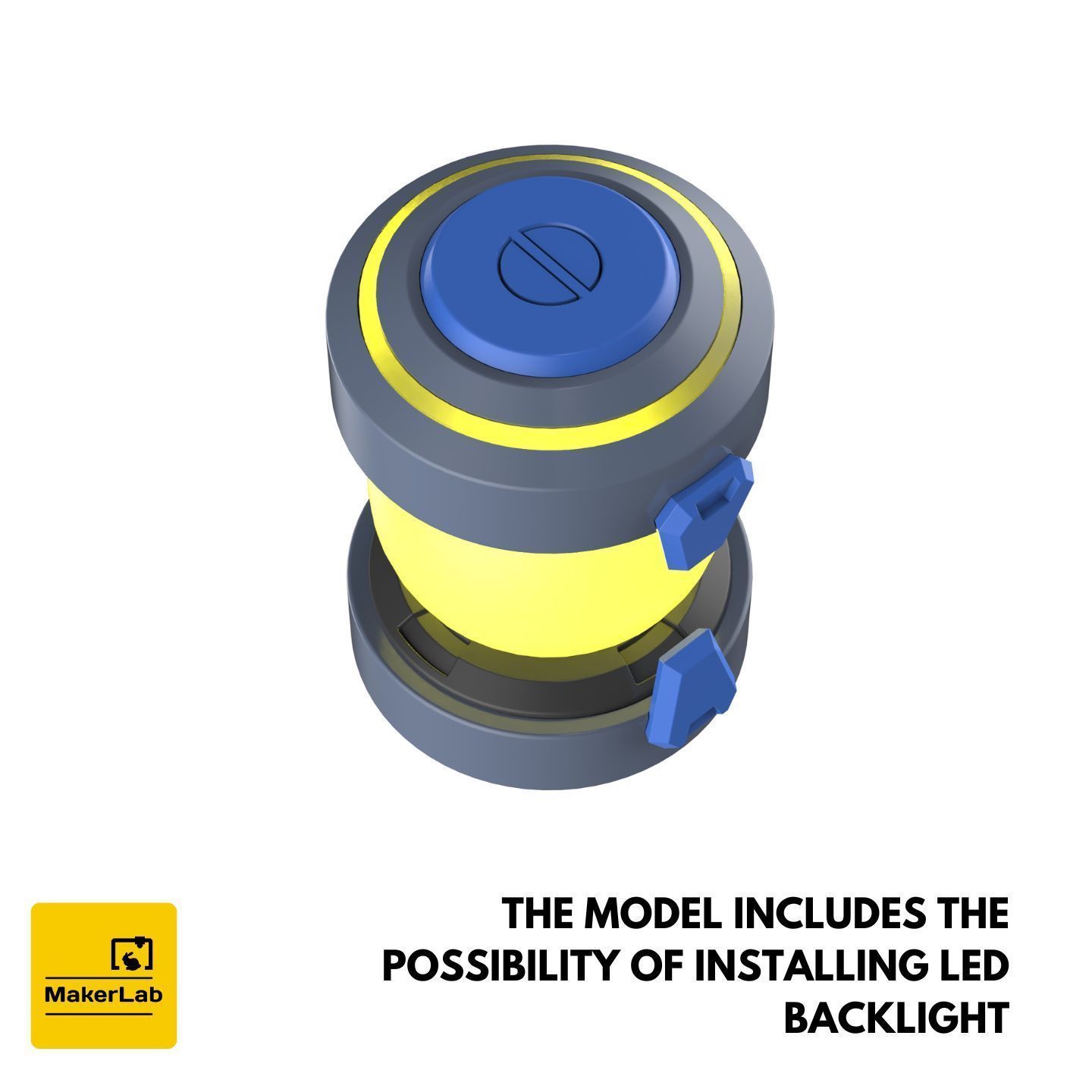

• model include the possibility of installing led backlight

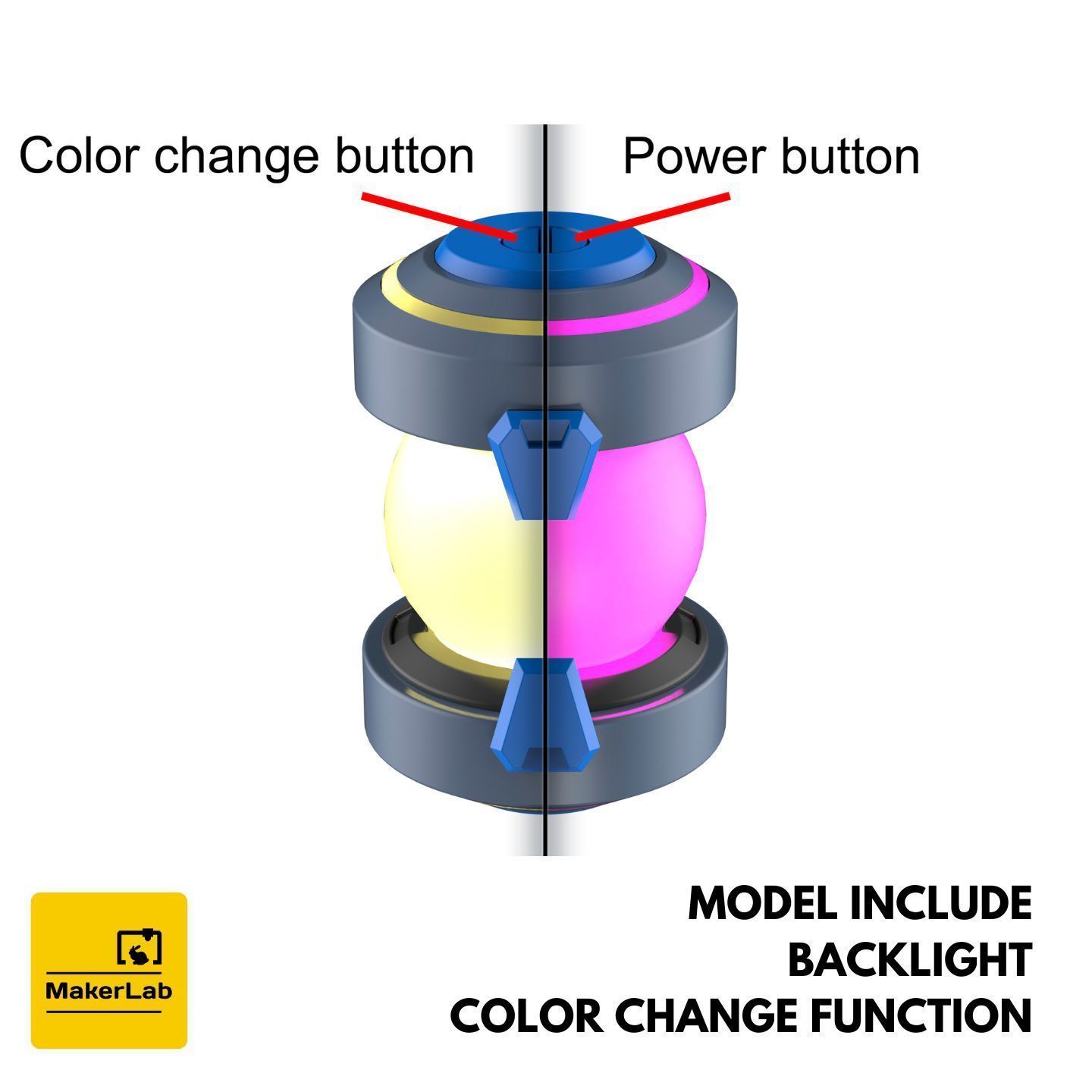

• model include backlight color change function

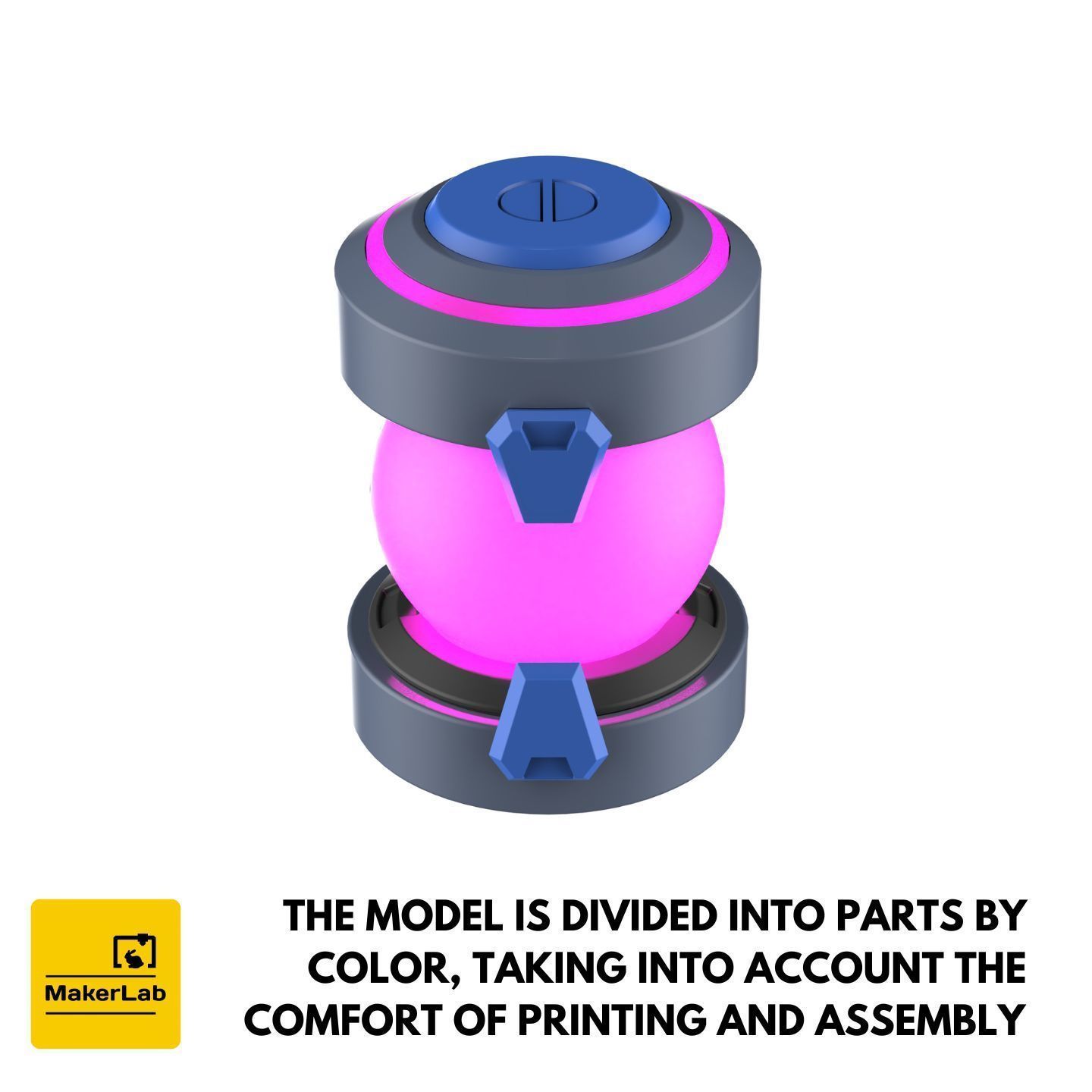

• model is divided into parts by color, taking into account the comfort of printing and assembly

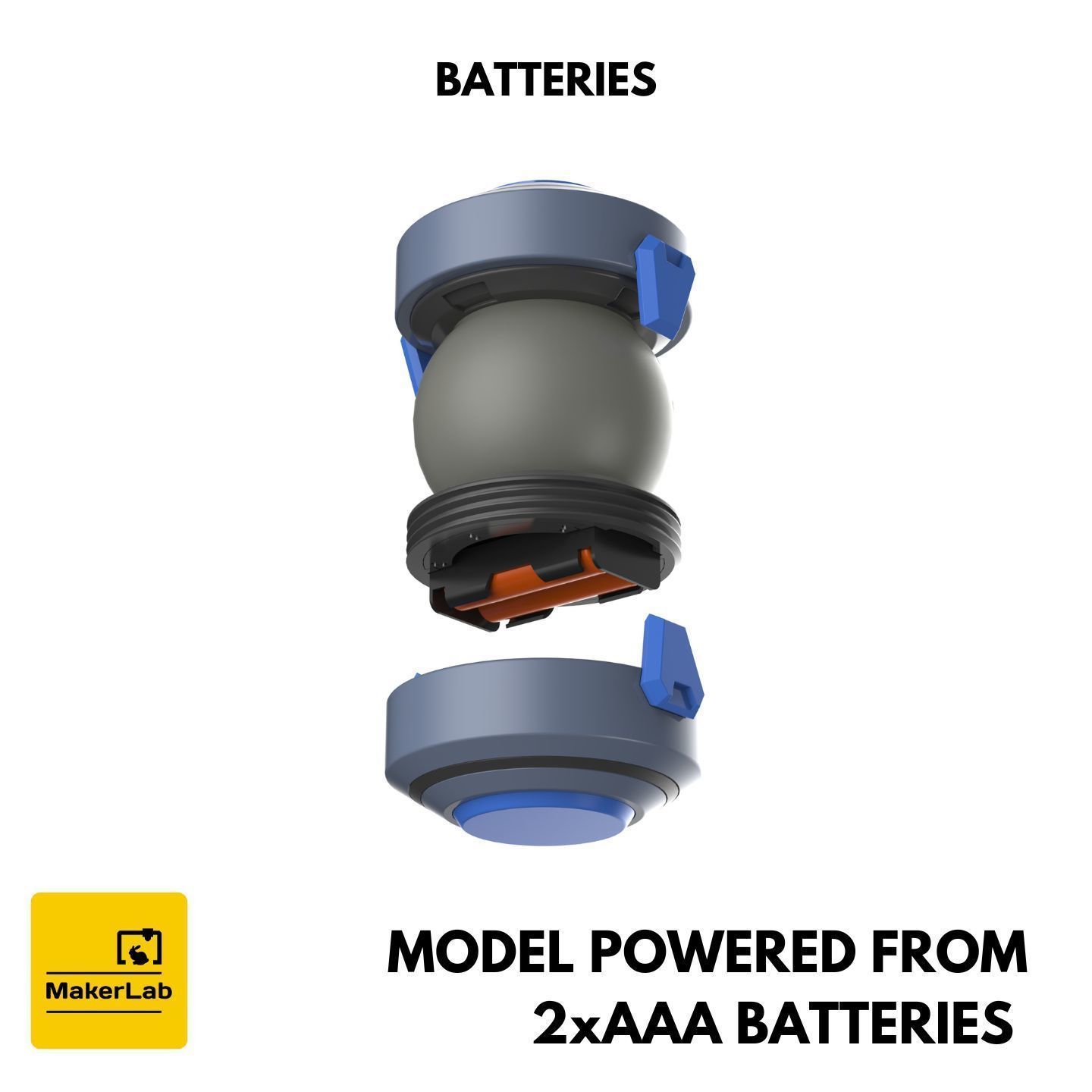

• model powered from 2xAAA batteries

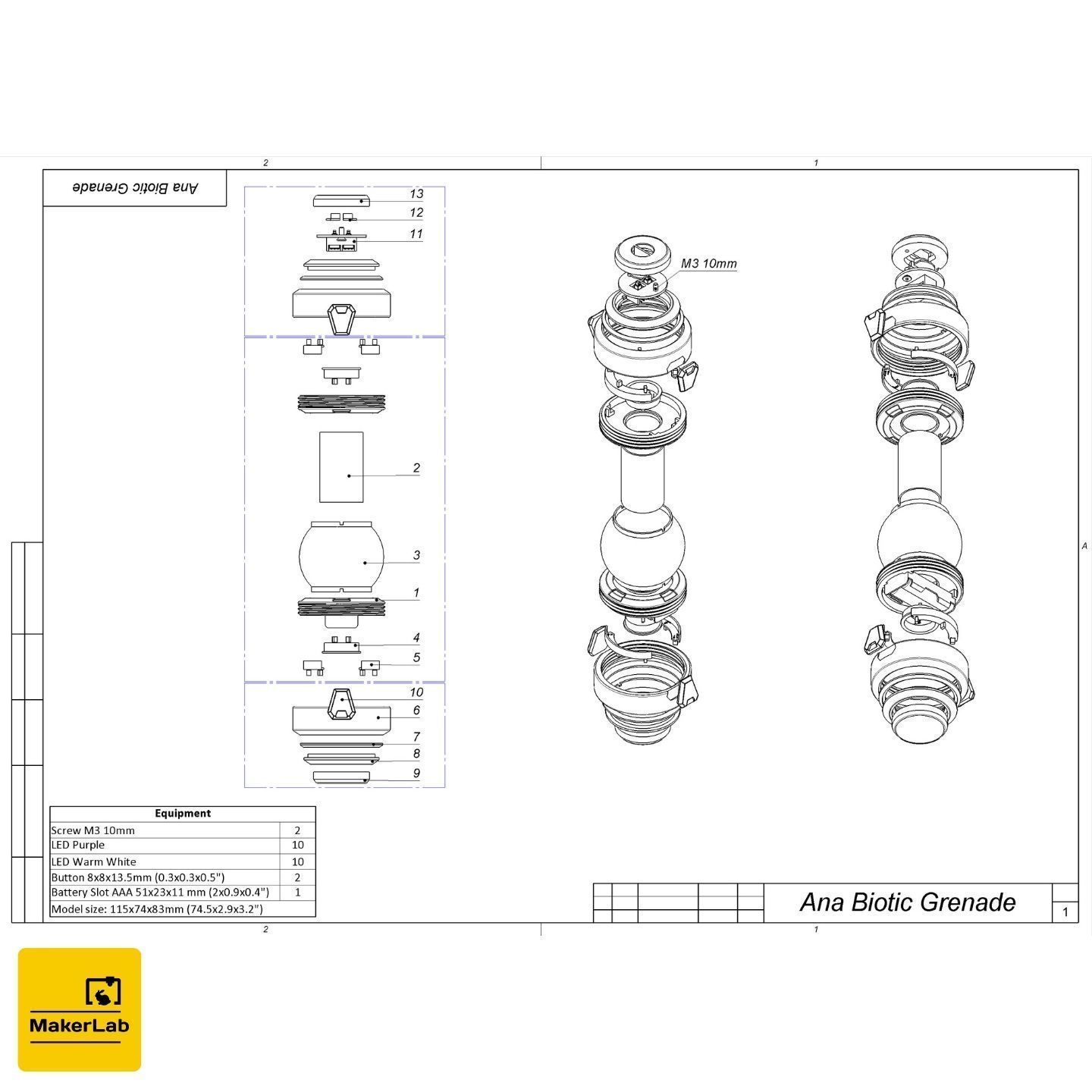

• instructions include an exploded view, a part sheets, a sectional view, an electrical diagram and list of components

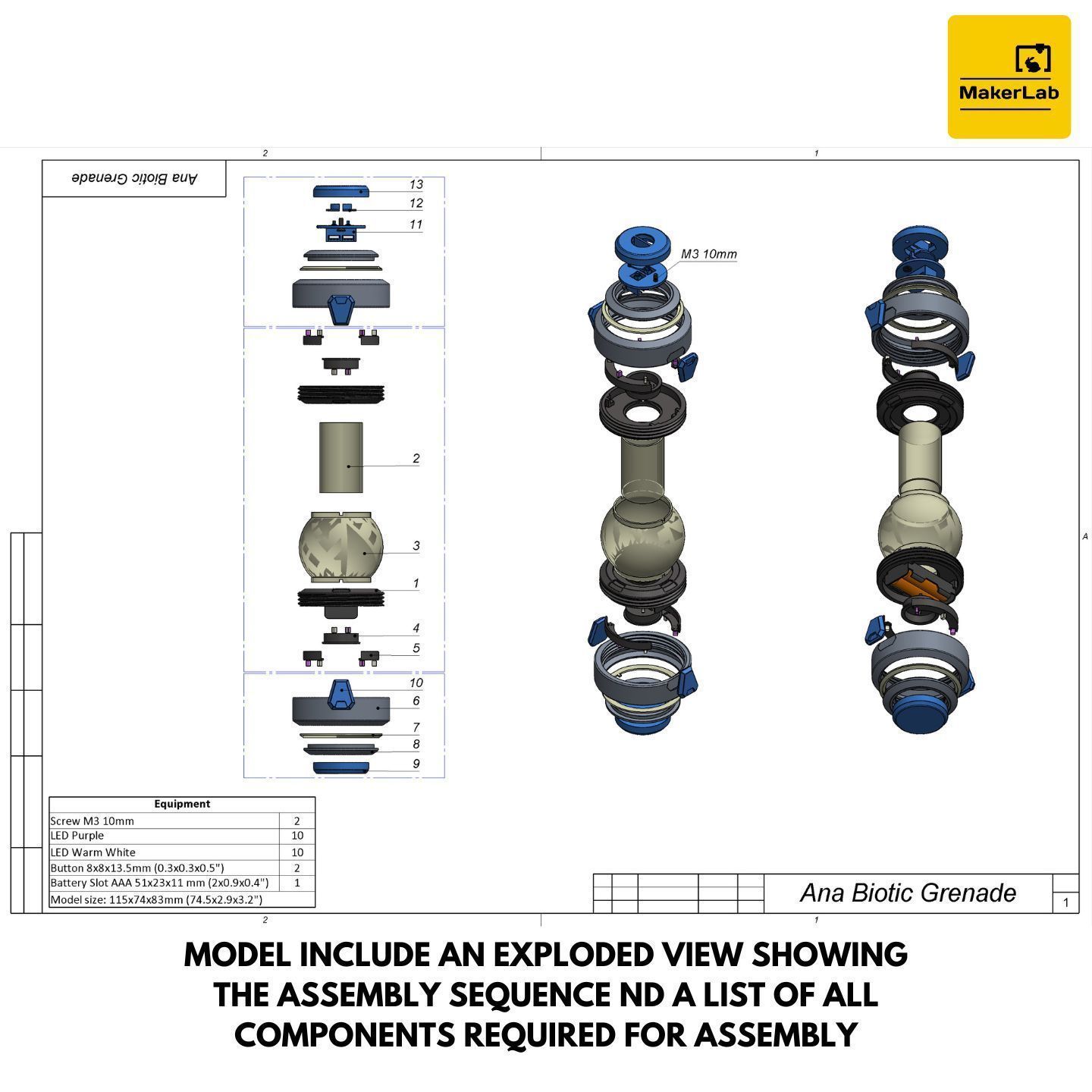

• model include an exploded view showing the assembly sequence and a list of all components required for assembly

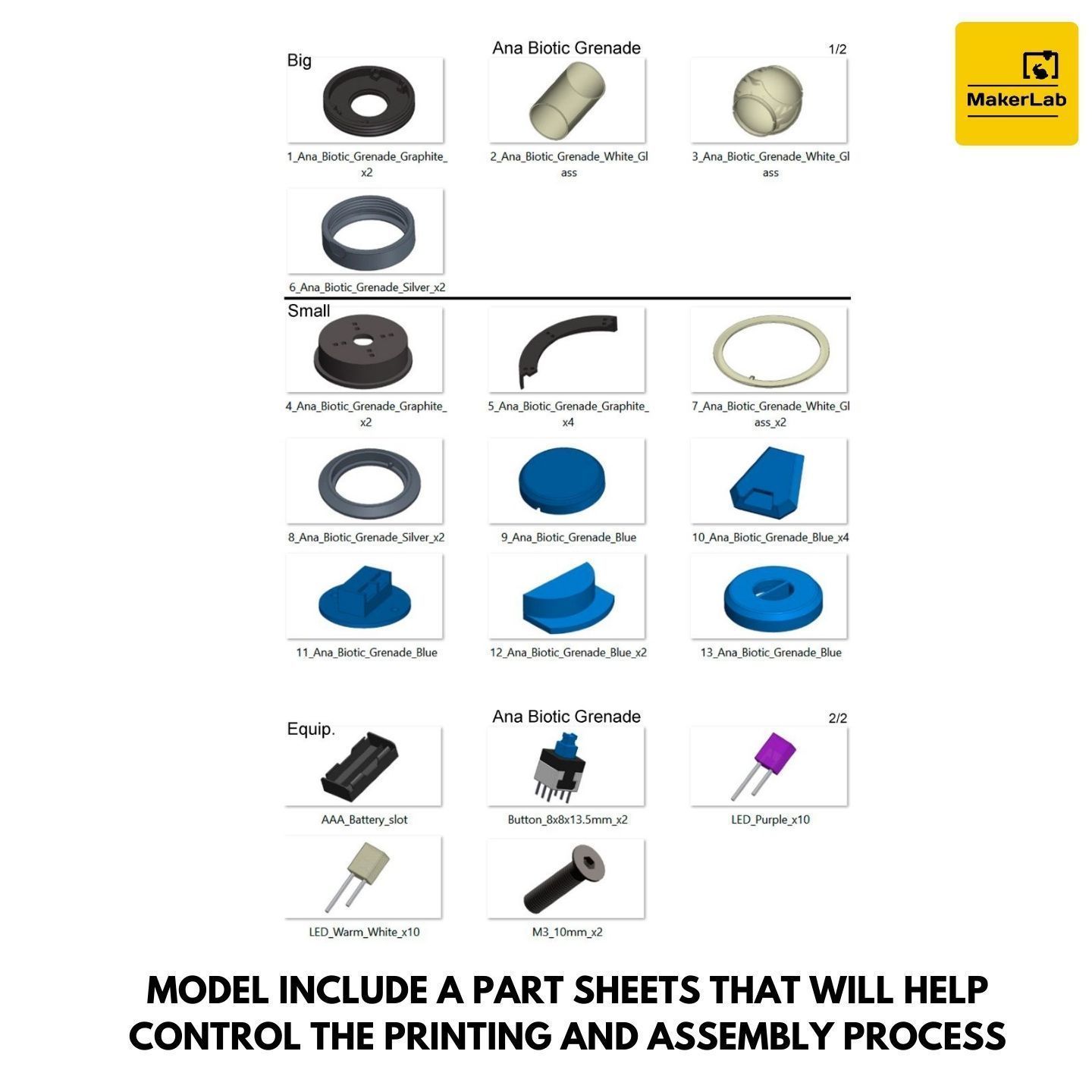

• model include a part sheets that will help control the printing and assembly process

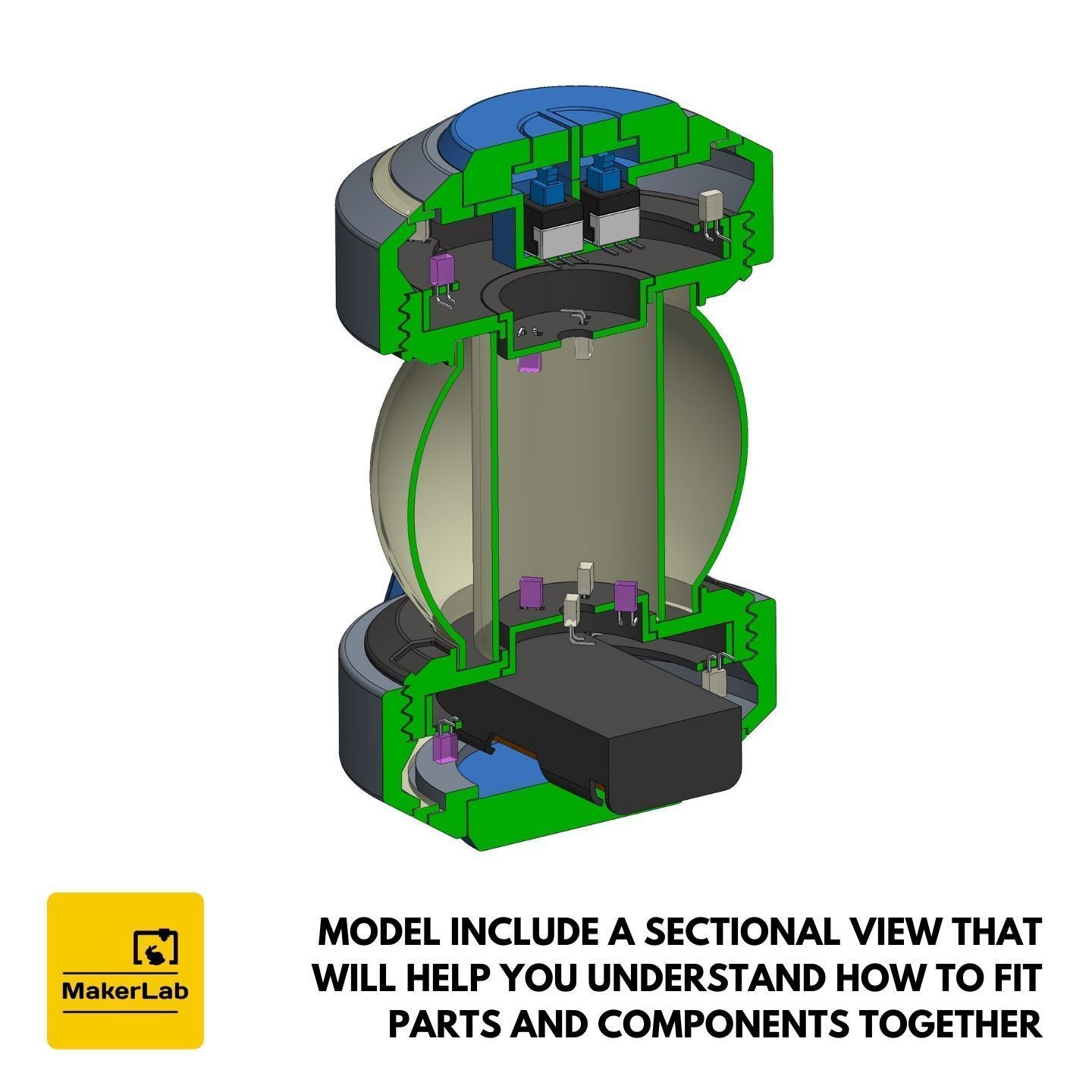

• model include a sectional view that will help you understand how to fit parts and components together

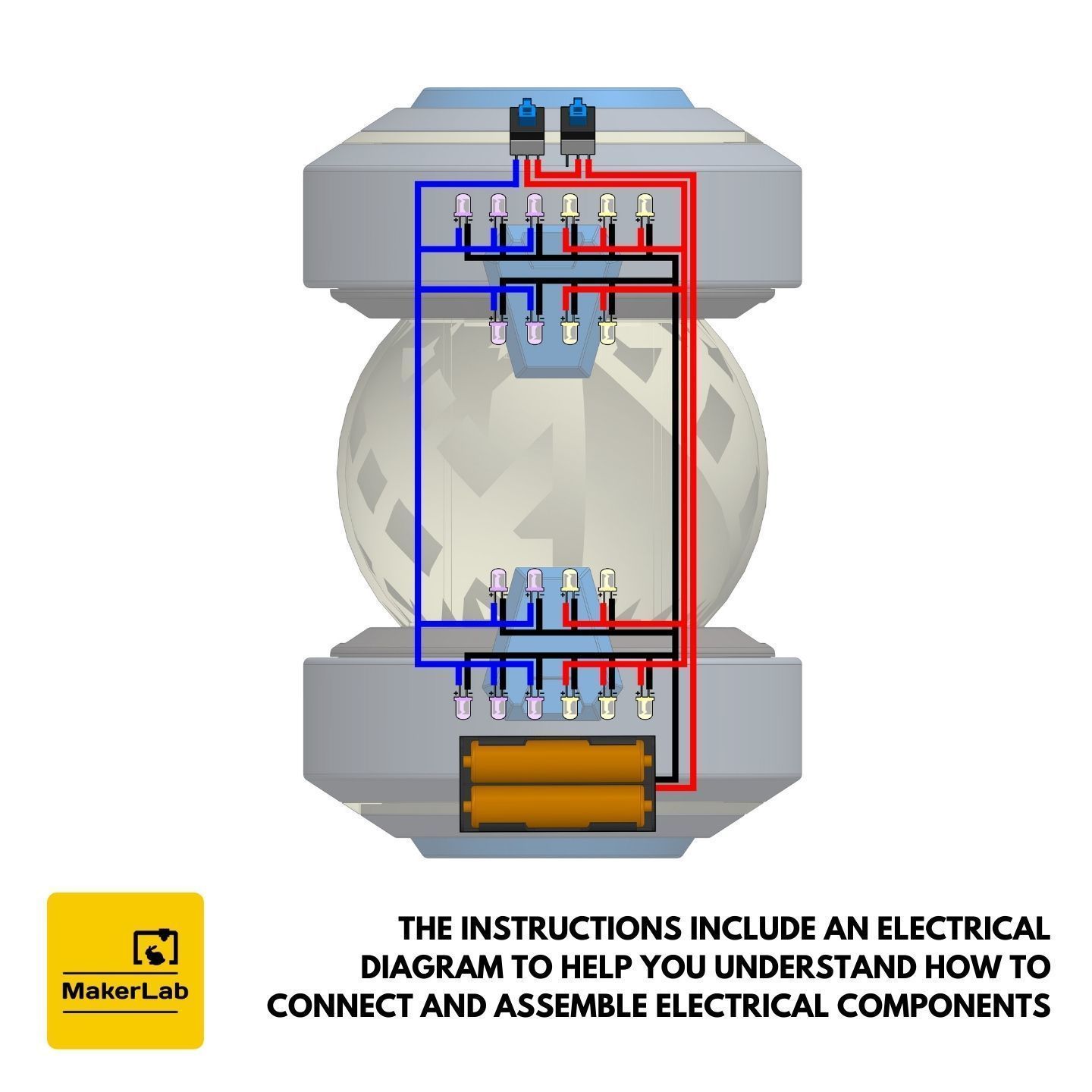

• the instructions include an electrical diagram to help you understand how to connect and assemble electrical components

List of components needs for assembling with LEDs lighting:

• 8*8mm button switch
• screws M3 (20mm)
• LEDs 3x4x2mm
• AAA batteries slots

+ GIFT:

• Ana Biotic Grenade Keychain 3d model included: https://www.cgtrader.com/3d-print-models/gadgets/keychains/keychain-ana-biotic-grenade-overwatch-stl

This model availible on our Patreon: https://www.patreon.com/MakerLab

______________________________________________________________

Legal noticeThis is not an officially licensed product and is only considered Fan Art, the item is 3D model designed for fan art by me.

FOR PERSONAL USE ONLY. NOT INTENDED FOR COMMERCIAL PRINTING.
