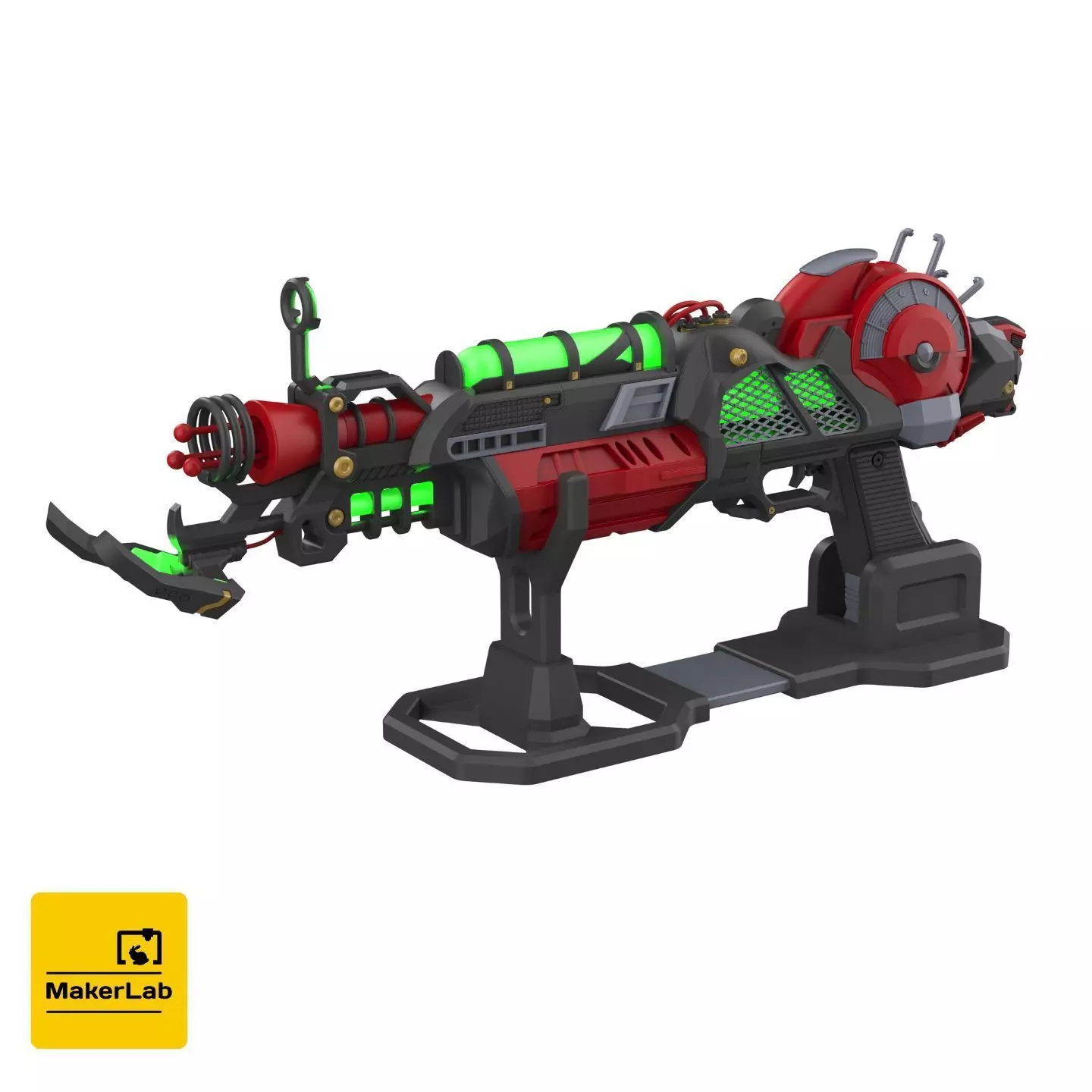

Hi! We glad introduce you printable 3d model - STL files - to print your own Ray Blaster Mark II.

Model include:

• 98 stl files to 3d printing + 5 stand files (biggest part 150x120x62mm).
• Digital Instruction for assembling.
• List of components you will needs for assembling.

The model contains demo stand, backlight and removable battery in the back with a latch or magnets.

Dimensions: 561x228x80mm (22.1x9x3.14")

Model feautures:

• model include a demo stand
• model include the possibility of installing led backlight
• model is divided into parts by color, taking into account the comfort of printing and assembly
• model include removable magazine
• model powered from 2xAA batteries
• instructions include an exploded view, a part sheets, a sectional view, an electrical diagram and list of components
• model include an exploded view showing the assembly sequence and a list of all components required for assembly
• model include a part sheets that will help control the printing and assembly process
• model include a sectional view that will help you understand how to fit parts and components together
• the instructions include an electrical diagram to help you understand how to connect and assemble electrical components

List of components needs for assembling with LEDs lighting:

• 8*8mm button switch
• screws M3 (16mm)
• magnets D10x3mm
• LEDs 3x4x2mm
• AA batteries slots

FOR PERSONAL USE ONLY. NOT INTENDED FOR COMMERCIAL PRINTING.
