The MIM-104 Patriot Air Defense System Complete Pack is a detailed collection of vehicles, trailers and support equipment representing the main operational elements of a Patriot air defense battery.

The pack includes launcher, radar, command, communication, power-generation and logistical support components, making it suitable for complete diorama setups rather than a single isolated vehicle display.

All models are designed in 1/87 HO scale and supplied as printable STL files. The set is especially suitable for resin printing, where the smaller structural and technical details can be reproduced more clearly.

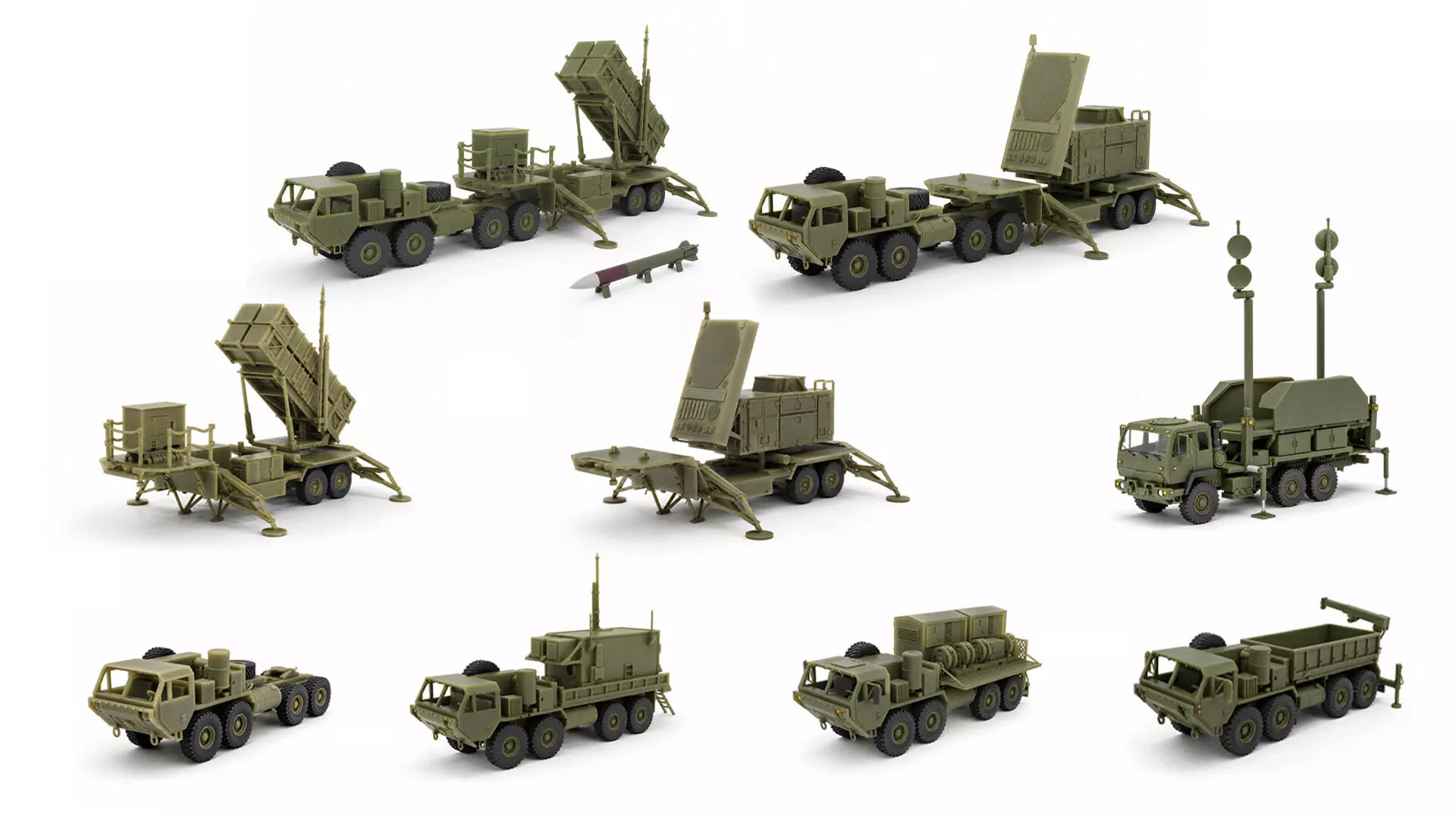

Included ModelsM901 MIM-104 Patriot Launcher TrailerAN/MPQ-53 Radar TrailerM983 HEMTT TractorAN/MSQ-104 Engagement Control StationAMG Communication TruckEPP III Electric Power PlantM985 HEMTT Cargo TruckPAC-2 GEM Missile AccessoryDeployed launcher and radar configurationsTractor and trailer combinationsModel FeaturesDesigned in 1/87 HO scaleDetailed military vehicles and support equipmentSeparate tractor and trailer elementsDeployed launcher and radar versionsExtended stabilizers and support systemsDetailed chassis, wheels and exterior fittingsAntennas, equipment boxes and technical componentsPrepared for 3D printingSuitable for resin and larger-scale FDM printingSTL files ready for slicing

Some parts, such as antennas, stabilizers and railings, are relatively fine and may require careful support placement and handling during printing.

Recommended Uses

Suitable for:

Modern military dioramasPatriot air defense displaysHO-scale railway layoutsMilitary vehicle collectionsNATO-themed scenesTabletop and display projectsScale-model and collector projectsScale Information

Original scale:

1/87 HO scale – 100%

Suggested enlargement ratios:

1/72 – approximately 120.8%1/64 – approximately 135.9%1/48 – approximately 181.3%1/35 – approximately 248.6%

All parts should be scaled uniformly to preserve compatibility between vehicles, trailers and accessories.

Printing RecommendationsResin Printing

Resin printing is recommended for the original 1/87 scale.

Suggested starting settings:

0.03–0.05 mm layer heightStandard or ABS-like resinMedium supports for larger componentsLight supports for antennas and smaller detailsAngled placement for larger vehicle and trailer sections

Printer settings may need minor adjustment depending on the machine, resin and preferred orientation.

FDM Printing

FDM printing is more suitable at larger scales.

Suggested starting settings:

0.2–0.4 mm nozzle0.08–0.12 mm layer heightReduced speed for detailed areasSupports enabled where required

Larger scales will generally provide better durability and cleaner small details.

Important Information

This product contains digital STL files only.

No physical model will be shipped. The images show the intended appearance of the models after printing and assembly. Final results may vary depending on printer calibration, material, orientation, support settings and post-processing.

Basic experience with slicing, support placement and miniature assembly is recommended.

License

The files are intended for personal use.

Redistribution, resale or sharing of the digital files is not permitted. Commercial use involving physical prints may require separate permission.
