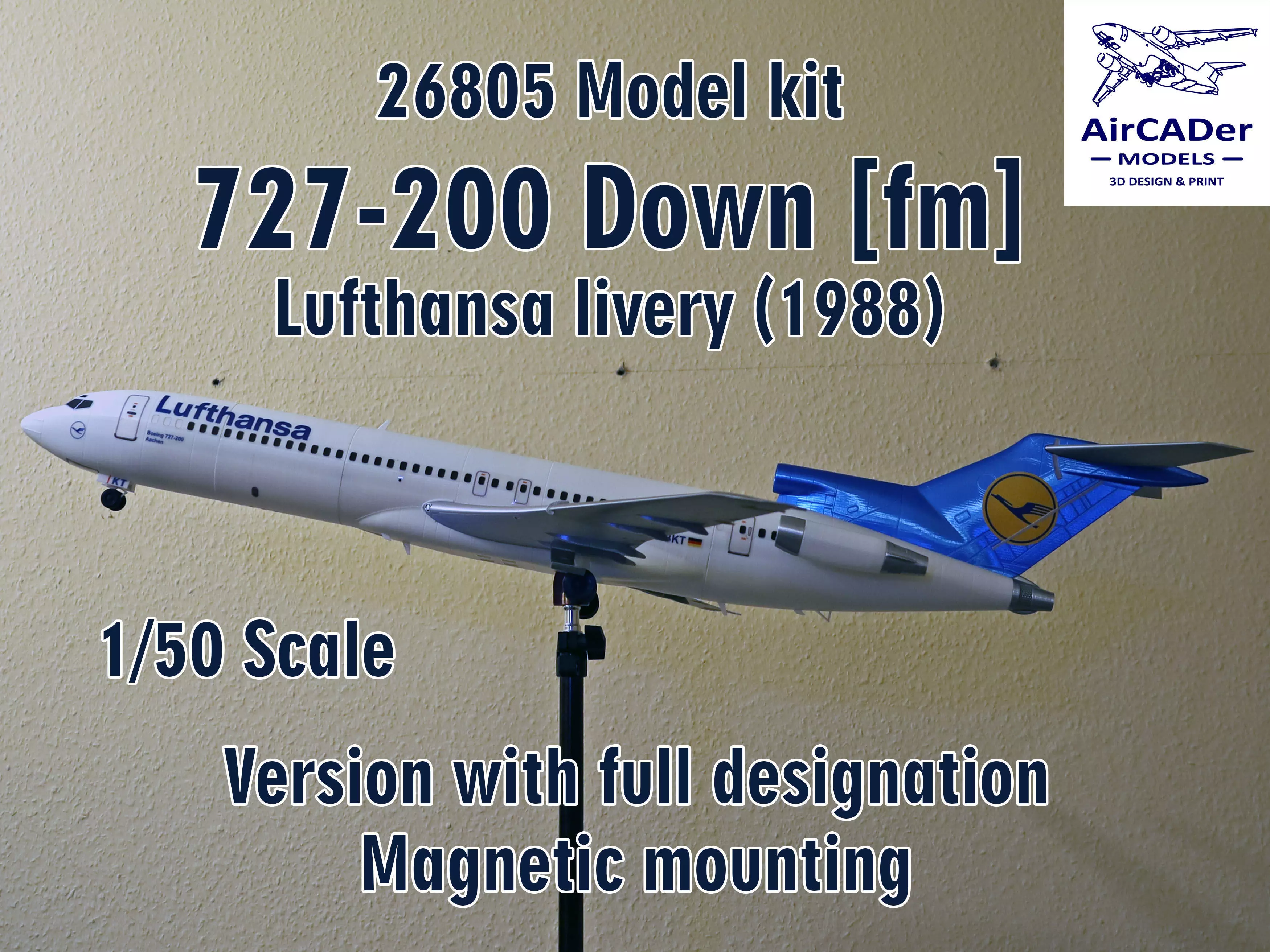

The highly detailed 3D printable model of 727-200 with the designation of doors, windows, air intakes, high-lift devices. Antennas and flap track fairings are made in separate parts. The model requires gluing. 3D Printing Guidelines and Assembly Instructions are included.

• Model code: 26805 Model kit 727-200 Down
• Version: with full designation and magnetic mounting*
• Revision: original (2025-08-19)
• Scale: 1/50
• Winglets: without
• Engines: JT8D-15
• Landing gear: down
• Model length: 93.4 cm
• Wingspan: 65.8 cm
• Parts quantity: 119
• 3D print complexity: 4/5
• Assembly complexity: 4/5
• Decals: 268D02-DLH Lufthansa (1988) (s/n: D-ABKT)

*allow you to assemble/disassemble the models for easy transportation and storage (16 magnets Ø4x4 and 32 magnets Ø8x5 are required)

Importantly! The model is divided into parts that are oriented for easy printing. Solid model not included in this kit.

If you want to know more about current projects, follow me on Facebook or Instagram.

https://www.facebook.com/AirCADer.Models/

https://www.instagram.com/aircader.models/

If you want to print and sell my models, please contact me first.

3D printing settings

The model is optimized for a 0.4 mm nozzle and 0.15 mm layers. Approximate ⌀1.75 mm filament length for one model (without stand) - 370 meters. Parts were tested on 3D printers Anycubic Viper and Qidi Q1 Pro. The manual includes information about supports and printing recommendations.

Files format: .stl Providing files in other formats must be discussed separately.

Dimensions of the largest parts (in mm):

• Fuselage Center: 75.2 x 85.4 x 289.6
• Wing left/right: 23.6 x 266.9 x 312.6
• Stand: 159.8 x 199.8 x 169.4

The set includes additional files for small printers, but a 3D printer with z-axis print size of more than 230mm is still required.
