Description

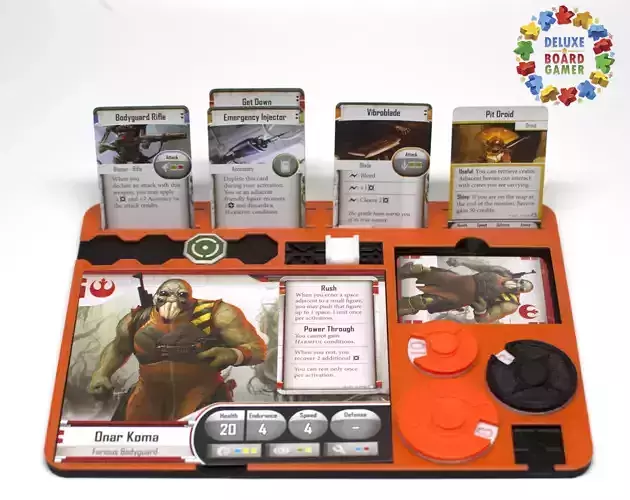

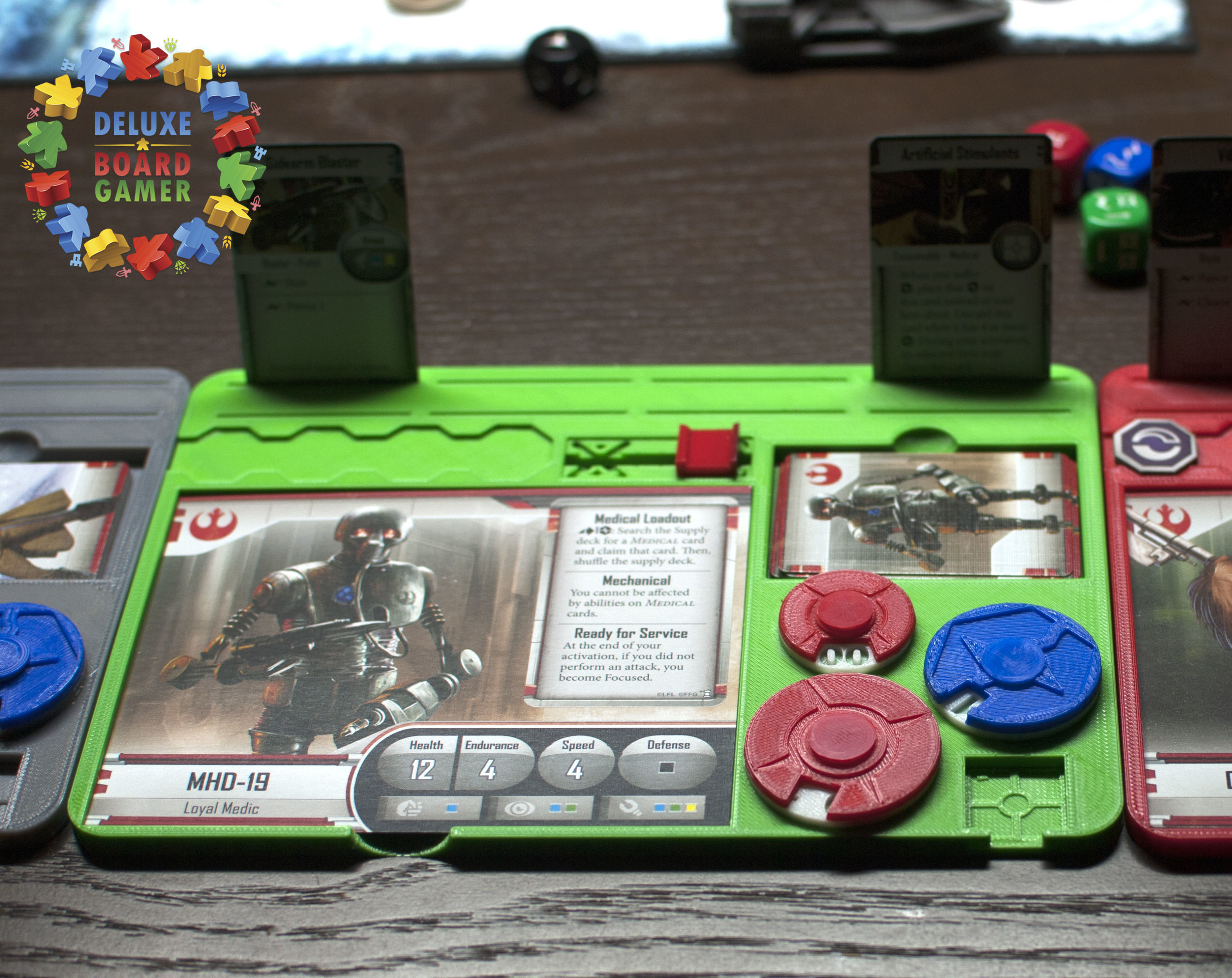

Keep your Rebel Heroes organized and add depth to your Imperial Assault gaming experience. No more loose cards, piles of tokens!

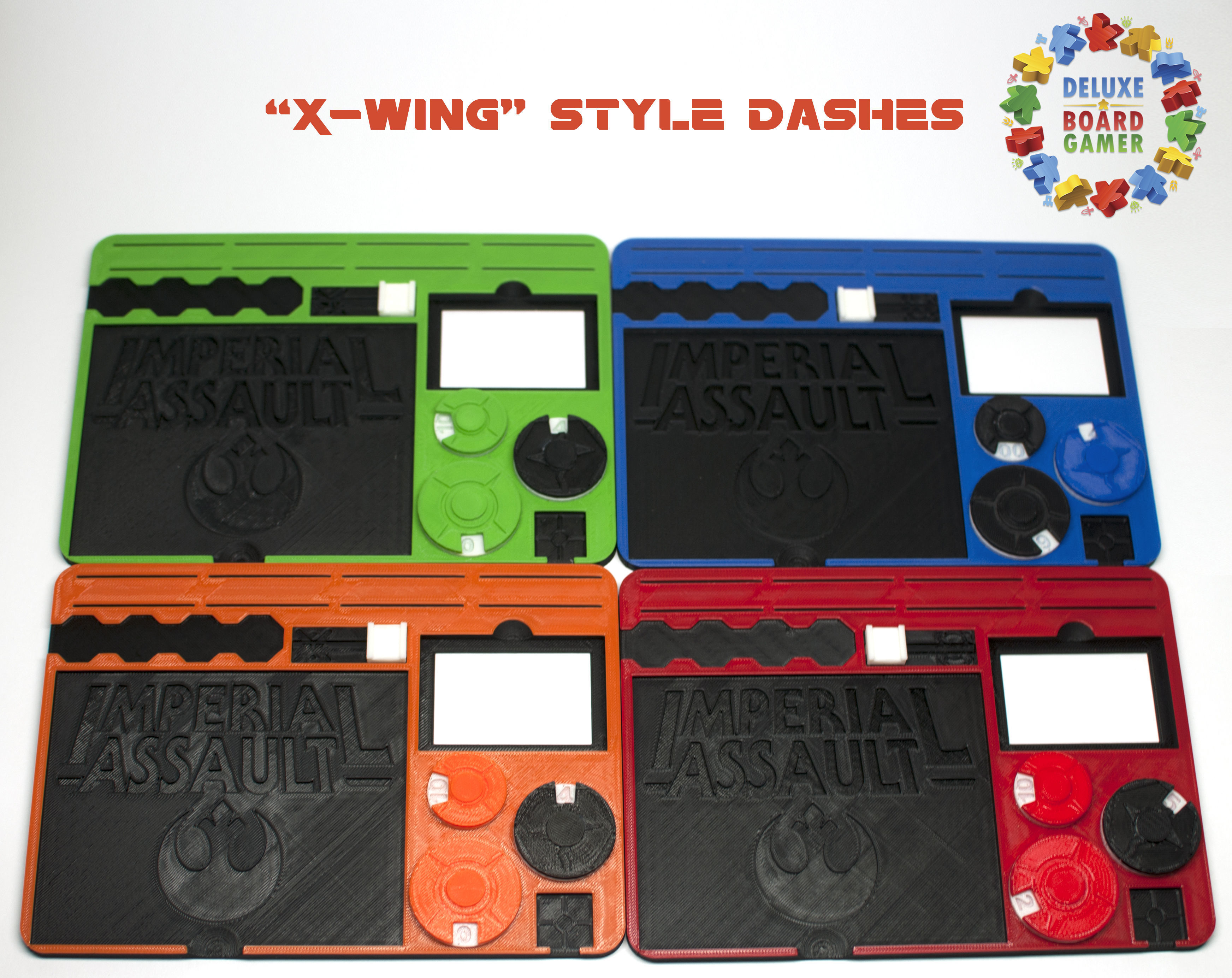

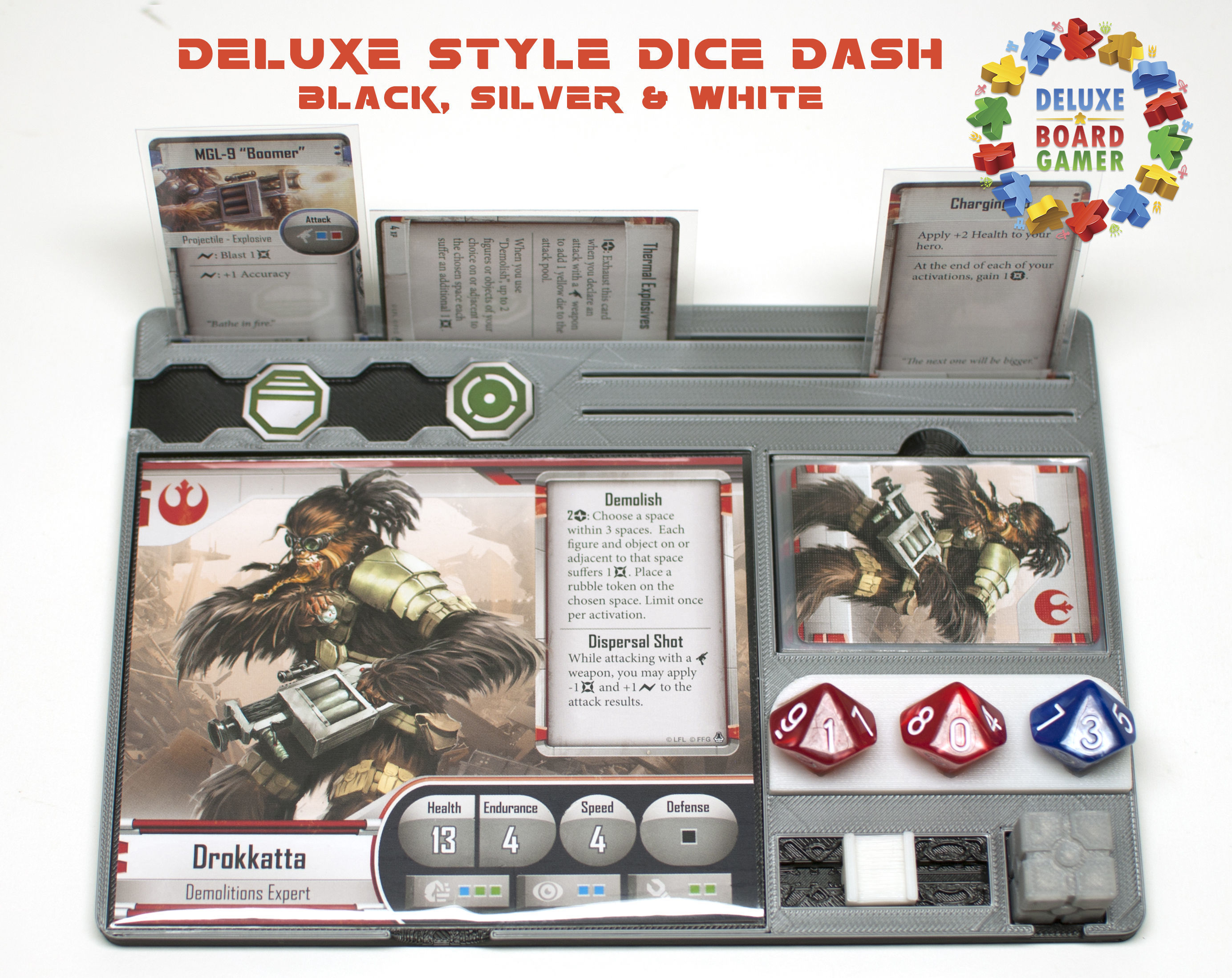

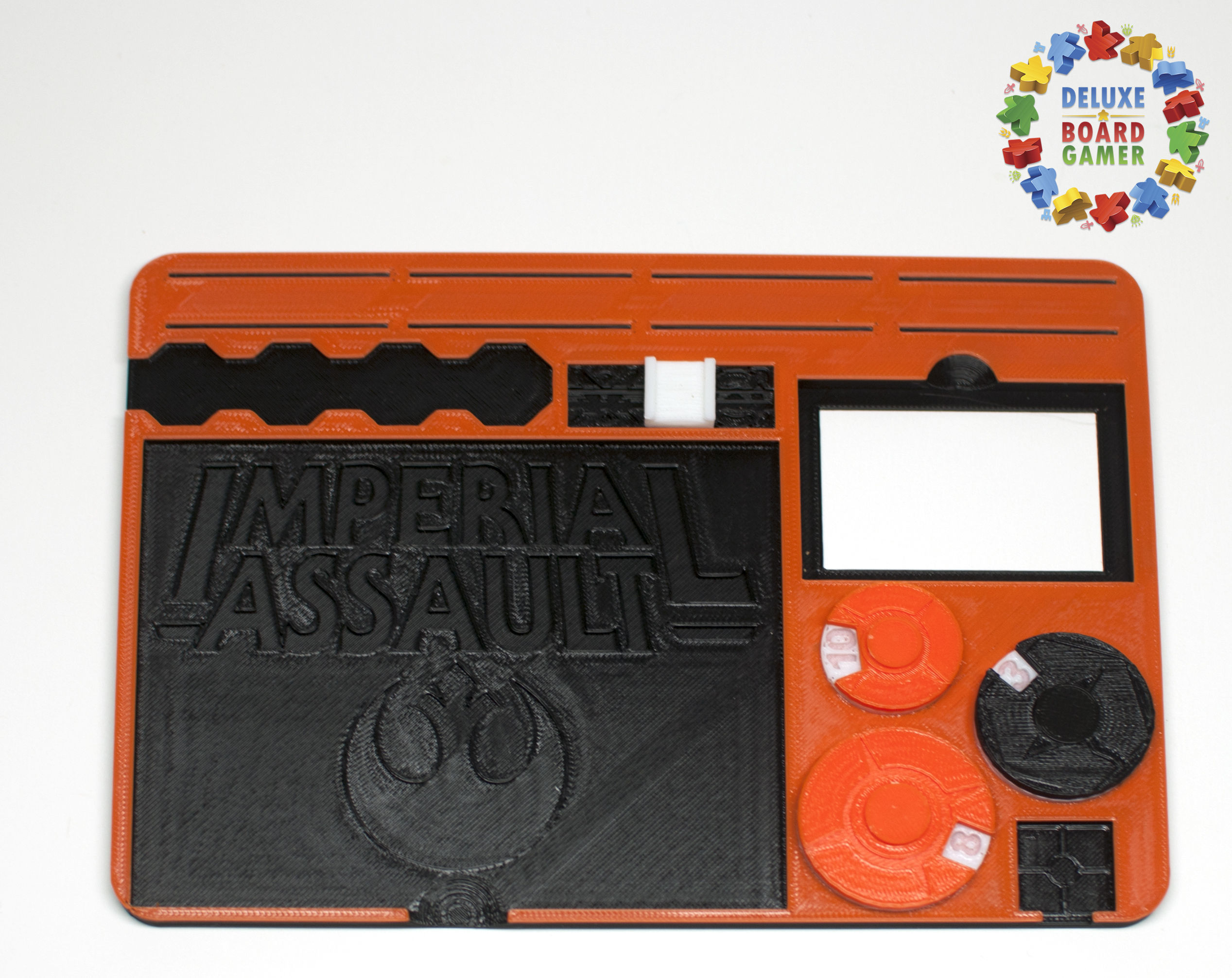

There are two versions of this, and you get both! The Dials version uses dials to track health and straing while the dice version uses standard D10 dice.

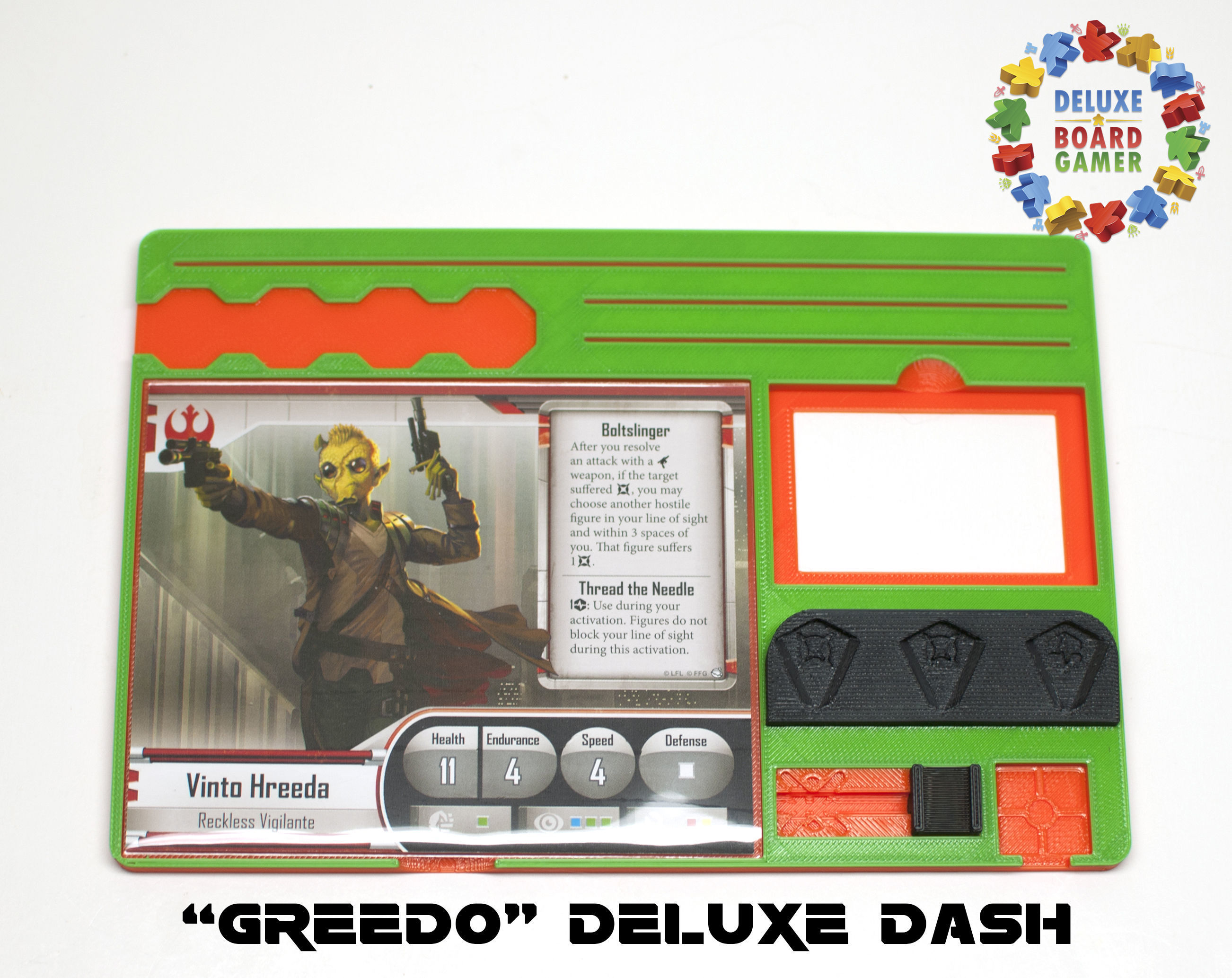

Utilize filament changes at different layer heights to get the multi color prints like pictured!

These player organizers are designed to hold everything you should need:

  • Player Cards can stand in any of the slots provided, this will fit sleeved cards.

  • Your Hero deck can be placed in the holder (the one you use XP to buy from). This will fit sleeved cards as well (tested with FFG and Ultra Pro sleeves)

  • The Health and Strain are tracked via 3 dice (or 3 dials with the dials version)

  • Conditions are tracked by using the game tokens and placing them in one of the 4 available slots.

  • Activation is tracked by a slider. For ready keep the slider to the left, exposing the Ready symbol in the slider. For activated, slide to the right, exposing the Activated symbol. For two activations, slide to the middle for your first activation, so both the Ready and Activated symbols are visible, then all the way right for your second activation.

*** BUYERS DO NOT HAVE PERMISSION TO USE THIS FOR COMMERCIAL PURPOSES ***

️ *Recommended Print Settings *

You can print these at a high layer height, I print at 0.32mm which is as high as you can go with a 0.4mm nozzle.

If you're used to printing at lower layer heights like 0.2mm, you may want to bump the temperature by 5-10 degrees.

To get the dials to be white (or whatever other color) you need to do a filament change around the 6 mm mark. Since I print at 0.32 mm the layer change is done at 6.08mm

To get the D10 Dice holder to be a different color, you need to do a filament change around the 6 mm mark. Since I print at 0.32 mm the layer change is done at 6.08mm

I also change the layer to 0.16mm for the Die Holder

If you want the extra color like in the main picture, you should do a filament change allowing you to have 3-4 layers of the new color before changing the filament again for the dials.

I make the change at 5.44mm which gives 3 layers at 0.32mm layer height.

The strain and health dials are printed separate and can also be done at a high layer height. Depending n your printer, the fit may be slightly loose or slightly tight. The buttons that go into the Dials on the main dash may be the same way but a little bit of super glue will fix it if it's too loose.

The activation slider should be printed upside down to how it goes in the dashboard. Your printer will be required to bridge the gap, but it's a small bridge.

️*Legal Stuff *

This listing is a fan-made design intended to be used with the game Star Wars: Imperial Assault and its associated expansions. I am in no way affiliated or licensed by Fantasy Flight Games or Disney/Star Wars. To the best of my knowledge, these items do not compete with any official accessories made for this game. These items are intended solely to increase the enjoyment of playing the game.

This is a Deluxe Board Gamer original design! This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivs 3.0 Unported License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-nd/3.0/ or send a letter to Creative C
