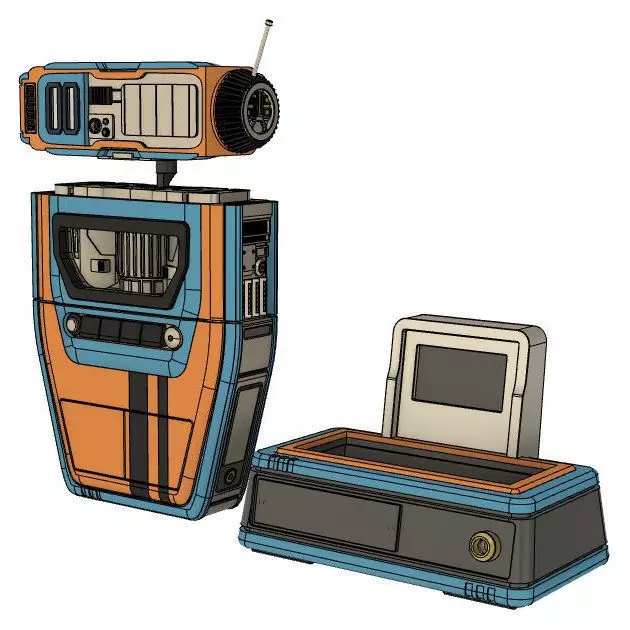

Recreate the adorable Pip droid and its docking station from Star Wars: The Acolyte with this comprehensive, screen-accurate 3D model kit. Designed from the ground up to be a 1:1 scale replica, this project is perfect for building a highly detailed display piece or a fully functional robot.

Key FeaturesScreen-Accurate Design: This model is meticulously crafted in Autodesk Fusion 360, based on extensive research of promotional photos and behind-the-scenes footage to ensure 1:1 accuracy. The scale is based on the M1956 Universal Pouch, just like the prop in the show.

Electronics-Ready: The model is prepped for you to install electronic components, including holders for LEDs for the eyes, a slide switch, and mounts for servo motors to create a fully animated droid.

Working Pan & Tilt Mechanism: The model includes a functional neck pan and tilt mechanism, allowing you to install multiple servo motors for lifelike head movement. A static head shaft is also included for display-only builds.

Bonus Props Included: This kit includes 3D models for the CorpSec chest tools, Olega mission chest, and Khofar mission chest plates to complete your costume.

Bonus Decals: Includes screen-accurate Swag Box stickers and black stripes for waterslide decal paper or transparent vinyl.

FDM Printer Ready: Parts are designed and oriented for optimal FDM printing.

What's IncludedYou will receive a single .zip file containing all the necessary STL files for 3D printing. The files are organized into folders by body part for easy navigation. Please note that this is a DIY project, and you are only receiving the digital files—not a fully assembled or functional droid.

Resources & AssemblyFirmware & Circuit Schematic: Free firmware and the circuit schematic can be downloaded from: https://github.com/therebelagent/Pip-Droid

Detailed Visual Assembly Guides:

Pip Droid: https://flic.kr/s/aHBqjBBLnP (Final Body Assembly) and additional guides for Head, Tummy, Chest, and Head Bracket can be found there.

Docking Station: https://flic.kr/s/aHBqjBRKFG

CorpSec Add-Ons: https://flic.kr/s/aHBqjBHq6y

Olega Add-Ons: https://flic.kr/s/aHBqjBJqSy

Recommended Parts (BOM)Standard Parts:

M2.5 x 10mm Phillips Head Screw x 2

3mm x 1.5mm or 1/8x 1/16 Disc Rare Earth Neodymium Magnet x 14

Super Glue

Electronic Components:

LEDs: 6x 5mm Clear/Red, 1x 3mm Red, 1x 3mm Yellow, 1x 3mm Blue/Clear

Switches: 1x 8.4mm x 4.4mm Slide Switch (OS102011MS2QN1C)

Olega Mission Functional Neck:

Arduino Nano

803040 3.7V 1000mAh LIPO Battery

MT3608 DC Step Up

2x MG90S or SG90 Servo Motors

KCD1-11 13.5 x 9 mm 2/3 pin ON - OFF Rocker Switch

100uF 25V Capacitor

Docking Station:

1x 5mm Green LED

4x M2.5 x 8mm Phillips Head Screw

1x 8.4mm x 4.4mm Slide Switch (OS102011MS2QN1C)

Support & ContactI'm dedicated to helping you with your build. Please don't hesitate to reach out if you have any questions about printing or assembly.

You can also follow my progress on Instagram: https://www.instagram.com/therebelagent/

Disclaimer: Files are for personal use only.
