3D printing settings3D PRINTING SETTINGS & MANUFACTURING INSTRUCTIONS
General Print Settings:
- Printer Type: FDM
- Nozzle Size: 0.4 mm
- Material: PLA, PETG, or ABS
- Layer Height: 0.16 mm - 0.2 mm
- Wall Loops / Perimeters: 3 walls (for maximum strength)
- Infill Density: 15% - 20% (Gyroid recommended)
Smart Orientation & Support Optimization:
- Base Part (Rocky Base):
- Supports: NOT REQUIRED (Prints cleanly as is).

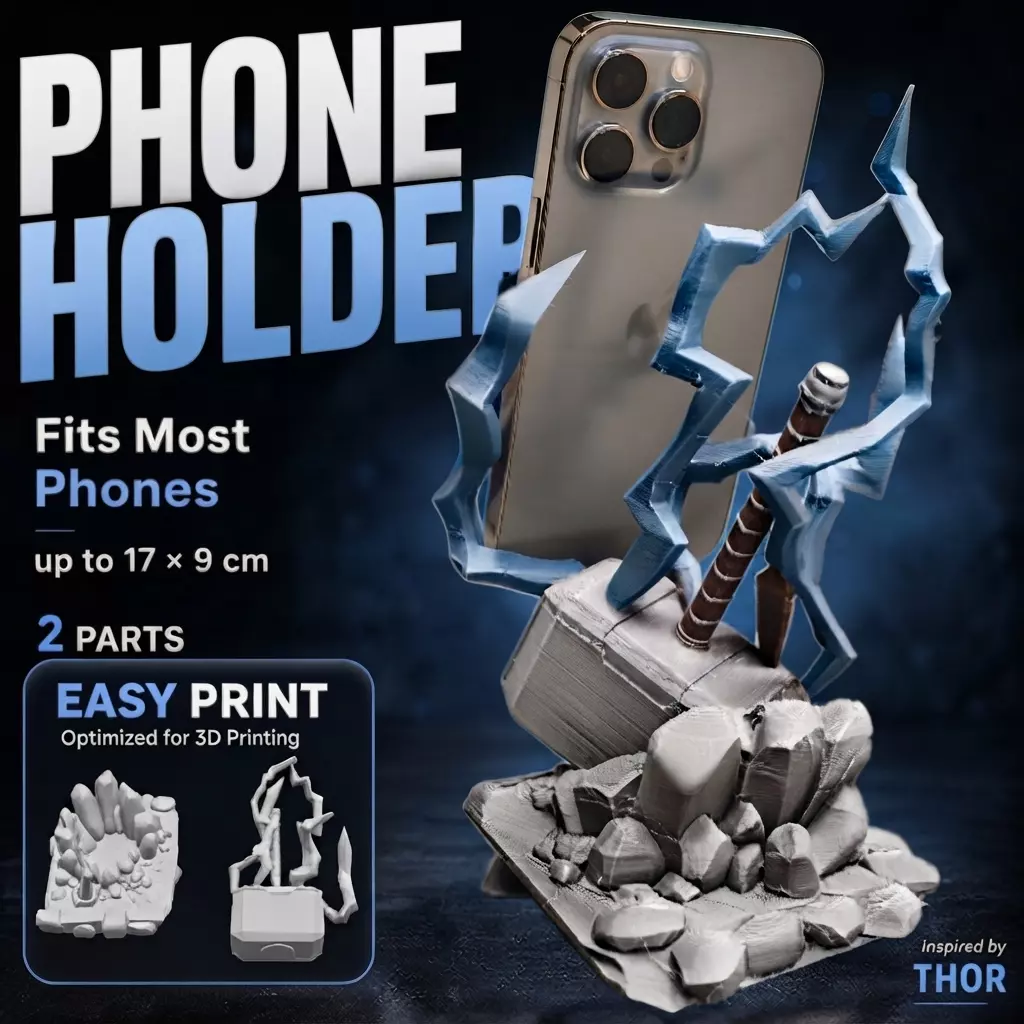

Upper Part (Hammer & Lightning Bolts):Pro Tip: Lay the hammer/lightning piece flat on its side in your slicer!Laying it flat minimizes overhangs, saves maximum support material, and improves overall print speed and layer adhesion strength.Supports: Minimal Tree/Organic supports needed when laid flat.Assembly & Sizing:
- Sizing: Designed for phones up to 9 cm x 17 cm (scalable in your slicer).
- Assembly: Glue the upper piece into the base slot using a few drops of Super Glue (CA glue)
