iPhone 16 Pro Artist Easel Phone Stand 3D print model

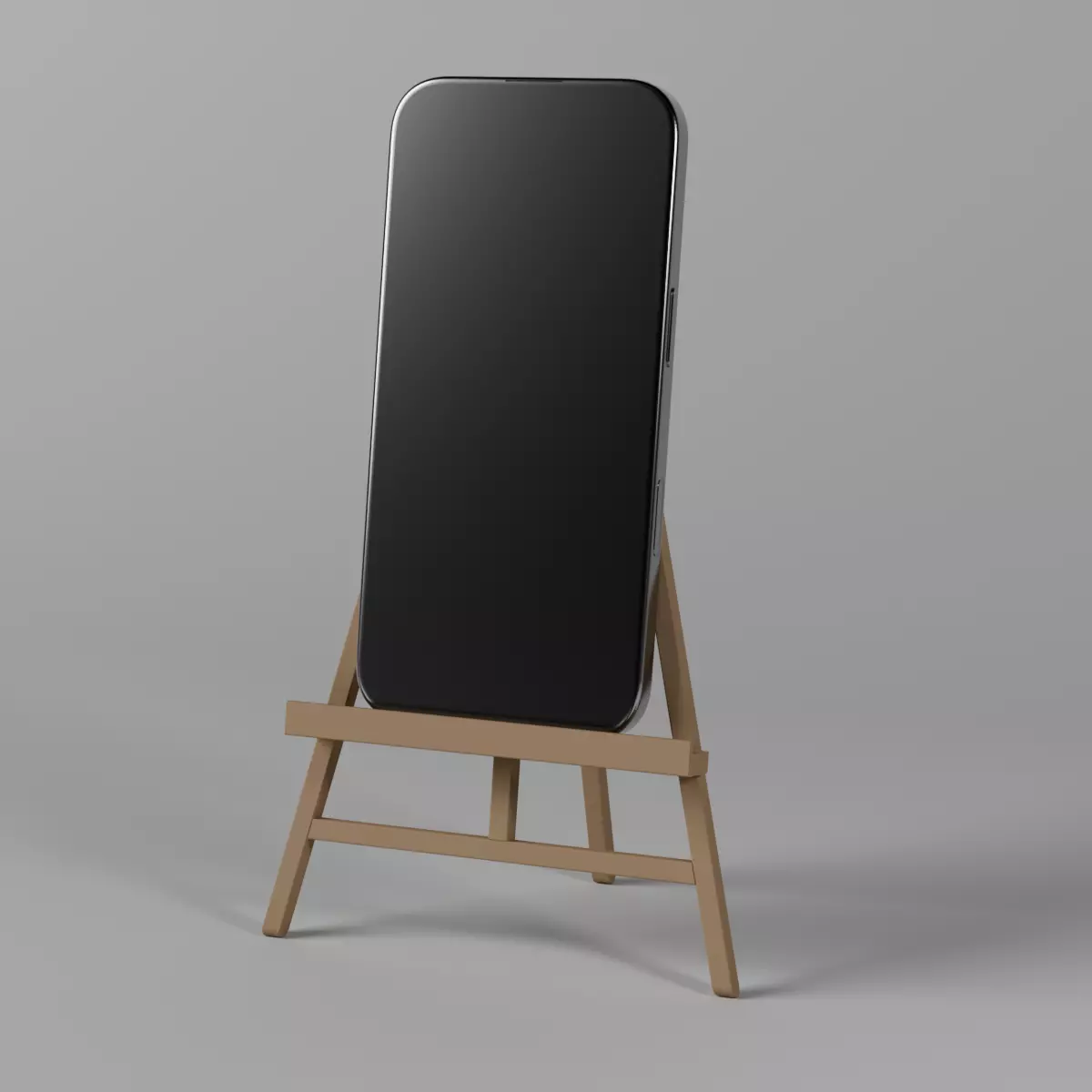

Paint your designs on the world with this artist's easel phone stand, compatible with the iPhone 16, iPhone 16 Pro, and any phone with similar dimensions.

Product Description

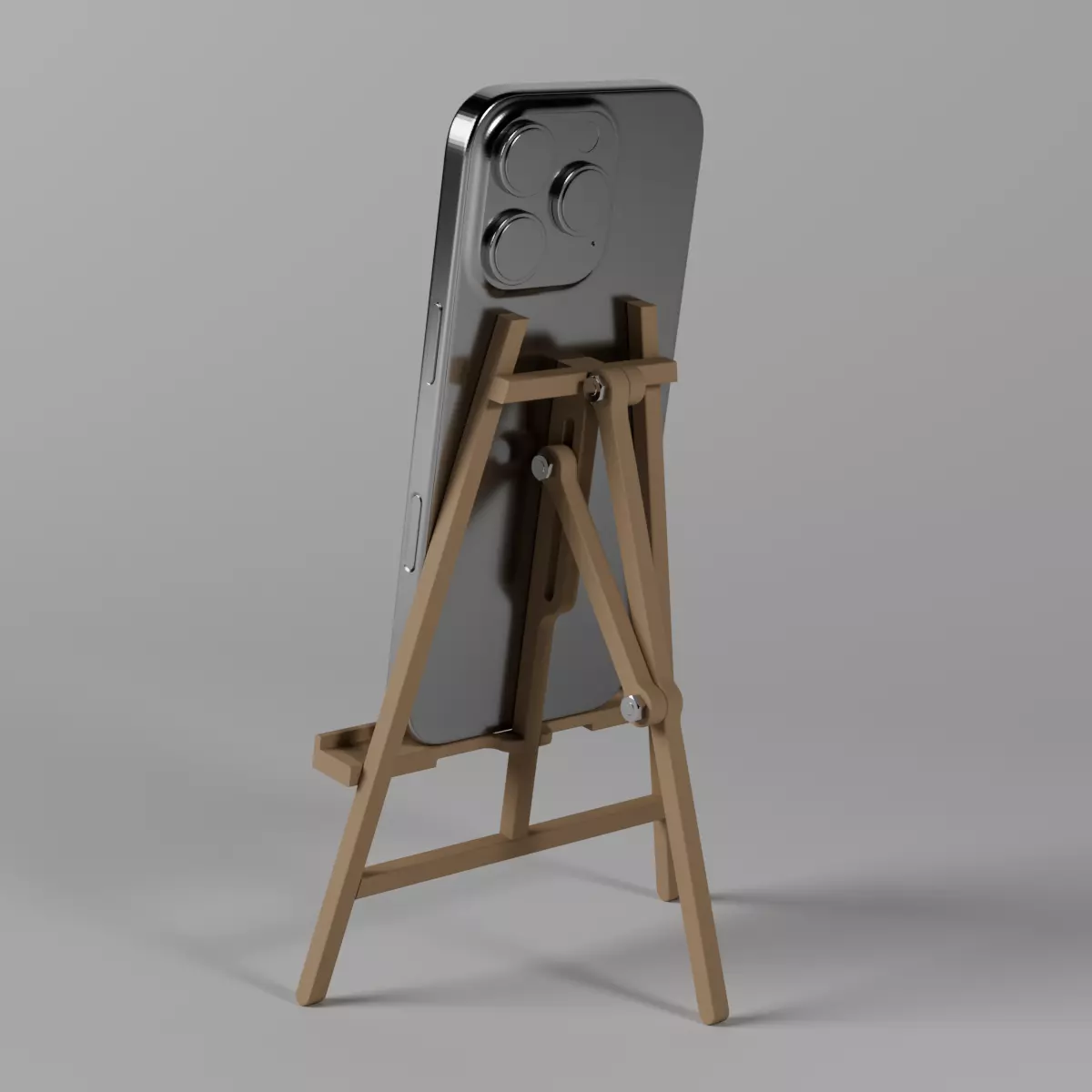

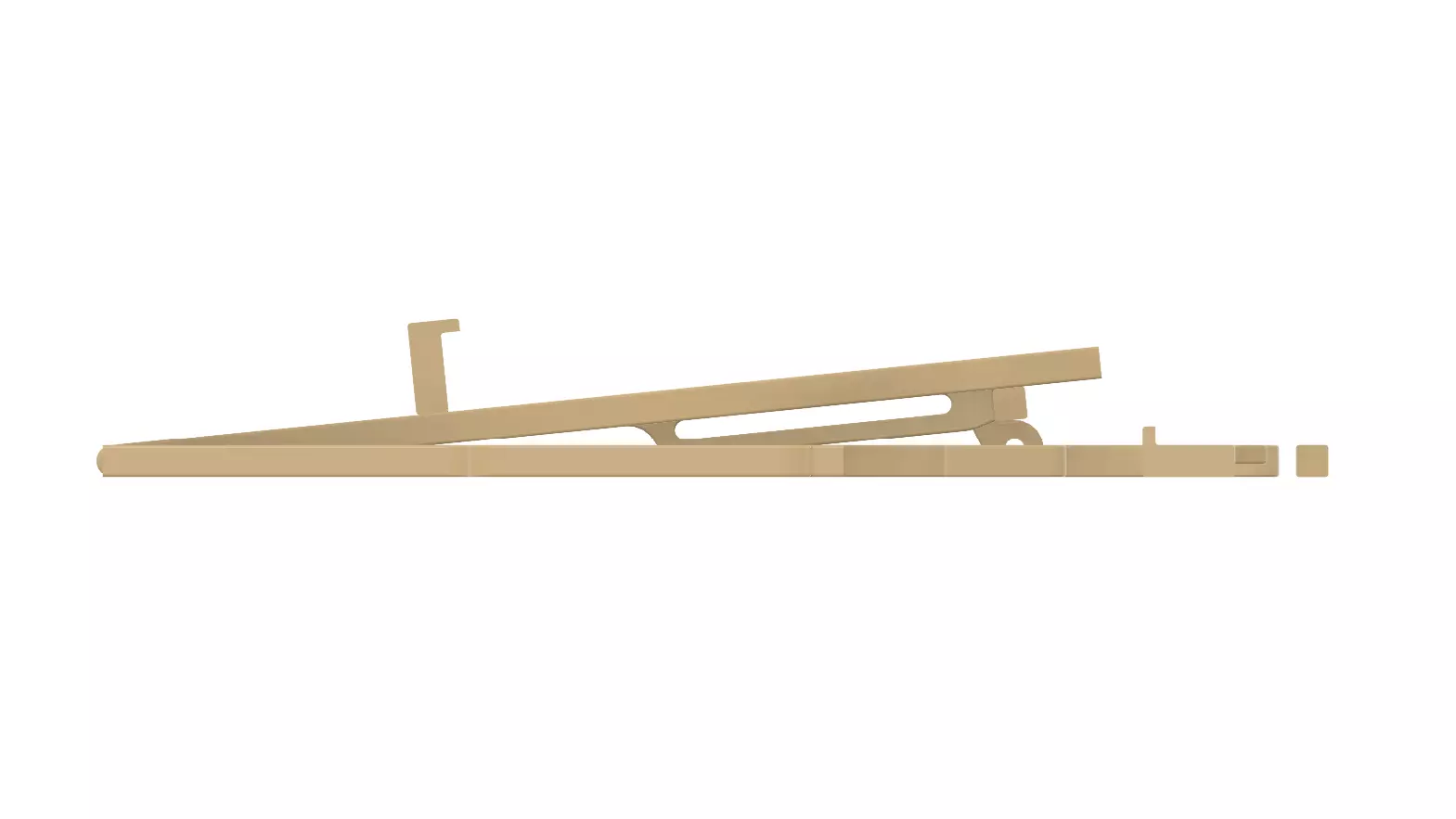

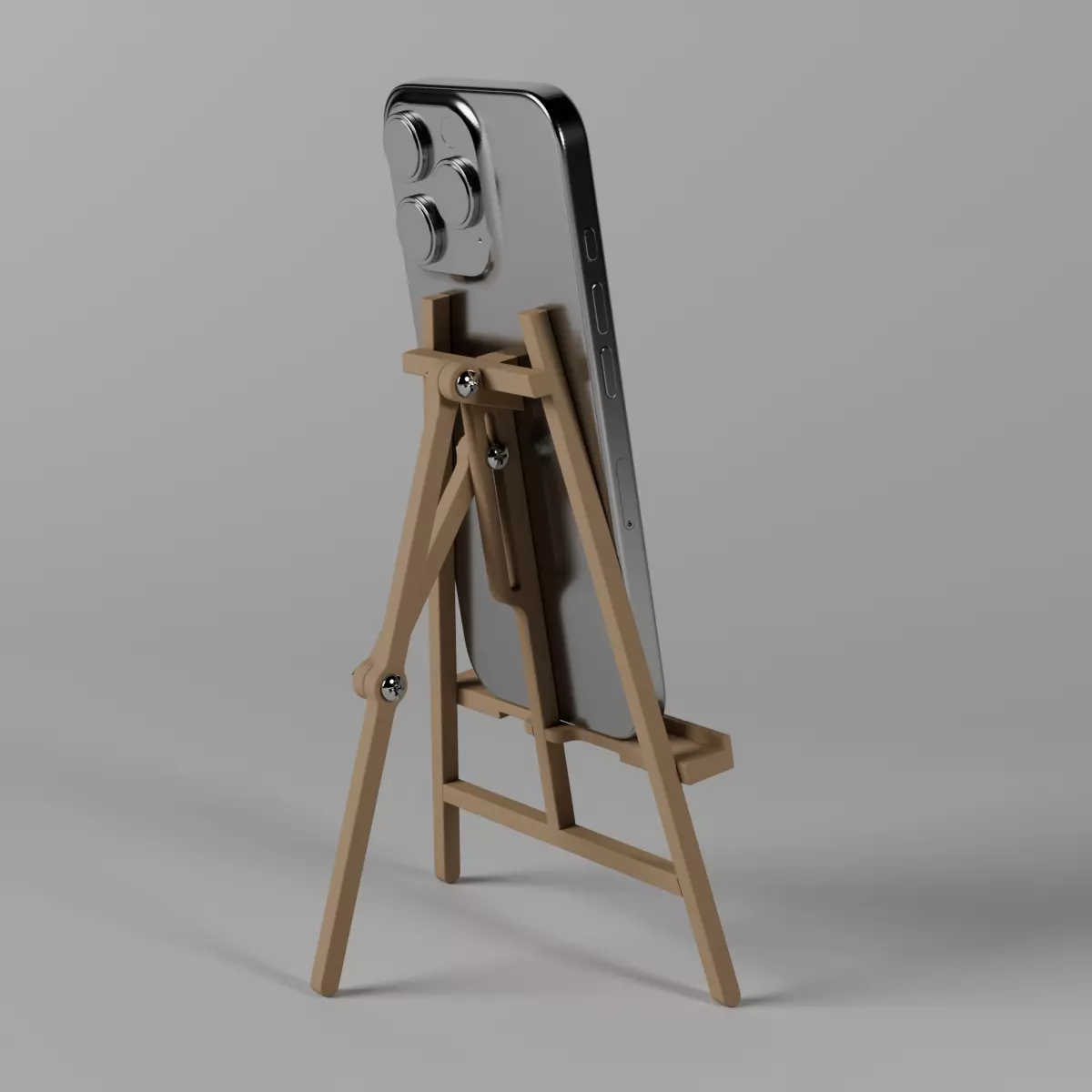

If your phone (including case) has an overall thickness less than 12.25 mm (0.48 in.) and a camera boss that starts more than 101 mm(3.98 in.) from the bottom of the phone, it will most likely fit this stand. With cutouts for the charging cable, microphone port, and speakers, this phone stand can be employed when both charging and actively using your phone. The stand includes a back leg that can be adjusted to fold flat or reclined at angles from zero to more than 20 degrees.

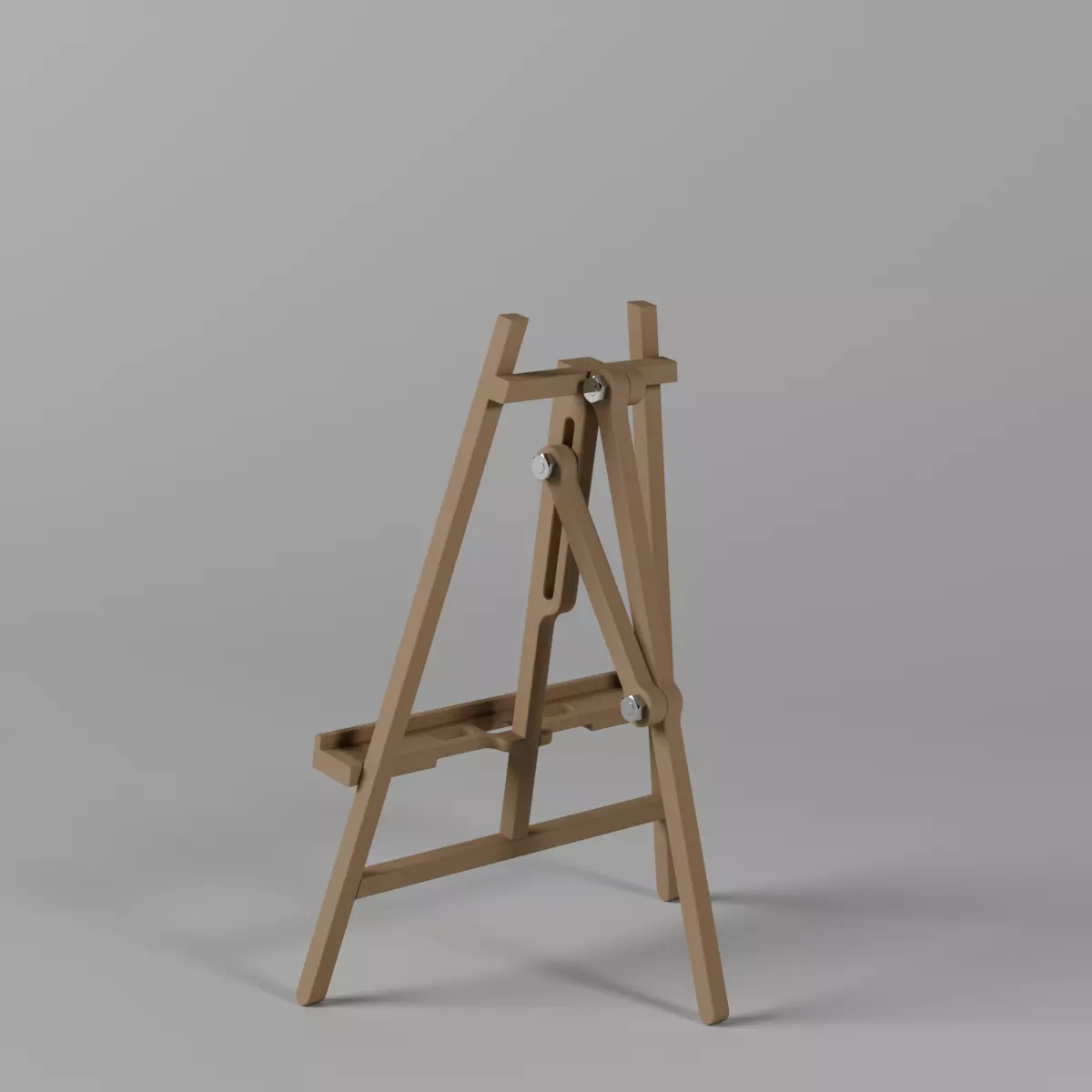

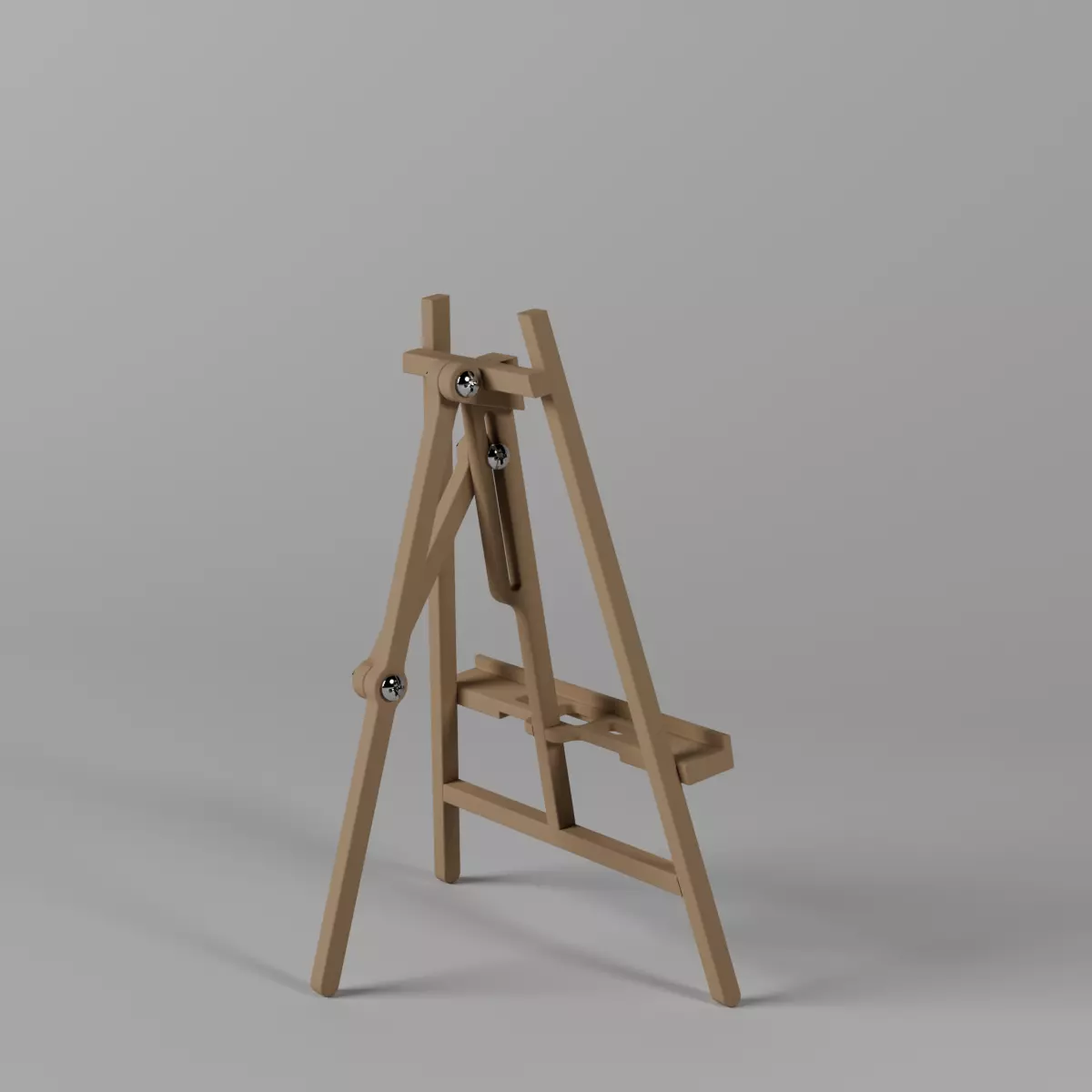

The back leg and support can either be glued in a fixed position, or three 3mm diameter bolts/nuts (sold separately) can be used for an adjustible position. Adjustment uses friction from the stand being sandwiched between the bolt head and nut to keep from sliding in the slot. The bolts should have a shank length of at least 12mm to provide enough thread for the nuts to grab onto. Typing M3 nuts and bolts into the search field of any major hardware retailer's website such as Amazon, Walmart, Home Depot, etc... should provide lots of options.

Files

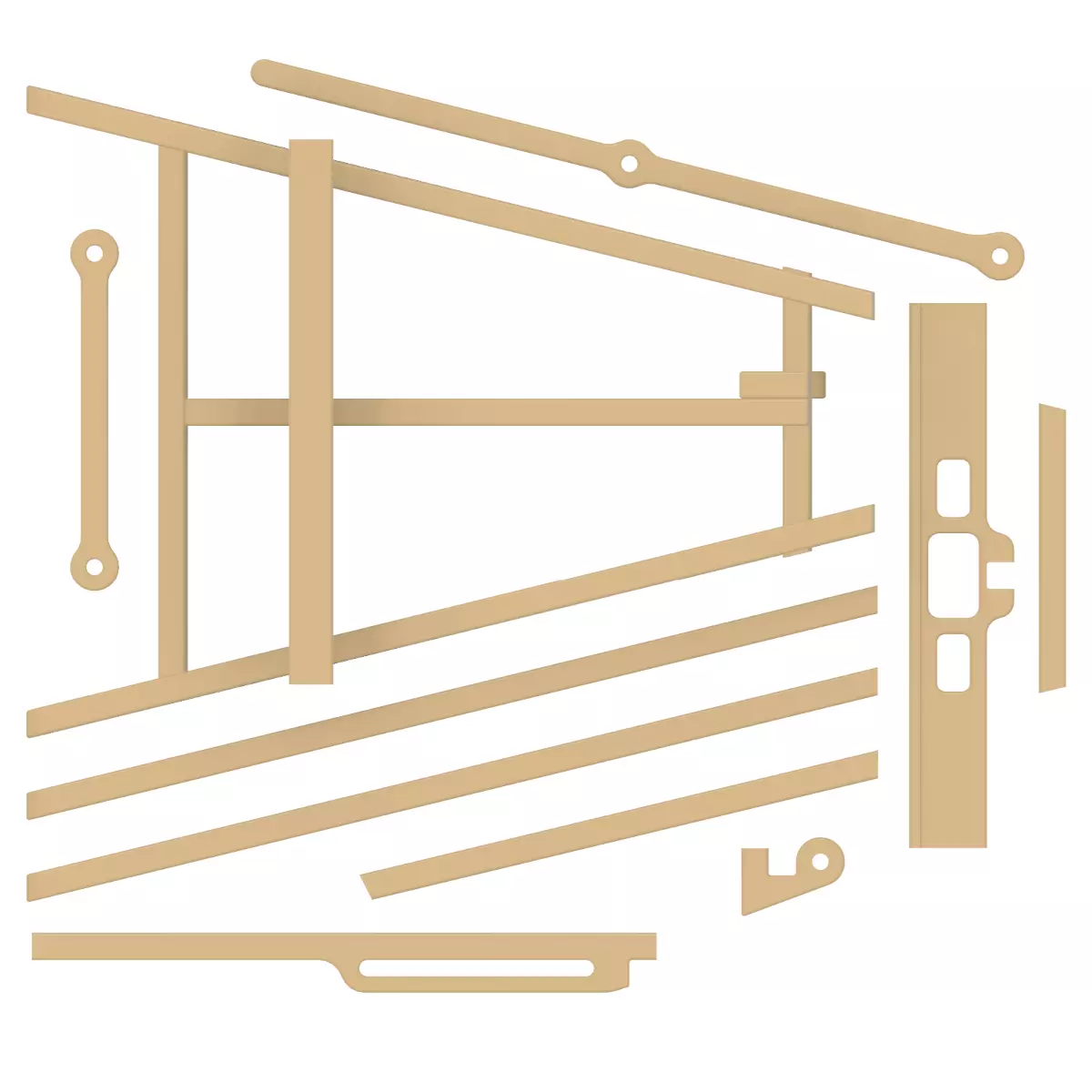

STL files are placed in positive x, y, and z coordinate space and oriented how they would be printed for minimum build time and high strength. Components are also placed in 3D space relative to each other to minimize bed size without you needing to do much work on your end. Supports have not been included in the STL files and will be left up to you to deal with to your preferences.

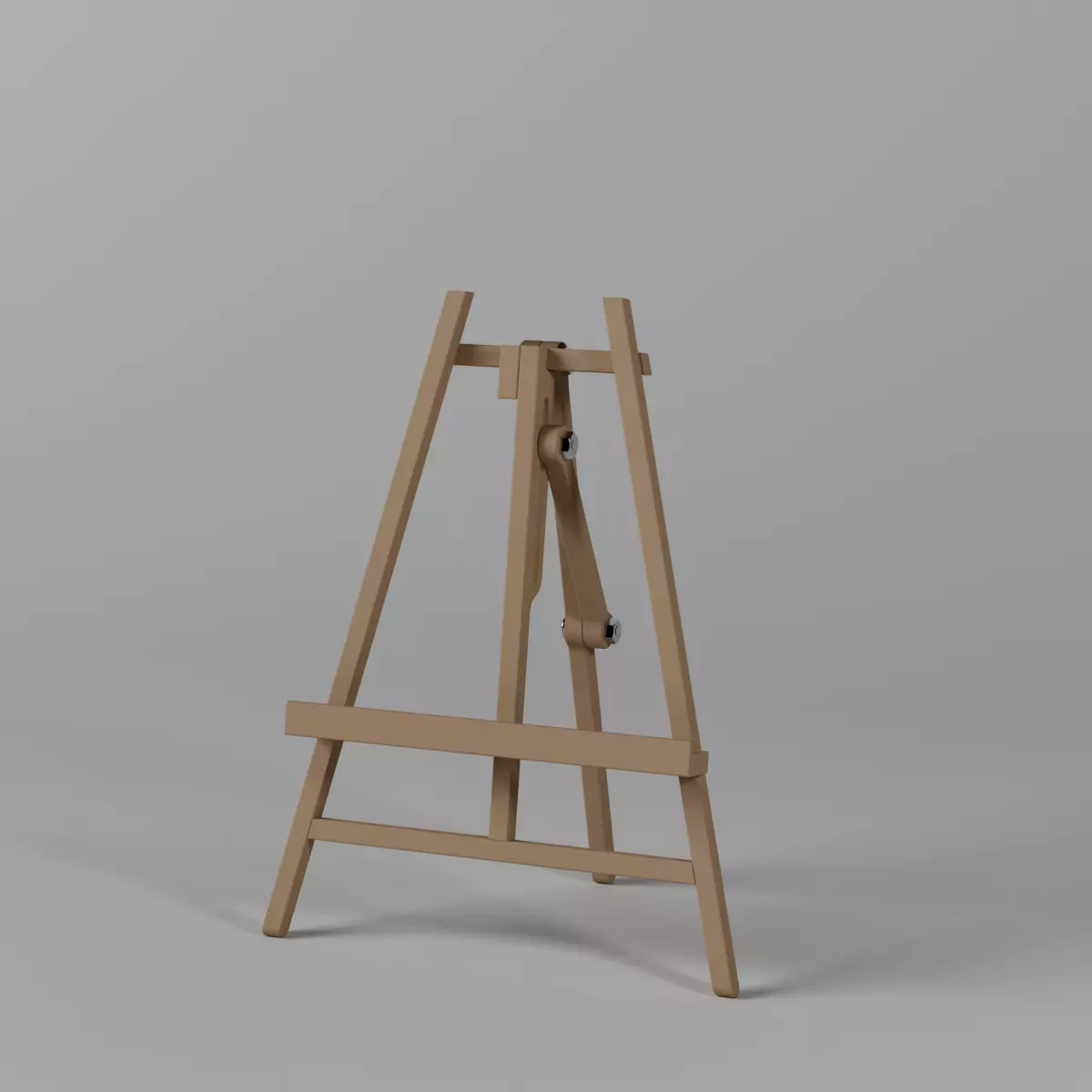

The stand includes 3 main components: A-frame, (back) leg, and support. Included in the STL files are both a fused-together version of the A-frame to prevent any need for gluing, as well as the A-frame broken down into its individual components if you want more control over either individual materials or layer orientation (would require gluing if printed this way).
