Adjustable GPU Support Stand 74-114 mm - 3D Printable STL

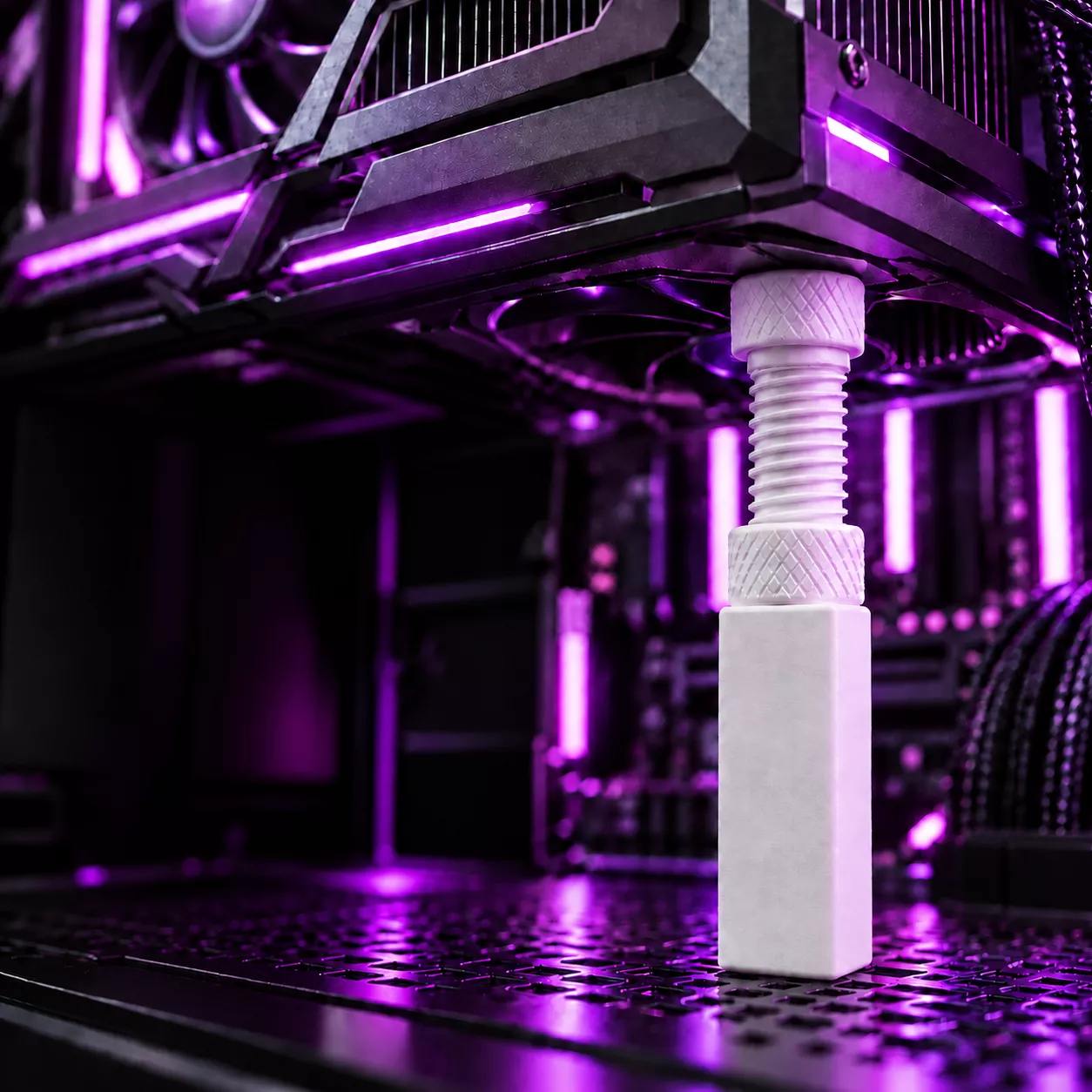

Adjustable GPU support stand designed to help support a graphics card and reduce GPU sag inside a PC case.
The height is adjusted through the threaded mechanism, allowing the support to fit the space between the graphics card and the bottom of the PC case.
Features
- Adjustable height: 74-114 mm
- Body dimensions: 17 x 17 mm
- Thread-based height adjustment
- Diamond-textured adjustment rings for improved grip
- Compact and sturdy design
- Designed for 3D printing
Recommended Print Settings
Printer: Bambu Lab A1 Mini
Nozzle: 0.4 mm
Material: PETG
Layer Height: 0.20 mm
Initial Layer Height: 0.20 mm
Walls
- Wall Loops: 6
- Detect Thin Wall: Off
- Alternate Extra Wall: Off
Infill
- Infill Density: 30%
- Infill Pattern: Gyroid
Top / Bottom Shells
- Top Shell Layers: 5
- Top Shell Thickness: 1.0 mm
- Top Surface Density: 100%
- Top Surface Pattern: Monotonic
Line Width
- Default: 0.40 mm
- Outer Wall: 0.40 mm
- Inner Wall: 0.40 mm
- Top Surface: 0.40 mm
- Sparse Infill: 0.40 mm
- Support: 0.40 mm
Seam
- Seam Position: Aligned
- Seam Gap: 15%
- Smart Scarf Seam Application: Enabled
- Scarf Application Angle Threshold: 155°
- Scarf Steps: 10
- Scarf Joint for Inner Walls: Enabled
- Wipe Speed: 80%
- Role-Based Wipe Speed: Enabled
Ironing
- Ironing Type: Topmost Surfaces
- Ironing Pattern: Rectilinear
- Ironing Speed: 30 mm/s
- Ironing Flow: 10%
- Ironing Line Spacing: 0.15 mm
- Ironing Inset: 0.21 mm
- Ironing Direction: 45°
Bed Adhesion
- Skirt Loops: 2
- Skirt Height: 1 layer
- Skirt Distance: 2 mm
- Brim Type: Auto
- Brim-Object Gap: 0.1 mm
Other
Note
These are the settings used for my test print with PETG on a Bambu Lab A1 Mini using a 0.4 mm nozzle. Depending on your filament, temperatures, cooling and printer calibration, minor adjustments may be required.
File Information
File Format: STL
Recommended Material: PETG
Recommended Use: PC builds, gaming setups and custom 3D-printed components.
