Filament Dry Box

Filament Dry Box 3D print model

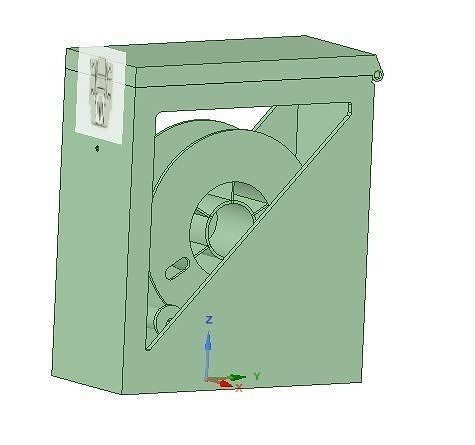

3d printing filament dry box. File comes with each part separate for printing. Box frame, Lid, 2 rollers, and if wanted a filament wheel. Images show the design and placement of each part. The rollers are designed to have a 1/4 inch rod inserted so that it may rest onto the box supports and still be able to roll smoothly. The lid is grooved for a seal. And when in the open position, it rest on the bevel of the box so that you will not be required to hold it open with one hand while loading a new wheel. The box frame has two side windows and a groove for the placement on a sheet of plexi glass. Also includes a threaded hole in the front of the case for a PTFE tube fitting. Suggested to have a wall thickness of 2mm or more when printing. Beware, you will need some filament for this project. Both the lid and the box frame are not equipped holes for a latch. The design has a suggested latch for use but is not design solely for that style. Holes will need to be made or the use of screws while installing the latch. The inner base of the box frame is designed to house silica desiccant to remove the moisture within the box to keep the filament dry. Without silica, this box will not solely keep the filament dry.

Item rating
0 0
Filament Dry Box
Royalty Free License
Filament Dry Box
Royalty Free License
Response 60% in 1.1h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl)501 KB

3D Model details

  • Publish date2021-05-09
  • Model ID#3028877
  • Ready for 3D Printing
