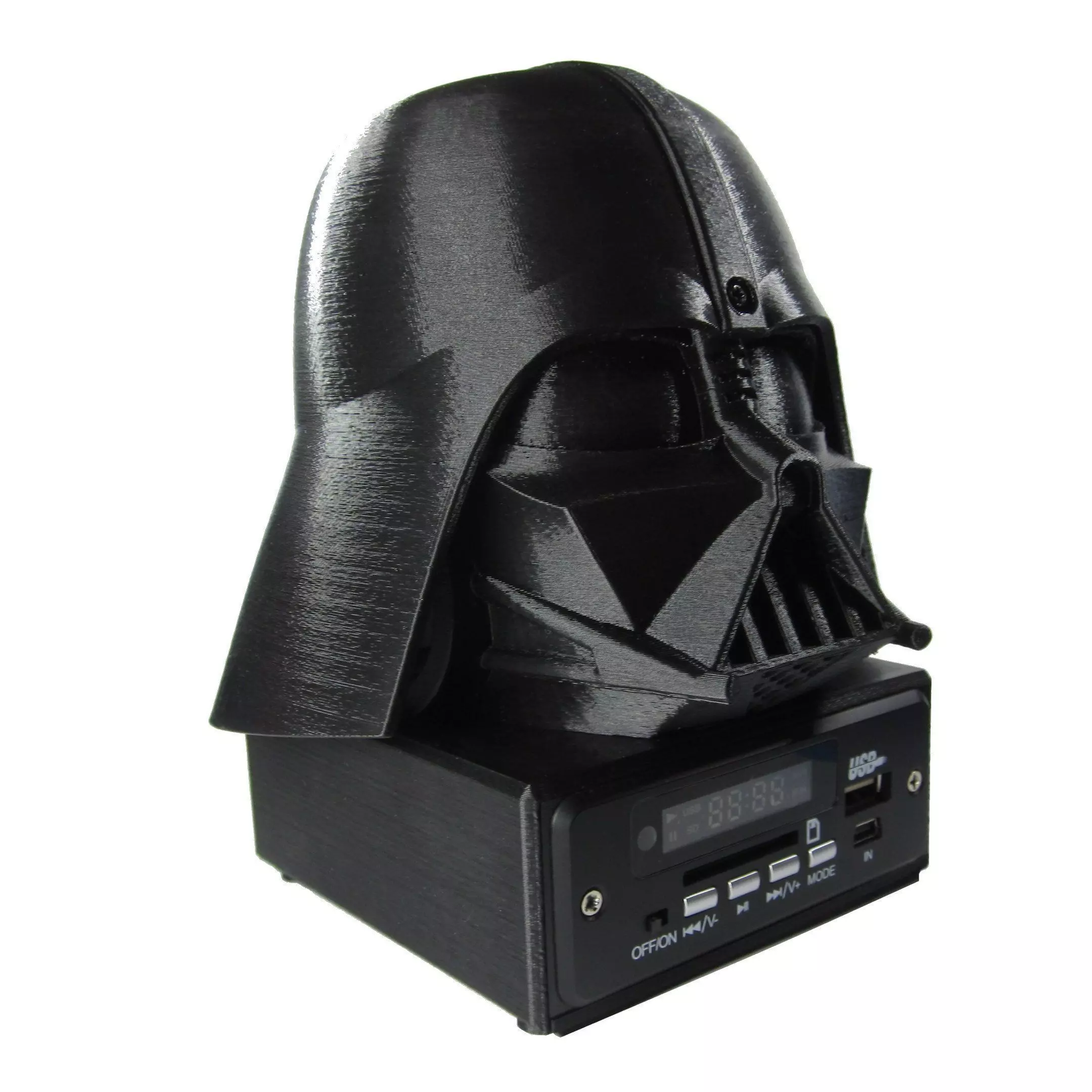

DARTH VADER - Bluetooth USB SD MMC MP3 Audio Player with RC 3D print model

DARTH VADER - Bluetooth / MP3 / FM Radio / USB / SD / MMC / Player

Size:

156.00mm x 134.00mm x 142.00mm (H x W x D)

Parts need:

1. 3D Print - cca 270 grams
2. Bluetooth / MP3 / FM Radio / USB / SD / MMC / Player / with 2 x 3W AMP / 5V / with Remote Controller - 1 pcs
3. Loudspeaker 4 Ohm 3W 40mm - 2 pcs / 1 pair
4. 18650 Lithium Battery - 1 pcs
5. 18650 Battery Clip Holder Box - 1 pcs
6. 18650 Micro USB Lithium Battery Charging Board - 1 pcs
7. RCA Phono Chassis Female Socket Adapter Red + Black - 4 pcs / 2 pair
8. Toggle switch - 2 pcs (ON-OFF right speaker + ON-OFF left speaker / it is not necessary )
9. Phillips Self-tapping Wood Screws 3 x 10 - 17 pcs (if you print HEAD in 2 PARTS - 17 pcs / if you print HEAD in 1 PART - 12 pcs )
10. Phillips Self-tapping Wood Screws 2.5 x 10 - 2 pcs (FRONT COVER & MP3 MODULE)
11. A Few Wire

Price (ALL - 22.13 USD) - everything you need from parts, you can get through an Aliexpress or a similar site:

1. 3D Print - all necessary parts (about 270 grams of filament) - _ 7.00 USD _
2. Bluetooth / MP3 / FM Radio / USB / SD / MMC / Player / 2 x 3W AMP / 5V / Remote Controller - _ 6.75 USD _
3. Loudspeaker 4 Ohm 3W 40mm - _ 1.70 USD _ (2 pcs - 1 pair)
4. 18650 Lithium Battery - _ 3.00 USD _
5. 18650 Battery Clip Holder - _ 0.42 USD _
6. 18650 Micro USB Lithium Battery Charging Board - _ 0.20 USD _
7. RCA Phono Chassis Female Socket Adapter Red + Black - _ 0.42 _ (4 pcs - 2 pair)
8. Toggle switch - _ 0.40 USD _ (2 pcs / ON-OFF right speaker + ON-OFF left speaker / it is not necessary )
9. Phillips Self-tapping Wood Screws 3 x 10 - _ 0.68 USD _ (17 pcs)
10. Phillips Self-tapping Wood Screws 2.5 x 10 - _ 0.06 USD _ (2 pcs)
11. A Few Wire - _ 1.50 USD _

3D Print - necessary parts:

1. 01 - BOX
2. 02 - FRONT COVER
3. 03 - REAR COVER
4. 04 - LOWER COVER
5. 05 - HEAD
6. 06 - HELMET or 07 - HELMET - PART 01 + 08 - HELMET - PART 02

Settings 3D printing:

Top Solid Layers - 3

Bottom Solid Layers - 3

Outline/Perimeter Shells - 3

Infill Percentage - 30%

Support - YES
