This is a digital 3D printable model of the Shield Saw from Doom: The Dark Ages.

Youtube: https://youtu.be/AMdG3kz4hJ8?si=STFIxHd3WkvRpAH_

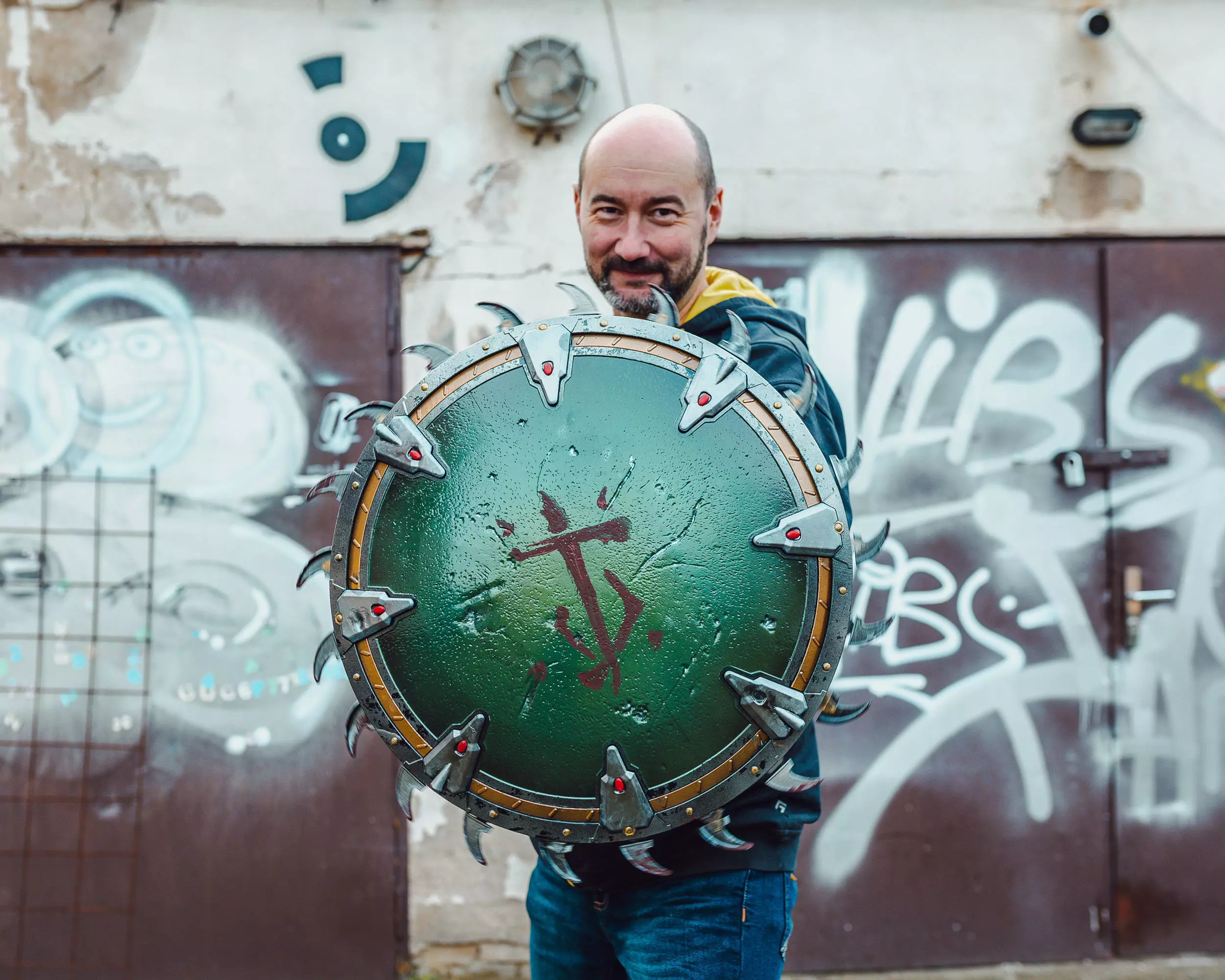

It’s a full-size 1:1 scale mechanical prop made of four rings held together with bolts and nuts. The saw blades spin thanks to five bearings.

What’s Included

• STL parts (split for 200mm printer beds
• Assembled OBJ file (for assembly preview)
• Bill of Materials
• Assembly video

3D Model Dimensions

• Width: 609 mm
• Height: 611 mm

AssemblyThe model is divided into four main rings. The front cover parts are glued together using 3D-printed hex pegs.The ‘Construction rim’ is assembled with bolts and nuts.The gear with the blades is glued together. The blades can be manually opened and closed, and they are glued into prepared slots. The back cover is glued together and then attached with bolts and nuts.

An extra wheel mounted on the back cover lets you spin the shield either by hand, or - more accurately - by winding a rope or leather strip around the wheel and pulling it, which creates a dynamic spin.The whole spinning system works thanks to four ball bearings and one clamp bearing. A bill of materials and an assembly video with 3D renders are included.

This project is recommended for people who enjoy assembling more complex models and don’t mind spending some time with a screwdriver.

Printer Settings

• Layer height: 0.15 mm
• Infill: 20% gyroid pattern
• Supports: 30° organic
• For taller parts, use a brim for better bed adhesion
• Approximately 3.5 kg of filament used

This fan-made model was brought to life by 3Demon, a team of modeling and 3D printing enthusiasts based in Prague, Czech Republic. We’ve been creating 3D printable models for over a decade, from cosplay accessories to all sorts of interesting designs.
