Mandalorian Helmet

Mandalorian Helmet 3D print model

Description

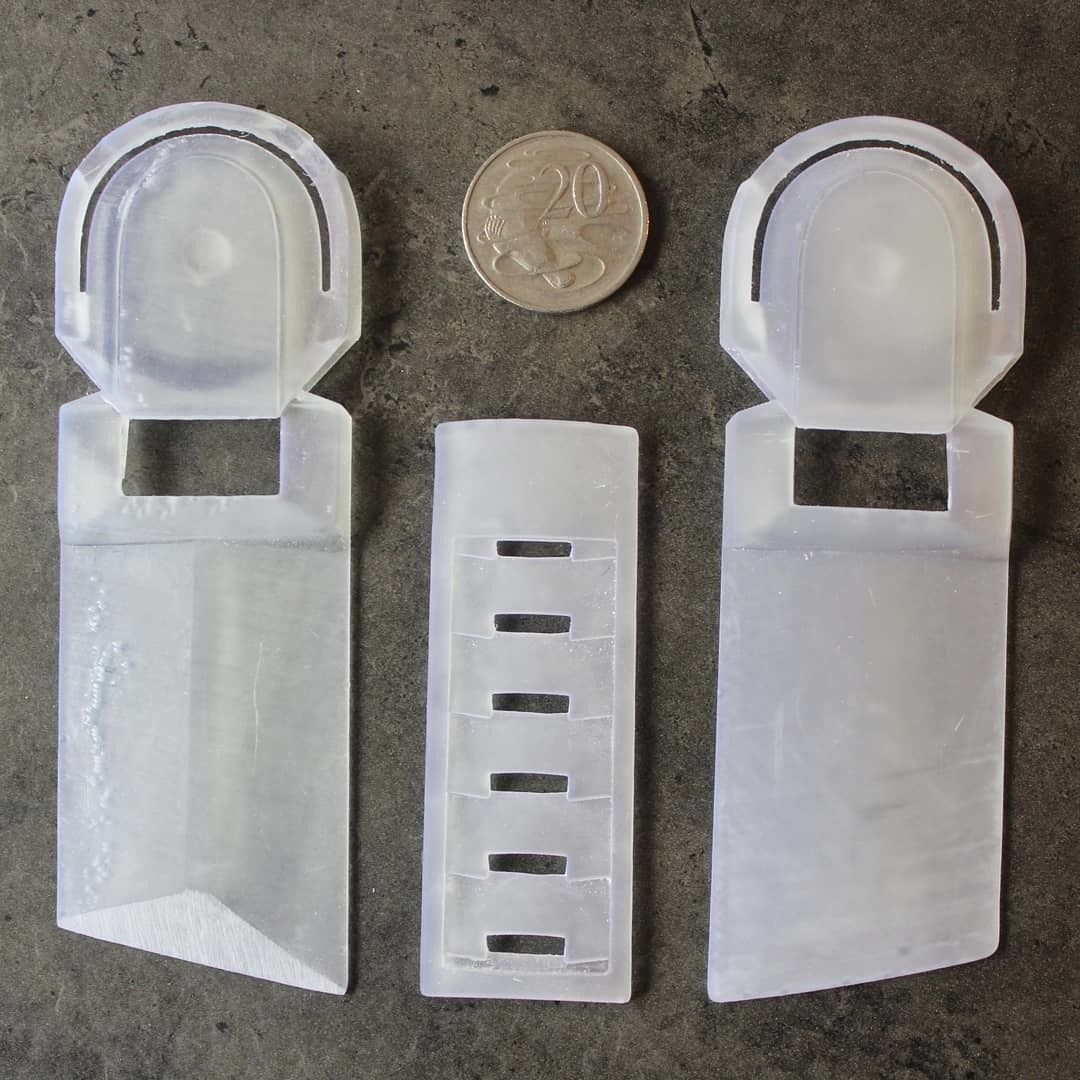

Yes its ANOTHER Mando Helmet... I thought id have a go and make my own version for my daughter, the model is made up of 3 main parts. The Helmet, Ear piece (flip for opposite side), rear Panel.

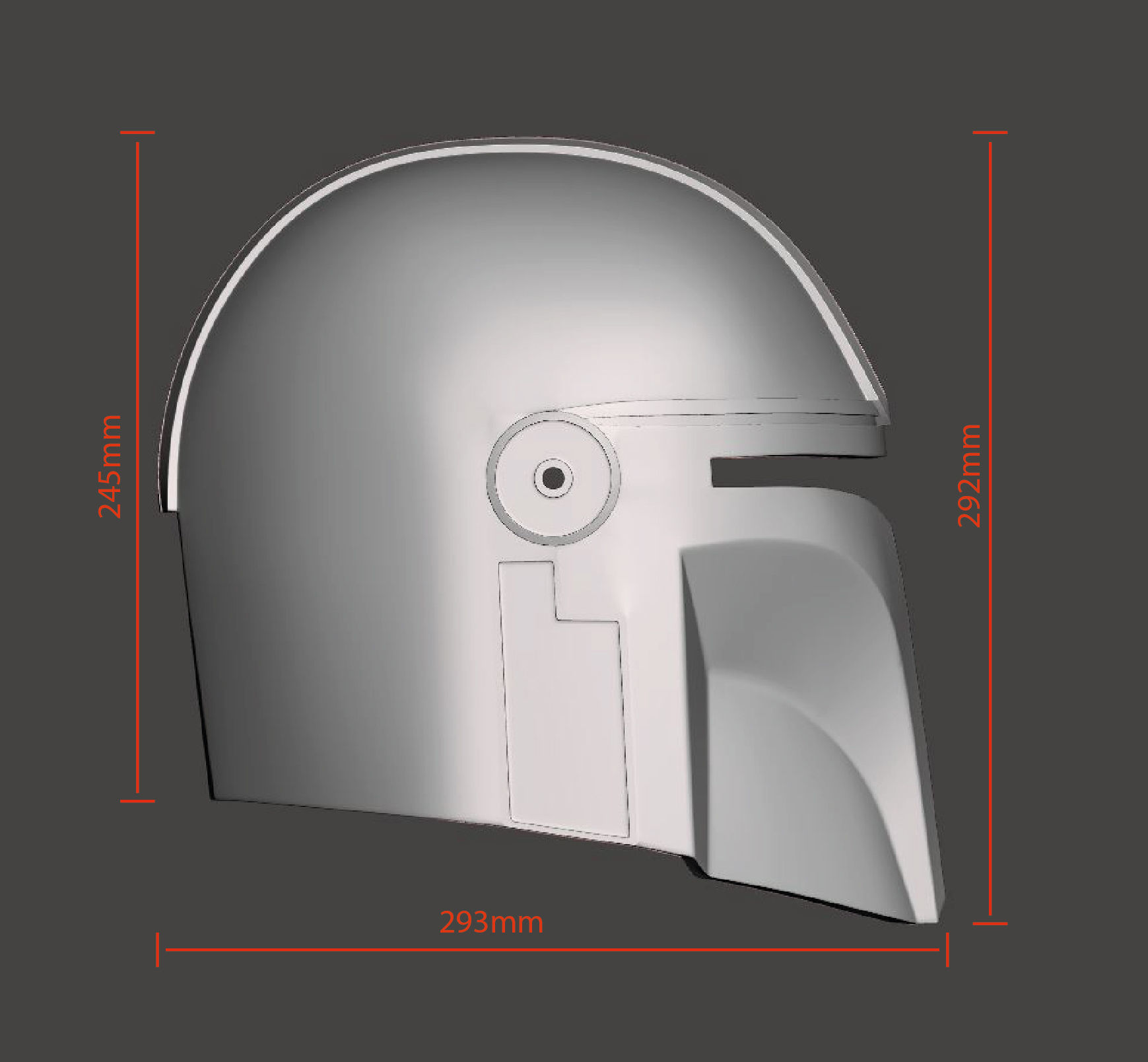

File size Height 292mm, Width 293mm, Depth 293mm. Wall thickness is 6-7mm.

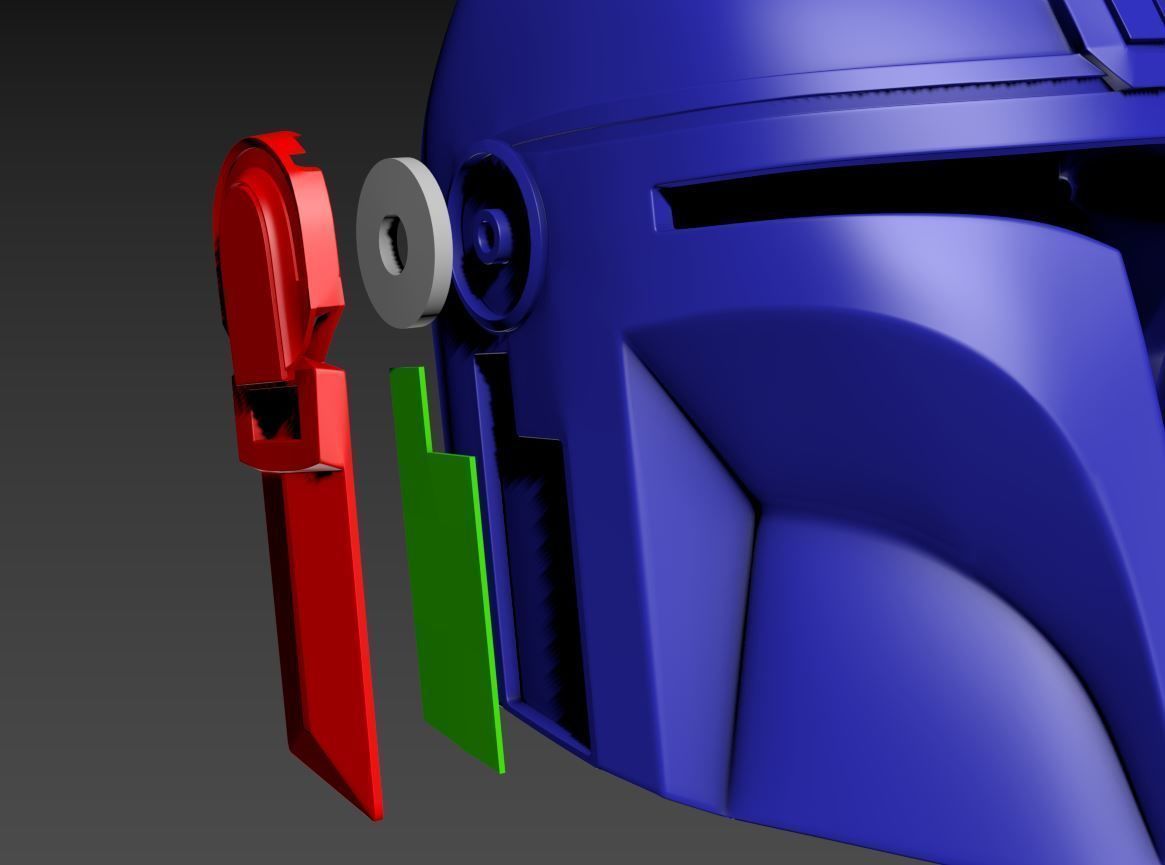

I have added a few details (these are all unresearched and are my own interpretation) around the ear piece. under the top of the ear I have made room for a microphone that I printed as just infill to make it look the part. Under the bottom of the Earpice there is a hollow for a circuit board, I chopped up and old motherboard to fit in this space, I have also modeled a quick blank as a guide for size if needed.

If you have any questions of need it resized or want to modify/customize please dont hestitate to contact me!

J
japerelectronics 2021-10-31 16:19:13 UTC

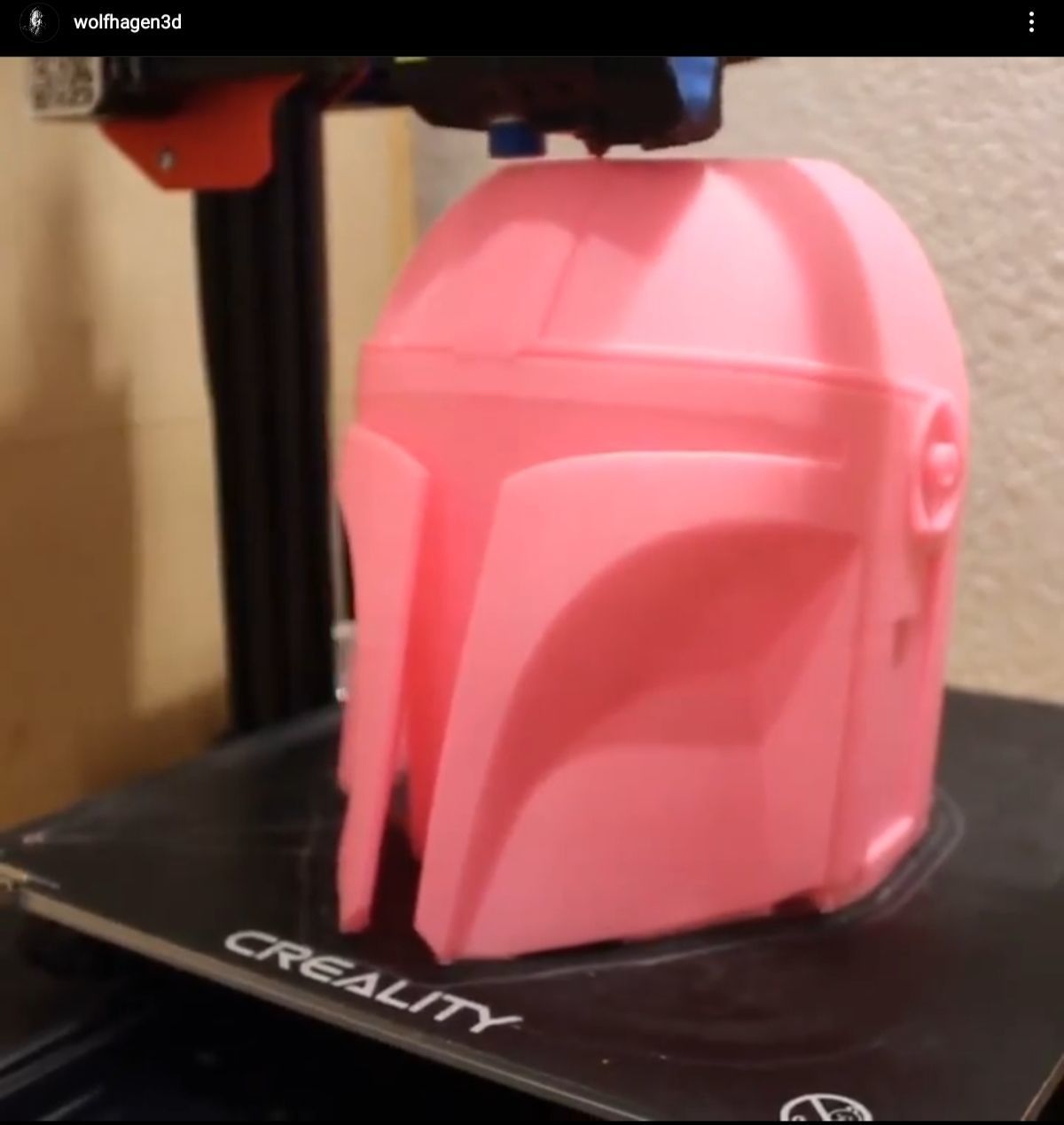

This turned out better than I could imagine. Some tips for people: 1) The size it is fit my 14 year old and his glasses. 2) Download the Prusa printer software even if you don't have that printer. Bring in the helmet model. Cut it at 181mm and save the bottom only. Save the project. Do this again but save the top only and save the project. Your printer software can open these projects. By printing the bottom and top separately you will save a week or more of print time and we all know more print time = more things that can go wrong. Here is the glue I use https://www.amazon.com/dp/B072Q9DBB5?psc=1&ref=ppx_yo2_dt_b_product_details 3) I printed this with a raft for the base, 1.8mm first layer, 2.2 every layer after that and a 10% fill. 4) Lastly for the visor I used the weed barrier you can buy at home depot. It gives the black look but is breathable and won't fog up.
Item rating
0 0
Mandalorian Helmet
$25.00

Custom License
Mandalorian Helmet
$25.00

Custom License
Response - % in - h
3D Modeling
3D Print Modeling
Low-poly Modeling
Hire me

3D Model formats

Format limitations
  • OBJ (.obj, .mtl)26.9 MB
  • Stereolithography (.stl)33.8 MB

3D Model details

  • Publish date2020-11-24
  • Model ID#2329170
  • Ready for 3D Printing
