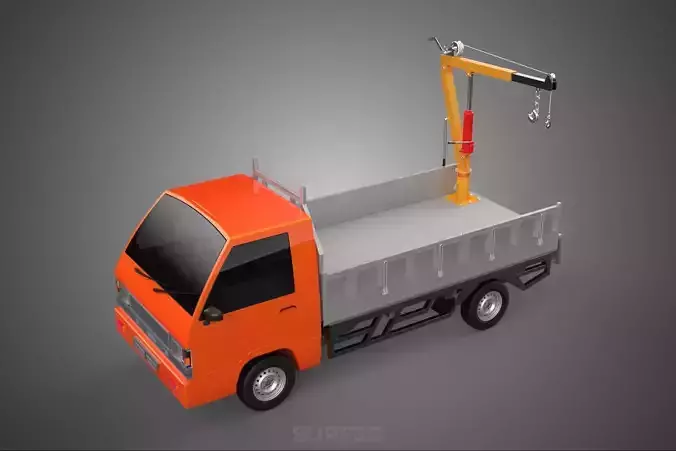

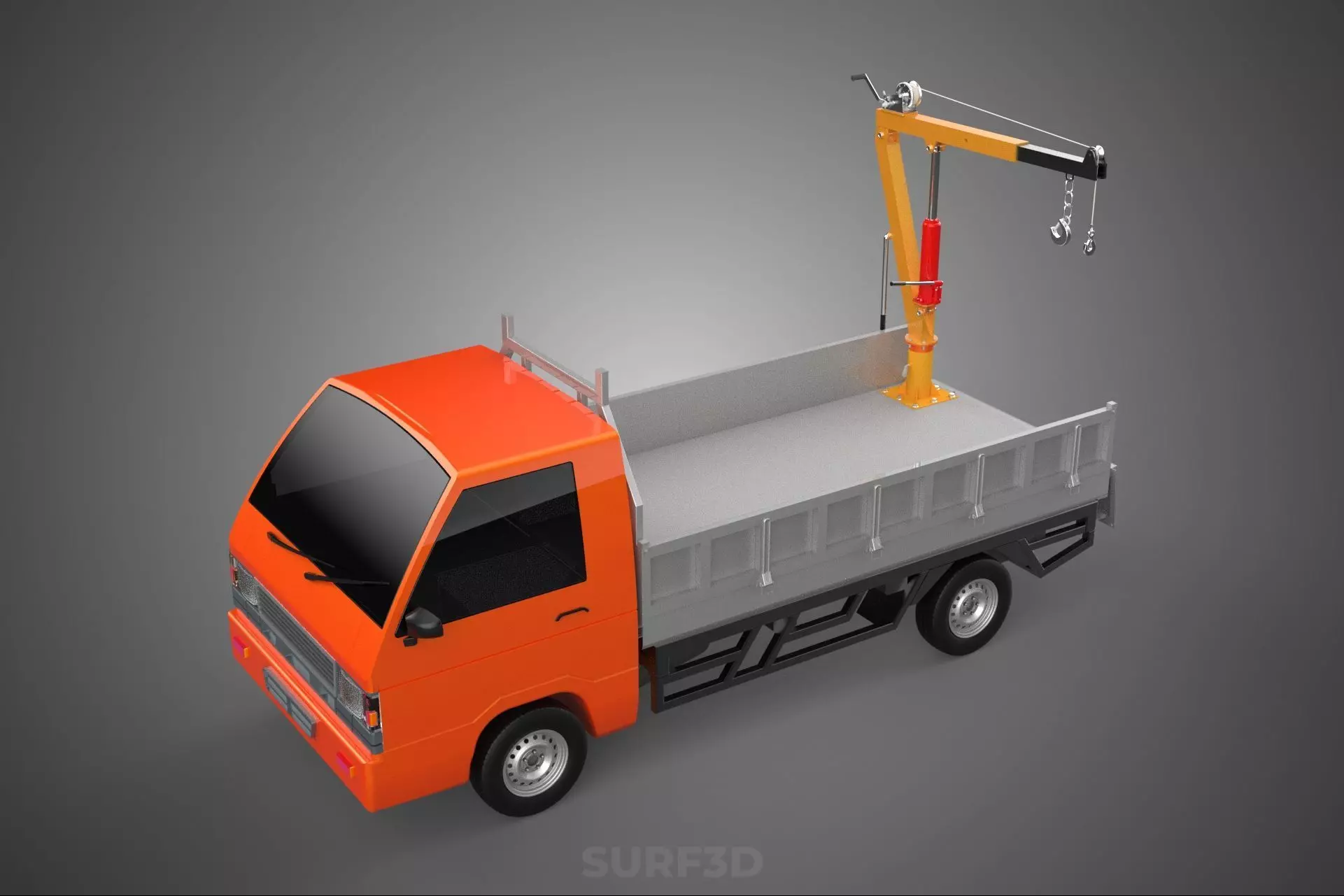

REAR GATE TAILGATE FOLDING CRANE HAND CRANK WINCH TRUCK PICKUP 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A REAR GATE TAILGATE TRUCK PICKUP with FOLDING CRANE HAND CRANK WINCH attached designates a specialized, integrated material handling apparatus designed to enhance the load management capabilities of a standard light-duty pickup truck. This system transforms the vehicle into a self-sufficient, manually operated lifting platform, primarily for facilitating the loading and unloading of heavy or cumbersome items onto and from the truck bed. Its defining characteristics are its manual power source, the space-saving design of the crane, and its inherent independence from external power.

Components and Functionality

1. Host Platform – Pickup Truck Tailgate: The fundamental component is the pickup truck, a versatile utility vehicle characterized by its open cargo bed and a hinged rear gate, or tailgate. The tailgate typically serves as the primary access point to the truck bed, and in this configuration, it or its immediate surrounding structure often provides a reinforced mounting point or stability support for the integrated crane system, particularly when the crane is designed for rear-mounted operation. The tailgate itself is a robust, hinged panel that secures cargo when closed and can be lowered to provide an extended loading surface or ramp.


2. Lifting Mechanism – Folding Crane: The core of the lifting system is a compact, typically boom-style, crane. Its folding design is a critical functional attribute, enabling the crane's boom, mast, and associated components to collapse or articulate into a compact, stowed position when not in use. This minimizes the crane's footprint within the truck bed, preserves valuable cargo space, and ensures the vehicle maintains legal dimensions for road travel. Constructed predominantly from high-strength steel or aluminum alloys, these cranes feature a pivotable base securely affixed to the truck's frame, bed floor, or a dedicated mounting plate. A telescoping or articulated boom extends outwards, terminating in an integrated hook or lifting point for load attachment. Lifting capacities for these manual systems typically range from 227 to 907 kilograms (approximately 500 to 2,000 pounds), varying with the specific model and boom extension.


3. Power Source – Hand Crank Winch: The means of lifting and lowering loads is a hand crank winch. This mechanical device operates through a system of gears that convert the operator's manual input into a multiplied force. The winch comprises a drum around which a high-strength steel cable or synthetic rope is wound. A detachable or integrated hand crank handle engages the internal gear mechanism, allowing the operator to precisely control the winding or unwinding of the cable, thereby raising or lowering the attached load. Most hand crank winches incorporate a robust ratcheting mechanism or a self-actuating brake system to securely hold the load at any desired height when the crank is disengaged, enhancing operational safety. This manual power source renders the system entirely independent of electrical power or hydraulic pumps, making it particularly advantageous for remote work sites or environments lacking readily available external power.

   Integration and Operation

   The folding crane is engineered to mount directly to the pickup truck's structure, often utilizing existing bolt patterns on the chassis, reinforcing the truck bed, or attaching to a heavy-duty hitch receiver, commonly positioned at the rear of the vehicle, near the tailgate. When lifting operations are required, the crane is manually unfolded and positioned. The operator attaches the load to the crane's hook, then manipulates the hand crank winch to slowly and precisely lift the item, pivot it over the truck bed, and gently lower it into position. The reverse procedure is followed for unloading. While requiring greater physical exertion from the operator compared to powered systems, the manual winch offers exceptional fine control over load movement.

   Applications

   This integrated system finds broad utility across various sectors where controlled, light-to-moderate lifting is necessary without the logistical complexities of heavy equipment or external power. Common applications include:

4. Construction and Landscaping: Facilitating the handling of heavy building materials, tools, or plants.

5. Field Service and Maintenance: Assisting in the replacement or installation of heavy components in remote locations.

6. Agriculture: Aiding in the movement of feed bags, agricultural equipment, or harvested produce.

7. Workshops and Garages: Used for manipulating bulky mechanical parts such as engines, transmissions, or machinery components.

8. Personal Use: Providing assistance for individuals or solo operators in loading recreational gear, generators, or other cumbersome items.

   Advantages

   The primary benefits of this system encompass its cost-effectiveness compared to electrically or hydraulically powered cranes, its complete independence from external power sources, minimal maintenance requirements, and its capacity for single-person operation, which significantly reduces the physical strain associated with manual lifting. The folding design crucially preserves valuable truck bed space and allows for unhindered vehicle maneuverability when the crane is not deployed.

   Limitations

   Despite its utility, the system has inherent limitations. Manual operation dictates slower lifting and lowering speeds compared to automated systems, and the maximum lifting capacity is constrained by the operator's physical strength and the structural integrity of the crane and its mounting. Extended use can lead to operator fatigue. Furthermore, achieving highly precise load positioning may be more challenging than with powered counterparts.

   Safety Considerations

   Adherence to strict safety protocols is paramount during operation. Users must rigorously observe the crane's specified load limits, ensure the vehicle is situated on a stable, level surface, and deploy any integrated outriggers or stabilizers if provided.
