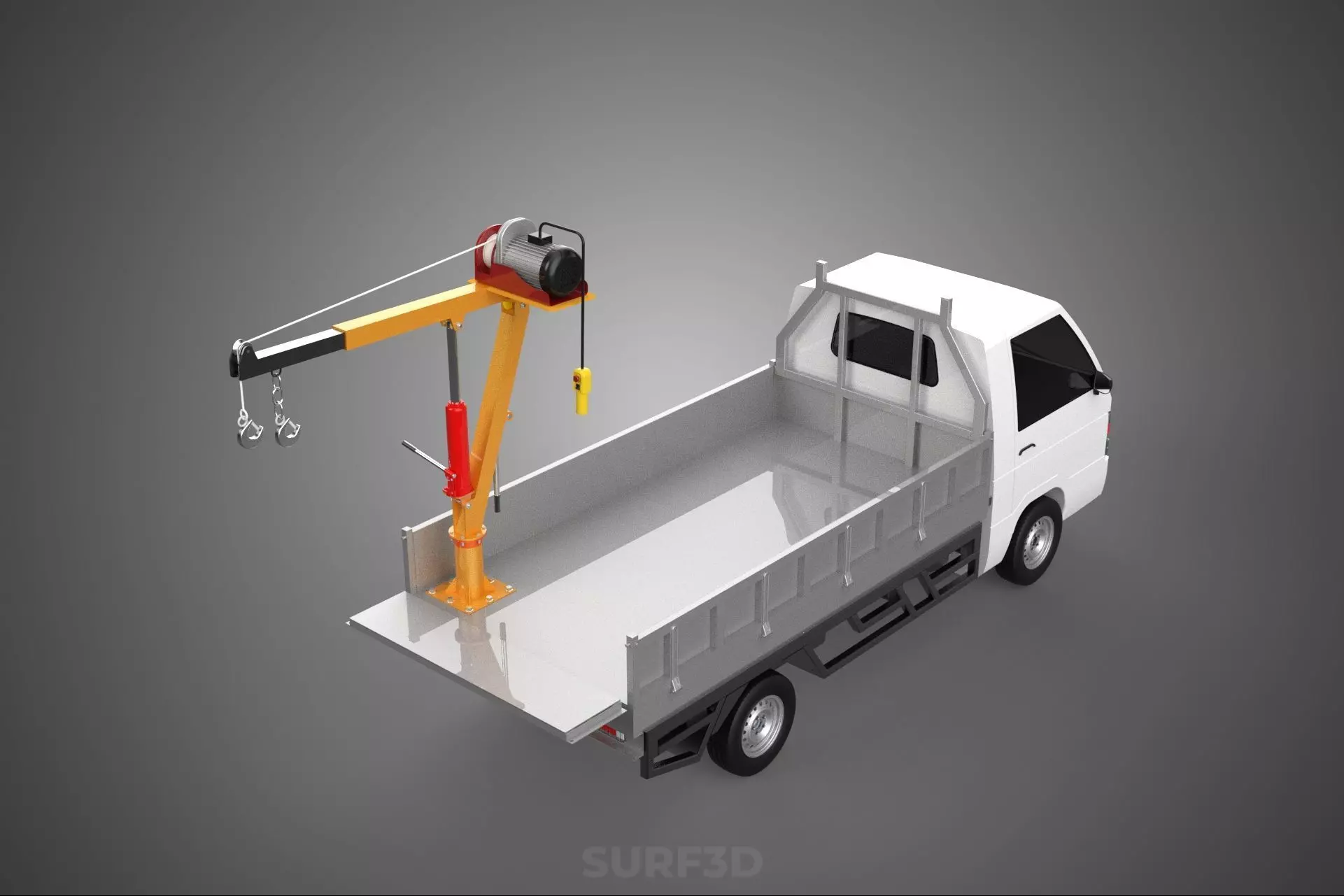

FOLDING TAILGATE BED CRANE HOIST ELECTRIC WINCH PICKUP TRUCK CAR 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A folding tailgate bed crane hoist electric winch is a specialized material handling apparatus meticulously engineered for installation within the cargo bed or adjacent to the tailgate of a pickup truck, and in some instances, other light utility vehicles. This integrated system combines the functionalities of a lifting crane, a hoist, and an electric winch, distinguished by its crucial design feature: the capacity to fold or collapse into a compact configuration when not in active use. This attribute is paramount as it preserves valuable cargo space, maintains the vehicle's maneuverability, and allows for the use of bed covers, differentiating it from permanently fixed-mount lifting solutions.

Primary Function and Core Components:
The fundamental objective of this device is to enable the safe, efficient, and ergonomic loading and unloading of heavy, bulky, or otherwise challenging objects into and out of a truck bed. It significantly mitigates the physical strain and injury risks traditionally associated with manual heavy lifting. The system typically comprises several key components:

1. Crane Arm (Boom): A robust, often telescopic and articulated arm that extends from a foundational pivot point. Its multi-jointed design facilitates precise positioning and reach. The folding mechanism, central to its utility, allows the arm to collapse, pivot, or fold flat against the truck bed or out of the way, minimizing its footprint when stowed.

2. Mounting System: A structurally reinforced base designed for secure attachment. This is typically affixed to the truck's bed floor, bed rails, or integrated into a receiver hitch, ensuring optimal distribution of lifting forces across the vehicle's chassis.

3. Electric Winch: The essential power-driven lifting mechanism. It consists of an electric motor, a reduction gear assembly, a winding drum, and a durable steel cable or synthetic rope terminating in a robust hook. Powered predominantly by the vehicle's 12-volt DC electrical system, the electric winch provides controlled, consistent, and effortless ascent and descent of loads, obviating manual effort.

4. Control Interface: Usually a wired or wireless remote control unit, this allows the operator to precisely manage the winch's actions (lifting/lowering) and often the rotation and extension of the crane arm from a safe vantage point, ensuring operational safety and convenience.

5. Folding/Stowing Mechanism: Integral hinges, quick-release pins, and secure locking mechanisms are incorporated to facilitate the quick and easy deployment and retraction of the crane. This design ensures that the apparatus can be compactly stored, preserving the truck bed's utility for other cargo or accessories.

   Operation and Capabilities:
   Operational procedure involves deploying the crane arm from its stowed position and extending it over the item intended for lifting. The winch cable is then lowered and securely attached to the load. Upon activation, the electric winch elevates the item. Once clear of obstructions, the crane arm is carefully rotated or manipulated to swing the load over the truck bed. The winch subsequently lowers the item precisely into its desired location. Load capacities are variable, ranging from several hundred pounds to over a thousand pounds, contingent upon the model's design and engineering. Many units incorporate critical safety features, including overload protection, automatic braking systems, and emergency stop functions.

   Applications:
   This versatile lifting system finds extensive utility across diverse professional and recreational domains:

6. Construction and Skilled Trades: Facilitates the movement of heavy tools, generators, welders, building materials, and debris.

7. Landscaping and Horticulture: Aids in lifting heavy rocks, logs, bags of aggregates, or substantial potted plants.

8. Utility and Service Sectors: Supports the handling of bulky components, specialized equipment, or replacement parts.

9. Recreational Pursuits: Ideal for loading items such as All-Terrain Vehicles (ATVs), motorcycles, hunting equipment, or mobility scooters.

10. Agricultural Settings: Useful for transporting feed sacks, small machinery, or animal care supplies.

11. Personal Use: Streamlines the transport of heavy household items, automotive engines, or workshop machinery.

    Advantages:
    The primary benefits of this system include significant enhancements in safety by reducing physical strain, notable improvements in operational efficiency during loading/unloading tasks, broad versatility for a myriad of applications, and the crucial compact stowing capability that maintains the full utility of the truck bed when the crane is not in operation. Its electric power source ensures consistent performance and precise load control.

    Safety Considerations:
    Crucial for safe operation are correct installation and strict adherence to the manufacturer's specified load limits. Operators must ensure the vehicle is situated on stable, level ground, the parking brake is engaged, and the load is impeccably secured prior to any lifting operation. Regular inspections and maintenance of the winch cable, electrical connections, and structural components are imperative for sustained reliability and safety. This device represents a substantial ergonomic and logistical advancement for professionals and individuals who routinely manage heavy objects with their pickup trucks.
