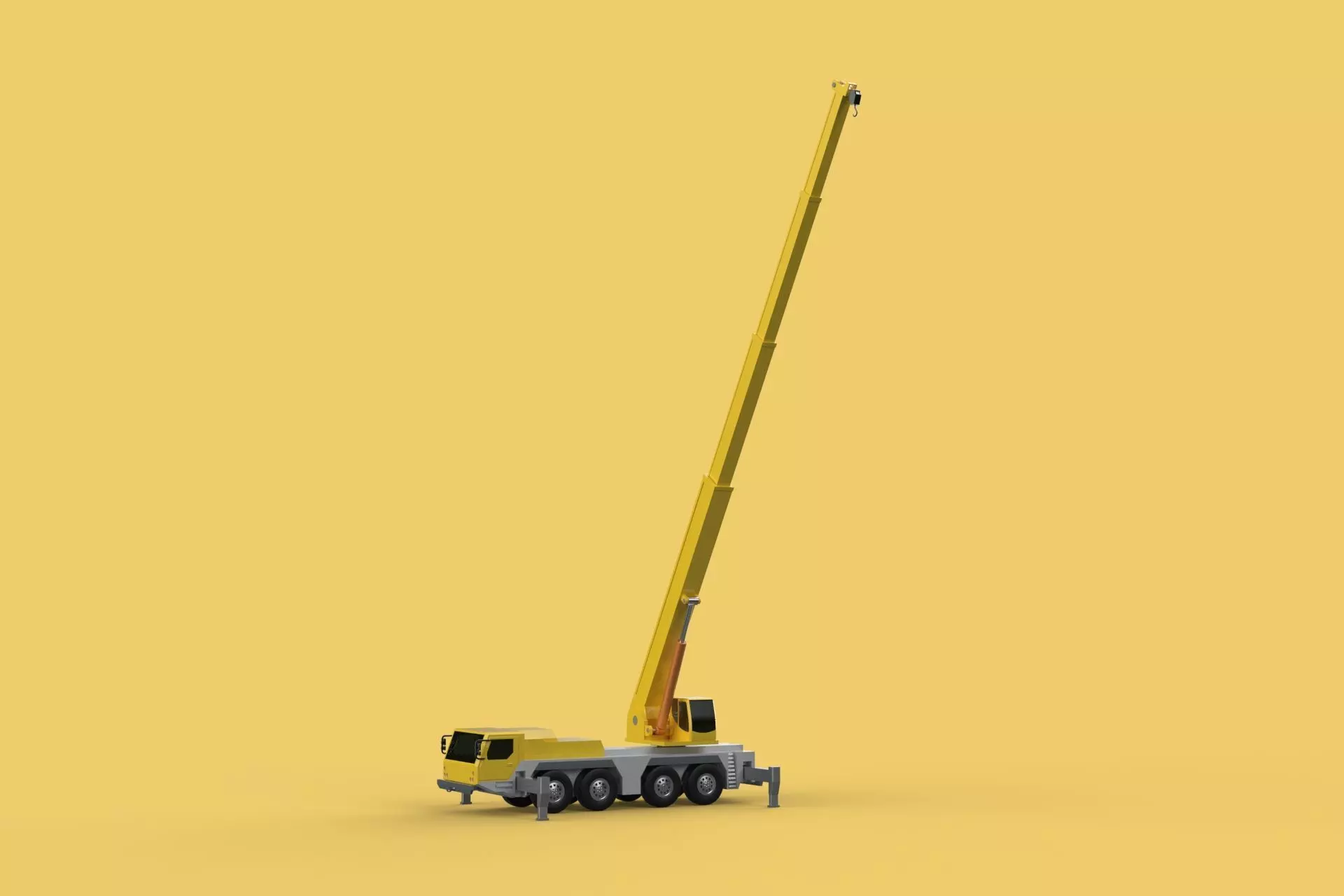

MOUNTED EXTENDED TELESCOPIC BOOM LONG REACH MOBILE CRANE ARM JIB 3D model

The model contains the most popular formats:

1. 3DS MAX: *.max
2. Blender: *.blend
3. Rhinoceros: *.3dm
4. SketchUp: *.skp
5. Wavefront OBJ: *.obj *.mtl (Multi Format)
6. FBX: *.fbx (Multi Format)
7. STEP: *.step *.stp (NURBS)
8. IGES: *.iges *.igs (NURBS)
9. ACIS: *.sat (NURBS)
10. 3DS MAX all ver.: *.3ds (Multi Format)
11. Stereolithography: *.stl
12. AutoCAD: *.dwg

• Each file was checked for opening and full content by the model.
• The 3D model was created on real base. It’s created accurately, in real units of measurement, qualitatively and maximally close to the original.
• Renders Are made in Luxion Keyshot
• “WE PROVIDE 3D MODEL CHEAP PRICE BUT WITH GOOD QUALITY”
• If you need any other formats we are more than happy to make them for you. Contact me for any question :)

Sincerely Your, SURF3DMORE INFORMATION ABOUT 3D MODELS :MOUNTED EXTENDED TELESCOPIC BOOM, LONG REACH MOBILE CRANE ARM WITH JIB: Versatile Lifting Power with Maximum Reach and Articulation

This describes a highly adaptable mobile crane featuring an exceptionally long, multi-section telescopic boom for extended reach, combined with an articulated arm and a jib for even greater versatility and access. The mounted aspect implies it's installed on a mobile platform, likely a truck chassis or crawler tracks, allowing for transport and operation across various job sites.

Key Features and Functionality:

Extended Telescopic Boom: The primary lifting structure is a long, multi-stage telescopic boom providing significant vertical and horizontal reach.Articulated Arm: An additional articulated arm is attached to the end of the telescopic boom. This arm has multiple hinged sections (knuckles), offering enhanced maneuverability, the ability to reach over obstacles, and increased precision in positioning loads.   Lifting Jib: An extendable or fixed jib (fly jib or boom extension) is attached to the end of the articulated arm. The jib further increases the crane's overall reach, provides additional lifting points, and can offer offset capabilities for working in complex environments.Mobile Platform: The entire system is mounted on a mobile base, likely a multi-axle truck chassis for road travel and job site maneuverability, or crawler tracks for superior stability and off-road capability.Long Reach Capability: Designed for applications requiring maximum vertical and horizontal reach, allowing access to distant or high work areas, even over obstructions.Enhanced Maneuverability: The articulated arm provides exceptional flexibility in positioning the load, especially in tight spaces or around obstacles.   Versatile Lifting: Capable of handling a wide range of loads and performing diverse lifting tasks due to the combination of the telescopic boom, articulated arm, and jib.Hydraulic Operation: All movements of the boom, arm, jib, and lifting mechanisms are powered by a robust hydraulic system, providing strength and precise control.Operator Control: Controlled from a dedicated operator's cab, often with advanced control systems for coordinating the movements of the various sections.   Safety Systems: Equipped with comprehensive safety features, including load moment indicators (LMI), anti-two-block systems, and stability control.Benefits:

Maximum Reach and Access: The combination of the telescopic boom, articulated arm, and jib provides unparalleled reach and the ability to access very difficult-to-reach areas.Exceptional Versatility: Can perform a wider range of lifting tasks than standard telescopic cranes due to the added articulation.Precise Load Positioning: The articulated arm allows for highly accurate placement of loads, even in complex environments.Increased Efficiency: The extended reach and maneuverability can reduce the need for multiple crane setups or repositioning.Operation in Confined Spaces: The folding capabilities of the articulated arm can allow operation in tighter areas.Potential Applications:

High-rise construction and maintenanceBridge inspection and repairWind turbine installation and maintenanceInfrastructure projects with complex access requirementsPetrochemical plant maintenanceDisaster recovery and rescue operations in obstructed areasSpecialized lifting tasks requiring maximum reach and maneuverabilityIn summary, a mounted extended telescopic boom, long reach mobile crane arm with jib represents a highly advanced and versatile lifting machine, offering exceptional reach, maneuverability, and the ability to perform complex lifting tasks in a wide variety of challenging environments.
