More Information About 3D Model :

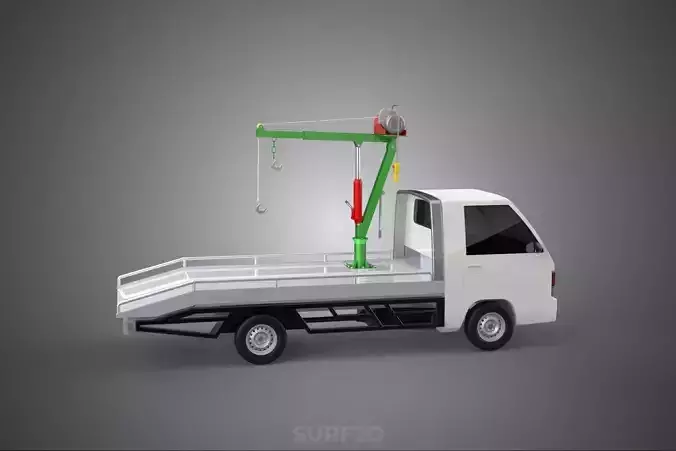

An Electric Winch Hoist Swivel Crane Hook Jib with Remote attached to a Truck Pickup represents a highly specialized and mobile material handling system. This integrated apparatus is engineered for the efficient lifting, lowering, and precise positioning of heavy loads, primarily in environments where fixed lifting solutions are impractical or unavailable, leveraging the mobility of a light commercial vehicle.
System Overview:
This system combines several distinct mechanical and electrical components into a cohesive unit designed for portability and versatility. Its primary function is to transform a standard truck pickup into a mobile lifting platform, capable of performing various hoisting tasks.
Key Components and Their Functions:
- Truck Pickup (Mobile Platform):
The foundational element of this system is a conventional pickup truck. The truck serves as the robust, mobile base for the entire crane assembly. Its inherent mobility allows the lifting system to be rapidly deployed to diverse locations, including construction sites, remote field operations, agricultural settings, and utility maintenance areas. The truck's frame and bed are typically reinforced to safely accommodate the crane's weight and the dynamic forces generated during lifting operations.
- Jib Crane Assembly:
The jib crane is the structural framework mounted onto the truck's bed or chassis. It typically comprises:
- Mast (or Column): A vertical support structure rigidly bolted to the truck's frame, providing the primary anchor for the jib arm.
- Jib Arm (or Boom): A horizontal or angled beam extending outwards from the mast. This arm provides the reach and defines the crane's working radius. The jib arm is designed for robust load bearing and often features a telescopic or folding mechanism for compact storage and transport.
- Swivel Mechanism: A critical feature allowing the jib arm, and thus the suspended load, to rotate through a wide arc, often up to 360 degrees, around the mast's vertical axis. This rotational capability is essential for positioning loads accurately without requiring the truck to be repositioned. The swivel can be manually operated or hydraulically/electrically powered for enhanced precision and ease of use.
- Electric Winch/Hoist:
Integrated within or mounted on the jib arm is an electric winch or hoist. This electromechanical device is responsible for the vertical movement of the load.
- Motor: Powered by the truck's 12V DC system (or an auxiliary battery/generator via an inverter), the electric motor drives a geared drum.
- Drum: A cylindrical spool around which the wire rope or cable is wound or unwound.
- Wire Rope/Cable: A high-strength steel cable (or sometimes synthetic rope for lighter applications) that extends from the drum, through a series of sheaves (pulleys) on the jib arm, down to the hook.
- Capacity: Electric winches/hoists are specified by their maximum lifting capacity, which dictates the heaviest load they can safely lift.
- Swivel Crane Hook:
Attached to the free end of the wire rope, this is the terminal component for connecting to the load. The swivel feature means the hook is designed to rotate freely on its vertical axis even when under load. This prevents the lifting cable from twisting and allows for precise orientation of the load during lifting, lowering, and placement, enhancing safety and operational efficiency.
- Remote Control System:
The entire system's operation (lifting, lowering, jib rotation, and sometimes telescoping) is managed via a remote control unit.
- Wired Remote: Connected to the crane by a cable, offering direct control.
- Wireless Remote: Utilizing radio frequencies, this is more common, providing greater freedom of movement for the operator.
The remote control significantly enhances operator safety by allowing them to stand clear of the load and the moving parts of the crane, while also providing an optimal vantage point for precise load manipulation.
Operational Principles and Applications:
The system operates by leveraging the truck's stability and power. Once positioned, the jib arm extends or swivels to reach the desired location. The electric winch then lifts or lowers the load via the cable and hook. The remote control allows for fine adjustments, ensuring the load is safely maneuvered.
Common applications include:
- Construction: Loading and unloading building materials, tools, and small machinery at job sites.
- Utilities: Handling transformers, poles, and other heavy equipment for installation or repair.
- Agriculture: Moving feed bags, equipment, or harvested produce.
- Field Service: Assisting technicians with heavy component removal and installation in various industries.
- Logistics & Delivery: Facilitating the transfer of heavy cargo to and from pickup truck beds.
Advantages:
The primary advantages of this integrated system are its exceptional mobility, versatility, and the ability to operate independently of external power sources (using the truck's battery). It significantly reduces manual labor, enhances safety through remote operation, and improves efficiency for tasks requiring on-demand, flexible lifting capabilities.
