American Steam Locomotive Engine Low-poly 3D model

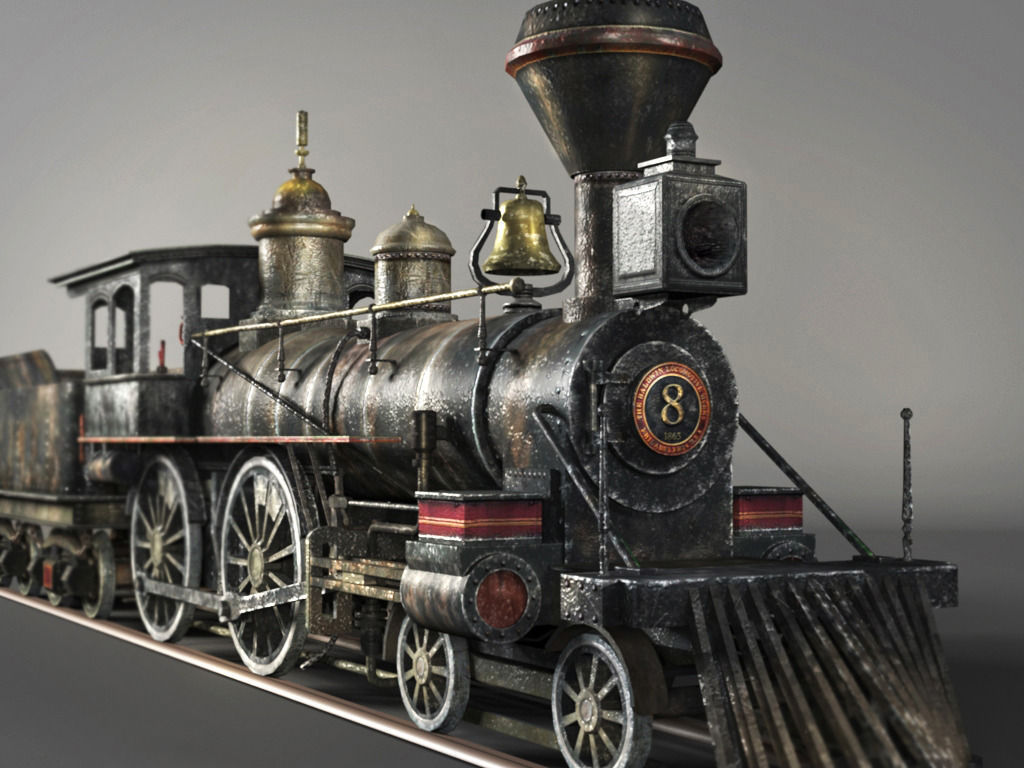

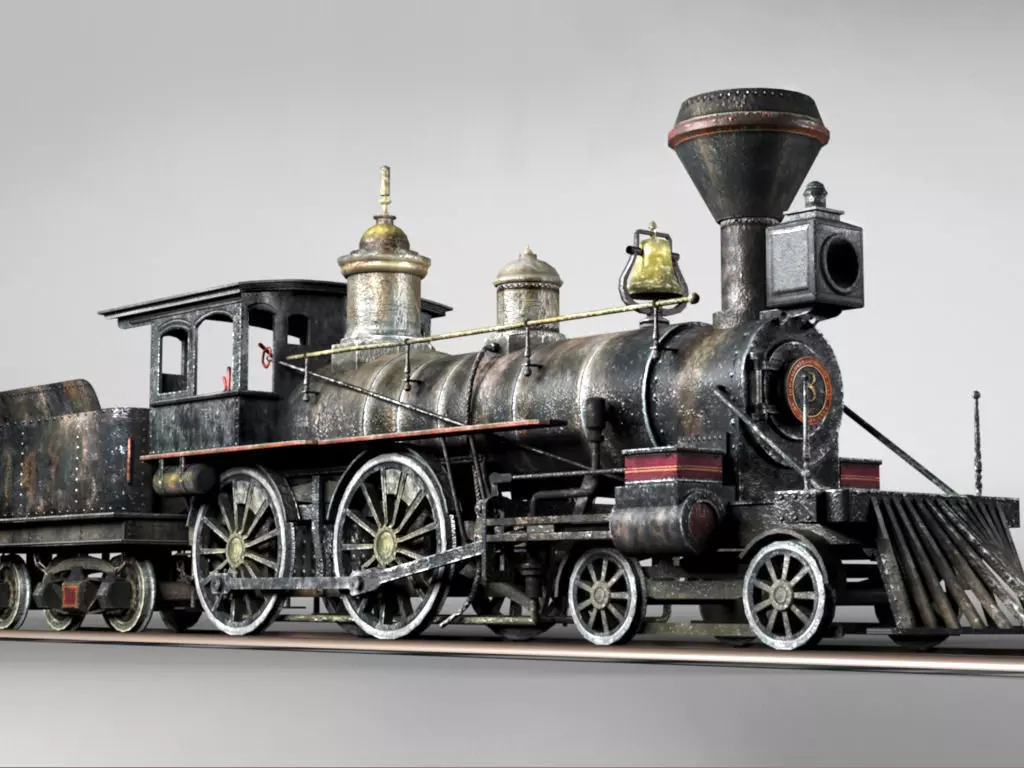

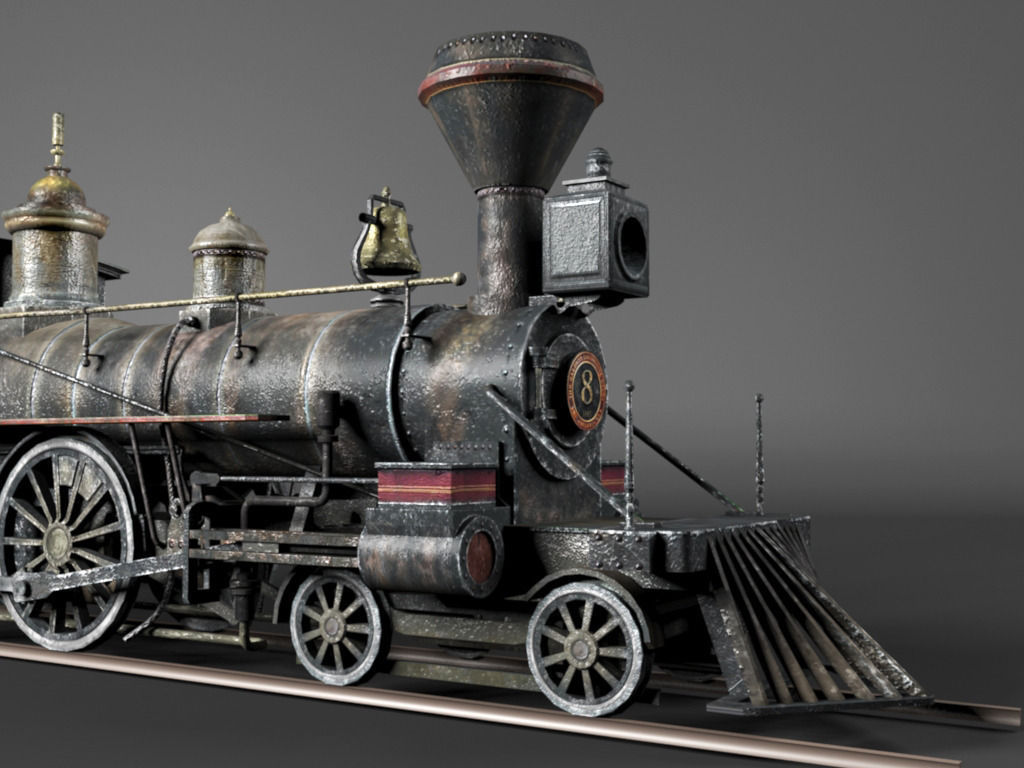

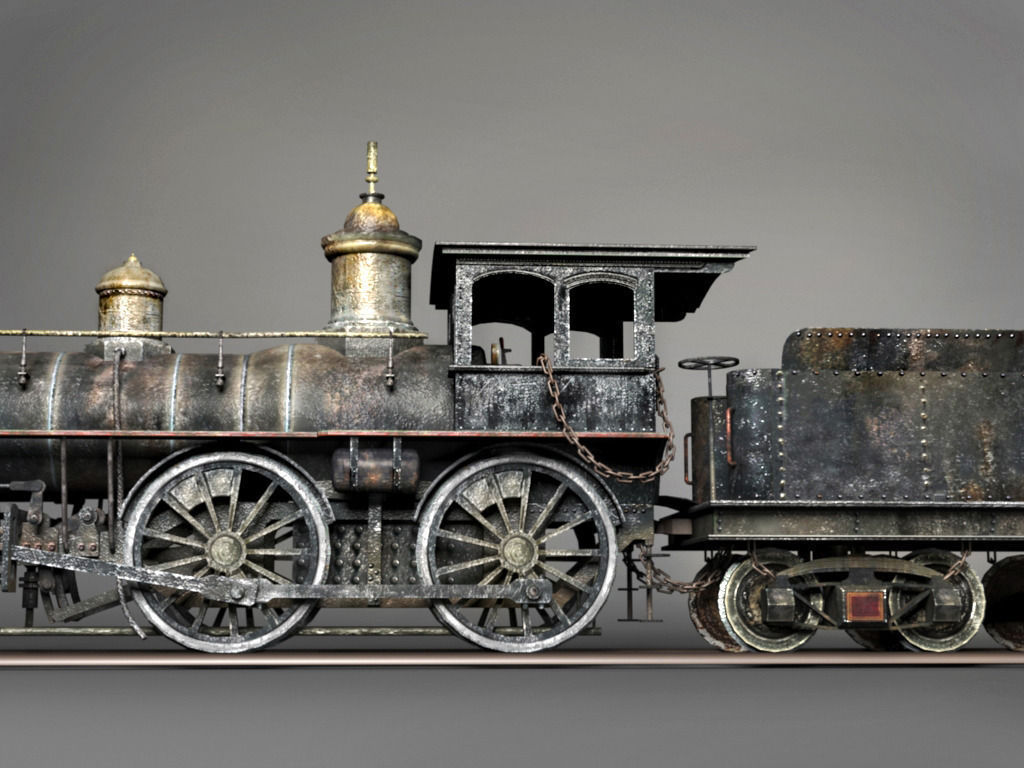

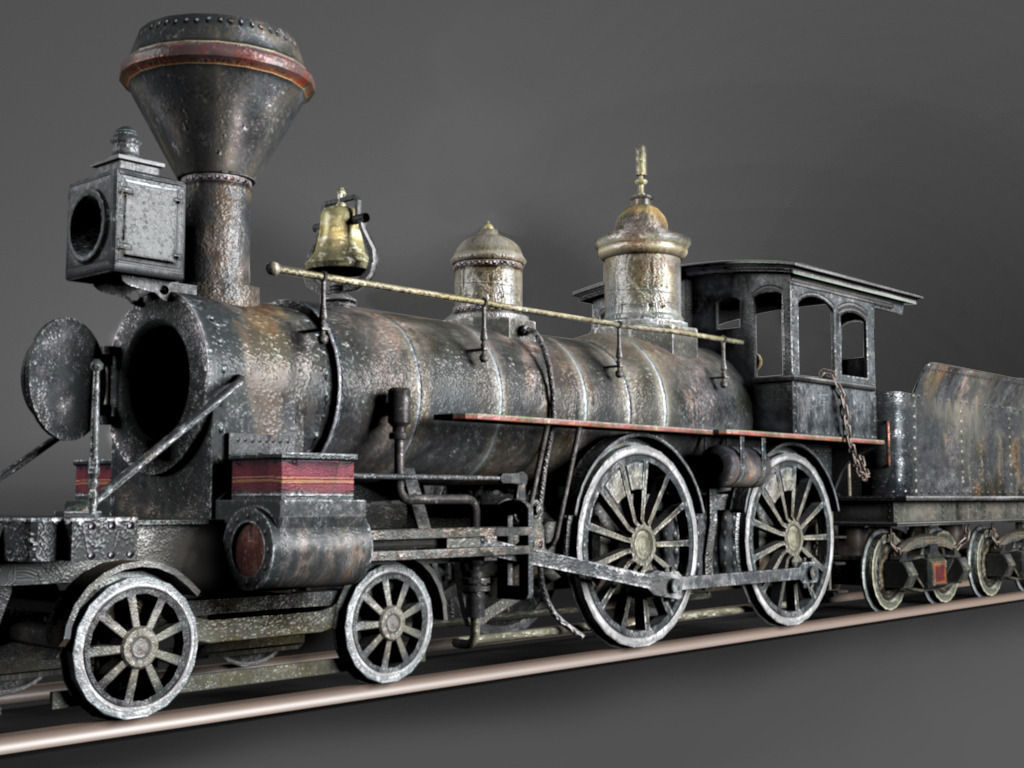

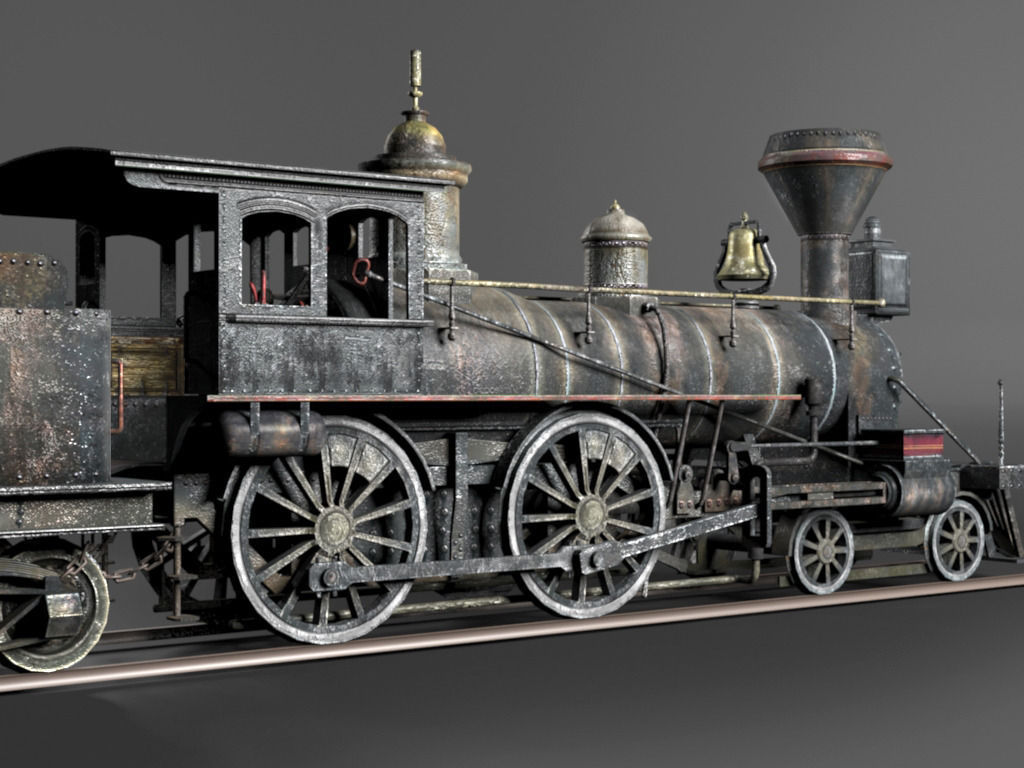

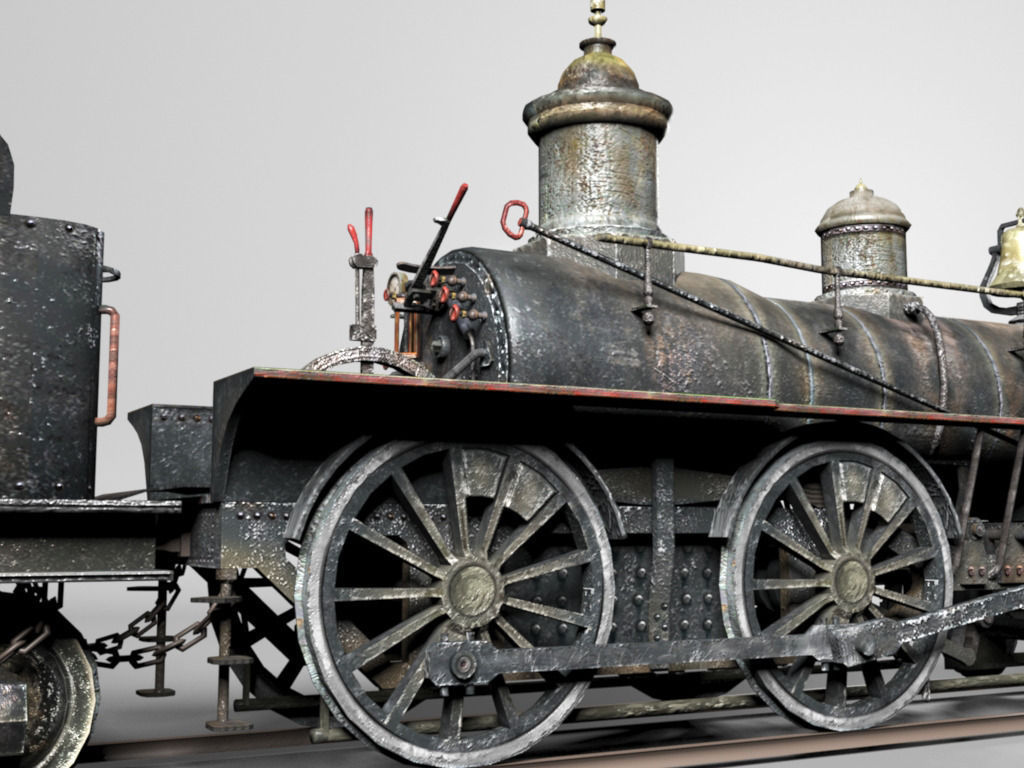

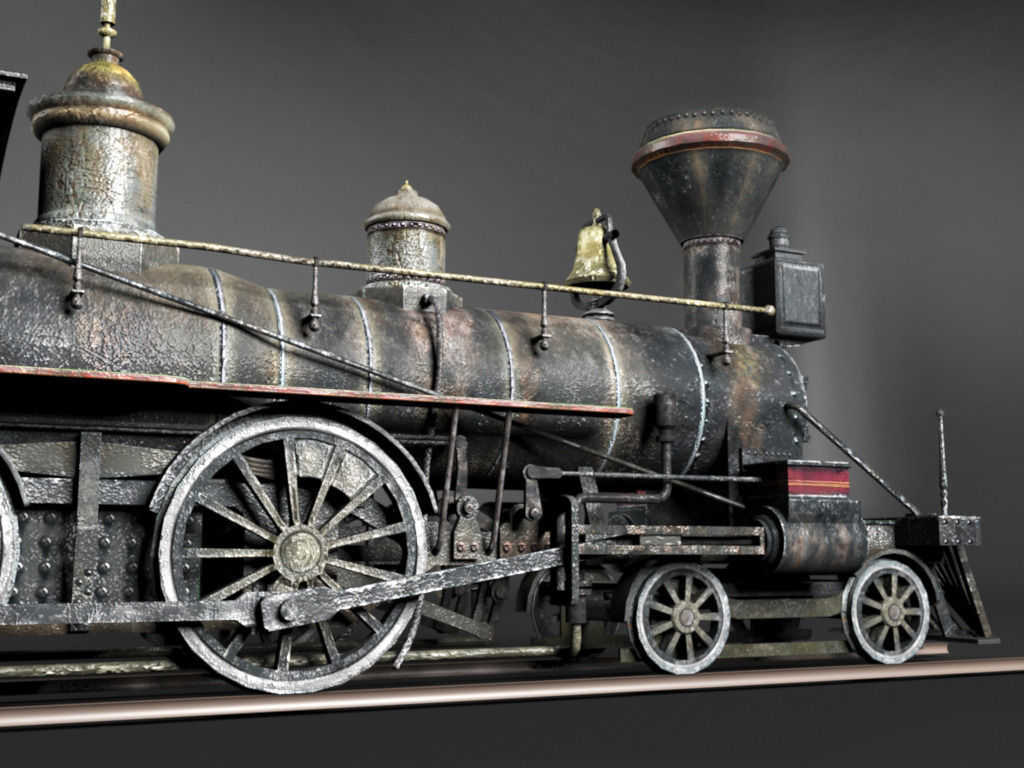

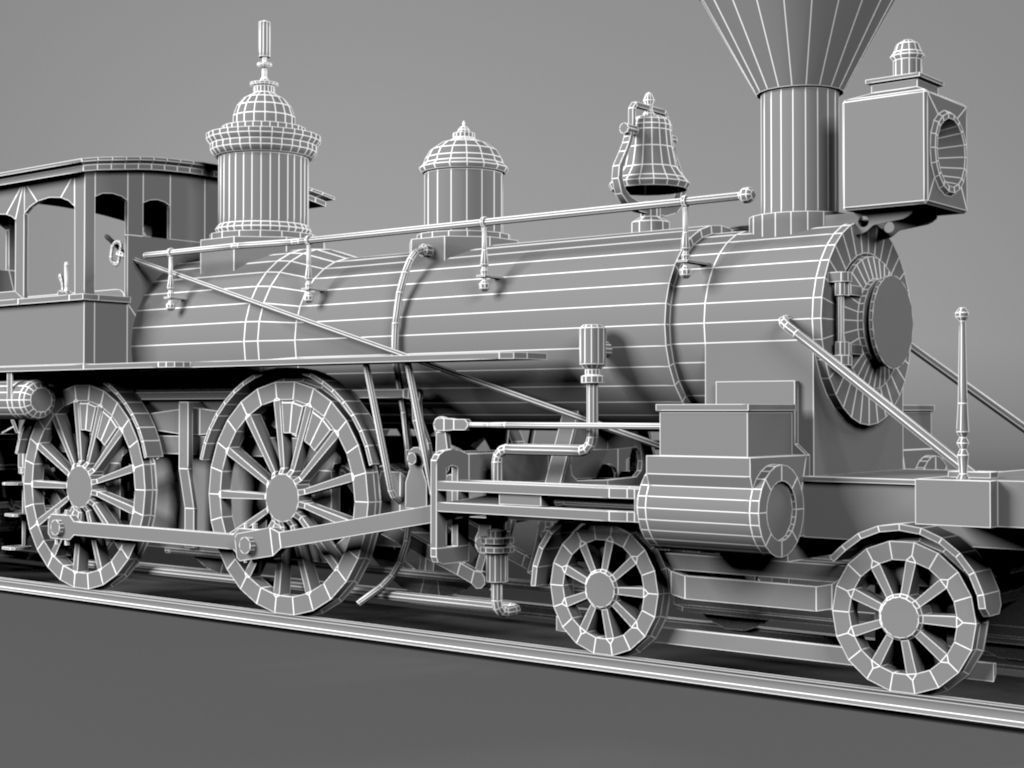

Historical American 4-4-0 steam locomotive from 1865, complete with accurate components, valve gear, pipes and cab controls. Built and UV Mapped in 3DS Max 2013, rendered in Mental Ray.

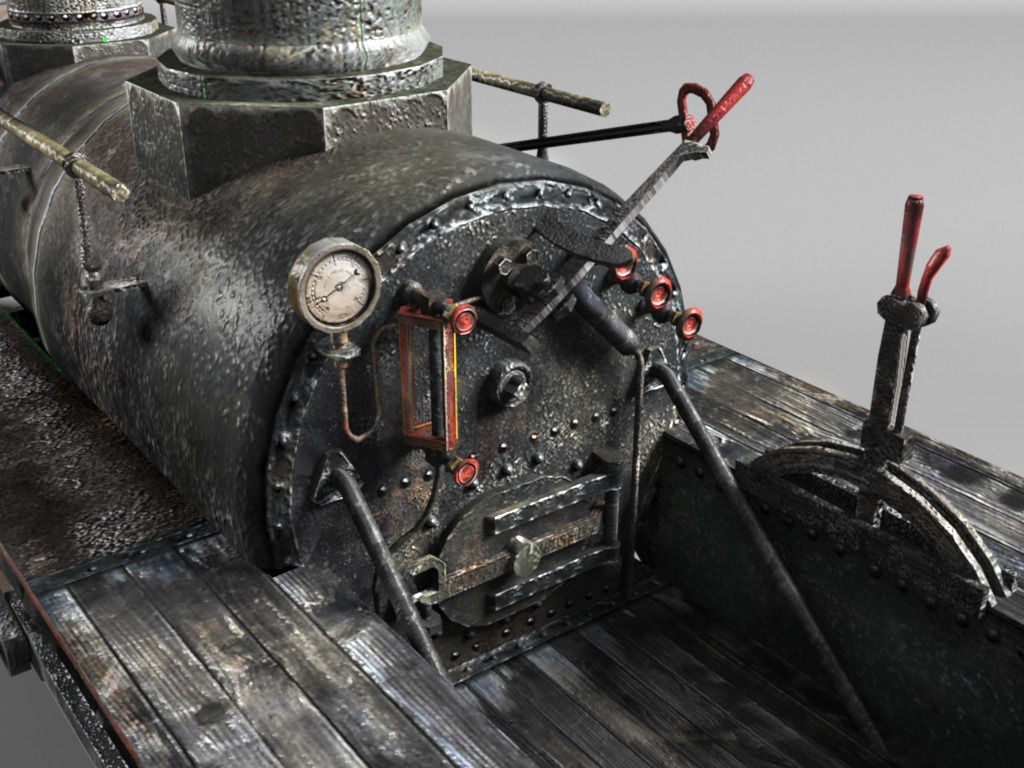

This isn't a model of any specific locomotive, but it accurately reflects American steam locomotive construction from the period. Model includes accurate frames, injector pipes and driving gear mechanism, with each component separated and named. This is one of the few models available that includes accurate cab controls (for the engineer and fireman).

Scale model has been UV Mapped and the textures - diffuse, specular and bump - have all been included in jpeg format in the RAR file. The textures give the locomotive a weathered, industrial look - somewhat rusty on top and dirty underneath. This was done on purpose to make the old engine look more realistic.

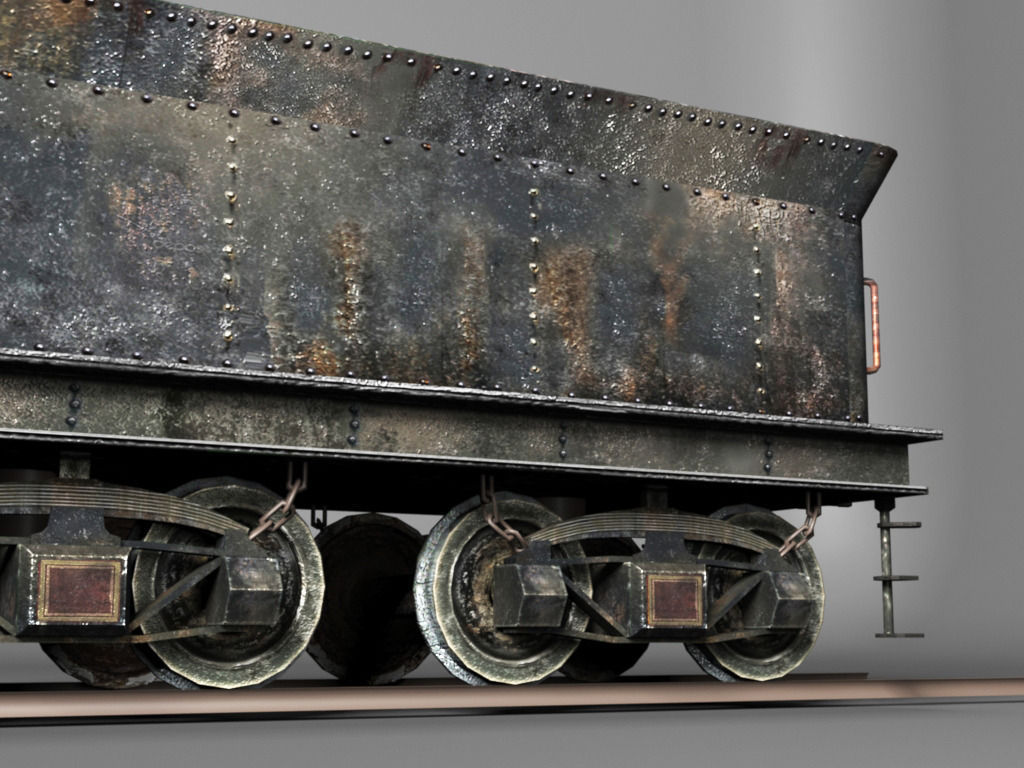

How To Add The Textures Open the .max model in 3DS Max. Select the locomotive. Go the Slate Material Editor... add the diffuse, specular and bump maps. Do the same for the Tender. A few less important objects (like the chains and tracks) have a simple material applied to them - these are not texture mapped. The loco and tender have their own separate texture files.

Note: Make sure you have a fast enough machine that can handle 4048x4048 textures, or you may have to reduce the texture size. A set of secondary textures located in the texture folder have been converted to a lower bitmap quality and take up less space. This model does not support sub-division.

    Item Rating20
    American Steam Locomotive Engine
    $25.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 76% in 3.0h
    3D model formats
    • 3D Studio (.3ds)219 KB
    • 3ds Max 2013 (.max)637 KBVersion: 2013Renderer: Mental Ray
    • Autodesk FBX (.fbx)2.1 MB
    • OBJ (.obj, .mtl) (2 files)-
    • Stereolithography (.stl) -
    3D model details
    • Publish date2015-06-06
    • Model ID#132848
    • Animated
    • Rigged
    • VR / AR / Low-poly approved
    • PBR

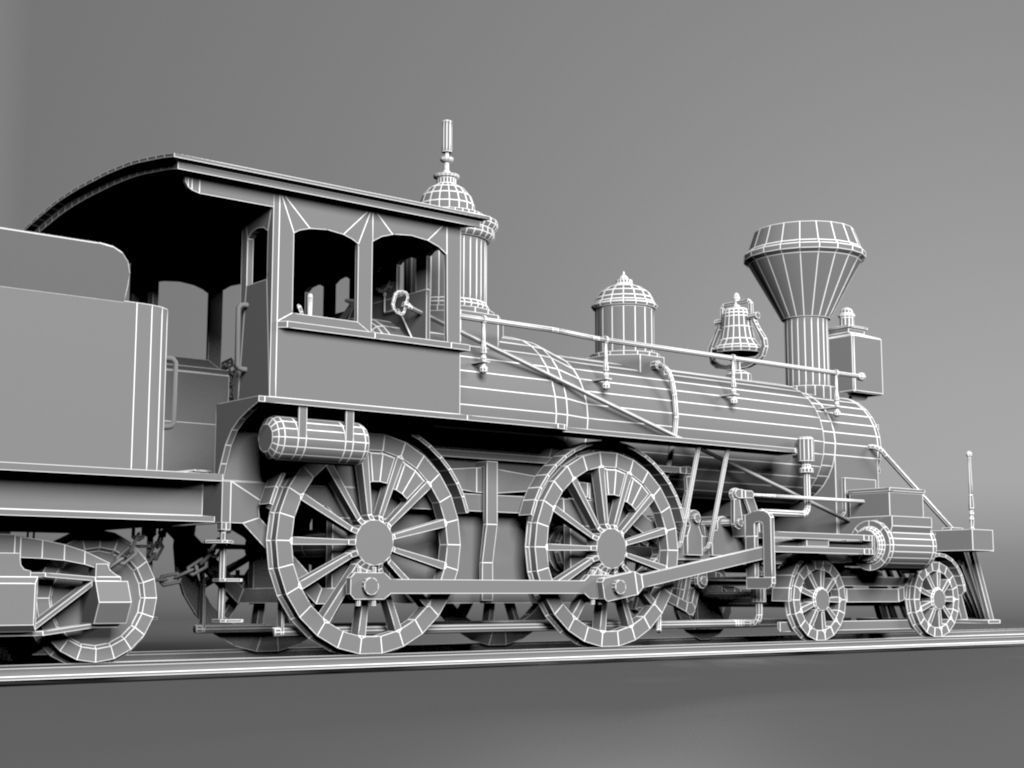

    • Geometry Polygon mesh
    • Polygons 18,558
    • Vertices 21,803
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs
    • Plugins used
