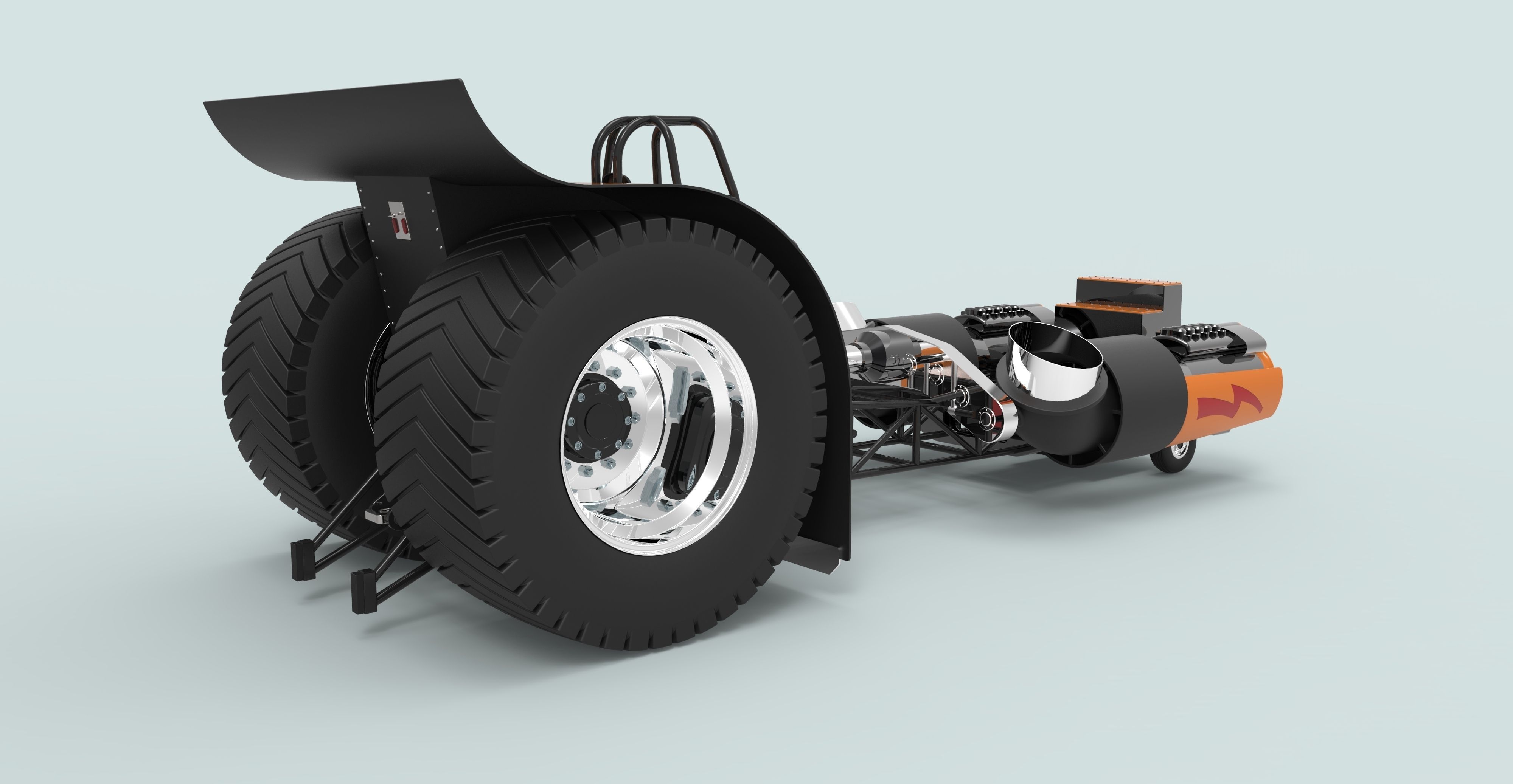

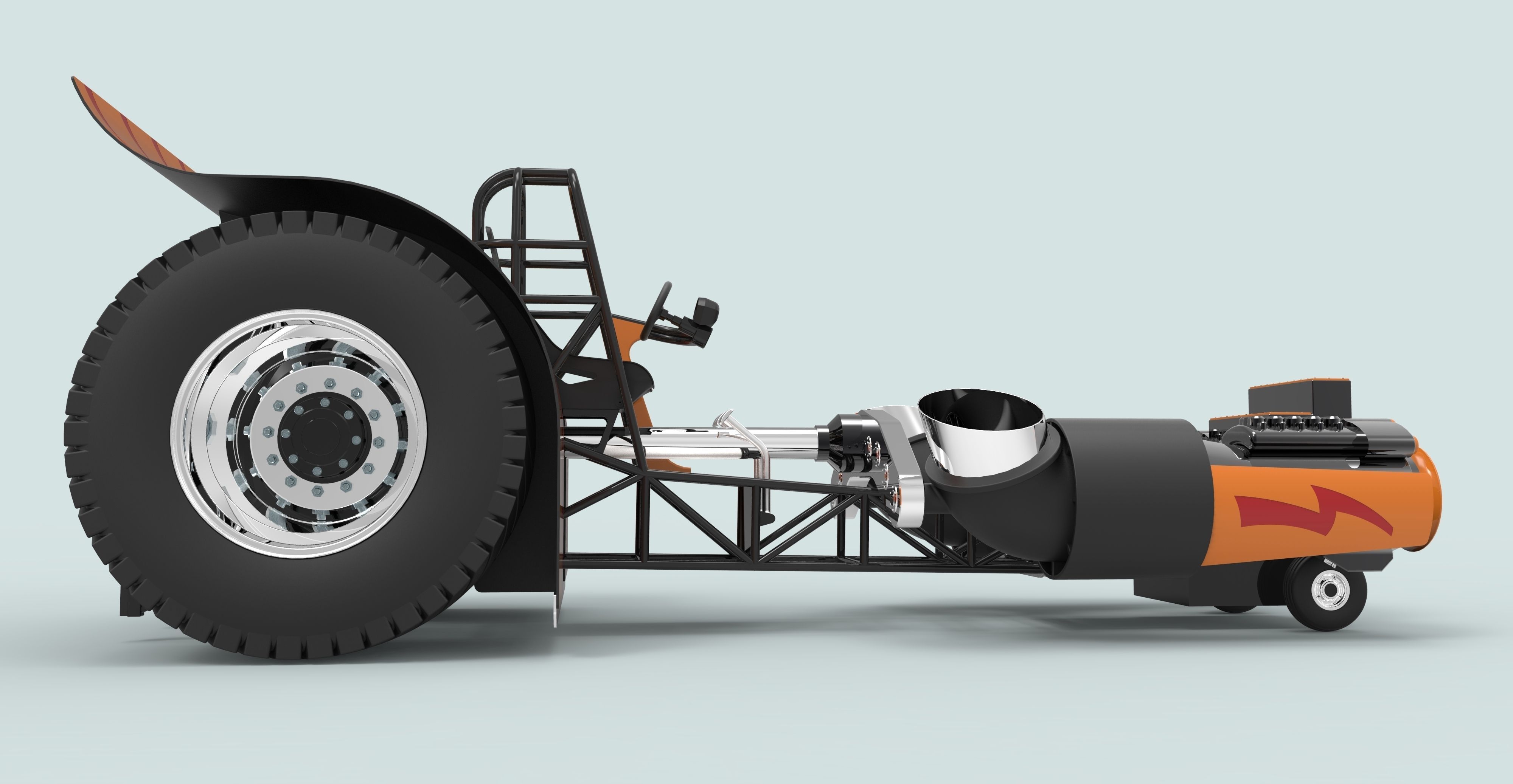

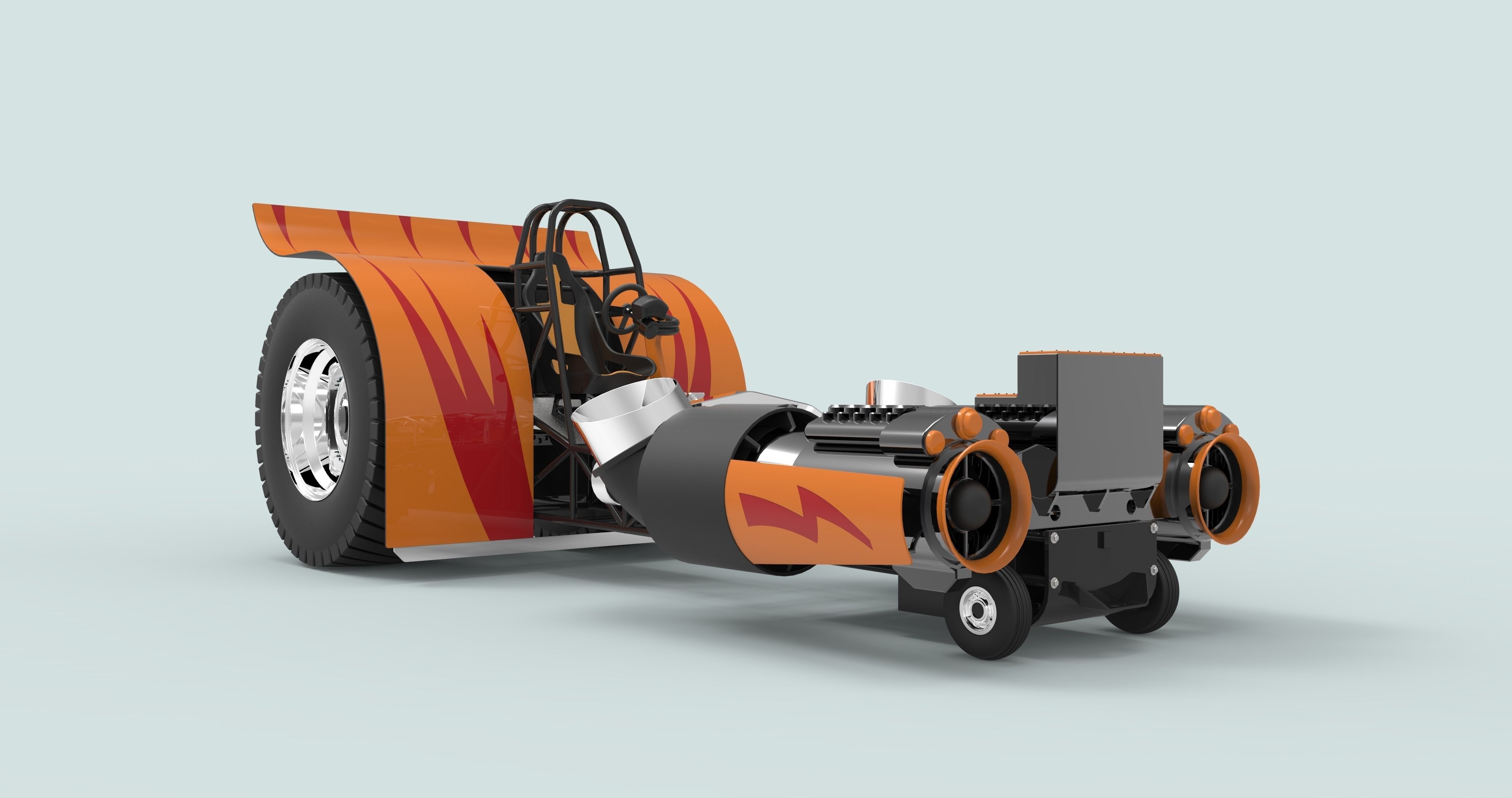

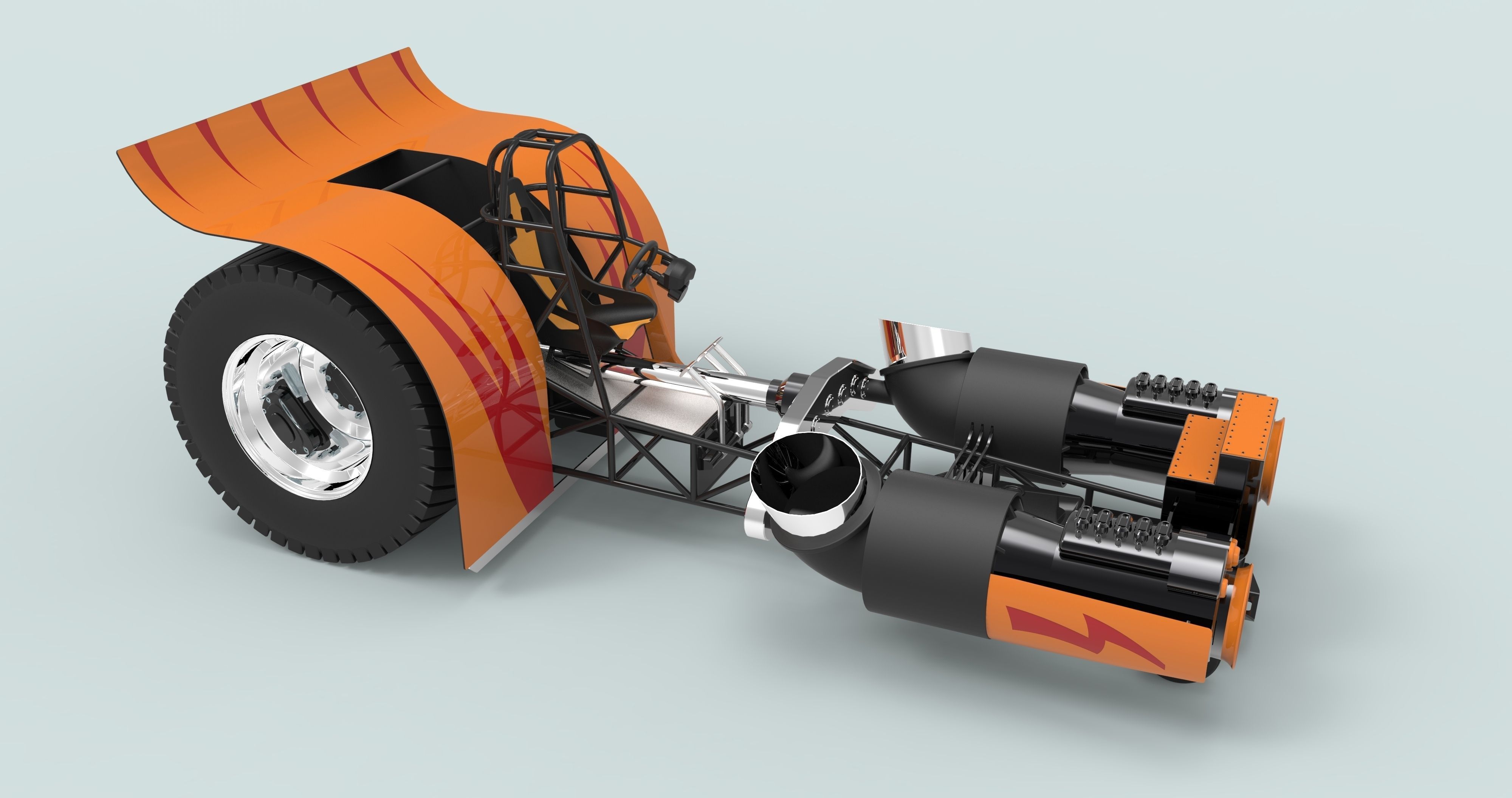

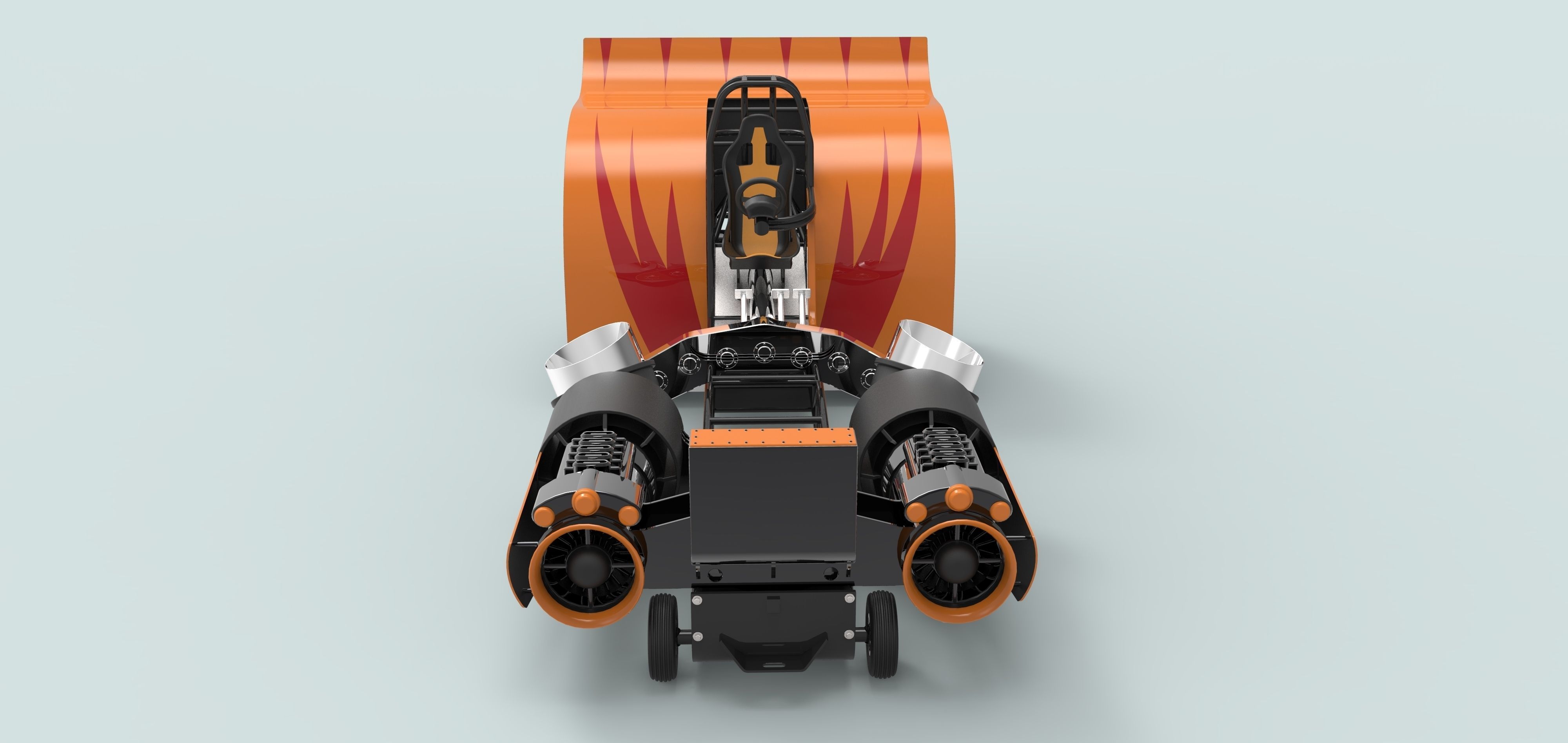

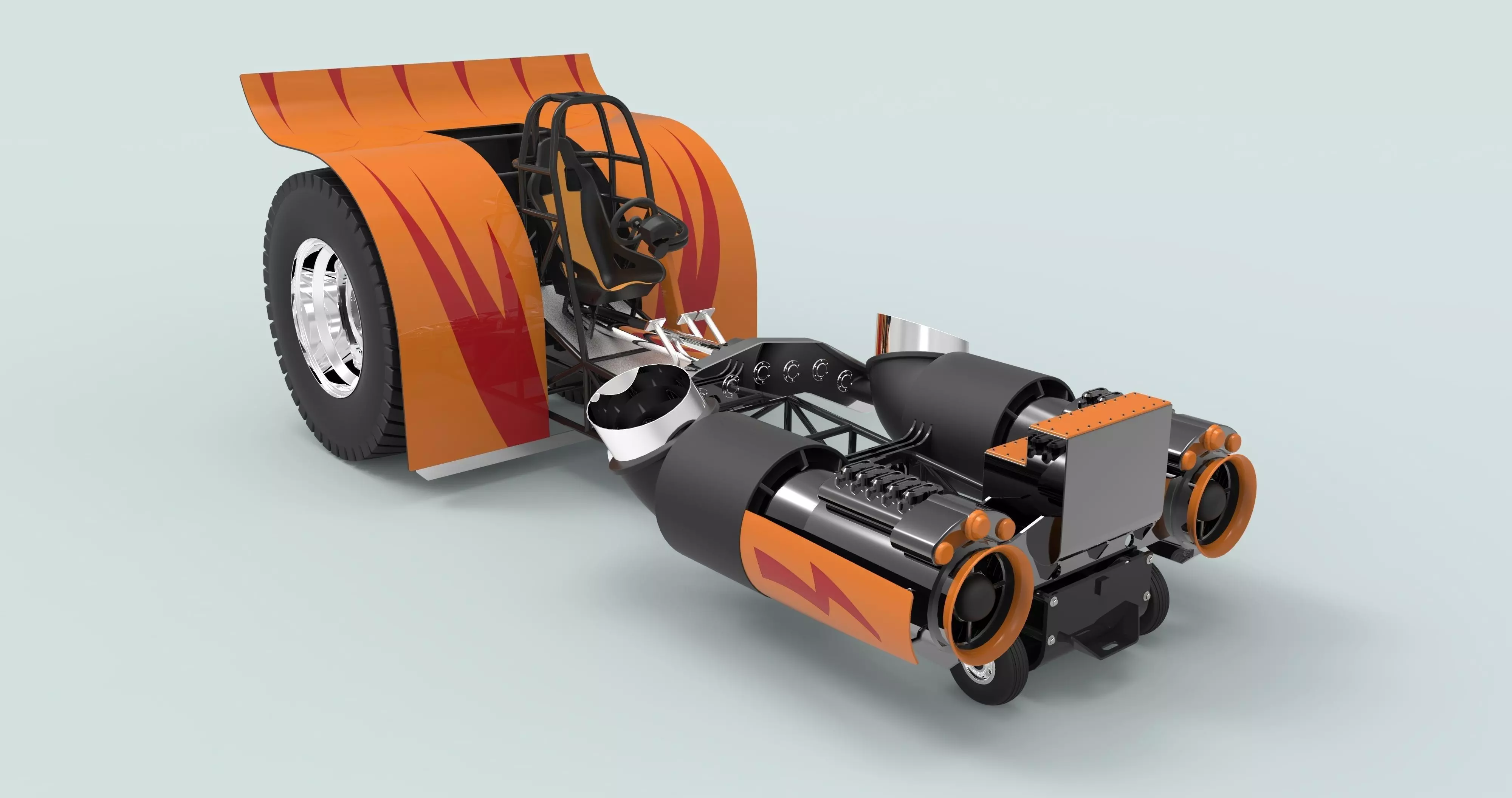

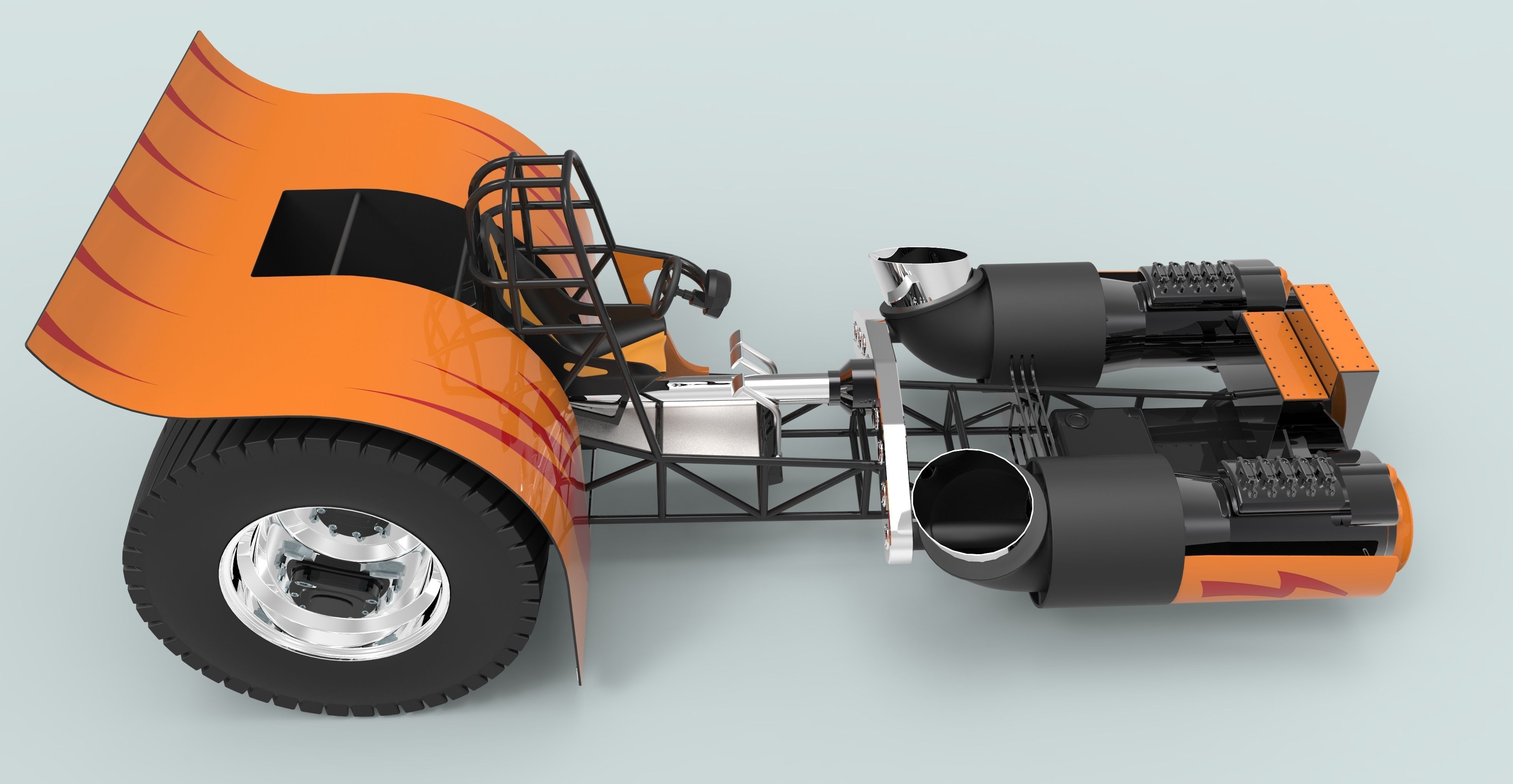

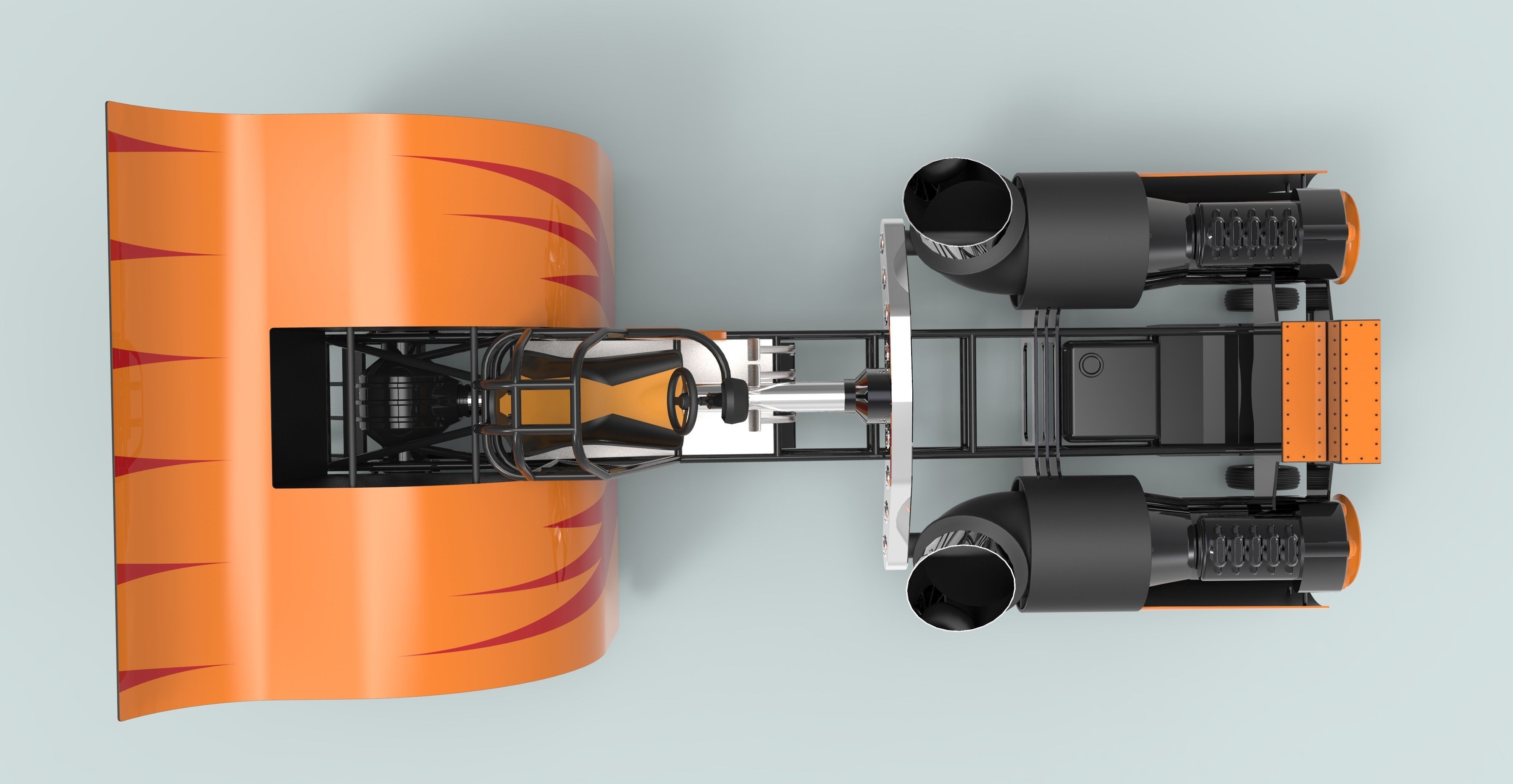

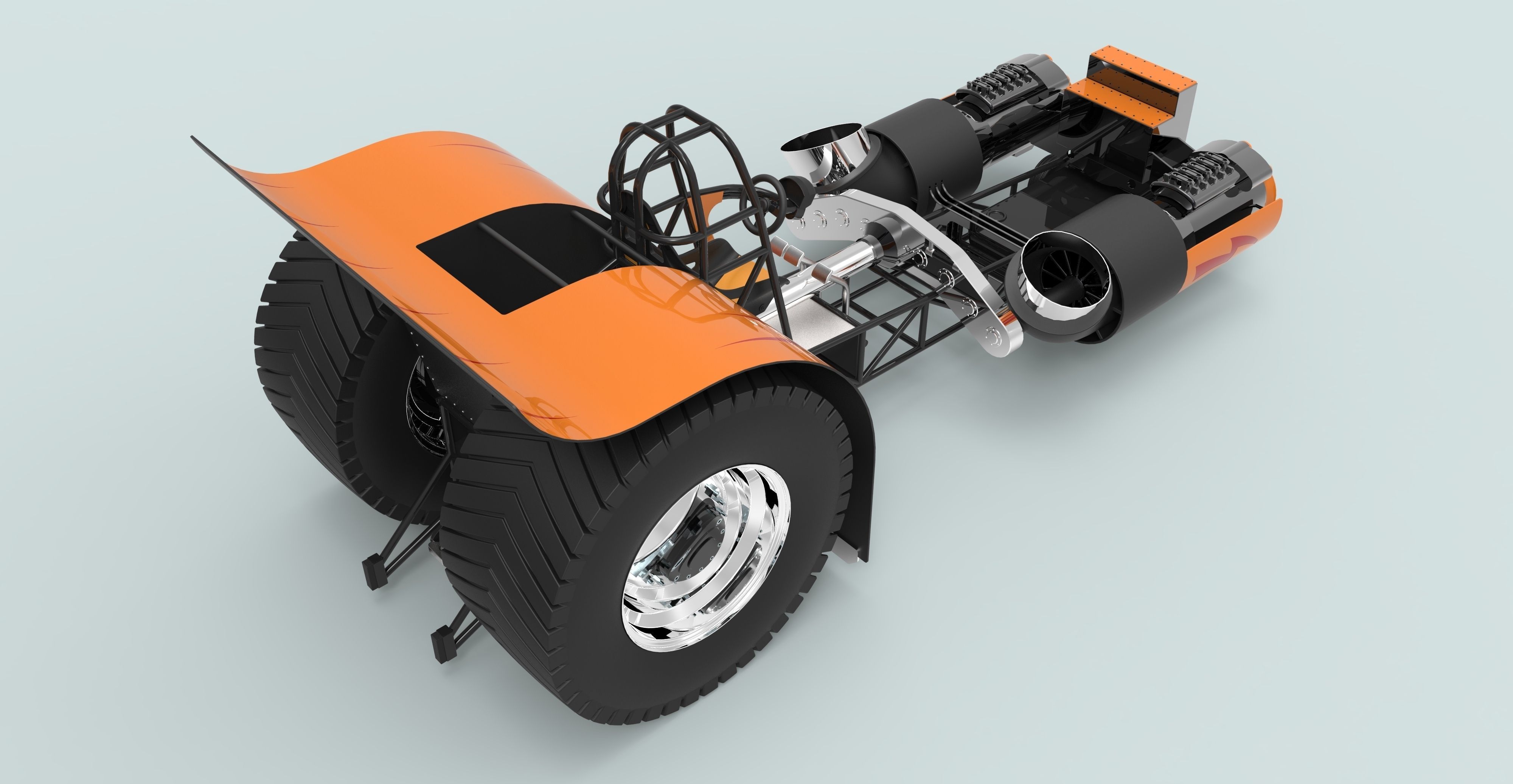

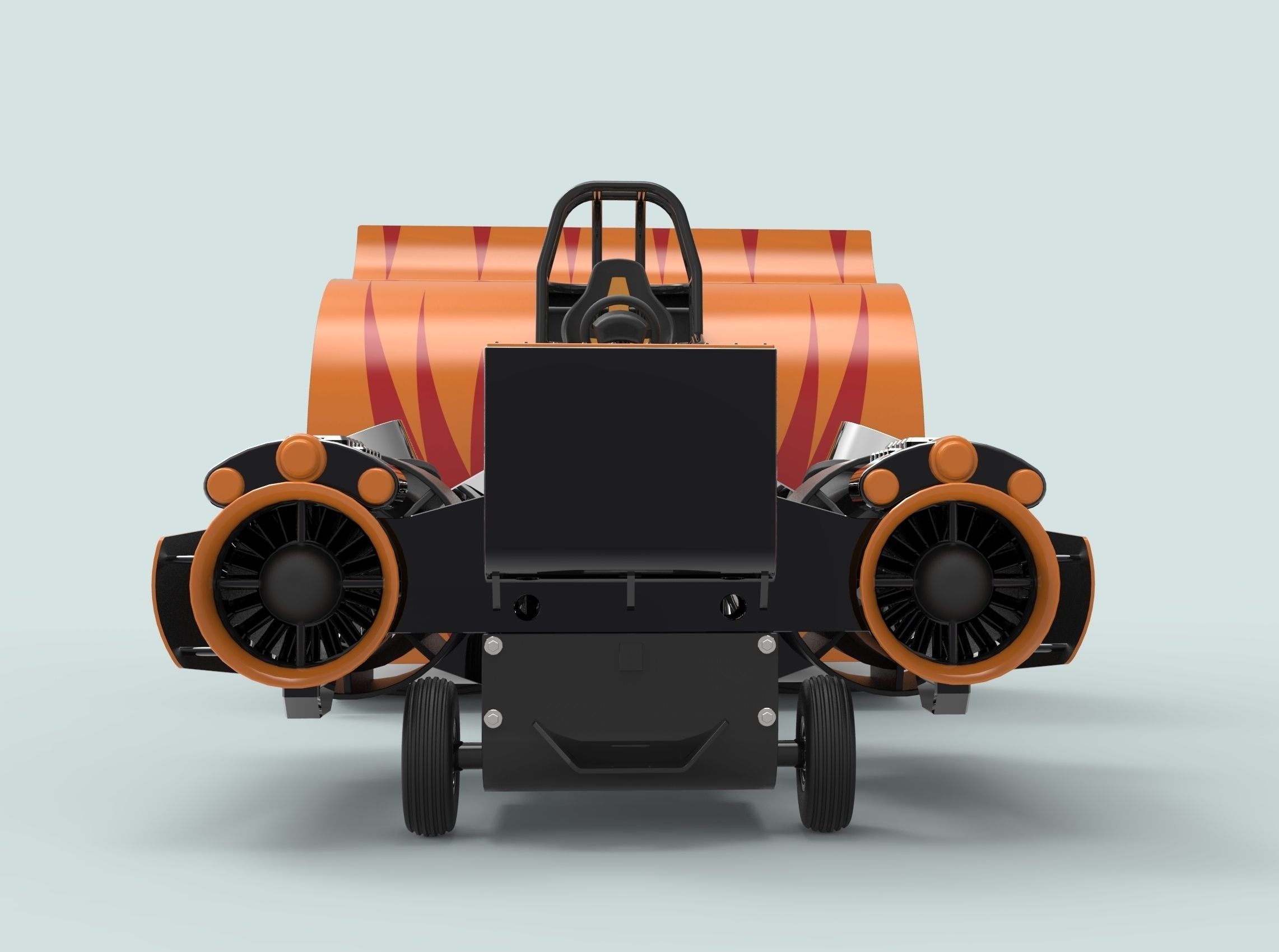

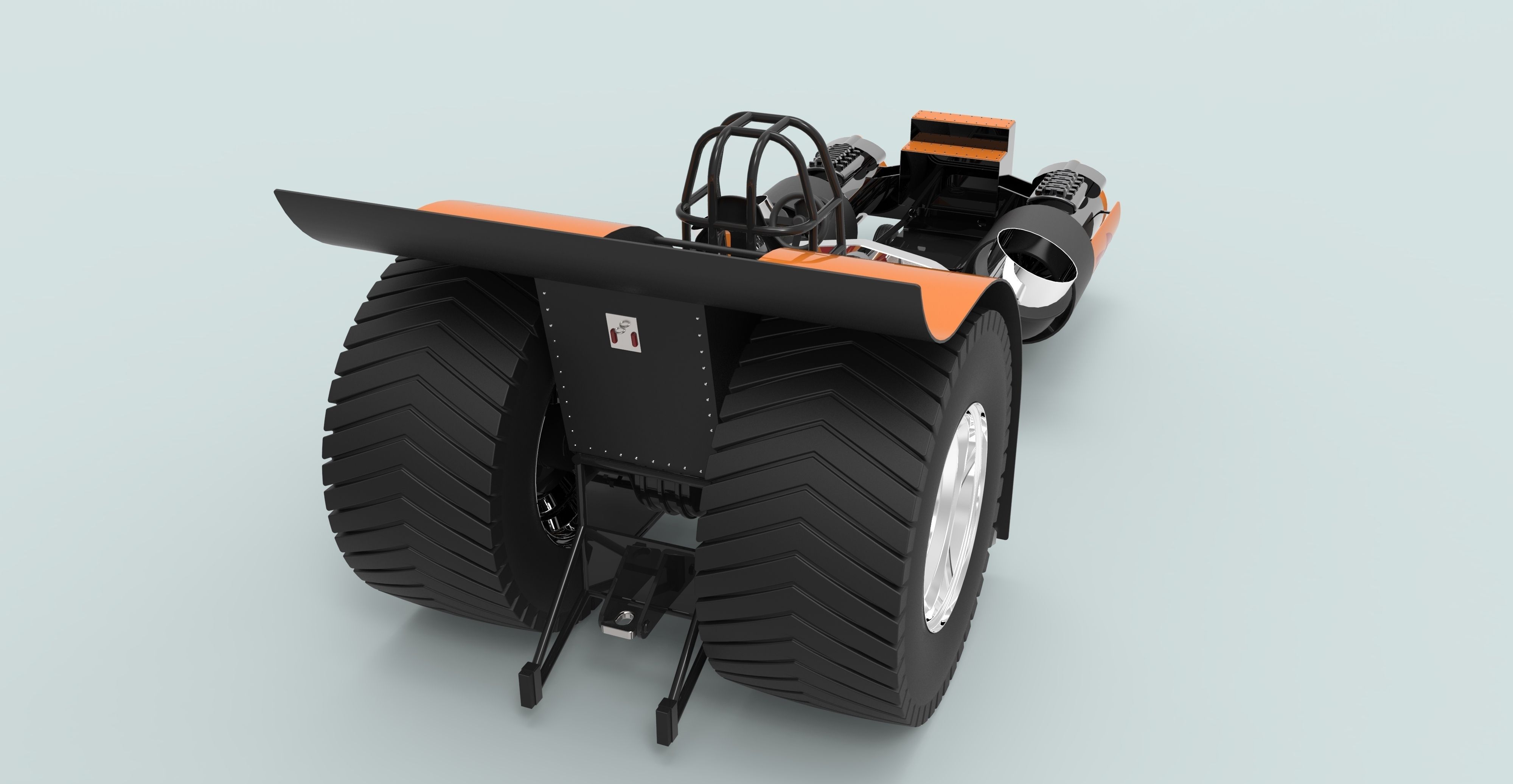

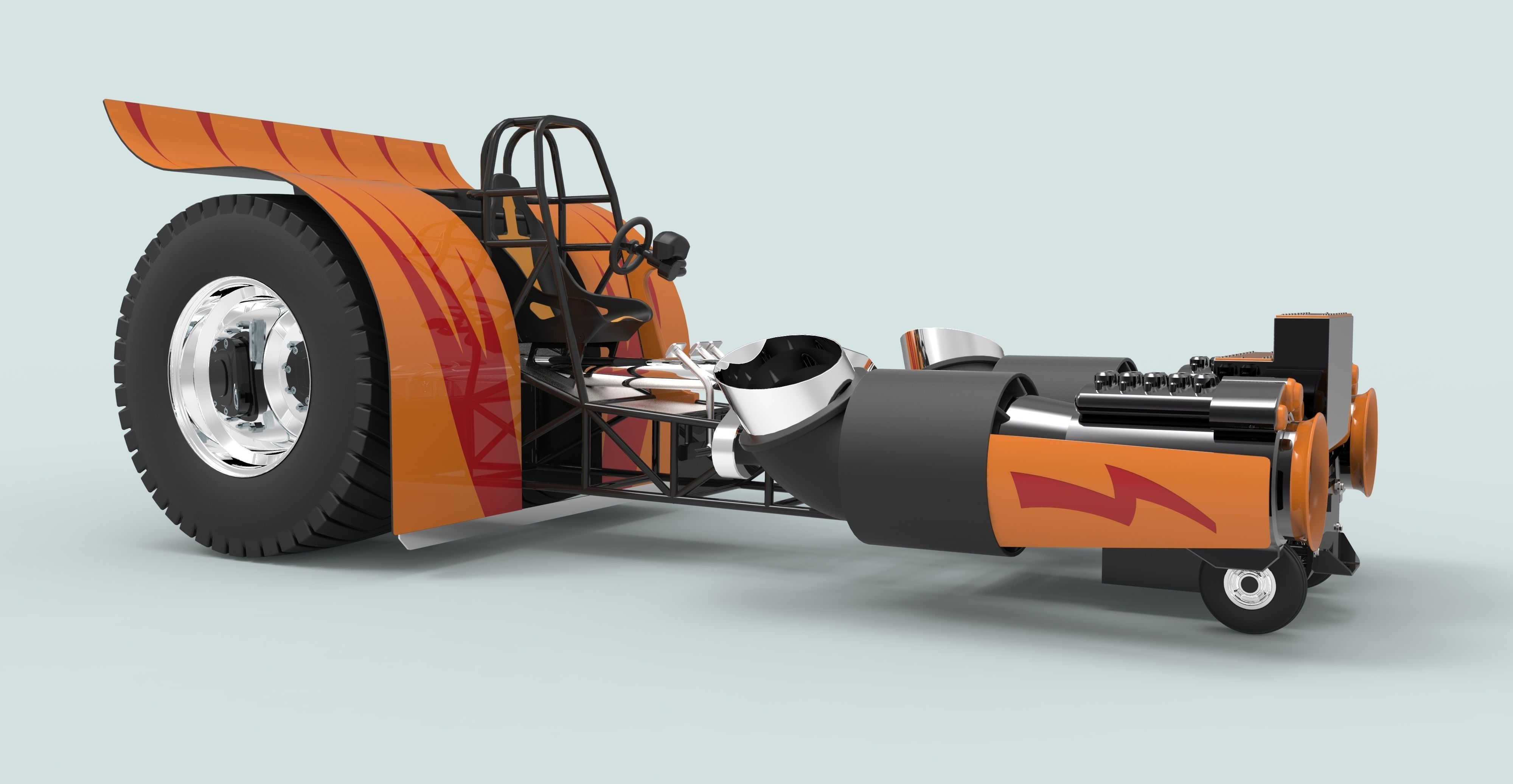

Jet pulling tractor 3D model

Truck and Tractor pulling, also known as power pulling, is a motorsport competition, popular in United States, Europe (especially in the Netherlands, Denmark and Germany), Australiaand Brazil, and New Zealand which requires modified tractors to pull a heavy sled along a 35 foot wide, 330 foot long track, with the winner being the tractor that pulls the sled the farthest. The sport is known as the world's most powerful motorsport, due to the multi-engined modified tractor pullers.
All tractors in their respective classes pull a set weight in the sled. When a tractor gets to the end of the 100 metre track, this is known as a "full pull". When more than one tractor completes the course, more weight is added to the sled, and those competitors that moved past 300 feet will compete in a pull-off; the winner is the one who can pull the sled the furthest.
The sled is known as a weight transfer sled. This means that as it is pulled down the track, the weight is transferred (linked with gears to the sled’s wheels) from over the rear axles and towards the front of the sled. In front of the rear wheels, there is a "pan". This is essentially a metal plate and as the weight moves over this the resistance builds. The further the tractor pulls the sled, the more difficult it gets.
The most powerful tractors, such as those in the 4.5 modified class in Europe, can produce over 10,000 horsepower.


Model dimensions:
- length - 5207 mm
- width - 2300 mm
- height - 2035 mm

Designed in Solid Works 2012, rendered in Keyshot 5.0.99.

Useful links:
https://en.wikipedia.org/wiki/Tractor_pulling
https://www.youtube.com/watch?v=ZHqoNiQ2e10
https://www.youtube.com/watch?v=J1aTCZ8NPhQ
https://www.youtube.com/watch?v=bFzd5Wl3Bxk

*All prices are exclusive of VAT.
$63.00
Offer your price
License:
Designer response: 91% in 0.6h
Available formats
  • Other -
  • IGES (.ige, .igs, .iges) 83.8 MB
  • Alias/WaveFront Material (.mtl) 5.04 KB
  • OBJ (.obj) 178 MB
  • Stereolithography (.stl) 43.1 MB
  • Step (.stp) 55.9 MB
  • SolidWorks 2012 (.sldprt, .sldasm, .slddrw) 39.6 MB
More details
  • Publish date2016-02-17
  • Model ID#252953
  • Animated No
  • Rigged No
  • VR / AR / Low-poly No
  • PBR No
  • Geometry -
  • Polygons 0
  • Vertices -
  • Textures No
  • Materials No
  • UV Mapping No
  • Unwrapped UVs
  • Plugins used No
