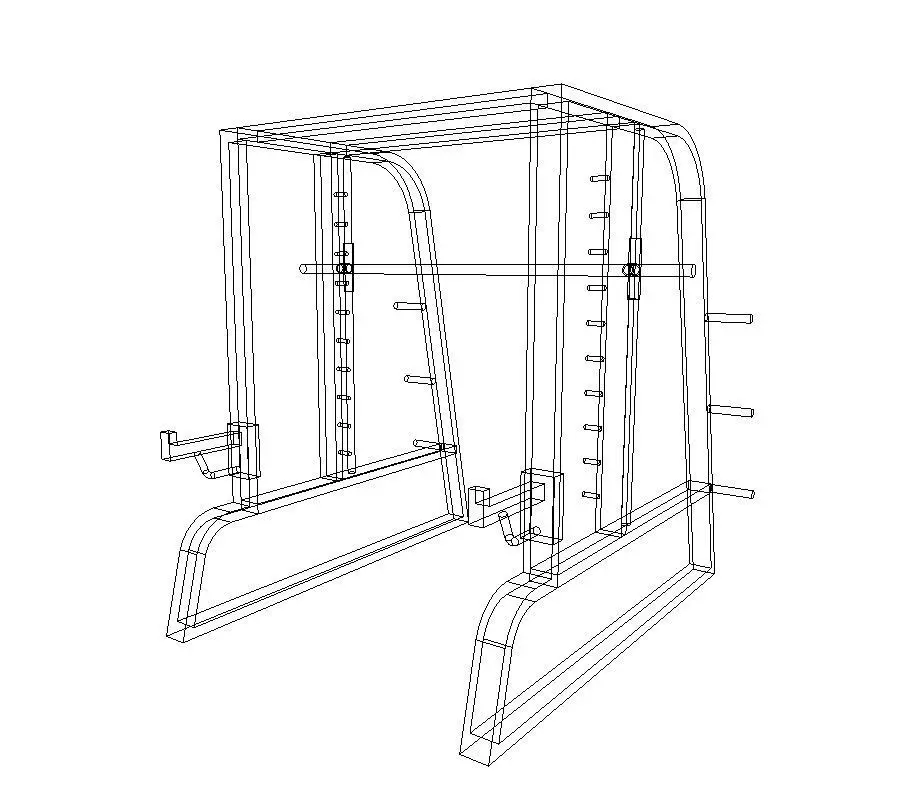

This is a clean, functional Revit Family (.rfa) of a standard Smith Machine, designed specifically for architectural interior planning and gym layout design.

Key Features & Intended Use:

LOD 200 (Level of Development): This model is intended as a basic representation of the equipment. It accurately reflects the overall volumetric dimensions, the frame structure, and the guided barbell position for spatial planning.

Space Planning: Perfect for architects and designers who need to dimension gym floors, check overhead clearances, and ensure proper spacing between weightlifting stations without using heavy, high-poly files.

Clean Geometry: The family is lightweight and optimized. It has been purged of unused elements to ensure efficient performance in larger BIM models.

Visualization: While basic, it includes standard material assignments (metal frame, bar, and safety catches) suitable for shaded views and mid-range architectural renders.

Technical Details:

Native File: Revit Family (.rfa)

Revit Version: Saved in Revit 2025

Additional Formats Included: .FBX and .OBJ (For use in 3ds Max, Blender, SketchUp, etc., as placeholder geometry).

Parametric: No (This is a static geometry model based on standard industry sizing).

Ideally suited for gym designers, architects, and BIM managers looking for reliable, low-impact content for layout purposes.
